NAVIERA BOURBON TAMAULIPAS

As far as one can gather this company is now a joint venture between Bourbon and the original Naviera Tamaulipas, a traditional Mexican offshore support vessel company, which was initiated in 2006. To the continued progress of the company Bourbon have contributed an anchor handler and two crew boats (Castor and Pollux not detailed here) and the Mexicans have contributed three platform ships. Pictures are a bit limited, according to the company website Naviera Tamaulipas operate some very small platform ships, which we have a couple of pictures of, but no other details.

At the time of revision in 2011 it appears that Bourbon have contributed a couple of newer vessels to this fleet.

At The time of the 2013 review it is impossible to tell whether the fleet has increased in size or not, or actually decreased, due to the size of the Bourbon fleet, which makes up at least part of this company. Maybe the information will be improved in the future.

At the February 2015 review it is evident from the company website that a number of ex Bourbon vessels have been added and well as a couple of more or less newbuildings. There are no ships on order specifically for the company.

Updated 10th February 2015

SHIP TYPE

NOW

ORDERED



AHTS Under 10000 bhp 3 -
AHTS 10000bhp to 20000bhp - -
AHTS 20000 bhp and over - -
Well stimulation vessels 1 -
Heavy lift ships - -
Pipelayers - -
IMR ships - -
PSVs deck less than 1000 m2 15 -
PSVs deck 1000 m2 + - -
SBSs/ERRVs - -



ANCHOR-HANDLERS

  TYPE: CONAN WU NAME: Bourbon Artemis   PHOTO:




GENERAL

PROPULSION

EQUIPMENT
Length OA 67.0 m Engines 2 Workdrum pull 250 t
Breadth 15.4 m BHP 10890 Capacity 1 2000m x 76mm
DWT 2100 t kW   Capacity 2
Deck area 420 m2 For'd Thruster 2 x 600kW Towdrum pull 250 t
Fuel 1230 m3 Az Thruster   Capacity 1 2000m x 76mm
Pot water 270 m3 Aft Thrusters 1 x 600kW Capacity 2
Mud 400 m3 Bollard pull 120 t Sharks Jaw 2
Brine 200 m3 DP DP 1 Cranes
Dry bulk 250 m3 Joystick   Tank cleaning
Year built/due 2006     Shipyard Keppel Sing
Previous names
Comments



  TYPE: CONAN WU NAME: BOURBON ARTABAZE   PHOTO:


GENERAL

PROPULSION

EQUIPMENT
Length OA 68.6 m Engines 2 Workdrum pull 250 t
Breadth 15.4 m BHP 10890 Capacity 1 2000m x 76mm
DWT 2100 t kW 8000 Capacity 2
Deck area 420 m2 For'd Thruster 2 x 600kW Towdrum pull 250 t
Fuel 1230 m3 Az Thruster   Capacity 1 2000m x 76mm
Pot water 270 m3 Aft Thrusters 1 x 600kW Capacity 2
Mud 356 m3 Bollard pull 124 t Sharks Jaw 2
Brine 200 m3 DPii Yes Cranes 1 x 2 t
Dry bulk 250 m3 Joystick   Tank cleaning
Year built/due 2009 Shipyard Keppel Sing Berths 30
Previous names
Comments



  TYPE: CONAN WU NAME: BOURBON ALIENOR   PHOTO:


GENERAL

PROPULSION

EQUIPMENT
Length OA 68.6 m Engines 2 Workdrum pull 250 t
Breadth 15.4 m BHP 10890 Capacity 1 2000m x 76mm
DWT 2100 t kW 8000 Capacity 2
Deck area 420 m2 For'd Thruster 2 x 600kW Towdrum pull 250 t
Fuel 1230 m3 Az Thruster   Capacity 1 2000m x 76mm
Pot water 270 m3 Aft Thrusters 1 x 600kW Capacity 2
Mud 356 m3 Bollard pull 133 t Sharks Jaw 2
Brine 200 m3 DPii Yes Cranes 1 x 2 t
Dry bulk 250 m3 Joystick   Tank cleaning
Year built/due 2012 Shipyard Keppel Sing Berths 36
Previous names
Comments

CONSTRUCTION AND OTHER VESSELS

TYPE: GPA 670 MkII NAME: PUNTA DELGADA PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 73.2 m Engines 3x Cummins QSK60 Fuel 2043 m3
Breadth 16.5 m BHP/kW 7503/5475 Pot water 579 m3
DWT 3000 mt

For'd Thrusters

 2 x 746 kW Mud 1072 m3
Deck area 675 m2 Az Thruster - Base oil 188 m3
Year built 2009 Aft Aziprops 2 x 1920 kW Brine -
Shipyard Zhejiang Joystick Yes Dry bulk 255 m3
Berths 40 DPII Yes Tank Cleaning -
Previous names -
Comments Apparently converted into a well stimulation vessel

PLATFORM SHIPS

TYPE: GPA 654B NAME: ROCA PARTIDA PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 2x Cummins KTA50
1x Cummins KTA19		 Fuel 480 m3
Breadth 14.0 m BHP/kW 3897/3135 Pot water 370 m3
DWT 1575 mt

For'd Thrusters

 2 x 560 kW Mud 640 m3
Deck area 376 m2 Az Thruster 1 x 843 kW Base oil -
Year built 2008 Aft Aziprops 2 x 843 kW Brine -
Shipyard Yangzhou Dayang Joystick Yes Dry bulk 170 m3
Berths 22 DPII Yes Tank Cleaning -
Previous names -
Comments -



TYPE: NAME: San Rafael PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 62.18 m Engines 2 x Cat 3516 Fuel 269 m3
Breadth 13.4 m BHP/kW 4000/2940 Pot water 50 m3
DWT 1750 t For'd Thrusters 1 x 300 bhp Mud -
Deck area - Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built 2000 Joystick - Dry bulk 102 m3
Shipyard Eastern Shipbdrs DP - Tank Cleaning -
Previous names -
Comments -



TYPE: K 202 NAME: Pionero PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 59.74 m Engines  2 x Cat 3516B Fuel -
Breadth 14.4 m BHP/kW 4000/2940 Pot water -
DWT 1800 t For'd Thrusters 2 x 600 bhp Mud -
Deck area - Az Thruster - Base oil -
    Aft Thrusters 1 x 600 bhp Brine -
Year built 2003 Joystick - Dry bulk -
Shipyard Bender DP - Tank Cleaning -
Previous names -
Comments -



TYPE: NAME: Bahia de Campeche PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.91 m Engines  2 x EMD 12V-645 Fuel -
Breadth 13.9 m BHP/kW 3000/2200 Pot water -
DWT 1800 t For'd Thrusters 1 x 480 Mud -
Deck area - Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built 1998 Joystick - Dry bulk -
Shipyard Leevac DP - Tank Cleaning -
Previous names -
Comments -



TYPE: Bourbon Liberty 100 Class NAME: El Mezquital PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel 779 m3
Breadth 14.0 m BHP/kW 4110/3022 Pot water 329 m3
Gross Tonnage 1517

For'd Thrusters

 2 x 560 kW Mud 527 m3
DWT 1519 mt Az Thruster - Base oil -
Deck area 360 m2 Aft Aziprops 2 x 843 kW Brine -
Year built - Joystick - Dry bulk 168 m3
Shipyard Dayang Shibuilding DPII Yes Berths 22
Previous names Bourbon Liberty 103
Comments -
Current Charter - Available - Location -



TYPE: Bourbon Liberty 100 Class NAME: Cabo Rojo PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel 779 m3
Breadth 14.0 m BHP/kW 4110/3022 Pot water 329 m3
Gross Tonnage 1517

For'd Thrusters

 2 x 560 kW Mud 527 m3
DWT 1519 mt Az Thruster - Base oil -
Deck area 360 m2 Aft Aziprops 2 x 843 kW Brine -
Year built 2009 Joystick - Dry bulk 168 m3
Shipyard Dayang Shibuilding DPII Yes Berths 22
Previous names Bourbon Liberty 113
Comments -
Current Charter - Available - Location -



TYPE: Bourbon Liberty 100 Class NAME: Zapotitlan PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel 779 m3
Breadth 14.0 m BHP/kW 4110/3022 Pot water 329 m3
Gross Tonnage 1517

For'd Thrusters

 2 x 560 kW Mud 527 m3
DWT 1519 mt Az Thruster - Base oil -
Deck area 360 m2 Aft Aziprops 2 x 843 kW Brine -
Year built 2009 Joystick - Dry bulk 168 m3
Shipyard Dayang Shibuilding DPII Yes Berths 22
Previous names Bourbon Liberty 114
Comments -
Current Charter - Available - Location -



TYPE: Bourbon Liberty 100 Class NAME: Zapotitlan PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel 779 m3
Breadth 14.0 m BHP/kW 4110/3022 Pot water 329 m3
Gross Tonnage 1517

For'd Thrusters

 2 x 560 kW Mud 527 m3
DWT 1519 mt Az Thruster - Base oil -
Deck area 360 m2 Aft Aziprops 2 x 843 kW Brine -
Year built 2009 Joystick - Dry bulk 168 m3
Shipyard Dayang Shibuilding DPII Yes Berths 22
Previous names Bourbon Liberty 114
Comments -
Current Charter - Available - Location -



TYPE: Bourbon Liberty 100 Class NAME: Nautla PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel 779 m3
Breadth 14.0 m BHP/kW 4110/3022 Pot water 329 m3
Gross Tonnage 1517

For'd Thrusters

 2 x 560 kW Mud 527 m3
DWT 1519 mt Az Thruster - Base oil -
Deck area 360 m2 Aft Aziprops 2 x 843 kW Brine -
Year built 2008 Joystick - Dry bulk 168 m3
Shipyard Dayang Shibuilding DPII Yes Berths 22
Previous names Bourbon Liberty 112
Comments -
Current Charter - Available - Location -



TYPE: NAME: Altmira PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 61.8 m Engines - Fuel -
Breadth 14.0 m BHP/kW - Pot water -
Gross Tonnage 1764

For'd Thrusters

 - Mud -
DWT 1700 mt Az Thruster - Base oil -
Deck area - Aft Thrusters - Brine -
Year built - Joystick - Dry bulk -
Shipyard Zhejiang DPII Yes Berths 24
Previous names Bourbon Liberty 158
Comments -
Current Charter - Available - Location -



TYPE: NAME: Alverado PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 61.8 m Engines - Fuel -
Breadth 14.0 m BHP/kW - Pot water -
Gross Tonnage 1764

For'd Thrusters

 - Mud -
DWT 1700 mt Az Thruster - Base oil -
Deck area - Aft Thrusters - Brine -
Year built 2013 Joystick - Dry bulk -
Shipyard Zhejiang DPII Yes Berths 24
Previous names Bourbon Liberty 159
Comments -
Current Charter - Available - Location -



TYPE: NAME: Xicalango PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 73.2 m Engines - Fuel -
Breadth 16.5 m BHP/kW - Pot water -
Gross Tonnage 2542

For'd Thrusters

 - Mud -
DWT 3000 mt Az Thruster - Base oil -
Deck area - Aft Thrusters - Brine -
Year built 2007 Joystick - Dry bulk -
Shipyard - DP - Berths 40
Previous names -
Comments -
Current Charter - Available - Location -



TYPE: NAME: Punta Jerez PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 73.2 m Engines - Fuel -
Breadth 16.5 m BHP/kW - Pot water -
Gross Tonnage 2321

For'd Thrusters

 - Mud -
DWT 3205 mt Az Thruster - Base oil -
Deck area - Aft Thrusters - Brine -
Year built 2008 Joystick - Dry bulk -
Shipyard Zhejiang DP - Berths 24
Previous names -
Comments -
Current Charter - Available - Location -

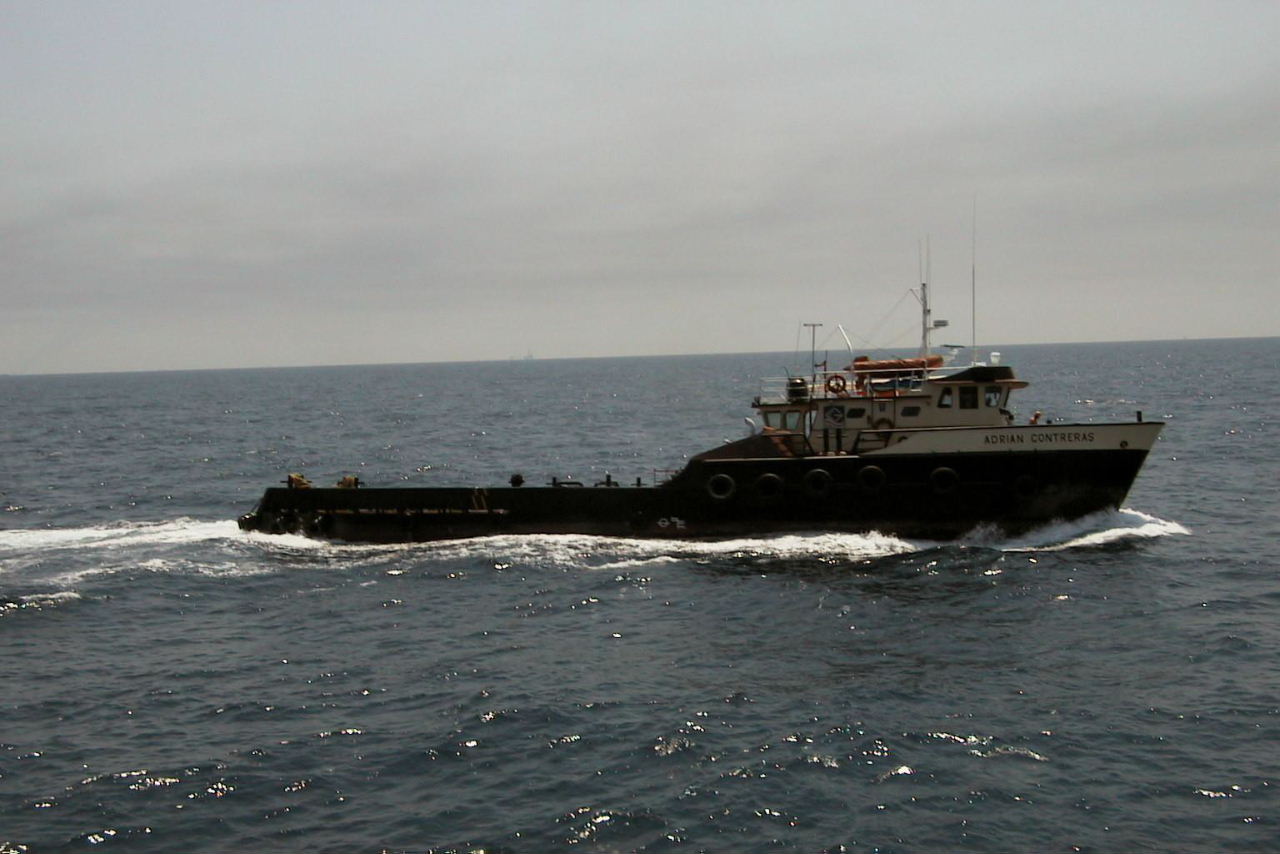

TYPE: NAME: Adrian Contreras PHOTO: Ron Jansen

GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT - For'd Thrusters - Mud -
Deck area - Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built - Joystick - Dry bulk -
Shipyard - DP - Tank Cleaning -
Previous names -
Comments -



TYPE: Halter Marine NAME: Intrepido PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 54.9 m Engines 2 x EMDs Fuel -
Breadth 12.2 m BHP/kW 2500/1838 Pot water -
Gross Tonnage 262

For'd Thrusters

 - Mud -
DWT 1033 mt Az Thruster - Base oil -
Deck area 392 m2 Aft Thrusters - Brine -
Year built 1977 Joystick - Dry bulk -
Shipyard Halter Moss Point DP No Berths 12
Previous names Intrepid
Comments -
Current Charter - Available - Location -



DISPOSALS

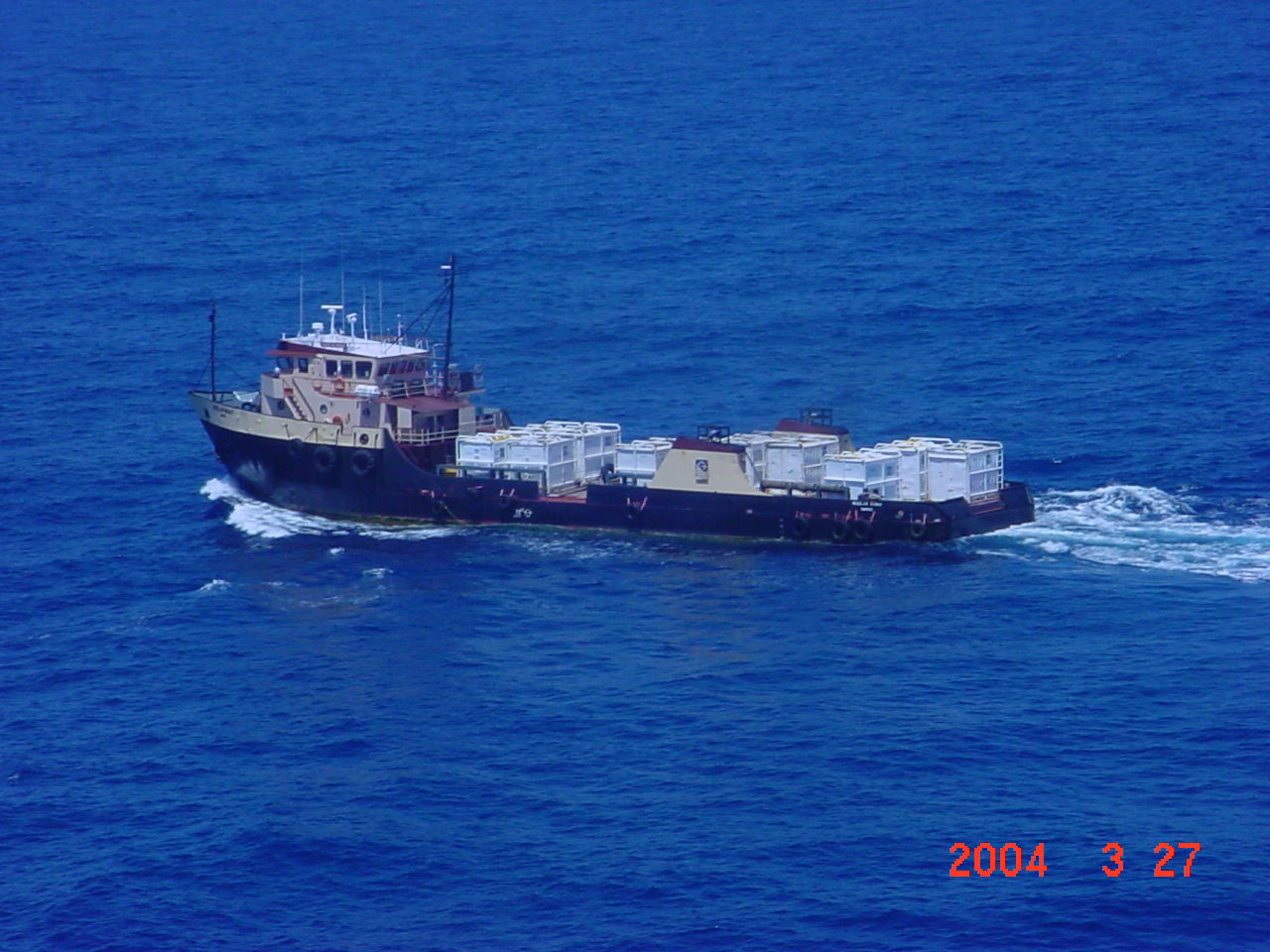

TYPE: NAME: Nicolas Bravo PHOTO: Ron Jansen

GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT - For'd Thrusters - Mud -
Deck area - Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built - Joystick - Dry bulk -
Shipyard - DP - Tank Cleaning -
Previous names -
Comments So this vessel has made in into disposals without anything being learnt about it!









SHIPPING COMPANY INFORMATION

NORTH AMERICAN COMPANIES

Abdon Callais
AET Offshore
Aries Marine Corp
Atlantic Towing
Bisso Marine
C&G Boats
Deepocean
Edison Chouest
Ensco Marine
Flomex Shipping
Gulf Americas
Harvey Gulf
Hornbeck
J Ray McDermott
L&M Botruc
Naviera Bourbon
Neches Gulf
Odyssea Marine
Otto Candies
Rowan
Seabulk
Seacor Marine
Sea Mar Inc
Secunda Canada
Southern States
Tidewater
Trico Marine
Zapata Gulf

SOUTH ATLANTIC AND CARRIBEAN COMPANIES

Astromaritima
BOS
Bourbon Maritima
CBO
Delba Maritima
Delta Logistics
DOF Brazil
Finarge Brazil
Gulf Brazil
Gulf Trinidad
Odekole International
Radam Maritime
Saveiros Camuyrano
Seatrucks Group
South Patagonia Services
Siem Brazil
Ultrapetrol
Vega Offshore
WSUT

INDIAN COMPANIES

ABS Marine
Alpha Logistics
Dolphin Offshore
Global Offshore
GOL Offshore
Hind Offshore
Indus
Seamac Ltd
Trinity Offshore
Varun Shipping














The details of vessels have been compiled from a number of sources and are not guaranteed to be correct. All photographs remain the property of the photographer and may not be used for any commercial purpose, either in print or electronically without permission.  The articles contained on the site remain the intellectual property of the authors and must not be reproduced in part or in full without permission.
