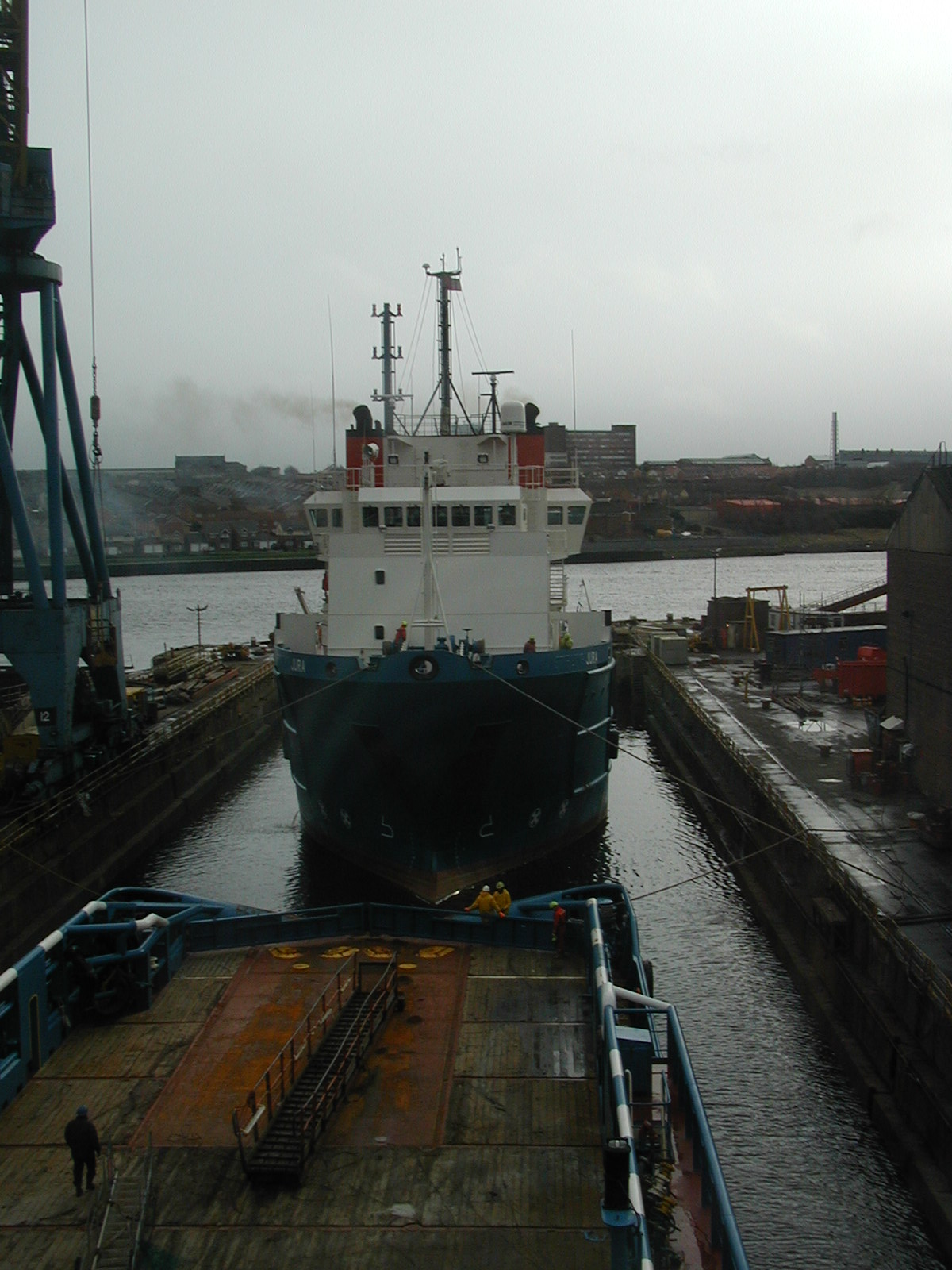

| TYPE: VS 475 | NAME: JURA | PHOTO: Derek Wood, Gavin Wills | |||
 |
 |
||||
| General | Propulsion | Deck Equip | |||
| Length OA | 74.75 m | Engines | 2 x Wartsila 12V32 | Workdrum pull | 380 tonnes |
| Breadth | 16 m | BHP | 15000 | Capacity 1 | 5490m x 77mm |
| DWT | 2700 T | kW | 11030 | Capacity 2 | |
| Deck area | 500 m2 | For'd Thrusters | 2 x 1000 bhp | Towdrum pull | 380 tonnes |
| Fuel | 853 m3 | Aft Thrusters | 1 x 1000 bhp | Capacity 1 | 1880m x 77mm |
| Pot water | 564 m3 | Bollard pull | 175 tonnes | Capacity 2 | 1880m x 77mm |
| Mud | 470 m3 | DP | Simrad DP01- | Sharks Jaw | 2 x Triplex |
| Base oil | 128 m3 | Joystick | Yes | Cranes | 5T @11m radius |
| Brine | 534 m3 | Tank Cleaning | |||
| Dry bulk | 242 m3 | Year built | 2002 | Shipyard | Fergusons |
| Previous Names | Stirling | ||||
| Comments | These two vessels were built by Stirling by BAE Marine in 2002, broadly following the previous vessel, Stirling Iona. They were sold by Seacor to BUE and are now in the Caspian Sea. (2004) | ||||
| TYPE: BMT | NAME: TULPAR | PHOTO: - | |||
|
GENERAL |
PROPULSION |
EQUIPMENT |
|||
| Length OA | 94.8 m | Engines | 5 x Wartsila 12V | Workdrum pull | - |
| Breadth | 21 m | BHP | - | Capacity 1 | - |
| DWT | 4000 t | kW | - | Capacity 2 | - |
| Deck area | - | For'd Thruster | - | Towdrum pull | - |
| Fuel | - | Az Thruster | - | Capacity 1 | - |
| Pot water | - | Aft Thrusters | - | Capacity 2 | - |
| Mud | - | Bollard pull | - | Sharks Jaw | - |
| Brine | - | DP | - | Cranes | - |
| Dry bulk | - | Joystick | - | Tank cleaning | - |
| Year built | 2002 | Shipyard | Ulstein | Berths | - |
| Previous names | - | ||||
| Comments | This is a specially designed shallow water ice-breaking supply vessel | ||||
| TYPE: CONAN WU 73 | NAME: CASPIAN POWER | PHOTO: - | |||
|
GENERAL |
PROPULSION |
EQUIPMENT |
|||
| Length OA | - | Engines | - | Workdrum pull | - |
| Breadth | - | BHP | 12240 | Capacity 1 | - |
| DWT | 3150 t | kW | 9000 | Capacity 2 | - |
| Deck area | - | For'd Thruster | - | Towdrum pull | - |
| Fuel | - | Az Thruster | - | Capacity 1 | - |
| Pot water | - | Aft Thrusters | - | Capacity 2 | - |
| Mud | - | Bollard pull | - | Sharks Jaw | - |
| Brine | - | DP | - | Cranes | - |
| Dry bulk | - | Joystick | - | Tank cleaning | - |
| Year built | 2010 | Shipyard | Fujian | Berths | - |
| Previous names | - | ||||
| Comments | - | ||||
CONSTRUCTION AND OTHER VESSELS
| TYPE: CONAN WU 61 | NAME: CASPIAN PROTECTOR | PHOTO: | |||
|
GENERAL |
PROPULSION |
EQUIPMENT |
|||
| Length OA | - | Engines | - | Workdrum pull | - |
| Breadth | - | BHP | 5150 | Capacity 1 | - |
| DWT | 1850 t | kW | 3790 | Capacity 2 | - |
| Deck area | - | For'd Thruster | - | Accomm berths | - |
| Fuel | - | Az Thruster | - | Storage capacity |
- |
| Pot water | - | Aft Az Props | - | ROV | - |
| Mud | - | Bollard pull | - | Diving Capability | - |
| Brine | - | DP II | - | Cranes | - |
| Dry bulk | - | Joystick | - | Tank cleaning | - |
| Year built | 2010 | Shipyard | Berjaya | ||
| Previous names | - | ||||
| Comments | - | ||||
| TYPE: UT 755 LC | NAME: CASPIAN SERVER | PHOTO: | |||
| GENERAL | PROPULSION | CARGO CAPACITY | |||
| Length OA | 76.6 m | Engines | 2 x Wartsila 8L26B2 | Fuel | 970 m3 |
| Breadth | 16.0 m | BHP/kW | 7000/5150 | Pot water | 820 m3 |
| DWT | 3158 t | For'd Thrusters | 2 x | Mud | 970 m3 |
| Deck area | 675 m2 | Az Thruster | - | Base oil | - |
| Aft Thrusters | 2 x | Brine | 390 m3 | ||
| Year built | 2009 | Joystick | - | Dry bulk | 320 m3 |
| Shipyard | Simek | DP | - | Tank Cleaning | - |
| Previous names | REM Server | ||||
| Comments | - | ||||
