BOURBON OFFSHORE (INTERNATIONAL)

What might be called the "non standby " vessels of the Havila fleet were bought by Groupe Bourbon in 2003? . They are operated by Bourbon Offshore, a subsidiary based in Norway. Havila was formerly known as Remoy Management. They purchased the Boa fleet in about 1998 at least part of which was made up of former Smit Lloyd anchor handlers. These are being disposed of by the Bourbon management.

Groupe Bourbon operates some of its ships under the banner of Bourbon Offshore in Norway, which in turn owns Bourbon Ships AS. No distinction between any of these ships is made on this website.

The company has been the first to embrace the Xbow design from Ulstein Verft, and the Bourbon Orca emerged from the yard during the latter part of 2006, with further platform ships of this configuration following. In April 2007 their anchor-handler Bourbon Dolphin sank while anchor-handling west of Shetland at the Transocean Rather. This event is discussed in detail elsewhere on this site. Shortly afterwards another Bourbon vessel sank in West Africa.

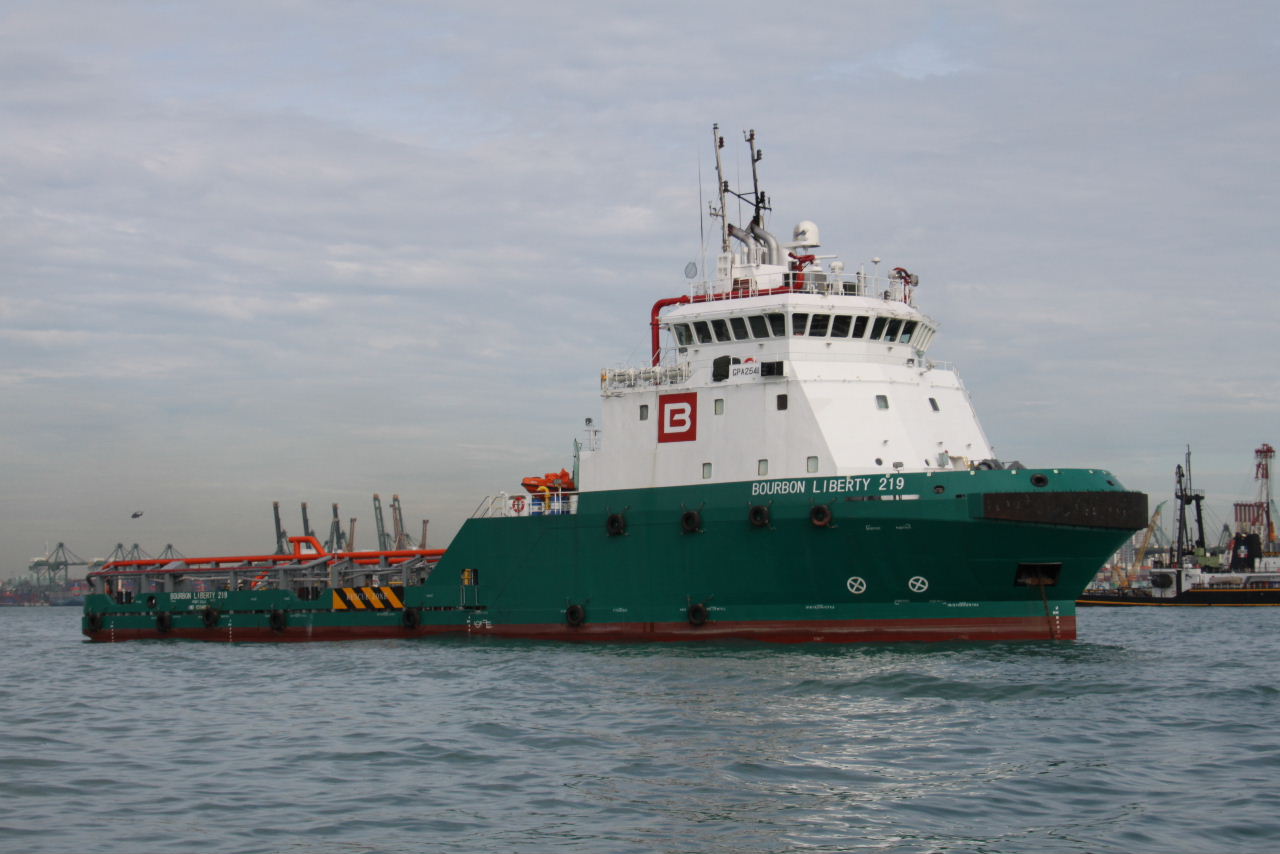

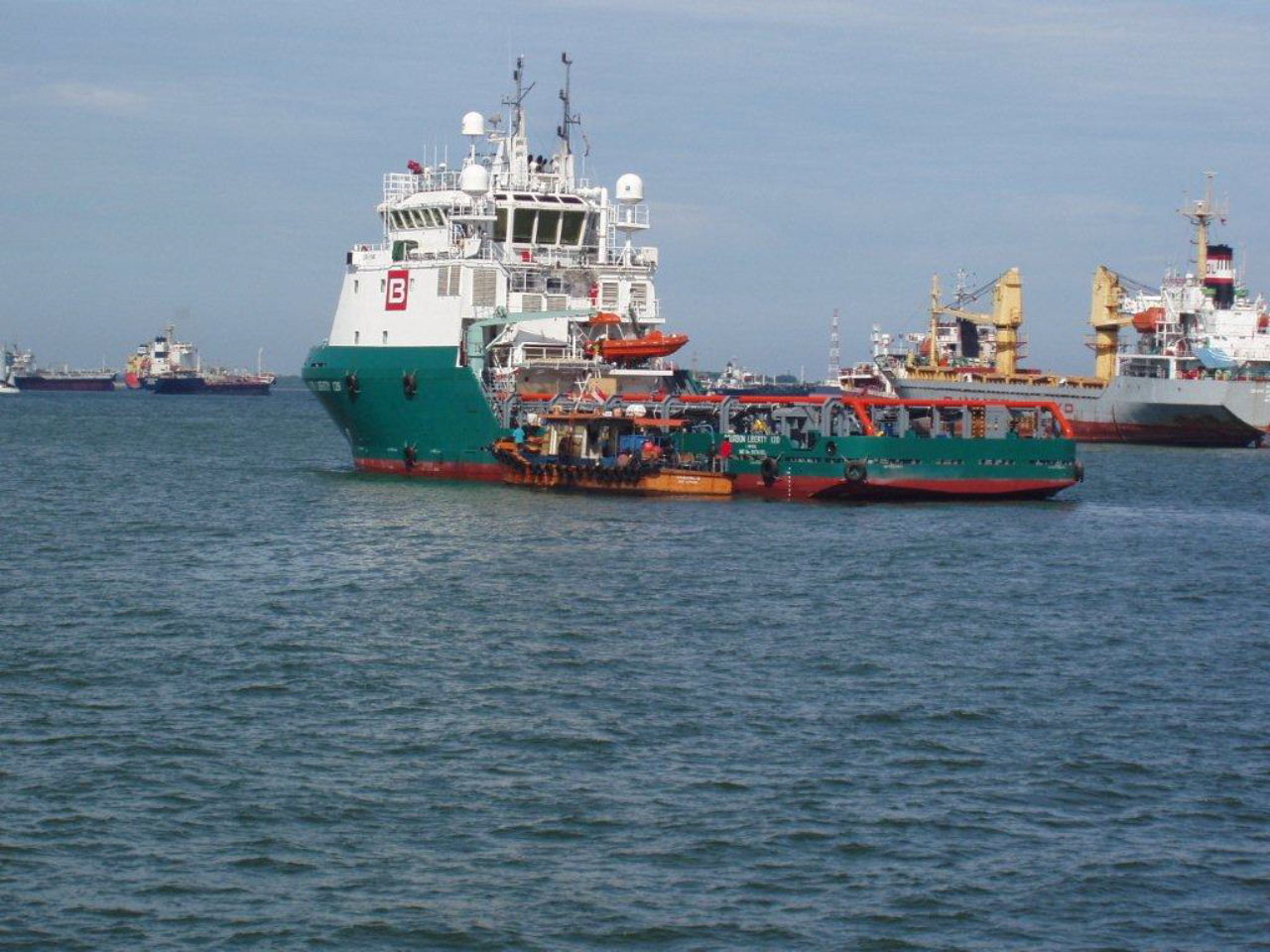

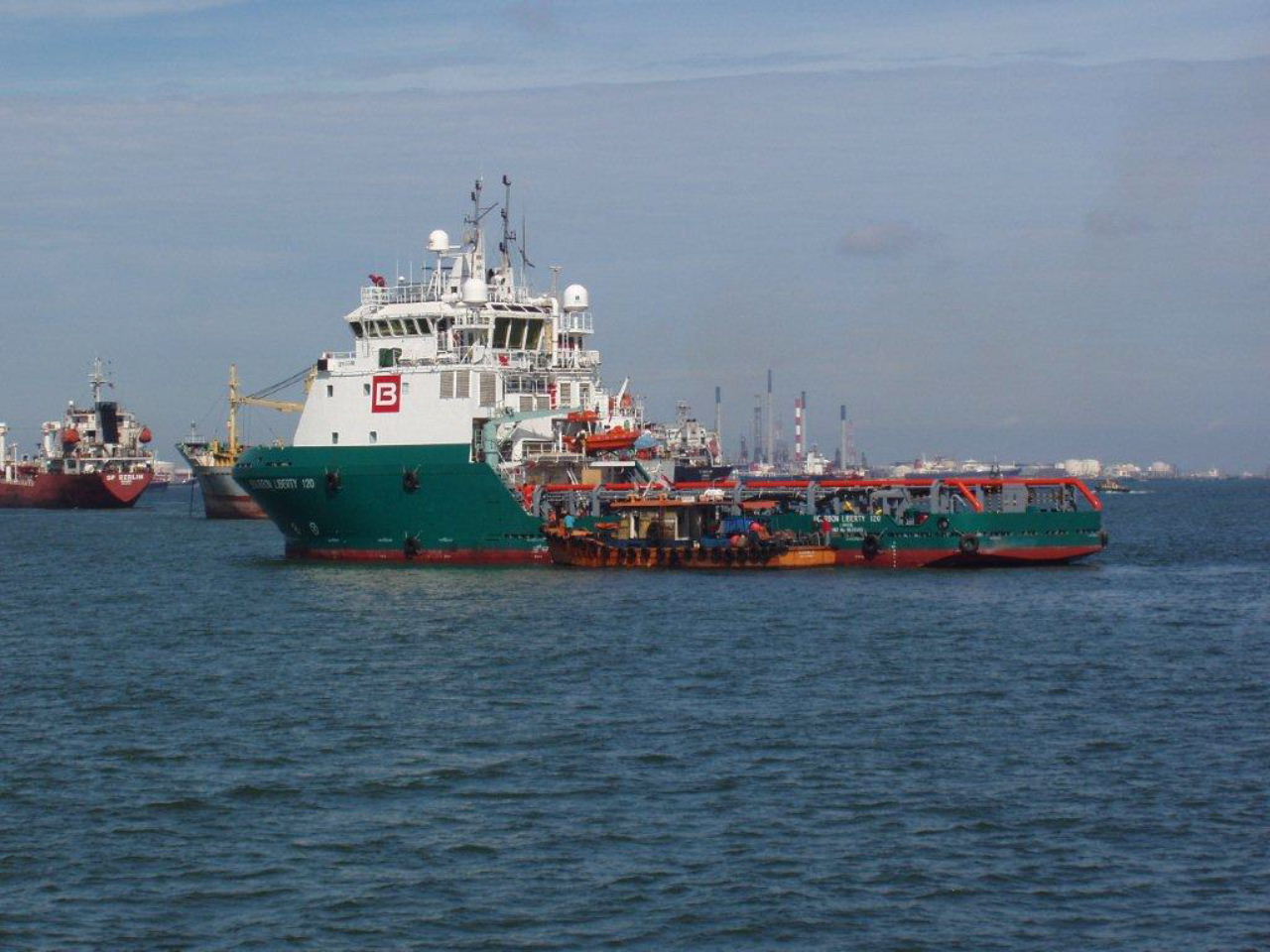

Bourbon's latest production (In 2009) is the Bourbon Liberty series. They intend to build 52 anchor-handlers, the 200 class and 24 platform ships, the 100 class, according to the publicity delivering one every two weeks until some time in 2012.

The vessels described here are those of the Bourbon fleet which are not operating in South America, as far as we know, and are not part of the listed Bourbon Norway fleet. Some of this collective information has depended on sightings by our contributing photographers in various parts of the world.

It seems likely that the marathon construction of the Bourbon Liberty classes may now be complete, or nearly so.

Having apparently completed the Liberty Class it now seems that Bourbon are building 20 of the Bourbon Explorer 500 class. It is still not apparent how many have been built, and a couple have been sold. It is now a bit difficult to see where all these ships are but I am doing my best. There are ships under construction.

Latest Update 29th September 2015.

SHIP TYPE	NOW	ORDERED
AHTS Under 10000 bhp	14	-
AHTS 10000bhp to 20000bhp	9	-
AHTS 20000 bhp and over	-	-
Seismic ships	-	-
Heavy lift ships	-	-
Pipelayers	-	-
IMR ships	10	-
PSVs deck less than 1000 m2	28	-
PSVs deck 1000 m2 +	-	-
SBSs/ERRVs	-	-

ANCHOR-HANDLERS

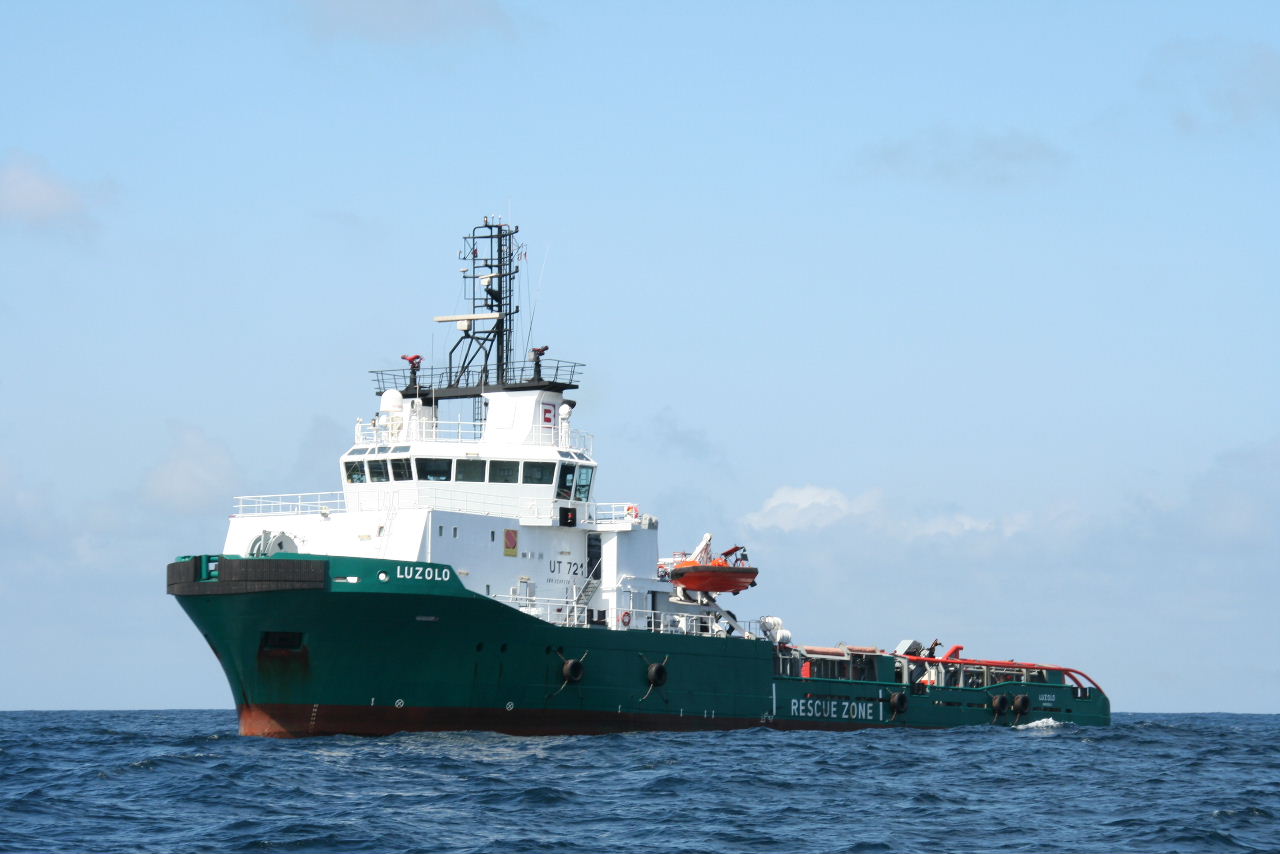

TYPE: UT 721		NAME: LUZOLO		PHOTO: Jan Plug

GENERAL		PROPULSION		EQUIPMENT
Length OA	69.6 m	Engines	4 x Bergen BRM6	Workdrum pull	400 t
Breadth	17.2 m	BHP	14,400	Capacity 1	3600m x 76mm
DWT	2320 t	kW	10310	Capacity 2
Deck area	500 m2	For'd Thruster	1 x 800 bhp	Towdrum pull
Fuel	850 m3	Az Thruster	1 x 1200 bhp	Capacity 1	3600m x 76mm
Pot water	400 m3	Aft Thrusters	1 x 800 bhp	Capacity 2
Mud	400 m3	Bollard pull	170 t	Sharks Jaw	2 x 500t
Brine	450 m3	DP	DP2	Cranes
Dry bulk	283 m3	Joystick	Yes	Tank cleaning
Year built/due	2004	Shipyard	Chantiers Piriou	Berths	33
Previous names
Comments

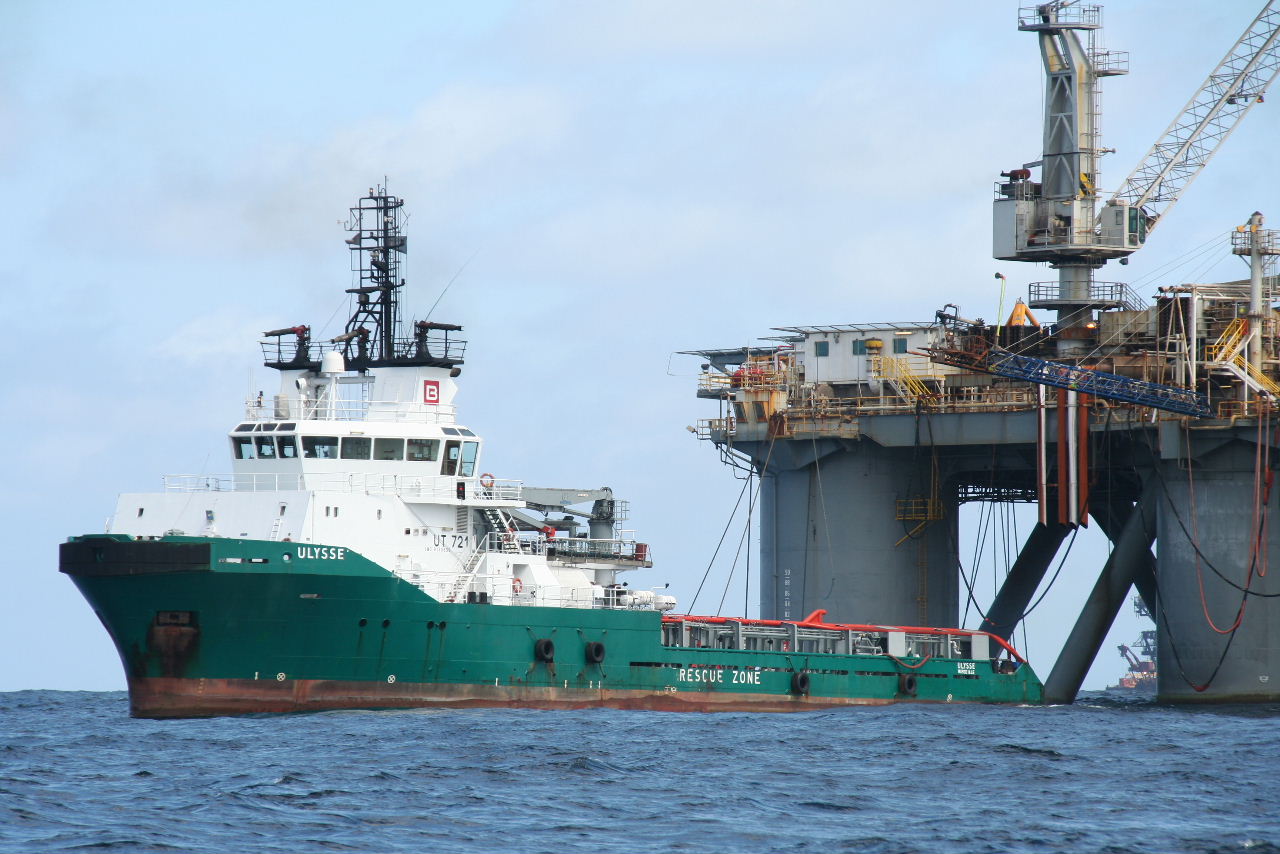

TYPE: UT 721		NAME: ULYSSE		PHOTO: Jan Plug

GENERAL		PROPULSION		EQUIPMENT
Length OA	69.6 m	Engines	4 x Bergen BRM6	Workdrum pull	400 t
Breadth	17.2 m	BHP	14,400	Capacity 1	3600m x 76mm
DWT	2514 t	kW	10590	Capacity 2
Deck area	500 m2	For'd Thruster	1 x 800 bhp	Towdrum pull
Fuel	850 m3	Az Thruster	1 x 1200 bhp	Capacity 1	3600m x 76mm
Pot water	400 m3	Aft Thrusters	1 x 800 bhp	Capacity 2
Mud	400 m3	Bollard pull	170 t	Sharks Jaw	2 x 500t
Brine	450 m3	DP	DP1	Cranes	1 x 5t
Dry bulk	283 m3	Joystick	Yes	Tank cleaning
Year built/due	1998	Shipyard	Chantiers Piriou	Berths	33
Previous names
Comments

TYPE: Conan Wu		NAME: Bourbon Argos		PHOTO: -

GENERAL		PROPULSION		EQUIPMENT
Length OA	68.8 m	Engines	2 x	Workdrum pull	250 t
Breadth	15.4 m	BHP	9880	Capacity 1	2000m x 76mm
DWT	2100 mt	kW	8000	Capacity 2	-
Deck area	420 m2	For'd Thruster	2 x 600 kW	Towdrum pull	250 t
Fuel	594 m3	Az Thruster	-	Capacity 1	2000m x 76mm
Pot water	263 m3	Aft Thrusters	1 x 600 kW	Capacity 2	-
Mud	393 m3	Bollard pull	136 t	Sharks Jaw	-
Brine	195 m3	DPII	Yes	Cranes	-
Dry bulk	245 m3	Joystick	-	Tank cleaning	-
Year built	2013	Shipyard	Bharati	Berths	30
Previous names	-
Comments	-

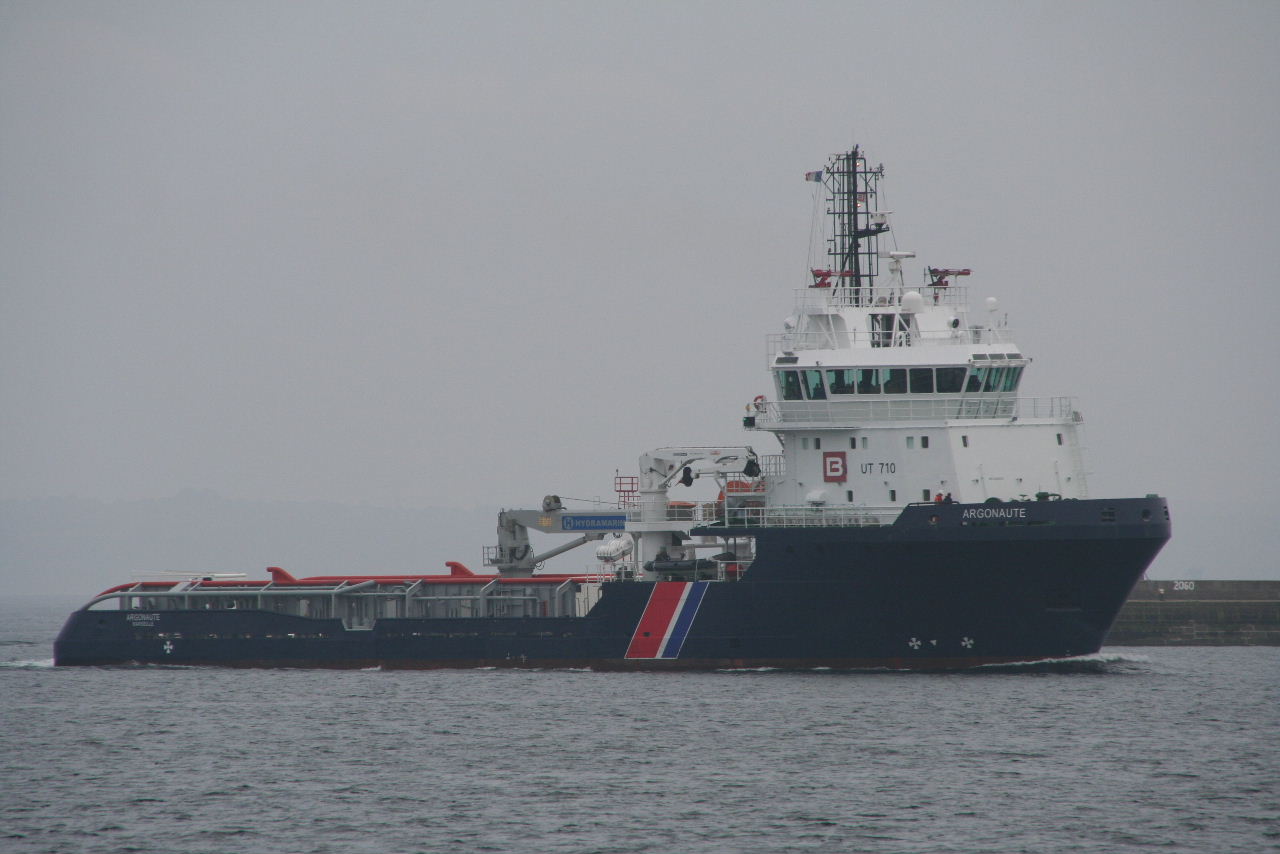

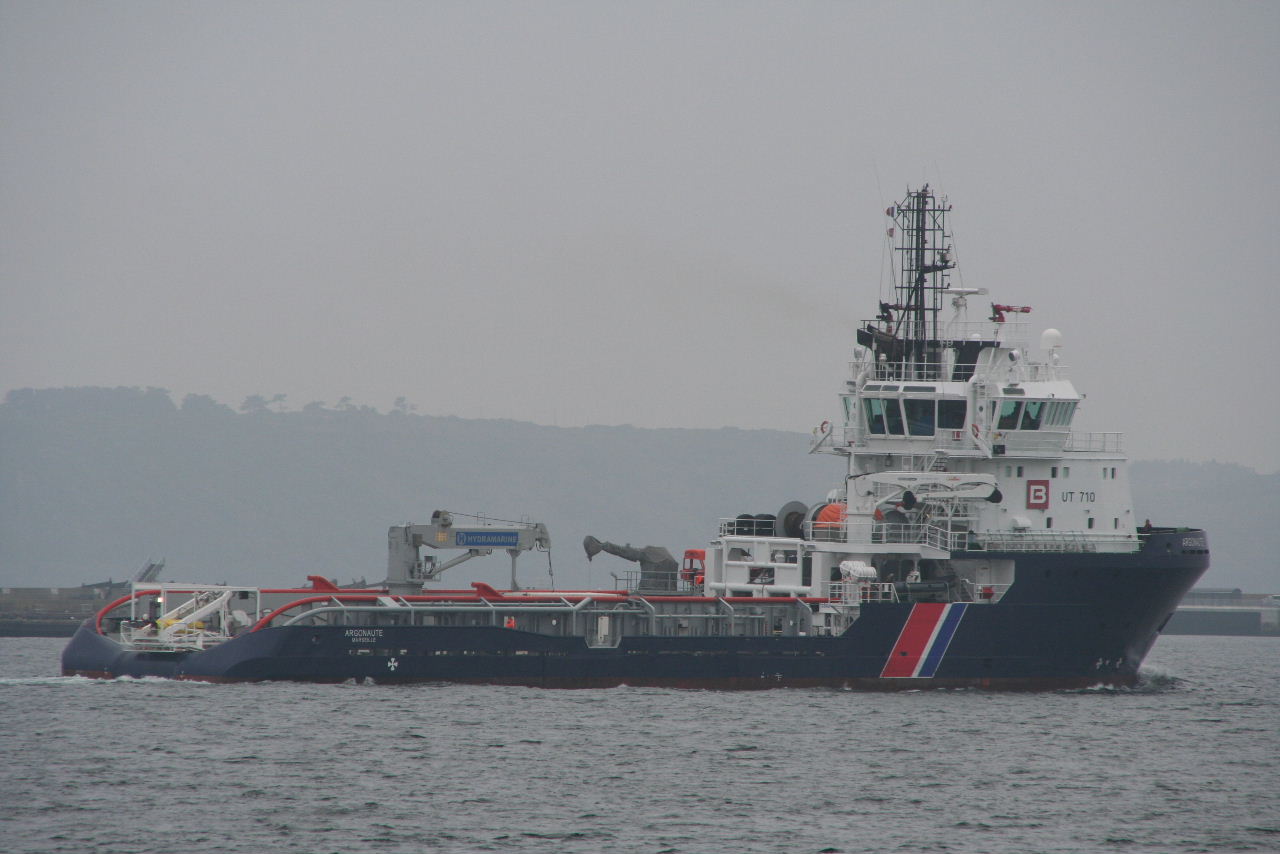

TYPE: UT 710		NAME: ARGONAUTE		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	68.95 m	Engines	2 x Bergen BRM9	Workdrum pull	300 t
Breadth	15.5 m	BHP	10800 bhp	Capacity 1	1500m x 76mm
DWT	2100 t	kW	7940	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 590 kW	Towdrum pull	300 t
Fuel	830 m3	Az Thruster		Capacity 1	1500m x 76mm
Pot water	468 m3	Aft Thrusters	1 x 590 kW	Capacity 2
Mud	293 m3	Bollard pull	132 t	Sharks Jaw	2 x Karmfork
Brine	146 m3	DP	Alstrom DP1	Cranes
Dry bulk	224 m3	Joystick		Tank cleaning
Year built/due	2003	Shipyard	Brevik	Berths	30
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON ASPARA		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	67.0 m	Engines	2	Workdrum pull	250 t
Breadth	15.4 m	BHP	10890	Capacity 1	2000m x 76mm
DWT	2100 t	kW	8000	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 600kW	Towdrum pull	250 t
Fuel	1230 m3	Az Thruster		Capacity 1	2000m x 76mm
Pot water	270 m3	Aft Thrusters	1 x 600kW	Capacity 2
Mud	400 m3	Bollard pull	124 t	Sharks Jaw	2
Brine	200 m3	DP	DP 1	Cranes	1 x 2 t
Dry bulk	250 m3	Joystick		Tank cleaning
Year built/due	2005	Shipyard	Keppel Sing	Berths	30
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON ALADIN		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	67.0 m	Engines	2	Workdrum pull	250 t
Breadth	15.4 m	BHP	10890	Capacity 1	2000m x 76mm
DWT	2100 t	kW	8000	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 600kW	Towdrum pull	250 t
Fuel	1230 m3	Az Thruster		Capacity 1	2000m x 76mm
Pot water	270 m3	Aft Thrusters	1 x 600kW	Capacity 2
Mud	400 m3	Bollard pull	124 t	Sharks Jaw	2
Brine	200 m3	DP	DP 1	Cranes	1 x 2 t
Dry bulk	250 m3	Joystick		Tank cleaning
Year built/due	2005	Shipyard	Keppel Sing	Berths	30
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON ALEXANDRE		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	67.0 m	Engines	2	Workdrum pull	250 t
Breadth	15.4 m	BHP	10890	Capacity 1	2000m x 76mm
DWT	2100 t	kW	8000	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 600kW	Towdrum pull	250 t
Fuel	1230 m3	Az Thruster		Capacity 1	2000m x 76mm
Pot water	270 m3	Aft Thrusters	1 x 600kW	Capacity 2
Mud	400 m3	Bollard pull	124 t	Sharks Jaw	2
Brine	200 m3	DP	DP 1	Cranes	1 x 2 t
Dry bulk	250 m3	Joystick		Tank cleaning
Year built/due	2006	Shipyard	Keppel Sing	Berths	30
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON ARCADIE		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	68.6 m	Engines	2	Workdrum pull	250 t
Breadth	15.4 m	BHP	10890	Capacity 1	2000m x 76mm
DWT	2100 t	kW	8000	Capacity 2
Deck area	430 m2	For'd Thruster	2 x 600kW	Towdrum pull	250 t
Fuel	1230 m3	Az Thruster		Capacity 1	2000m x 76mm
Pot water	264 m3	Aft Thrusters	1 x 600kW	Capacity 2
Mud	400 m3	Bollard pull	124 t	Sharks Jaw	2
Brine	200 m3	DP	DP 1	Cranes	1 x 2 t
Dry bulk	250 m3	Joystick		Tank cleaning
Year built/due	2009	Shipyard	Keppel Sing	Berths	30
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON ASTYANAX		PHOTO: Jan Plug

GENERAL		PROPULSION		EQUIPMENT
Length OA	67.0 m	Engines	2	Workdrum pull	250 t
Breadth	15.4 m	BHP	10890	Capacity 1	2000m x 76mm
DWT	2100 t	kW	8000	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 600kW	Towdrum pull	250 t
Fuel	1230 m3	Az Thruster		Capacity 1	2000m x 76mm
Pot water	270 m3	Aft Thrusters	1 x 600kW	Capacity 2
Mud	400 m3	Bollard pull	124 t	Sharks Jaw	2
Brine	200 m3	DP	DP 1	Cranes	1 x 2 t
Dry bulk	250 m3	Joystick		Tank cleaning
Year built/due	2006	Shipyard	Keppel Sing	Berths	30
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON ARTEMIS		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	68.6 m	Engines	2	Workdrum pull	250 t
Breadth	15.4 m	BHP	10890	Capacity 1	2000m x 76mm
DWT	2100 t	kW	8000	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 600kW	Towdrum pull	250 t
Fuel	1230 m3	Az Thruster		Capacity 1	2000m x 76mm
Pot water	270 m3	Aft Thrusters	1 x 600kW	Capacity 2
Mud	356 m3	Bollard pull	124 t	Sharks Jaw	2
Brine	200 m3	DPii	Yes	Cranes	1 x 2 t
Dry bulk	250 m3	Joystick		Tank cleaning
Year built/due	2009	Shipyard	Keppel Sing	Berths	30
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON THEMIS		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	7183	Capacity 1	1500m x 64mm
DWT	1611 t	kW	5280	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1
Pot water	446 m3	Aft Thrusters	1 x 500 kW	Capacity 2
Mud	392 m3	Bollard pull	86 t	Sharks Jaw	2
Brine	112 m3	DP	Class 1	Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2006	Shipyard	Dayang China	Berths	28
Previous names
Comments

TYPE: CONAN WU		NAME: BAHTERA TEGUH		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	7183	Capacity 1	1500m x 64mm
DWT	1611 t	kW	5280	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1
Pot water	446 m3	Aft Thrusters	1 x 500 kW	Capacity 2
Mud	392 m3	Bollard pull	86 t	Sharks Jaw	2
Brine	112 m3	DP	Class 1	Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2007	Shipyard	Dayang China	Berths	28
Previous names
Comments

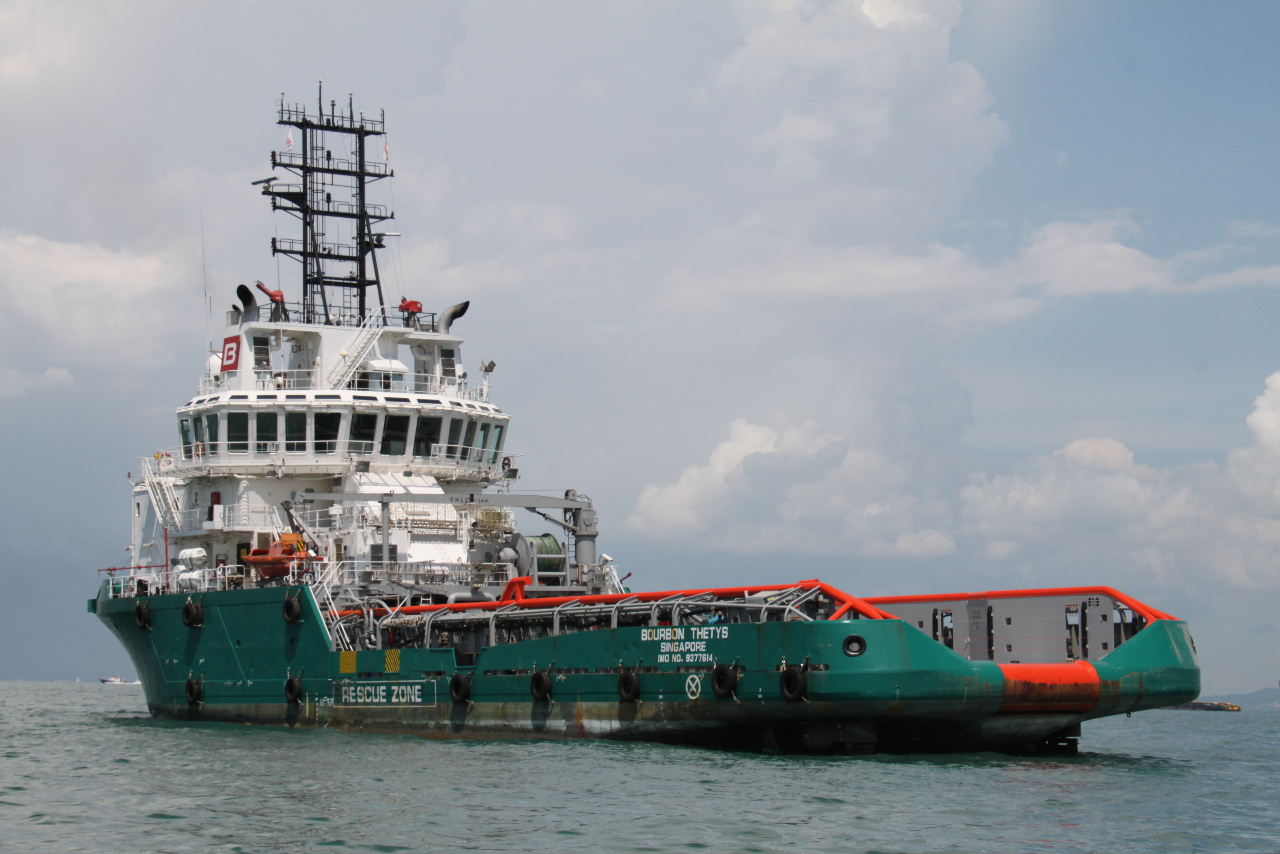

TYPE: CONAN WU		NAME: BOURBON THETYS		PHOTO: Mike Prendergast

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	7183	Capacity 1	1500m x 64mm
DWT	1611 t	kW	5280	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1
Pot water	446 m3	Aft Thrusters	1 x 500 kW	Capacity 2
Mud	392 m3	Bollard pull	86 t	Sharks Jaw	2
Brine	112 m3	DP	Class 1	Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2006	Shipyard	Dayang China	Berths	28
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON THEIA		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	7183	Capacity 1	1500m x 64mm
DWT	1611 t	kW	5280	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1
Pot water	446 m3	Aft Thrusters	1 x 500 kW	Capacity 2
Mud	392 m3	Bollard pull	86 t	Sharks Jaw	2
Brine	112 m3	DP	Class 1	Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2007	Shipyard	Dayang China	Berths	28
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON THERA		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	7183	Capacity 1	1500m x 64mm
DWT	1611 t	kW	5280	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1
Pot water	446 m3	Aft Thrusters	1 x 500 kW	Capacity 2
Mud	392 m3	Bollard pull	86 t	Sharks Jaw	2
Brine	112 m3	DP	Class 1	Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2006	Shipyard	Dayang China	Berths	28
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON THALIE		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	7183	Capacity 1	1500m x 64mm
DWT	1611 t	kW	5280	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1
Pot water	446 m3	Aft Thrusters	1 x 500 kW	Capacity 2
Mud	392 m3	Bollard pull	86 t	Sharks Jaw	2
Brine	112 m3	DP	Class 1	Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2006	Shipyard	Dayang China	Berths	28
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON SAGITTA		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	5380	Capacity 1	1500m x 64mm
DWT	1622 t	kW	3950	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1	1500m x 64mm
Pot water	446 m3	Aft Thrusters		Capacity 2
Mud	392 m3	Bollard pull	75 t	Sharks Jaw	2
Brine	112 m3	DP		Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2006	Shipyard	Dayang	Berths	28
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON SIRIUS		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	5380	Capacity 1	1500m x 64mm
DWT	1622 t	kW	3950	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1	1500m x 64mm
Pot water	446 m3	Aft Thrusters		Capacity 2
Mud	392 m3	Bollard pull	75 t	Sharks Jaw	2
Brine	112 m3	DP		Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2006	Shipyard	Dayang	Berths	28
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON GULF 101		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	5380	Capacity 1	1500m x 64mm
DWT	1622 t	kW	3950	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1	1500m x 64mm
Pot water	446 m3	Aft Thrusters		Capacity 2
Mud	392 m3	Bollard pull	75 t	Sharks Jaw	2
Brine	112 m3	DP		Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2007	Shipyard	Dayang	Berths	28
Previous names
Comments

TYPE: CONAN WU		NAME: BOURBON GULF 102		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	64.8 m	Engines	2 x MAK	Workdrum pull	150 t
Breadth	16.0 m	BHP	5380	Capacity 1	1500m x 64mm
DWT	1622 t	kW	3950	Capacity 2
Deck area	420 m2	For'd Thruster	2 x 500 kW	Towdrum pull	150 t
Fuel	607 m3	Az Thruster		Capacity 1	1500m x 64mm
Pot water	446 m3	Aft Thrusters		Capacity 2
Mud	392 m3	Bollard pull	75 t	Sharks Jaw	2
Brine	112 m3	DP		Cranes	1 x 1.7 t
Dry bulk	170 m3	Joystick		Tank cleaning
Year built/due	2007	Shipyard	Dayang	Berths	28
Previous names
Comments

TYPE: UT 711		NAME: AILETTE		PHOTO:

GENERAL		PROPULSION		EQUIPMENT
Length OA	53.0 m	Engines	2 x Bergen	Workdrum pull	85 t
Breadth	13.0 m	BHP	5280	Capacity 1	800m x 52mm
DWT	1002 t	kW	3880	Capacity 2
Deck area	260 m2	For'd Thruster	1 x 500 bhp	Towdrum pull	85 t
Fuel	796 m3	Az Thruster		Capacity 1	800m x 52mm
Pot water	765 m3	Aft Thrusters		Capacity 2
Mud		Bollard pull	64 t	Sharks Jaw	1
Brine		DP		Cranes	1 x 23 t
Dry bulk	135 m3	Joystick		Tank cleaning
Year built/due	1982	Shipyard	Chantiers	Berths	22
Previous names	Cyrus
Comments

TYPE: Guido Perla		NAME: LIBERTY 200s		PHOTO: Mike Prendergast

GENERAL		PROPULSION		EQUIPMENT
Length OA	53.78 m	Engines	3 x ??	Workdrum pull	150 t
Breadth	15.0 m	BHP	7446	Capacity 1	1500m x 62mm
DWT	1460 t	kW	5475	Capacity 2
Deck area	331 m2	For'd Thruster	2 x 560 kW	Towdrum pull	150 t
Fuel	606 m3	Az Thruster		Capacity 1	1500m x 62mm
Pot water	354 m3	Aft Z drives	3 x 1685 kW	Capacity 2
Mud	651 m3	Bollard pull	82.5 t	Sharks Jaw	1
Brine	-	DP	DP II	Cranes	1 x 1.8 t
Dry bulk	156 m3	Joystick		Tank cleaning
Year built/due	2009-2012	Shipyard	Dayang	Berths	20
Previous names	-
Comments	There is much that could be said about this concept, not least the confidence the company must have in the design. They are not even conventional in construction. they will all have three propellers, one in the middle which is fixed, probably, and one on each side which are azimuthing. This configuration according to the publicity will provide a greater level of reliability, and in the text of the supplement various ship-masters testify to the ease with which the ships can be handled. This may be just as well, since one has difficulty imagining how they will manage to place skilled staff on each of these ships as they enter service (extract from news and views).

TYPE: Sinopacifico		NAME: LIBERTY 300s		PHOTO: /

GENERAL		PROPULSION		EQUIPMENT
Length OA	65.75 m	Engines	3 x ??	Workdrum pull	150 t
Breadth	16.0 m	BHP	8160	Capacity 1	1500m x 62mm
DWT	1900 mt	kW	6000 kW	Capacity 2
Deck area	397 m2	For'd Thruster	2 x 560 kW	Towdrum pull	150 t
Fuel	750 m3	Az Thruster		Capacity 1	1500m x 62mm
Pot water	443 m3	Aft Z drives	3 x 1685 kW	Capacity 2
Mud	694 m3	Bollard pull	82.5 t	Sharks Jaw	1
Brine	-	DP	DP II	Cranes	1 x 3 t
Dry bulk	193 m3	Joystick		Tank cleaning
Year built/due	2012	Shipyard	Sinopacific	Berths	26
Previous names	-
Comments

CONSTRUCTION/ROV VESSELS

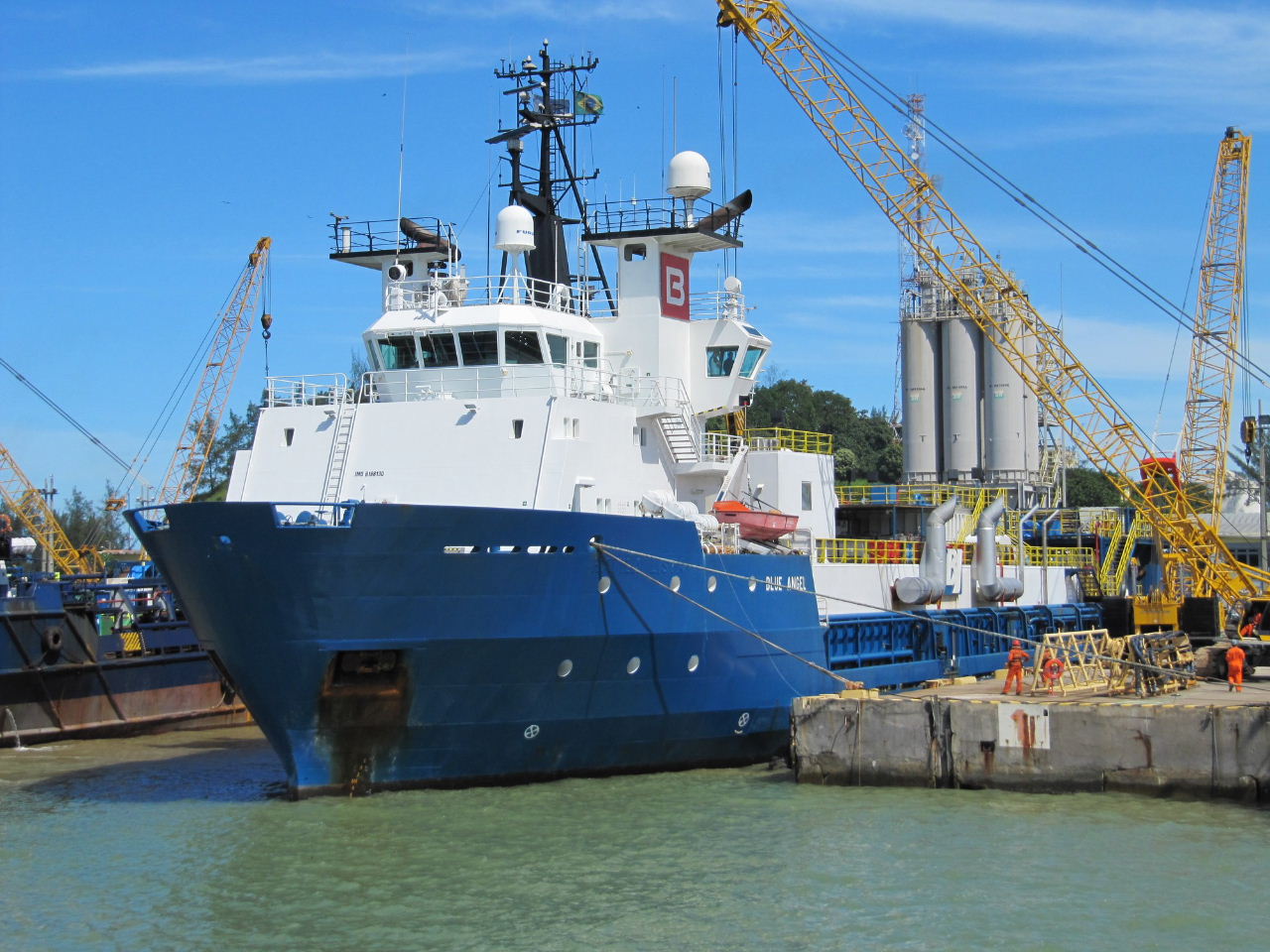

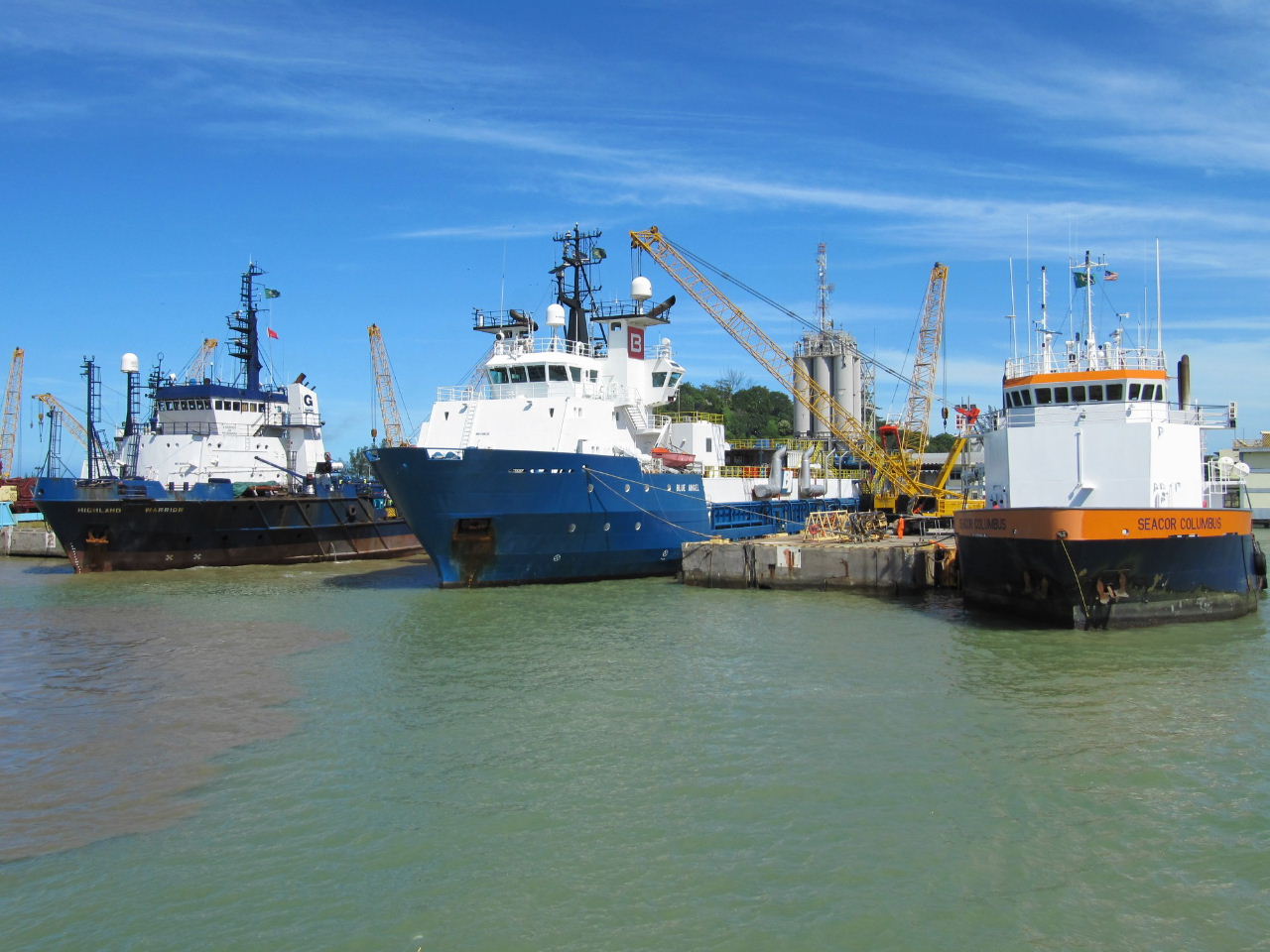

TYPE: UT 745 NAME: Blue Angel PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 84.0 m Engines 2 x Volvo TAMD163 Workdrum pull -

Breadth 18.8 m BHP 9600 Capacity 1 -

DWT 4640 t kW 7060 Capacity 2 -

Deck area 150 m2 For'd Thruster 1 x 883 kW Accomm berths 38

Fuel 1079 m3 Az Thruster 1 x 883 kW Storage capacity
-

Pot water 1100 m3 Aft Thrusters 2 x 663 kW ROV -

Mud 690 m3 Bollard pull - Sharks Jaw -

Brine - DP II Kongsberg SDP Cranes -

Dry bulk 400 m3 Joystick - Tank cleaning -

Year built 2005 Shipyard Simek

Previous names Havila Lista

Comments Well stimulation vessel

TYPE: De Hoop NAME: Vissolela PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 77.3 m Engines 4 x ?? Workdrum pull -

Breadth 18.0 m BHP 9250 Capacity 1 -

DWT - kW 6800 Capacity 2 -

Deck area 580 m2 For'd ThrusteR 1 X 780 Kw Accomm berths 56

Fuel 934 m3 Az Thruster 1 X 780 Kw Storage capacity
-

Pot water 480 m3 Aft Az Props - ROV -

Mud - Bollard pull - Sharks Jaw -

Brine - DP II Aquarius Thales Cranes 1 x 40t

Dry bulk - Joystick - Tank cleaning -

Year built 2004 Shipyard De Hoop

Previous names -

Comments This ship is owned by Sonasurf.

TYPE: De Hoop NAME: Bourbon Trieste PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 84.69 m Engines 4 x ?? Workdrum pull -

Breadth 18.0 m BHP 9250 Capacity 1 -

DWT 3210 t kW 6800 Capacity 2 -

Deck area 800 m2 For'd Thruster 2 x 780 kW Accomm berths 70

Fuel 770 m3 Az Thruster 1 x 600 kW Storage capacity
-

Pot water 370 m3 Aft Az Props - ROV -

Mud - Bollard pull - Sharks Jaw -

Brine - DP II Aquarius Thales Cranes 1 x 110 t

Dry bulk - Joystick - Tank cleaning -

Year built 2007 Shipyard De Hoop

Previous names -

Comments -

TYPE: GPA 670 NAME: Bourbon Helene PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 73.2 m Engines 3 Cummins QSK60 Workdrum pull -

Breadth 16.5 m BHP 7450 Capacity 1 -

DWT 2879 t kW 5475 Capacity 2 -

Deck area 675 m2 For'd Thruster 2 x 746 kW Accomm berths 40

Fuel 3056 m3 Az Thruster - Storage capacity
-

Pot water 579 m3 Aft Az Props 2 x 1920 ROV -

Mud 1072 m3 Bollard pull - Sharks Jaw -

Brine 1072 m3 DP II Kongsberg Cranes 1 x 12t

Dry bulk 255 m3 Joystick - Tank cleaning -

Year built 2006 Shipyard Zhejiang

Previous names -

Comments -

TYPE: GPA 670 MkII NAME: Bourbon Herald PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 73.2 m Engines 3 Cummins QSK60 Workdrum pull -

Breadth 16.5 m BHP 7450 Capacity 1 -

DWT 2890 t kW 5475 Capacity 2 -

Deck area 675 m2 For'd Thruster 2 x 746 kW Accomm berths 40

Fuel 3056 m3 Az Thruster - Storage capacity
-

Pot water 579 m3 Aft Az Props 2 x 1920 ROV -

Mud 1072 m3 Bollard pull - Sharks Jaw -

Brine 1072 m3 DP II Kongsberg Cranes 1 x 12t

Dry bulk 255 m3 Joystick - Tank cleaning -

Year built 2006 Shipyard Zhejiang

Previous names -

Comments -

TYPE: - NAME: Bourbon Enterprise PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 76.0 m Engines 4 x ? Workdrum pull -

Breadth 19.5 m BHP 5264 Capacity 1 -

DWT 2000 t kW 3870 Capacity 2 -

Deck area 720 m2 For'd Thruster 2 x 700 kW Accomm berths 103

Fuel 600 m3 Az Thruster - Storage capacity
-

Pot water 779 m3 Aft Az Props 2 x 1300 kW ROV -

Mud 401 m3 Bollard pull - Sharks Jaw -

Brine 401 m3 DP II Kongsberg Cranes 1 x 40t

Dry bulk - Joystick - Tank cleaning -

Year built 2009 Shipyard Socarenam

Previous names -

Comments -

TYPE: - NAME: Bourbon Supporter PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 73.7 m Engines 5 x ? Workdrum pull -

Breadth 19.5 m BHP 6188 Capacity 1 -

DWT 1823 t kW 4550 Capacity 2 -

Deck area 720 m2 For'd Thruster 2 x 700 kW Accomm berths 103

Fuel 600 m3 Az Thruster - Storage capacity
-

Pot water 779 m3 Aft Az Props 2 x 1300 kW ROV -

Mud 401 m3 Bollard pull - Sharks Jaw -

Brine 401 m3 DP II Kongsberg Cranes 1 x 40t

Dry bulk - Joystick - Tank cleaning -

Year built 2010 Shipyard Socarenam

Previous names -

Comments -

TYPE: Conan Wu NAME: Bourbon Altair PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 60.0 m Engines 2 x ?? Workdrum pull -

Breadth 15.6 m BHP 3260 Capacity 1 -

DWT 1200 t kW 2400 Capacity 2 -

Deck area 377 m2 For'd Thruster 2 x 400 kW Accomm berths 48

Fuel 643 m3 Az Thruster - Storage capacity
-

Pot water 434 m3 Aft Az Props - ROV -

Mud - Bollard pull - Sharks Jaw -

Brine - DP II Yes Cranes 1 x 24 t

Dry bulk - Joystick - Tank cleaning -

Year built 2008 Shipyard Bharati

Previous names -

Comments 4 point mooring system fitted

TYPE: Conan Wu NAME: Bourbon Arethuse PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 60.0 m Engines 2 x ?? Workdrum pull -

Breadth 15.6 m BHP 3260 Capacity 1 -

DWT 1200 t kW 2400 Capacity 2 -

Deck area 377 m2 For'd Thruster 2 x 400 kW Accomm berths 48

Fuel 643 m3 Az Thruster - Storage capacity
-

Pot water 434 m3 Aft Az Props - ROV -

Mud - Bollard pull - Sharks Jaw -

Brine - DP II Yes Cranes 1 x 24 t

Dry bulk - Joystick - Tank cleaning -

Year built 2008 Shipyard Bharati

Previous names -

Comments 4 point mooring system fitted

PLATFORM SHIPS

TYPE:		NAME: BOURBON EXPLORER 500		PHOTO:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	78.25 m	Engines	4 x?	Fuel	1110 m3
Breadth	17.2 m	BHP/kW	7398/5440	Pot water	640 m3
DWT	3703 mt	For'd Thrusters	2 x 1000 kW	Mud	1133 m3
Deck area	716 m2	Az Thruster	-	Base oil	-
Year built	from 2014	Aft Aziprops	2 x 2000 kW	Brine	-
Shipyard	Sinopacific	Joystick	-	Dry bulk	300 m3
Berths	50	DPII	Kongsberg	Tank Cleaning	-
Previous names	-
Comments	There are to be 20 of these.
Current Charter	-	Available	-	Location	-

TYPE: ULSTEIN P105		NAME: BOURBON RUBY		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	91.1 m	Engines	4 x Cat 3516B	Fuel	1170 m3
Breadth	19.0 m	BHP/kW	9928/7300	Pot water	980 m3
DWT	4850 t	For'd Thrusters	2 x 880kW	Mud	600 m3
Deck area	990 m2	Az Thruster	1 x 880 kW	Base oil	250 m3
Berths	50	Aft Azipuls	2 x 2500 kW	Brine	600 m3
Year built	2008	Joystick		Dry bulk	300 m3
Shipyard	Zhejiang	DP	Kongsberg DPII	Tank Cleaning	?
Previous names
Comments

TYPE: ULSTEIN P105		NAME: BOURBON DIAMOND		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	91.1 m	Engines	4 x Cat 3516B	Fuel	1170 m3
Breadth	19.0 m	BHP/kW	9928/7300	Pot water	980 m3
DWT	4850 t	For'd Thrusters	2 x 880kW	Mud	600 m3
Deck area	990 m2	Az Thruster	1 x 880 kW	Base oil	250 m3
Berths	50	Aft Azipuls	2 x 2500 kW	Brine	600 m3
Year built	2008	Joystick		Dry bulk	300 m3
Shipyard	Zhejiang	DP	Kongsberg DPII	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BOURBON HAMELIN		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5475	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	24	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2008	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BAHTERA HAMOS		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5475	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	24	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2008	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BOURBON HIMALAYA		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5475	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	24	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2008	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

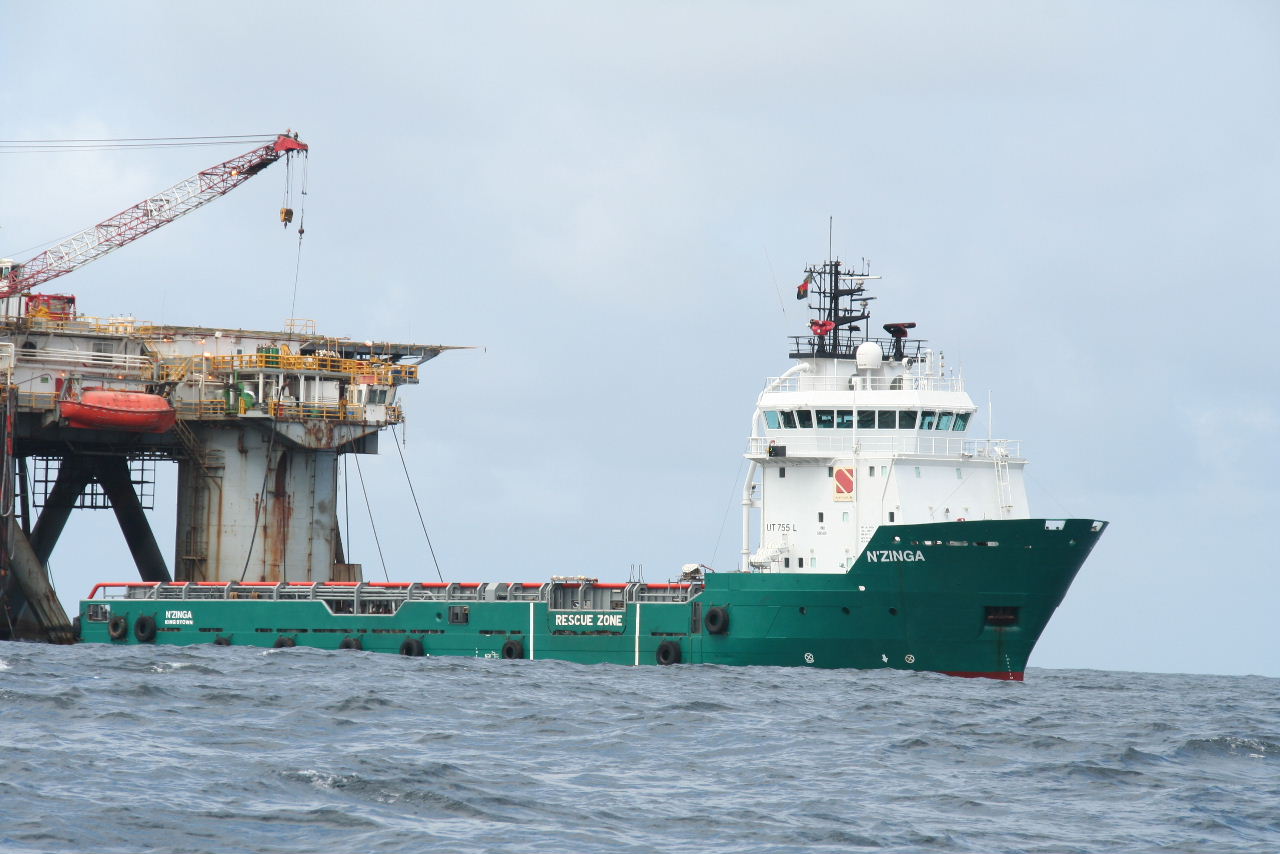

TYPE: UT 755L		NAME: N'ZINGA		Photos: Jan Plug

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	72.0 m	Engines	2 x ??	Fuel	1200 m3
Breadth	16.0 m	BHP/kW	5460/4015	Pot water	790 m3
DWT	3253 t	For'd Thrusters	1 x 590 kW	Mud	1000 m3
Deck area	688 m2	Az Thruster	1 x 590 kW	Base oil	200 m3
Berths	26	Aft Thrusters	1 x 590 kW	Brine	1000 m3
Year built	2002	Joystick		Dry bulk	318 m3
Shipyard	Orskov	DP	DP1	Tank Cleaning	?
Previous names
Comments

TYPE: UT 755L		NAME: BOURBON ATLANTIDE		Photos: Sergiy Levchenko

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	66.8 m	Engines	2 x ??	Fuel	1023 m3
Breadth	16.0 m	BHP/kW	5460/4015	Pot water	800 m3
DWT	3250 t	For'd Thrusters	2 x 590 kW	Mud	967 m3
Deck area	688 m2	Az Thruster		Base oil	208 m3
Berths	26	Aft Thrusters	1 x 590 kW	Brine	387 m3
Year built	2002	Joystick		Dry bulk	318 m3
Shipyard	Orskov	DP	DP1	Tank Cleaning	?
Previous names	Active Prince
Comments

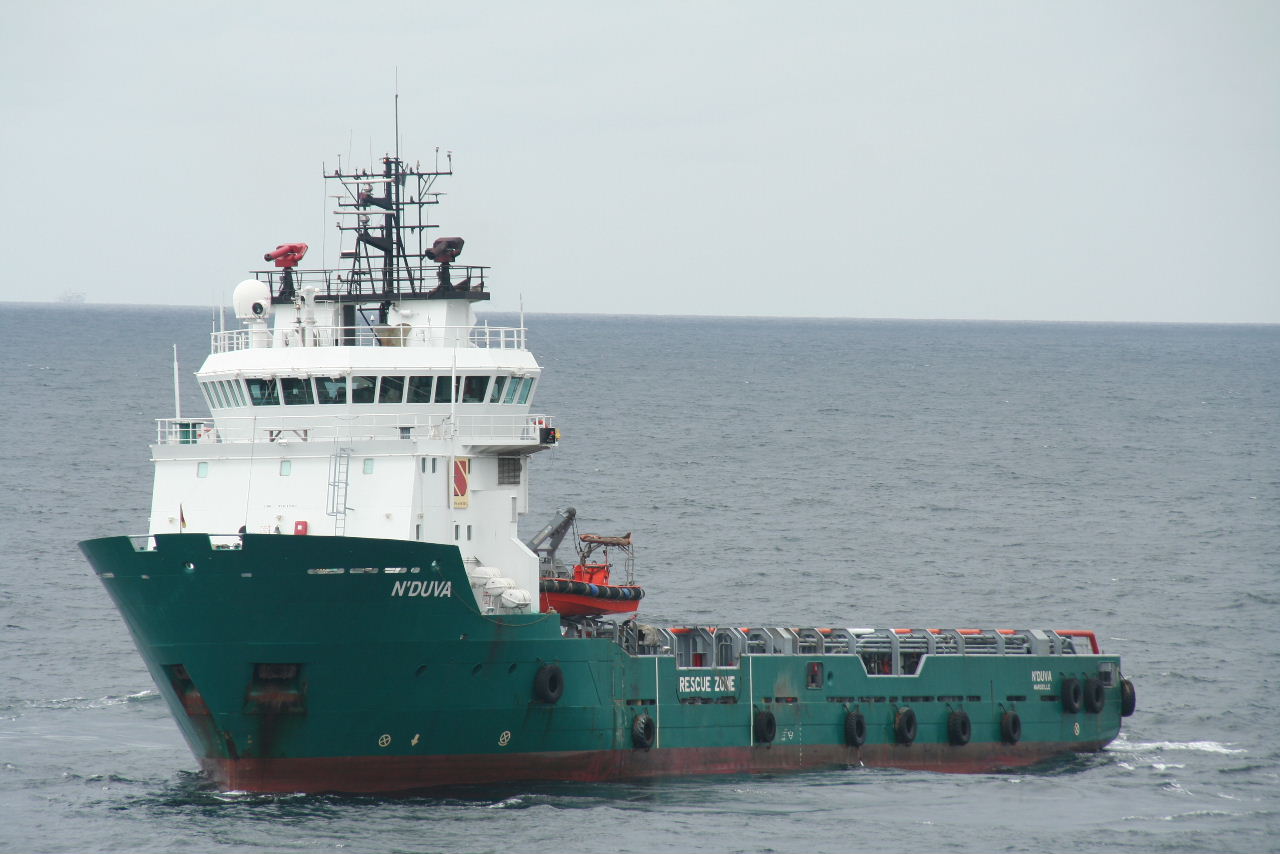

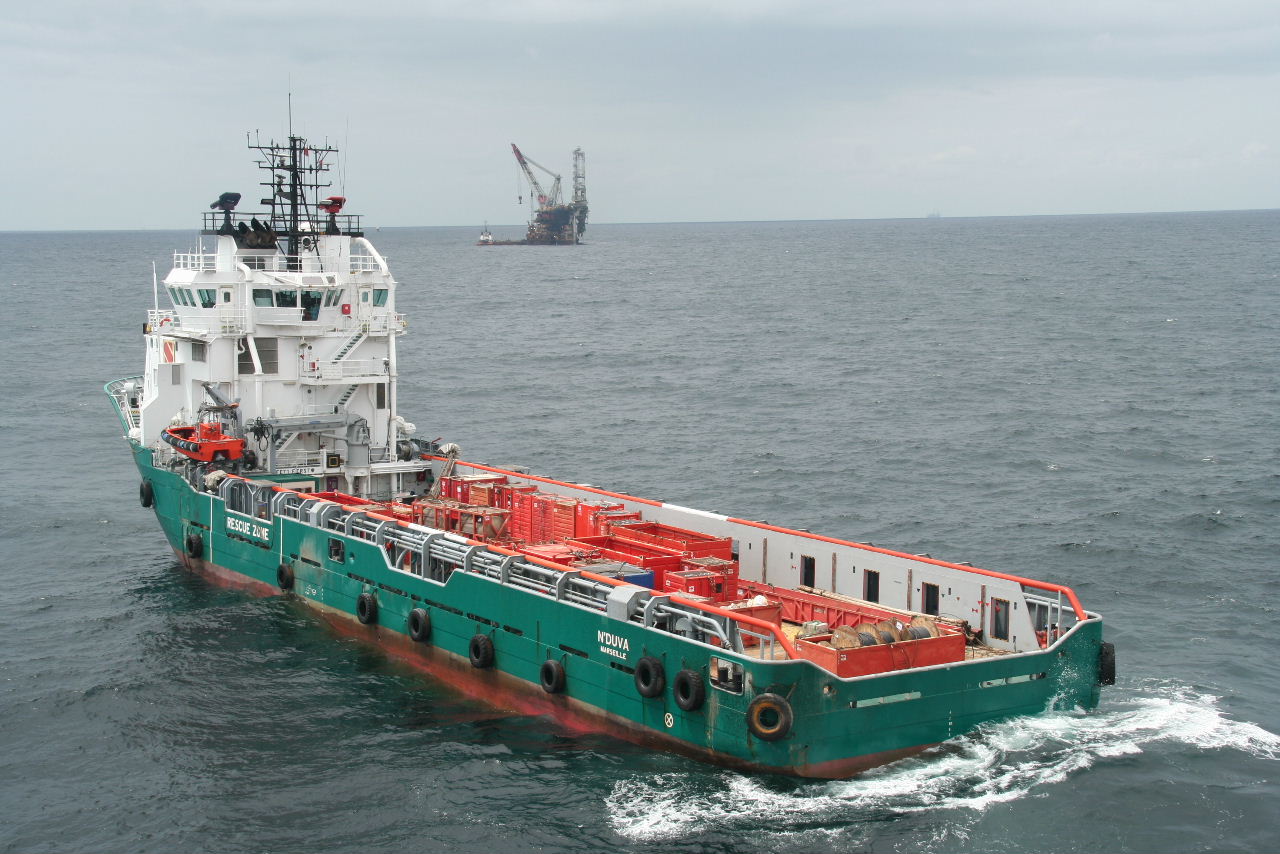

TYPE: UT 755L		NAME: N'DUVA		Photos: Jan Plug

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	72.0 m	Engines	2 x ??	Fuel	1200 m3
Breadth	16.0 m	BHP/kW	5460/4015	Pot water	790 m3
DWT	3247 t	For'd Thrusters	1 x 590 kW	Mud	1000 m3
Deck area	688 m2	Az Thruster	1 x 590 kW	Base oil	200 m3
Berths	26	Aft Thrusters	1 x 590 kW	Brine	1000 m3
Year built	2002	Joystick		Dry bulk	318 m3
Shipyard	Orskov	DP	DP1	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BOURBON HERA		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5520	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	23	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2005	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP1	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BOURBON HARMONIE		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5520	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	23	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2006	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BOURBON HEMERA		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5520	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	23	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2006	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BOURBON HECTOR		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5520	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	23	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2006	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BOURBON HESTIA		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5520	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	23	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2006	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

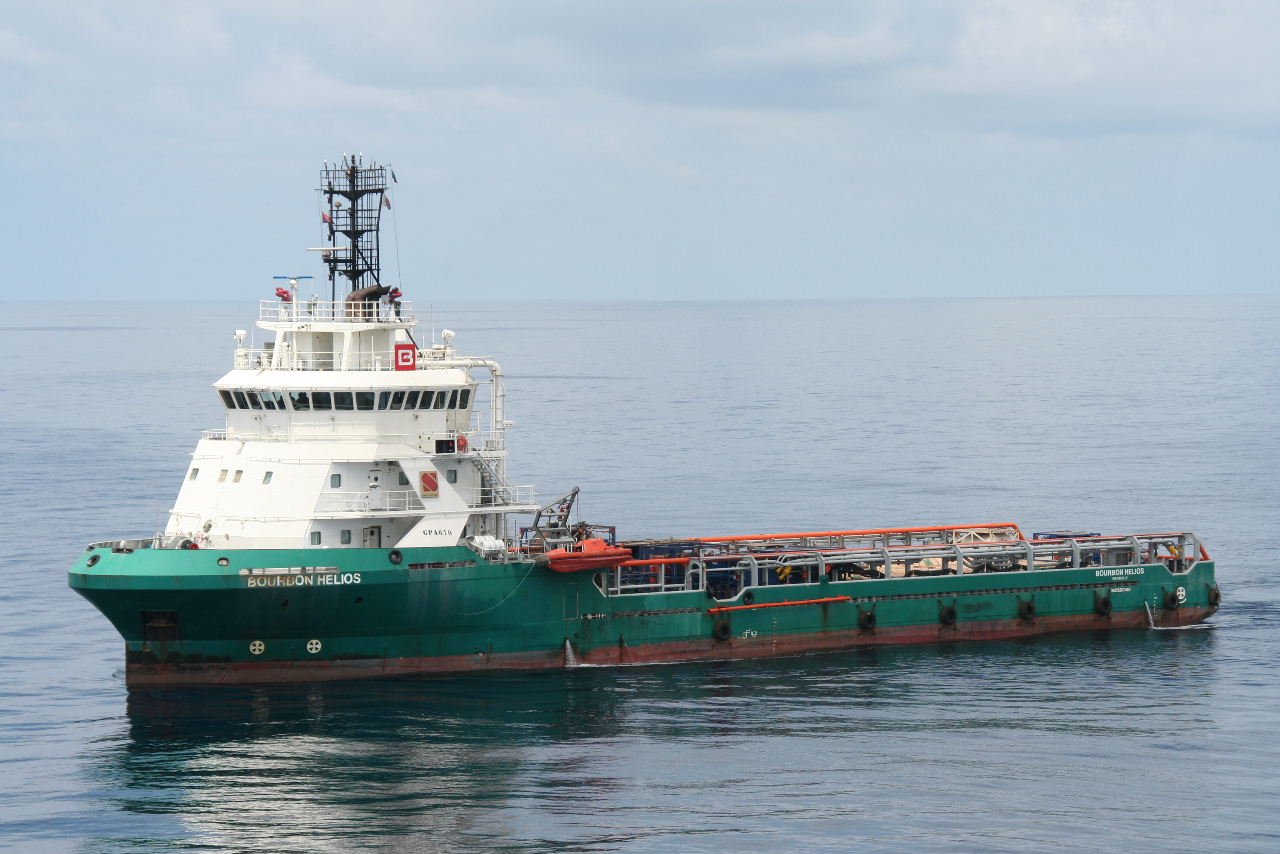

TYPE: GPA 670		NAME: BOURBON HELIOS		Photos: Jan Plug

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5520	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	23	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2005	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

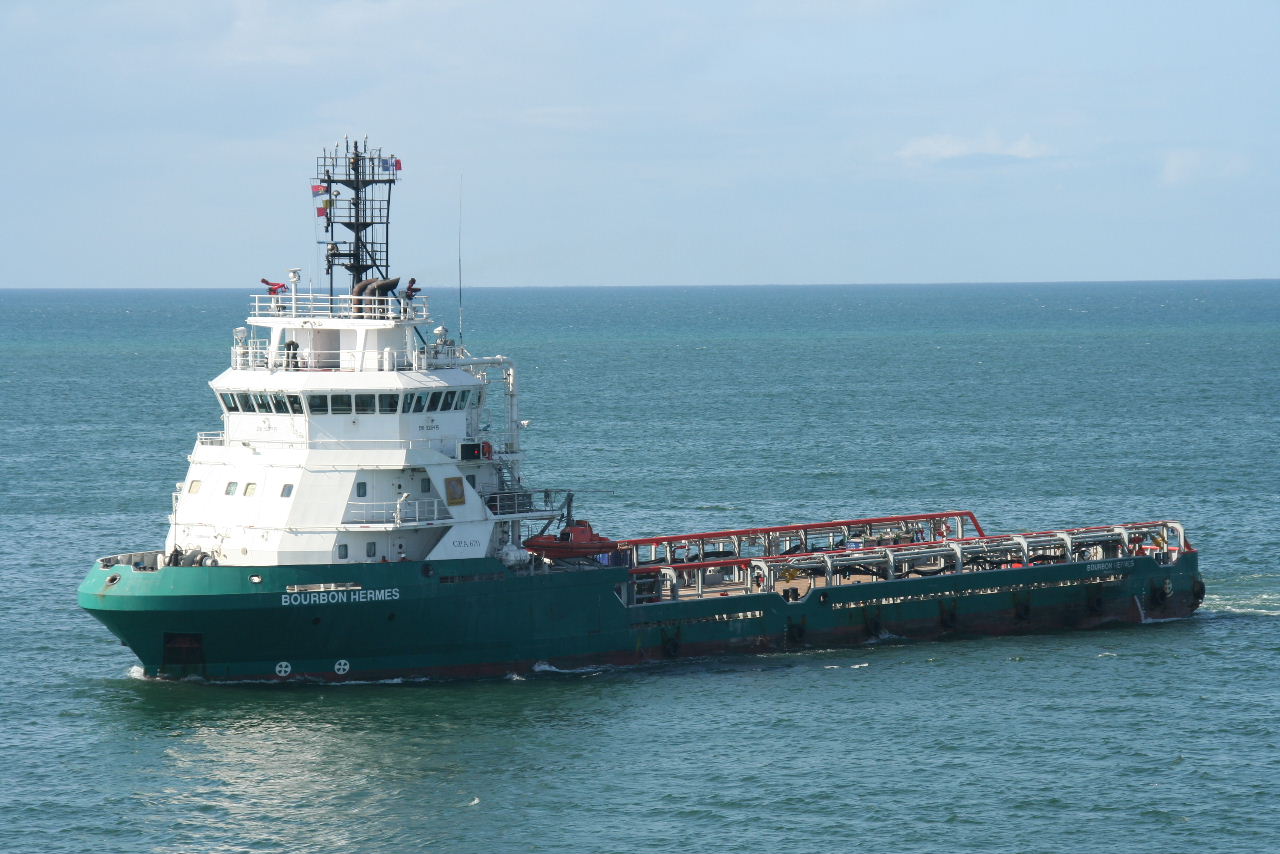

TYPE: GPA 670		NAME: BOURBON HERMES		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 Cummins QSK60	Fuel	1077 m3
Breadth	16.5 m	BHP/kW	7503/5520	Pot water	579 m3
DWT	3230 t	For'd Thrusters	2 x 746 kW	Mud	1092 m3
Deck area	675 m2	Az Thruster		Base oil	1092 m3
Berths	23	Aft Thrusters	2 x Z Drives	Brine	1092 m3
Year built	2005	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

TYPE: UT 755L		NAME: ANTENOR		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	72.0 m	Engines	2	Fuel	1200 m3
Breadth	16.0 m	BHP/kW	5460/4015	Pot water	790 m3
DWT	3227 t	For'd Thrusters	1 x 590 kW	Mud	1000 m3
Deck area	688 m2	Az Thruster	1 x 590 kW	Base oil	200 m3
Berths	32	Aft Thrusters	1 x 590 kW	Brine	1000 m3
Year built	2003	Joystick		Dry bulk	318 m3
Shipyard	Brattvaag	DP	DP1	Tank Cleaning	?
Previous names
Comments

TYPE: UT 755L		NAME: ASTERIE		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	72.0 m	Engines	2	Fuel	1200 m3
Breadth	16.0 m	BHP/kW	5460/4015	Pot water	790 m3
DWT	3227 t	For'd Thrusters	1 x 590 kW	Mud	1000 m3
Deck area	688 m2	Az Thruster	1 x 590 kW	Base oil	200 m3
Berths	32	Aft Thrusters	1 x 590 kW	Brine	1000 m3
Year built	2003	Joystick		Dry bulk	318 m3
Shipyard	Brattvaag	DP	DP1	Tank Cleaning	?
Previous names
Comments

TYPE: UT 755		NAME: LUIANA		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	67.0 m	Engines	2	Fuel	1050 m3
Breadth	16.0 m	BHP/kW	5460/4015	Pot water	790 m3
DWT	3048 t	For'd Thrusters	1 x 515 kW	Mud	800 m3
Deck area	621 m2	Az Thruster	1 x 515 kW	Base oil	200 m3
Berths	32	Aft Thrusters	1 x 590 kW	Brine	800 m3
Year built	2001	Joystick		Dry bulk	318 m3
Shipyard	Orskov	DP	DP1	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670		NAME: BOURBON HOMERE		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	2 Cummins QSK60	Fuel	973 m3
Breadth	16.5 m	BHP/kW	7504/5520	Pot water	579 m3
DWT	2927 t	For'd Thrusters	2 x 746 kW	Mud	1072 m3
Deck area	675 m2	Az Thruster		Base oil	1072 m3
Berths	40	Aft Thrusters	Z drives	Brine	1072 m3
Year built	2006	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

TYPE: GPA 670 MkII		NAME: BOURBON HERALD		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 x ??	Fuel	965 m3
Breadth	16.5 m	BHP/kW	7450/5475	Pot water	450 m3
DWT	2890 t	For'd Thrusters	2 x 746 kW	Mud	1083 m3
Deck area	675 m2	Az Thruster		Base oil	198 m3
Berths	40	Aft Az Props	Z drives	Brine	1083 m3
Year built	2008	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments	This ship is missing from the fleet list, but according to DNV is still owned by Bourbon, and managed by Bourbon Offshore Greenmar SA

TYPE: GPA 670 MkII		NAME: BOURBON HORUS		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.2 m	Engines	3 x ??	Fuel	965 m3
Breadth	16.5 m	BHP/kW	7450/5475	Pot water	450 m3
DWT	2890 t	For'd Thrusters	2 x 746 kW	Mud	1083 m3
Deck area	675 m2	Az Thruster		Base oil	198 m3
Berths	40	Aft Az Props	Z drives	Brine	1083 m3
Year built	2008	Joystick		Dry bulk	255 m3
Shipyard	Zhejiang	DP	DP2	Tank Cleaning	?
Previous names
Comments

TYPE: UT 719-2		NAME: KIESSE		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	64.02 m	Engines	2	Fuel	1318 m3
Breadth	15.5 m	BHP	5460	Pot water	246 m3
DWT	2204 t	For'd Thrusters	2 x 700 bhp	Mud	420 m3
Deck area	468 m2	Az Thruster	1 x 1000 bhp	Base oil	420 m3
Berths	30	Aft Thrusters	1 x 700 bhp	Brine	420 m3
Year built	1999	Joystick	Kongsberg	Dry bulk	248 m3
Shipyard	CMN France	DP		Tank Cleaning	?
Previous names
Comments	If you thought that this ship type was an anchor-handler, you are correct. This ship is an anchor-handler without a winch.

TYPE: UT 719-2		NAME: MALILA		Photos:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	64.02 m	Engines	2	Fuel	1318 m3
Breadth	15.5 m	BHP	5460	Pot water	246 m3
DWT	1899 t	For'd Thrusters	2 x 700 bhp	Mud	420 m3
Deck area	468 m2	Az Thruster	1 x 1000 bhp	Base oil	420 m3
Berths	30	Aft Thrusters	1 x 700 bhp	Brine	420 m3
Year built	1999	Joystick	Kongsberg	Dry bulk	248 m3
Shipyard	Chantiers France	DP		Tank Cleaning	?
Previous names
Comments	If you thought that this ship type was an anchor-handler, you are correct. This ship is an anchor-handler without a winch.

TYPE: NAME: BOURBON LIBERTY 101 Photos: Bob Nowak

GENERAL PROPULSION CARGO CAPACITY

Length OA 57.9 m Engines 3 Fuel 779 m3

Breadth 14.0 m BHP 4110 Pot water 329 m3

DWT 1509 t For'd Thrusters 2 x 560 kW Mud 527 m3

Deck area 360 m2 Az Thruster Base oil

Berths 22 Aft Thrusters 2 x 843 kW Brine

Year built 2008-2012 Joystick Dry bulk 168 m3

Shipyard Dayang China DP DP2 Tank Cleaning ?

Previous names

Comments This ship revived the slightly unusual configurations of three diesel electric engines on deck combined with one fixed propeller and two azimuthing thrusters aft. There are to be 50 of these by 2012.

TYPE: Shanghai Design NAME: BOURBON LIBERTY 150 PHOTO:

GENERAL PROPULSION CARGO CAPACITY

Length OA 61.8 m Engines 3 x Fuel 599 m3

Breadth 14.0 m BHP/kW 5040/3705 Pot water 358 m3

DWT 1700 mt
For'd Thrusters
2 x 560 kW Mud 675 m3

Deck area 398 m2 Az Thruster - Base oil -

Year built 2012 Aft Aziprops 3 x 843 kW Brine -

Shipyard Sinopacific Joystick - Dry bulk 180 m3

Berths 24 DPIi Yes Tank Cleaning -

Previous names -

Comments -

TYPE: Conan Wu NAME: Bourbon Atlas PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 60.0 m Engines 2 x ?? Workdrum pull -

Breadth 15.6 m BHP 3260 Capacity 1 -

DWT 1200 t kW 2400 Capacity 2 -

Deck area 350 m2 For'd Thruster 2 x 400 kW Accomm berths 44

Fuel 500 m3 Az Thruster - Storage capacity
-

Pot water 320 m3 Aft Az Props - ROV -

Mud 350 m3 Bollard pull - Sharks Jaw -

Brine 350 m3 DP II Yes Cranes -

Dry bulk 150 m3 Joystick - Tank cleaning -

Year built 2006 Shipyard Bharati

Previous names -

Comments 4 point mooring system fitted

TYPE: Conan Wu NAME: Bourbon Amilcar PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 60.0 m Engines 2 x ?? Workdrum pull -

Breadth 15.6 m BHP 3260 Capacity 1 -

DWT 1200 t kW 2400 Capacity 2 -

Deck area 350 m2 For'd Thruster 2 x 400 kW Accomm berths 44

Fuel 500 m3 Az Thruster - Storage capacity
-

Pot water 320 m3 Aft Az Props - ROV -

Mud 350 m3 Bollard pull - Sharks Jaw -

Brine 350 m3 DP II Yes Cranes -

Dry bulk 150 m3 Joystick - Tank cleaning -

Year built 2006 Shipyard Bharati

Previous names -

Comments 4 point mooring system fitted

DISPOSALS

KMAR404		BOURBON CHARISMA		BUILT: 1999 KLEVEN
Photo: George Craigen
General		Propulsion		Deck Equip
Length OA	73.6m	Engines	2 X Wartsila 12V32	Workdrum pull
Breadth	16.4m	BHP	13014	Capacity 1	1400 x 76
DWT	2750t	For'd Thruster	2 X kamewa	Capacity 2	1300 x 76
Deck area	560m2	Az Thruster		Towdrum pull
Fuel	824m3	Aft Thrusters	1 kamewa tunnel	Capacity 1
Pot water	516m3	Bollard pull	187t	Capacity 2
Mud	615m3			Sharks Jaw
Base oil		DP		Cranes
Brine		Joystick
Dry bulk	240m3	Year built	1999	Shipyard	Kleven
Tank Cleaning
Former names	Havila Charisma - now sold on to Deep Sea Supply

Type ME303		name: bourbon chieftain		Photos:

General		Propulsion		Deck Equip
Length OA	68.3m	Engines	2 X B&W Alpha	Workdrum pull	300t
Breadth	15.6m	BHP	12728	Capacity 1	1200 x 64
DWT	2209t	For'd Thruster	2 Lips	Capacity 2	1200 x 64
Deck area	473.6m2	Az Thruster		Towdrum pull	350t
Fuel	1035m3	Aft Thrusters	1 Lips	Capacity 1
Pot water	598m3	Bollard pull	136t	Capacity 2
Mud				Sharks Jaw
Base oil		DP		Cranes	1 x deck crane
Brine		Joystick	Lips
Dry bulk	339m3	Year built	1983	Shipyard	Hermann Surken
Tank Cleaning

TYPE: UT704 NAME: BOURBON CHARMER PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 65.5 m Engines 2 x Nohab 16V25 Workdrum pull 250 t

Breadth 13.8 m BHP 9700 Capacity 1 500m x 76mm

DWT 1700 t kW Capacity 2 200m x 76mm

Deck area 330 m2 For'd Thruster 1 x 597 kW Towdrum pull 250 t

Fuel 568 m3 Az Thruster 1 x 1342 kW Capacity 1 1200m x 64mm

Pot water 318 m3 Aft Thrusters Capacity 2

Mud 147 m3 Bollard pull 103 t Sharks Jaw Karm fork

Brine 147 m3 DP Albatross DP1 Cranes

Dry bulk Joystick Yes Tank cleaning

Year built/due 1993 Shipyard Sarpsborg

Previous names

Comments

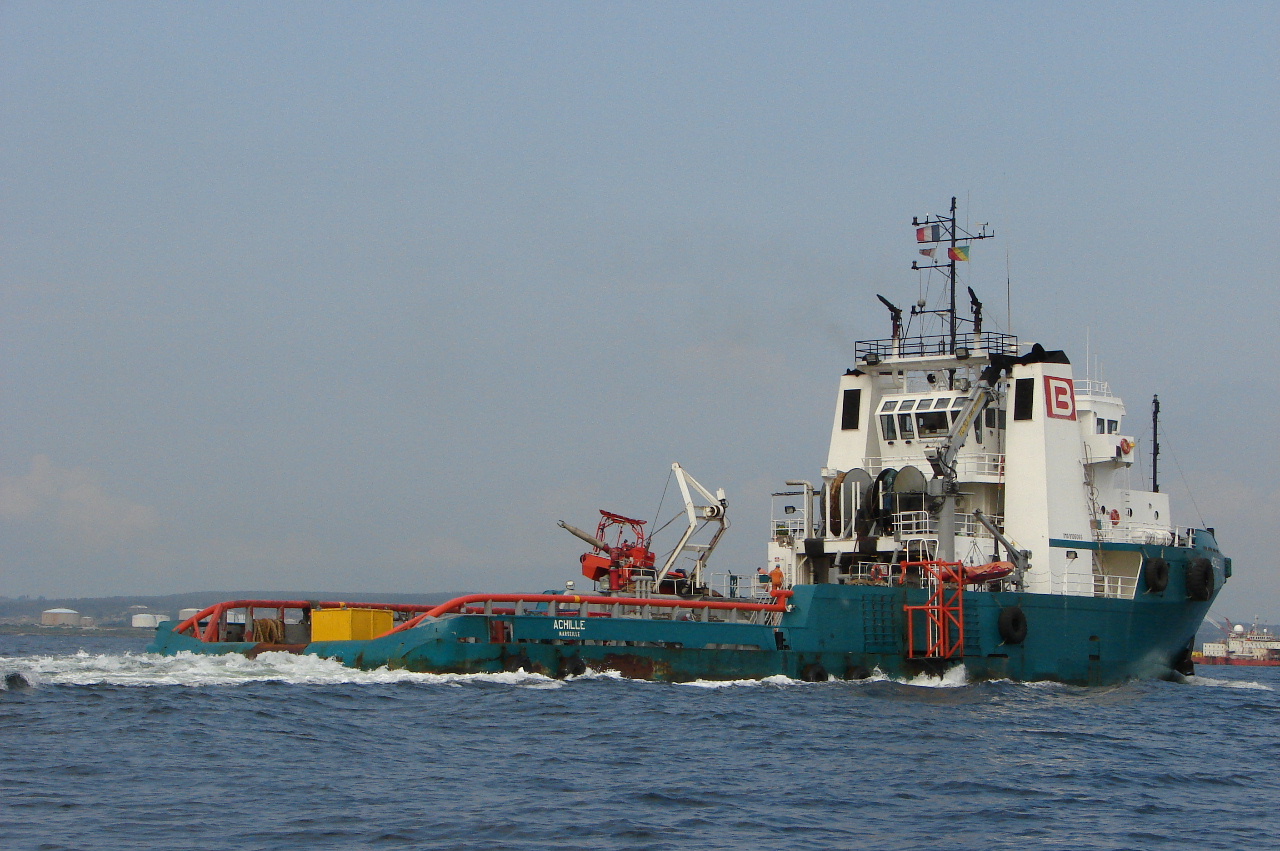

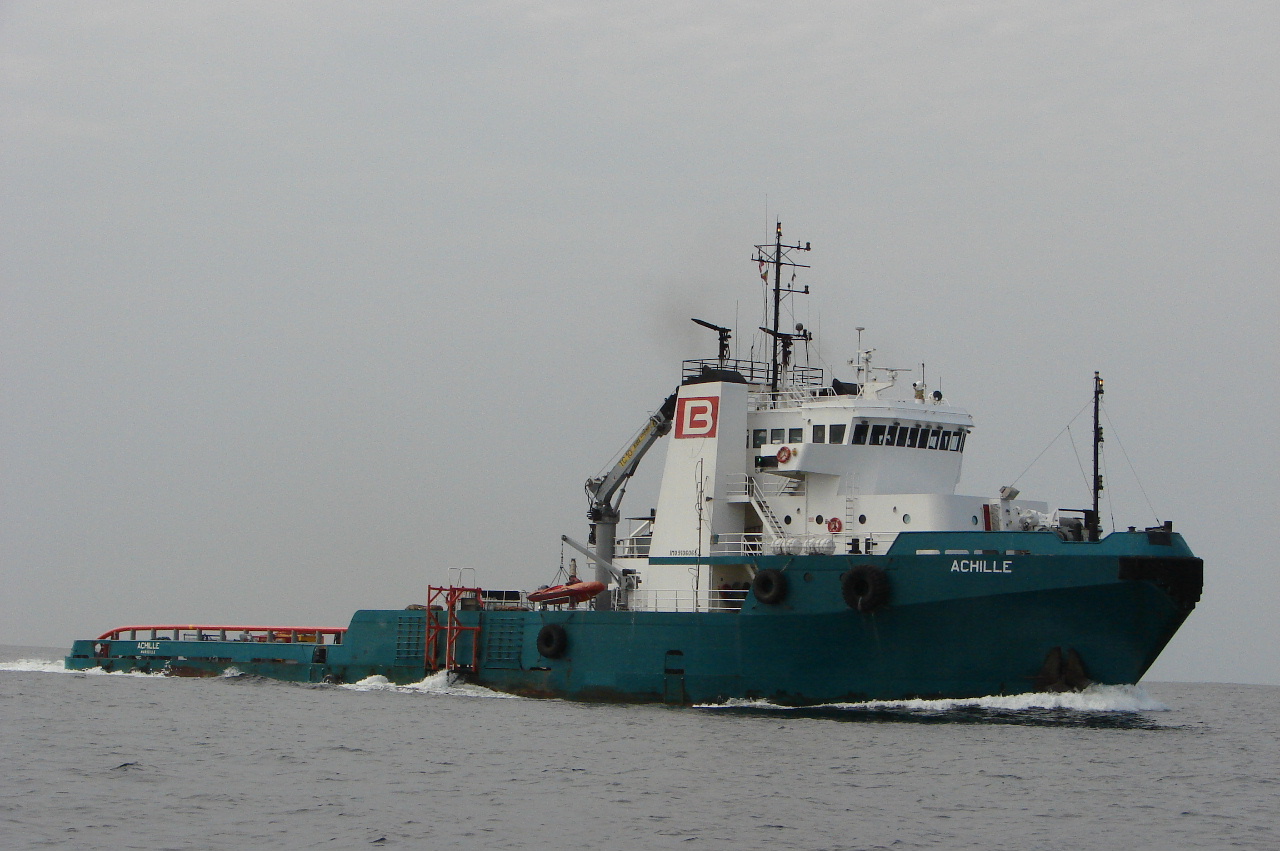

TYPE: HALTER NAME: ACHILLE PHOTO: Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 66.4 m Engines 2 x CAT 3612 Workdrum pull 180 t

Breadth 14.0 m BHP 10880 Capacity 1 1100m x 56mm

DWT 1439 t kW 8000 Capacity 2

Deck area 385 m2 For'd Thruster 1 x 735 kW Towdrum pull 180 t

Fuel 652 m3 Az Thruster Capacity 1 1100m x 56mm

Pot water 1010 m3 Aft Thrusters Capacity 2

Mud 260 m3 Bollard pull 117 t Sharks Jaw 1 x Karmfork

Brine DP Robertson Cranes

Dry bulk 168 m3 Joystick ditto Tank cleaning

Year built/due 1994 Shipyard Trinity Marine Berths 24

Previous names

Comments Sold to Coastland Energy Logistics - a Nigerian company.

TYPE: NAME: BOURBON EKO Photos:

GENERAL PROPULSION CARGO CAPACITY

Length OA 63.00 m Engines 2 x Bergen Fuel 779 m3

Breadth 15.0 m BHP 5000 Pot water 329 m3

DWT 2204 t For'd Thrusters 1 x 596 kW Mud 527 m3

Deck area 468 m2 Az Thruster 1 x 745 kW Base oil

Berths 20 Aft Thrusters 1 x 596 kW Brine

Year built 1992 Joystick Dry bulk 168 m3

Shipyard Brattvaag DP Tank Cleaning ?

Previous names Rescue Eko, Havila Eko,

Comments Sold to Atlantic Offshore Rescue in 2013.

DISASTERS

Type: ULSTEIN A102 Name: BOURBON DOLPHIN Photos: VIC GIBSON

GENERAL

PROPULSION

EQUIPMENT

Length OA 75.20m Engines 4x3000kW Workdrum pull 400t

Breadth 17.0m BHP 16,000 Capacity 1 5000m x 76mm

DWT 2500mt kW 12000 Capacity 2

Deck area 486m2 For'd Thruster 883kW Towdrum pull 400t

Fuel 1150m3 Az Thruster 883kW Capacity 1 2500m x 76mm

Pot water 435m3 Aft Thrusters 2 x 590kW Capacity 2 2500m x 76mm

Mud 625m3 Bollard pull 194t Sharks Jaw 2 x 500t

Brine 600m3 DP DPII Cranes Several

Dry bulk 155m3 Joystick Tank cleaning No

Year built 2006 Shipyard Ulstein Verft

Previous names

Comments On 12th April 2007 at 1720 this vessel capsized when carrying out anchor work at the Transocean Rather. Subsequently it sank on the location. For more information look elsewhere on this site.

TYPE: ?? NAME: AJAX PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 66.4 m Engines 2 x Cat 3612 Workdrum pull 250 t

Breadth 14.0 m BHP 11,000 Capacity 1 2050m x 76mm

DWT 1439 t kW 8090 Capacity 2

Deck area 385 m2 For'd Thruster 1 x 735 kW Towdrum pull 250 t

Fuel 652 m3 Az Thruster Capacity 1 2050m x 76mm

Pot water 1010 m3 Aft Thrusters Capacity 2

Mud 260 m3 Bollard pull 129 t Sharks Jaw 2 x Karmfork

Brine DP Robertson Cranes

Dry bulk 168 m3 Joystick Tank cleaning

Year built/due 1997 Shipyard Halter Marine Berths 24

Previous names

Comments Sold in 2013 to Petromarine Nigeria and is managed by Bourbon Interoil Nigeria.

TYPE: UT 711 NAME: ALCYON PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 53.0 m Engines 2 x Bergen Workdrum pull 85 t

Breadth 13.0 m BHP 5280 Capacity 1 800m x 52mm

DWT 1002 t kW 3880 Capacity 2

Deck area 260 m2 For'd Thruster 1 x 500 bhp Towdrum pull 85 t

Fuel 796 m3 Az Thruster Capacity 1 800m x 52mm

Pot water 765 m3 Aft Thrusters Capacity 2

Mud Bollard pull 64 t Sharks Jaw 1

Brine DP Cranes 1 x 23 t

Dry bulk 135 m3 Joystick Tank cleaning

Year built/due 1982 Shipyard Chantiers Berths 22

Previous names Bahram

Comments

TYPE: UT719-2 NAME: WESA PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 64.02 m Engines 2 Workdrum pull 100 t

Breadth 15.5 m BHP 6460 Capacity 1 1200m x 56mm

DWT 2374 t kW 4750 Capacity 2

Deck area 468 m2 For'd Thruster 1 x 700 bhp Towdrum pull 100 t

Fuel 1318 m3 Az Thruster 1 x 1000 bhp Capacity 1 1200m x 56mm

Pot water 246 m3 Aft Thrusters 1 x 700 bhp Capacity 2

Mud 420 m3 Bollard pull 84 t Sharks Jaw Karmfork

Brine DP Cranes

Dry bulk 248 m3 Joystick Yes Tank cleaning

Year built 1999 Shipyard Chantiers Piriou Berths 30

Previous names

Comments

SHIPPING COMPANY INFORMATION UPDATED IN 2014

Abeille Bourbon
Acergy
Acomarit
Active Offshore
Aker Solutions
Allseas
ALP Maritime
Arctia Shipping
Arendal Offshore
Aries Offshore
Arktikmor
Atlantic Offshore
Axis Offshore
Bergen Offshore
Bibby Offshore
Blue Star Line
Boa Offshore
Boston Putford
Bourbon Norway
Bourbon Offshore
BP
Branding Offshore
British Antarctic Survey (New)
Brovig Offshore
BUE Marine
BUE Viking
Bukser og Bergung
Deep Sea Supply
Deepocean
DOF
DOF Subsea
Eide Offshore
Eidesvik
ER Schiffahrt
Esvagt
Fairmount
Fairplay Towage
Farstad
Femco Management
FS Shipping
Fugro
Gardline
Geoships
Golden Energy
GulfOffshore Norg
Gulf Offshore UK
Hanzevast Capital
Harms Bergung
Harrisons
Hartmann Offshore
Havila Shipping
Heerema
Irish Mainport
Island Offshore
JPKnight
K Line Offshore
Maersk Supply
Marine Carrier AB
Marine Subsea
Myklebusthaug
Chornomornaftogaz
NAO
N-Sea
Nomis
Nordic American
Nordane Shipping
North Sea Shipping
North Star
O.H.Meling
OIL
Olympic Shipping
OOC
OSA
Ostenjo Rederi
PetroBaltic
Portosalvo
Rem Offshore
Remoy Managment
Rovde Shipping
SBS
SeaMar Shipping
Sealion
Seaworx
Siem Offshore
Simon Mokster
Smit Lloyd
Smitwijs
SMS
Solstad
Subsea7
Stirling
Surf
Technip
Trico Offshore
Tschudi Offshore
Troms Offshore
URAG
URS
Varada Marine
Vestland Marine
Viking Supply
Volstad Shipping
Vroon
Vroon Standby
World Wide Supply
Zafiro Marine

ALL CONTENT OF THIS SITE REMAINS THE PROPERTY OF THE WRITERS AND THE PHOTOGRAPHERS AND MUST NOT BE REPRODUCED WITHOUT PERMISSION
