DEEP SEA SUPPLY
Deep Sea Supply is a Norwegian company set up in 2004 by some shipping executives with their origins in Viking Supply Ships during one of its periods of intensive activity. When-ever their intentions, they had the opportunity of purchasing six KMAR404s from Tidewater in 2005 which they did with finance raised from Norwegian financial institutions. Later they were able to purchase a further KMAR404 from Groupe Bourbon. These seven vessels constitute almost the whole production of the vessel type, possibly because they are a little limited in both horse-power and winch capacity and capability. However, as this is being written in January 2007, it can be seen that these purchases were particularly well timed and that this group of slightly limited vessels are making good money for the new owners.

Deep Sea Supply has also announced a vast building programme consisting of one 16,000 bhp anchor handler being built in Norway and to be delivered in September 2008, two 15,000 bhp anchor handlers being built in China and apparently to be delivered in early 2007, 9 small anchor-handlers to be built in China and to be delivered over three years from 2007, and amazingly eight UT755s to be delivered by the end of 2008.

As of February 2011 it is evident that some rationalisation is taking place. Two of the KMAR 404s have gone and although the newbuilding programme remains in place the company may be pleased that deliveries are not to take place as required by the original timescale.

By April 2014 the platform ship fleet had increased by 12 ships, all built in india and the Far East, and there appear to be another six ships due into service this year.

At the 2015 review it could be seen that quite a number of new platform ships have joined the fleet, maybe the six which were on order. And at this moment none of them seem to have been laid up.

Updated 27th October 2015

SHIP TYPE

NOW

ORDERED



AHTS Under 10000 bhp 5 -
AHTS 10000bhp to 20000bhp 9 -
AHTS 20000 bhp and over - -
Seismic ships - -
Heavy lift ships - -
Pipelayers - -
IMR ships - -
PSVs deck less than 1000 m2 24 -
PSVs deck 1000 m2 + 1 -
SBSs/ERRVs - -





 ANCHOR HANDLERS
  TYPE: KMAR 404 NAME: Sea Tiger PHOTO: Jan Plug, Vic Gibson

GENERAL

PROPULSION

EQUIPMENT
Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull   300t
Breadth 16.40 m BHP 15000 Capacity 1   2000m x76mm
DWT 2082 mt kW 11060 Capacity 2
Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull   300t
Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1   2000m x76mm
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw   Karmforks
Brine 581 m3 DP None Cranes   4.5t x 14m
Dry bulk 240 m3 Joystick KaMeWa Tank cleaning   None
Year built 1998     Shipyard   Kvaerner Kleven
Previous names Maersk Dispatcher, Ray J Hope,
Comments -

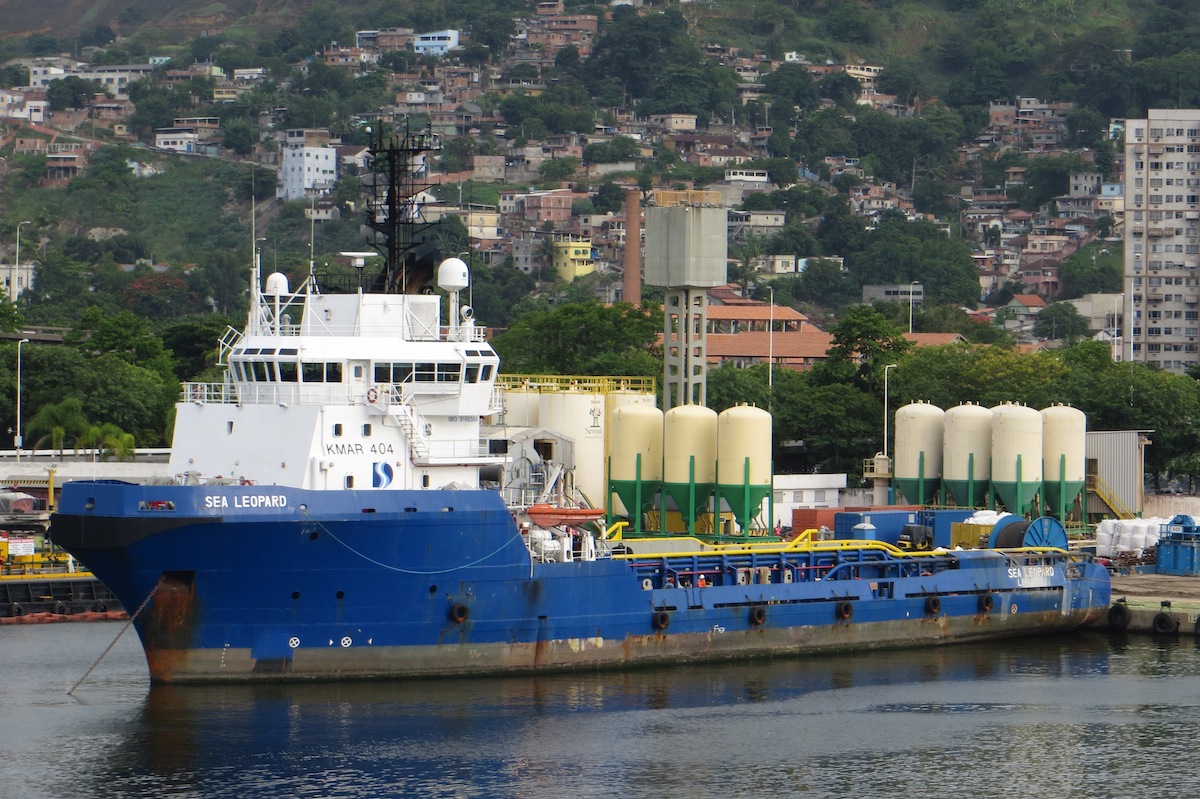

  TYPE: KMAR 404 NAME:  Sea Leopard PHOTO: Jan Plug


GENERAL

PROPULSION

EQUIPMENT
Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull   300t
Breadth 16.40 m BHP 15000 Capacity 1   2000m x76mm
DWT 2082 mt kW 11060 Capacity 2
Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull   300t
Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1   2000m x76mm
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw   Karmforks
Brine 581 m3 DP None Cranes   4.5t x 14m
Dry bulk 240 m3 Joystick KaMeWa Tank cleaning   None
Year built 1998     Shipyard   Kvaerner Leirvik
Previous names Leopard Bay, William R Croyle
Comments -

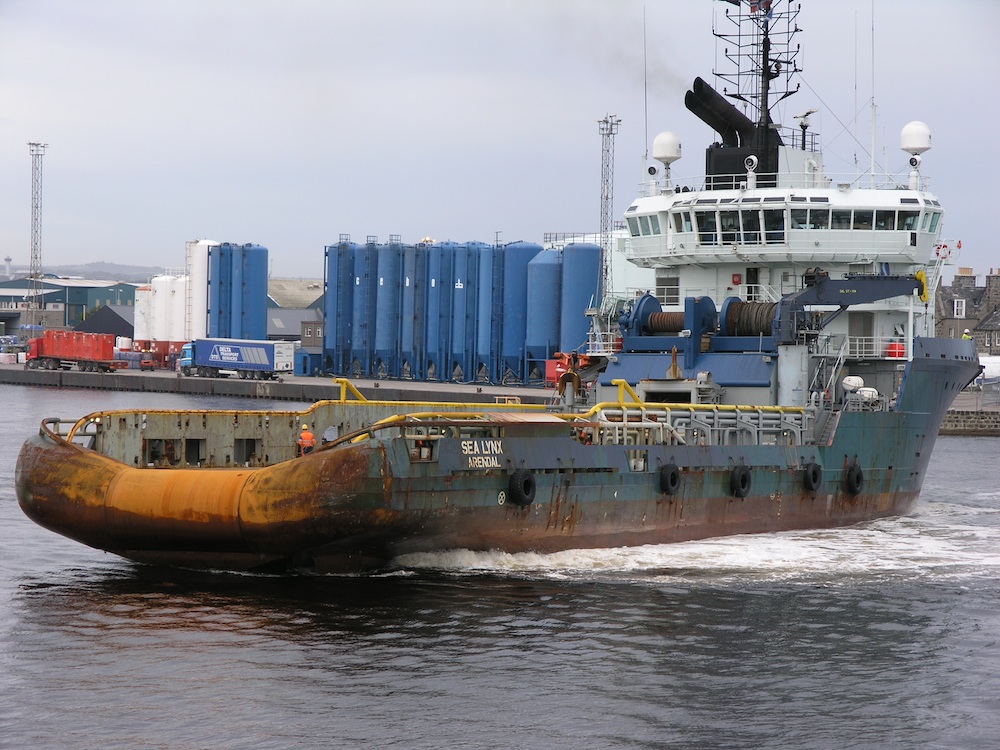

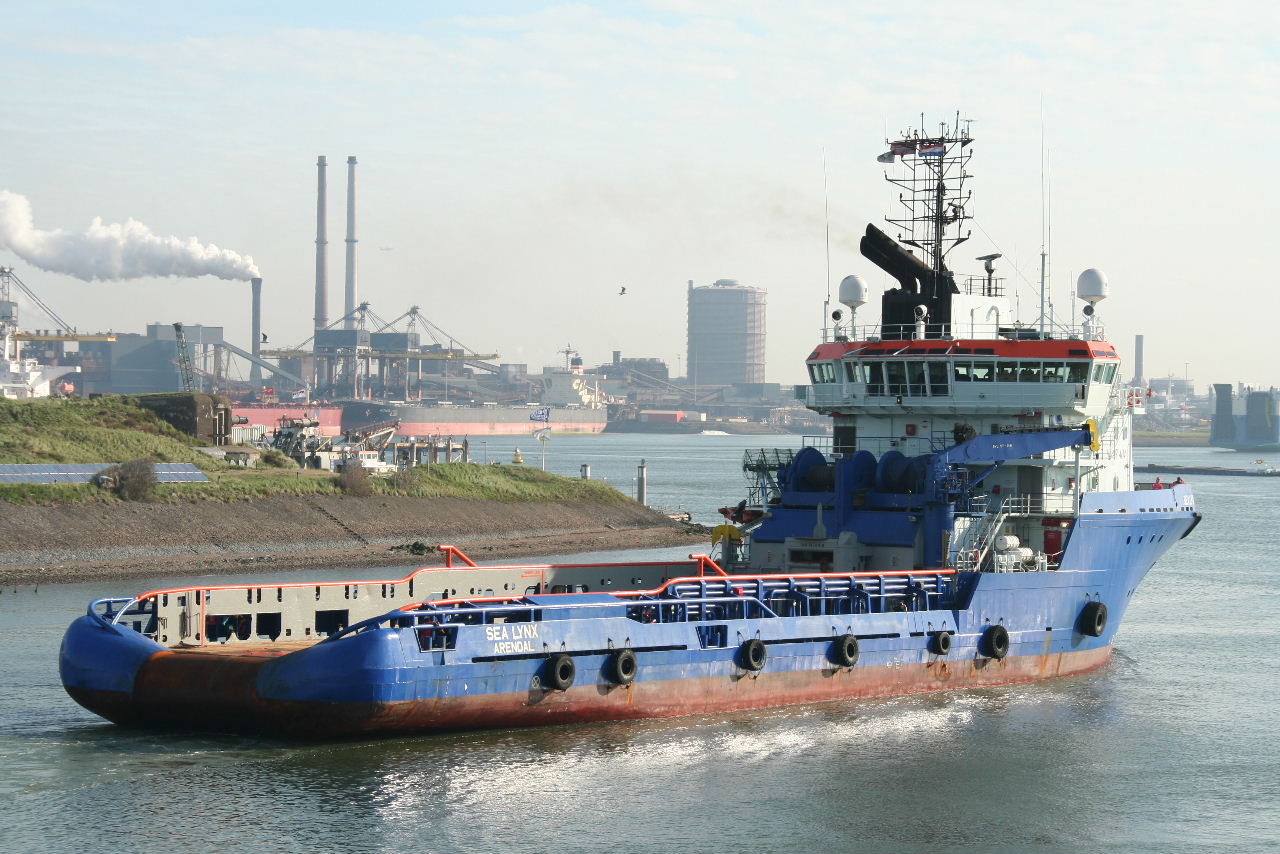

  TYPE: KMAR 404 NAME: Sea Lynx PHOTO: Vic Gibson, Jan Plug

GENERAL

PROPULSION

EQUIPMENT
Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull   300t
Breadth 16.40 m BHP 15000 Capacity 1   2000m x76mm
DWT 2082 mt kW 11060 Capacity 2
Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull   300t
Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1   2000m x76mm
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw   Karmforks
Brine 581 m3 DP None Cranes   4.5t x 14m
Dry bulk 240 m3 Joystick KaMeWa Tank cleaning   None
Year built 1999     Shipyard   Kvaerner Leirvik
Previous names Torm Heron, Howard Hogue
Comments -

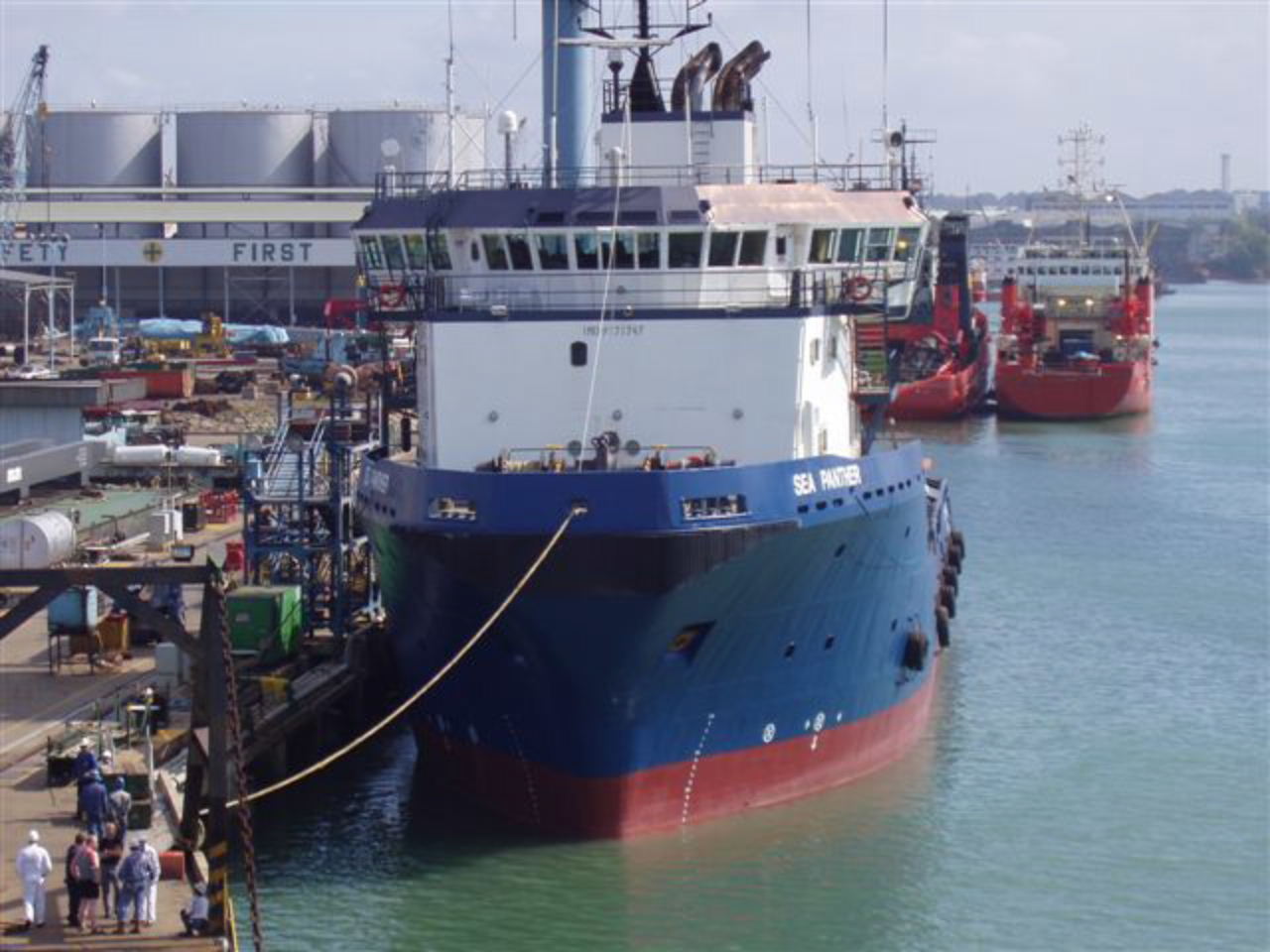

  TYPE: KMAR 404 NAME: Sea Panther   PHOTO: Calum Bannatyne


GENERAL

PROPULSION

EQUIPMENT
Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull   300t
Breadth 16.40 m BHP 15000 Capacity 1   2000m x76mm
DWT 2082 mt kW 11060 Capacity 2
Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull   300t
Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1   2000m x76mm
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw   Karmforks
Brine 581 m3 DP None Cranes   4.5t x 14m
Dry bulk 240 m3 Joystick KaMeWa Tank cleaning   None
Year built 1999     Shipyard   Kvaerner Leirvik
Previous names Maersk Detector, Billy Joe Ramey
Comments -

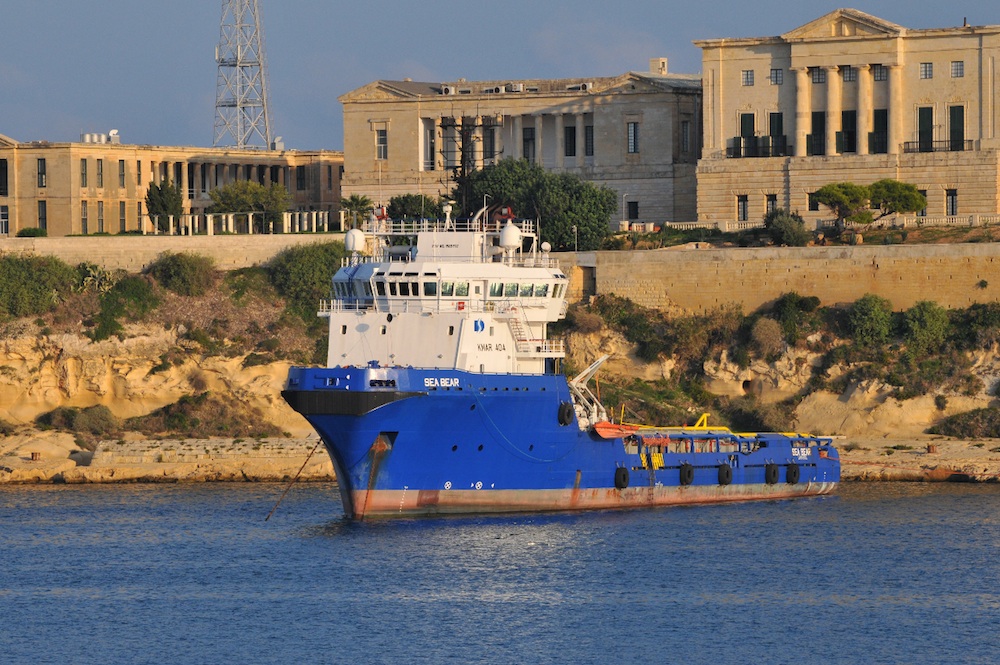

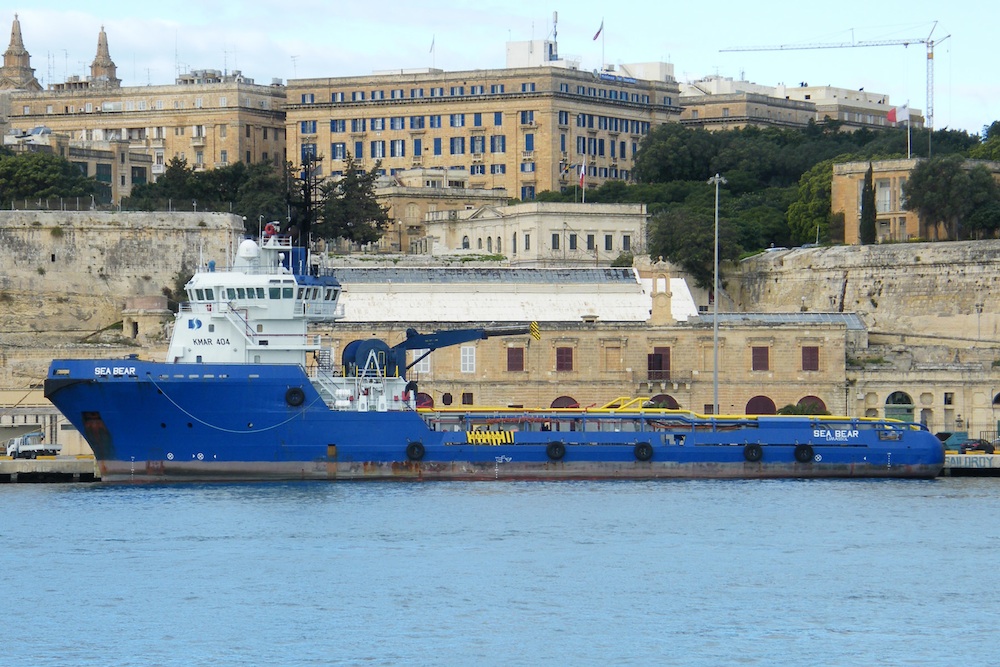

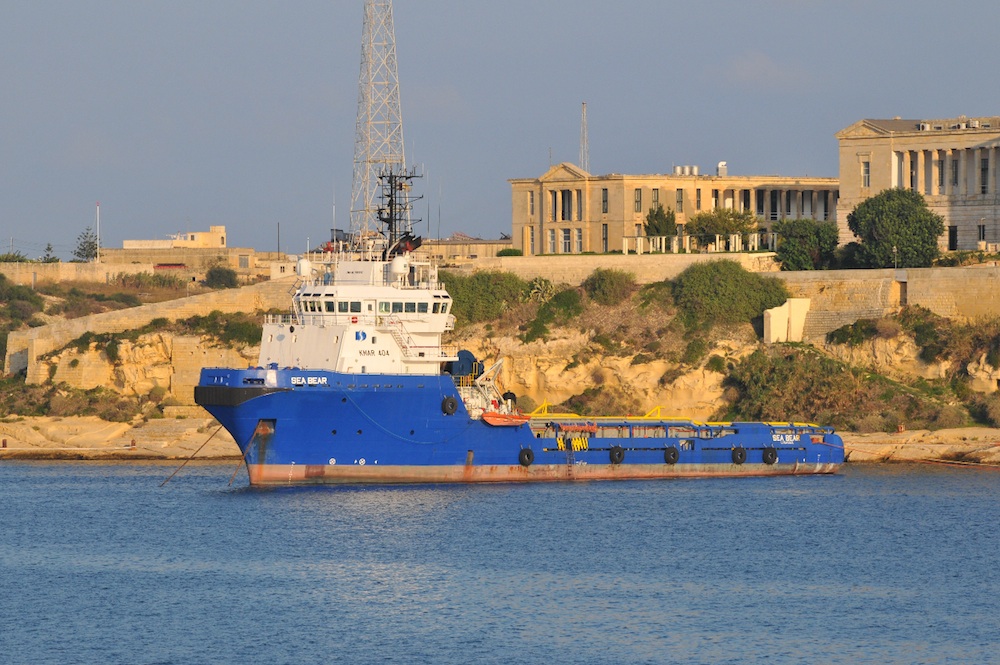

  TYPE: KMAR 404 NAME: Sea Bear PHOTO: Gejtu Spiteri, Robby Norman

GENERAL

PROPULSION

EQUIPMENT
Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull   300t
Breadth 16.40 m BHP 15000 Capacity 1   2000m x76mm
DWT 2082 mt kW 11060 Capacity 2
Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull   300t
Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1   2000m x76mm
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw   Karmforks
Brine 581 m3 DP None Cranes   4.5t x 14m
Dry bulk 240 m3 Joystick KaMeWa Tank cleaning   None
Year built 1999     Shipyard   Kvaerner Leirvik
Previous names Amadon Tide
Comments -



  TYPE: KHIAM CHUANG  Q486 NAME: Sea Cheetah PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 75.40 m Engines 2 Workdrum pull   350t
Breadth 16.80 m BHP 15000 Capacity 1   3500m x76mm
DWT 2301 mt kW 11040 Capacity 2
Deck area 485 m2 For'd Thruster 2 x 680 kW Towdrum pull   350t
Fuel 1210 m3 Az Thruster - Capacity 1   3500m x76mm
Pot water 493 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 561 m3 Bollard pull 176.9 Sharks Jaw   Karmforks
Brine - m3 DP None Cranes   2.2 t x 12m
Dry bulk 226 m3 Joystick KaMeWa Tank cleaning   None
Year built 2007     Shipyard Jaya - Singapore
Previous names
Comments -

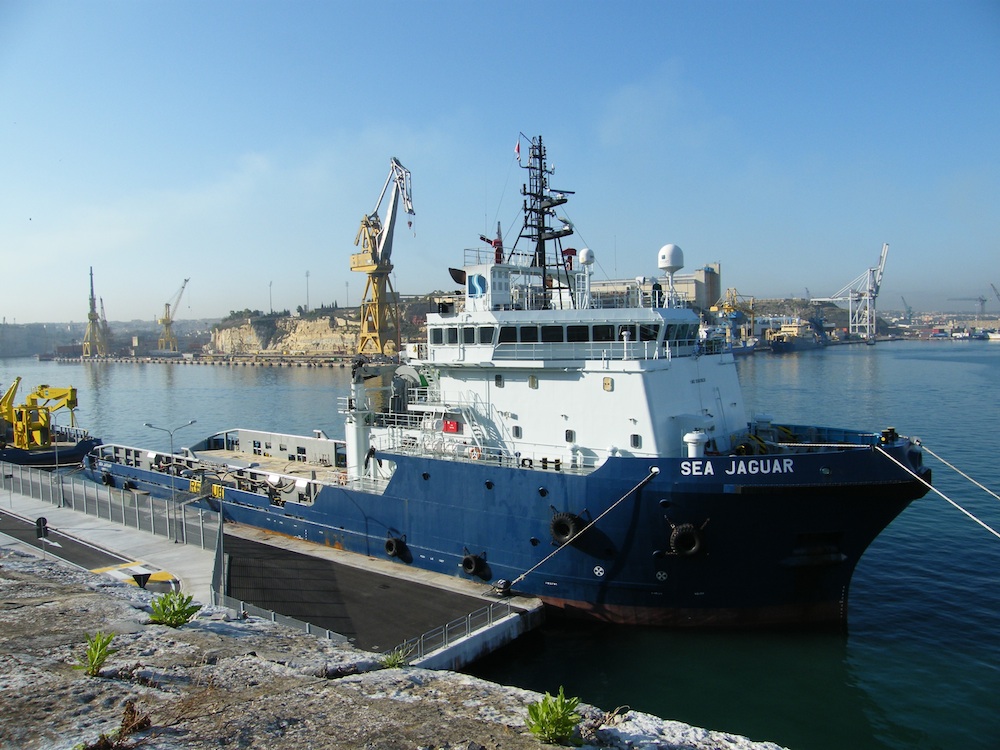

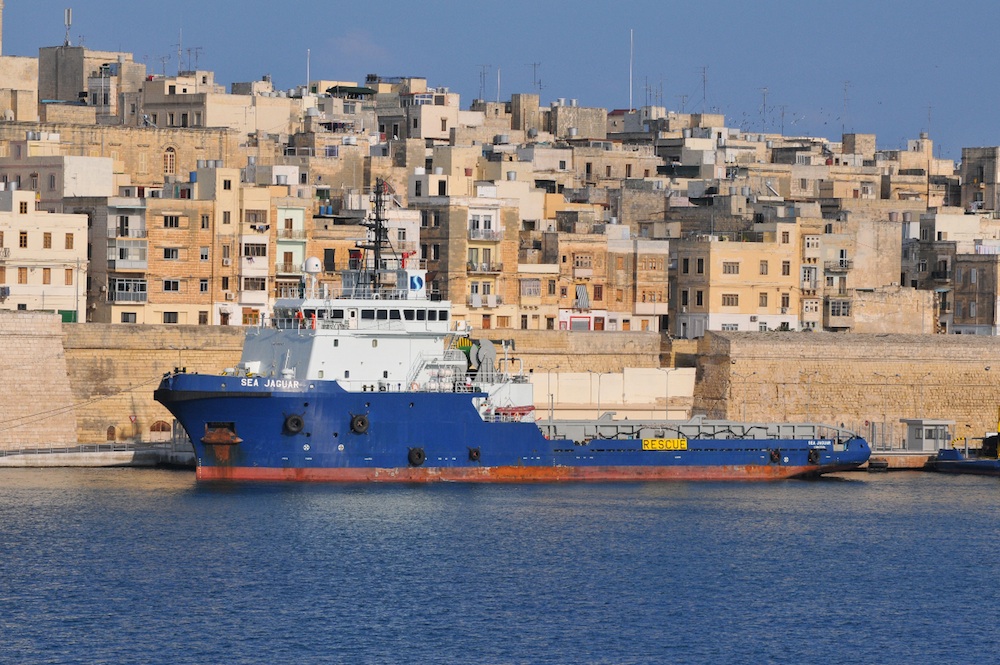

  TYPE: KHIAM CHUANG  Q486 NAME: Sea Jaguar PHOTO: Robby Norman



GENERAL

PROPULSION

EQUIPMENT
Length OA 75.40 m Engines 2 Workdrum pull   350t
Breadth 16.80 m BHP 15000 Capacity 1   3500m x76mm
DWT 2301 mt kW 11040 Capacity 2
Deck area 485 m2 For'd Thruster 2 x 680 kW Towdrum pull   350t
Fuel 1210 m3 Az Thruster - Capacity 1   3500m x76mm
Pot water 493 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 561 m3 Bollard pull 176.9 Sharks Jaw   Karmforks
Brine - m3 DP None Cranes   2.2 t x 12m
Dry bulk 226 m3 Joystick KaMeWa Tank cleaning   None
Year built 2007     Shipyard Jaya - Singapore
Previous names
Comments -

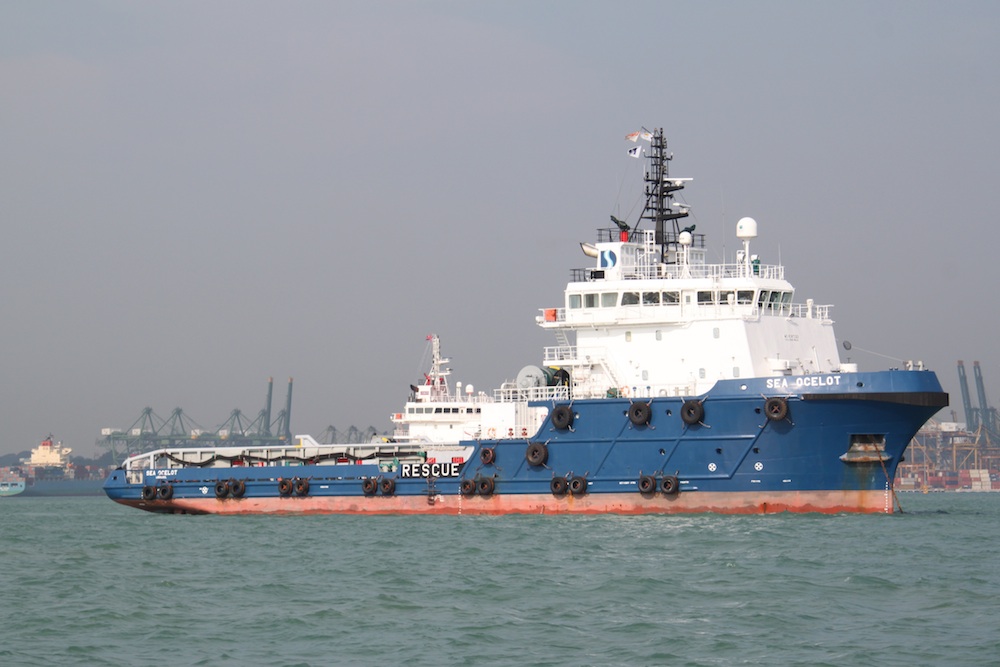

  TYPE: KHIAM CHUANG NAME: Sea Ocelot PHOTO: Mike Prendergast



GENERAL

PROPULSION

EQUIPMENT
Length OA 70.0 m Engines 2 X Wartsila 8L32 Workdrum pull   162t
Breadth 16.80 m BHP 10880 Capacity 1   2000m x76mm
DWT 2000 mt kW 8000 Capacity 2
Deck area 450 m2 For'd Thruster 2 x 680 kW Towdrum pull   162t
Fuel 1260 m3 Az Thruster - Capacity 1   2000m x76mm
Pot water 360 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 490 m3 Bollard pull 125 t Sharks Jaw   Karmforks
Brine - m3 DP Kongsberg Cranes   2.2 t x 12m
Dry bulk 226 m3 Joystick Yes Tank cleaning   None
Year built 2007     Shipyard Jaya - Singapore
Previous names
Comments -



  TYPE: KHIAM CHUANG  Q486 NAME: Sea Eagle 1 PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 75.40 m Engines 2 Workdrum pull   300 t
Breadth 16.80 m BHP 12240 Capacity 1   800m x76mm
DWT 2301 mt kW 9000 Capacity 2
Deck area 485 m2 For'd Thruster 2 x 680 kW Towdrum pull   300 t
Fuel 1230 m3 Az Thruster - Capacity 1   1500m x76mm
Pot water 493 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 561 m3 Bollard pull 151 t Sharks Jaw   Karmforks
Brine - m3 DP None Cranes   2.2 t x 12m
Dry bulk 226 m3 Joystick KaMeWa Tank cleaning   None
Year built 2009     Shipyard Jaya - Singapore
Previous names
Comments -



  TYPE: SEATECH P-729 NAME: SEA FOX   PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2011     Shipyard ABG India
Previous names
Comments -



  TYPE: SEATECH P-729 NAME: SEA JACKAL   PHOTO: Jan Plug




GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2011     Shipyard ABG India
Previous names
Comments -



  TYPE: SEATECH P-729 NAME: SEA BADGER   PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2011     Shipyard ABG India
Previous names
Comments -



  TYPE: SEATECH P-729 NAME: SEA VIXEN   PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2011     Shipyard ABG India
Previous names
Comments -



  TYPE: SEATECH P-729 NAME: SEA STOAT   PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2011     Shipyard ABG India
Previous names
Comments -

PLATFORM SHIPS

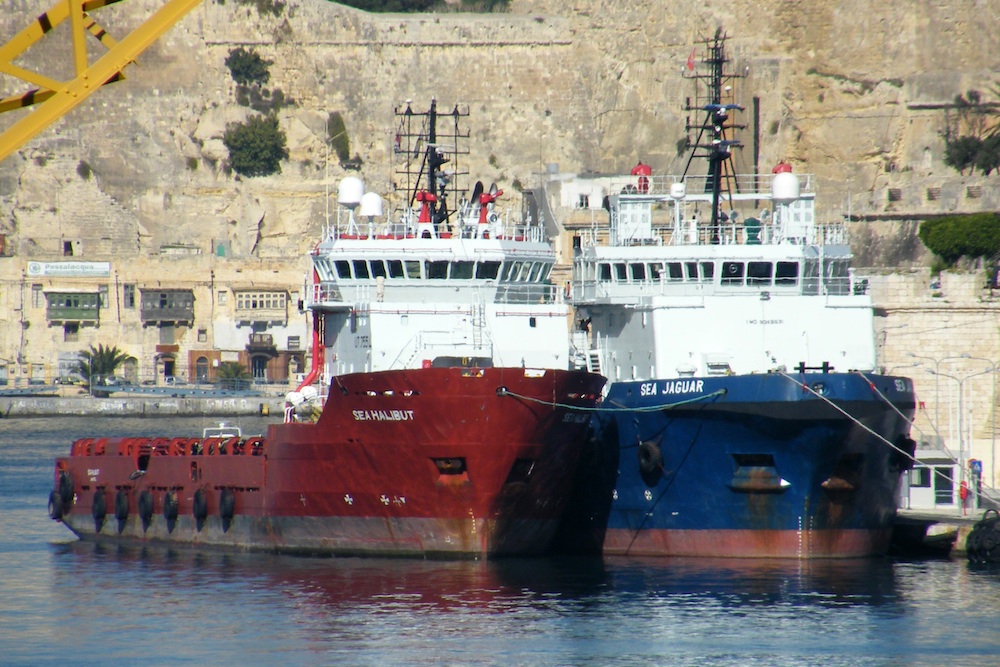

TYPE: UT 755L NAME: Sea Halibut PHOTO: Gejtu Spiteri

GENERAL PROPULSION CARGO CAPACITY
Length OA 71.90 m Engines 2 Fuel   1000 m3
Breadth 16.00 m BHP 5450 Pot water   840 m3
DWT 3250 t For'd Thrusters 2 x 590 kW Mud   970 m3
Deck area 680 m2 Az Thruster   Base oil   200 m3
    Aft Thrusters 1 x 590 kW Brine   390 m3
Year built 2007 Joystick Yes Dry bulk   315 m3
Shipyard  Cochin India DP Kongsberg DP1 Tank Cleaning   -
Previous names
Comments -



TYPE: UT 755L NAME: Sea Angler PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 71.90 m Engines 2 Fuel   1000 m3
Breadth 16.00 m BHP 5450 Pot water   840 m3
DWT 3250 t For'd Thrusters 2 x 590 kW Mud   970 m3
Deck area 680 m2 Az Thruster   Base oil   200 m3
    Aft Thrusters 1 x 590 kW Brine   390 m3
Year built 2007 Joystick Yes Dry bulk   315 m3
Shipyard  Cochin India DP Kongsberg DP1 Tank Cleaning   -
Previous names
Comments -

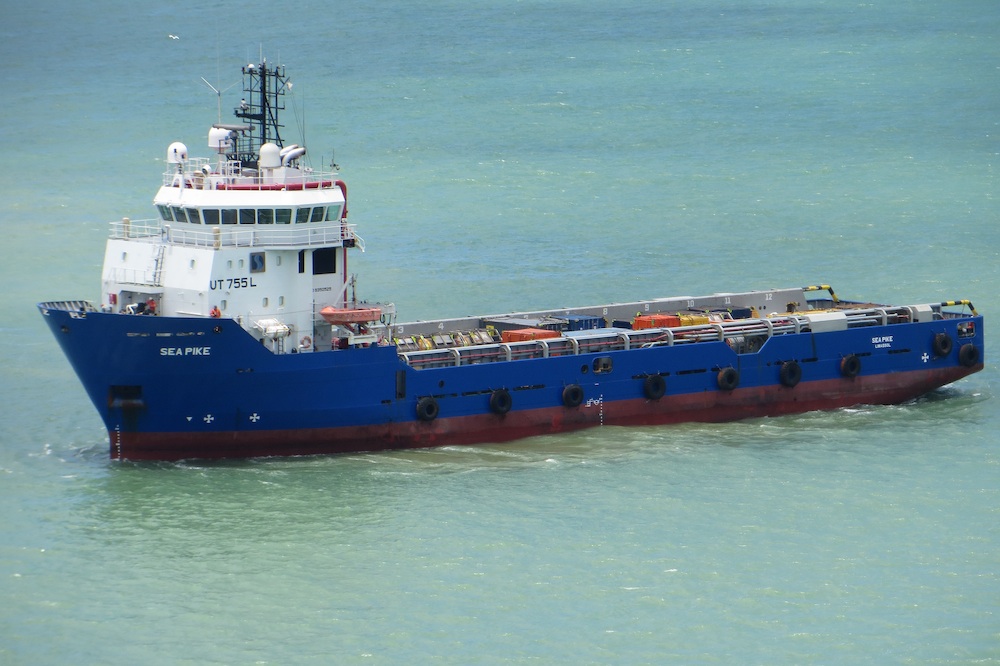

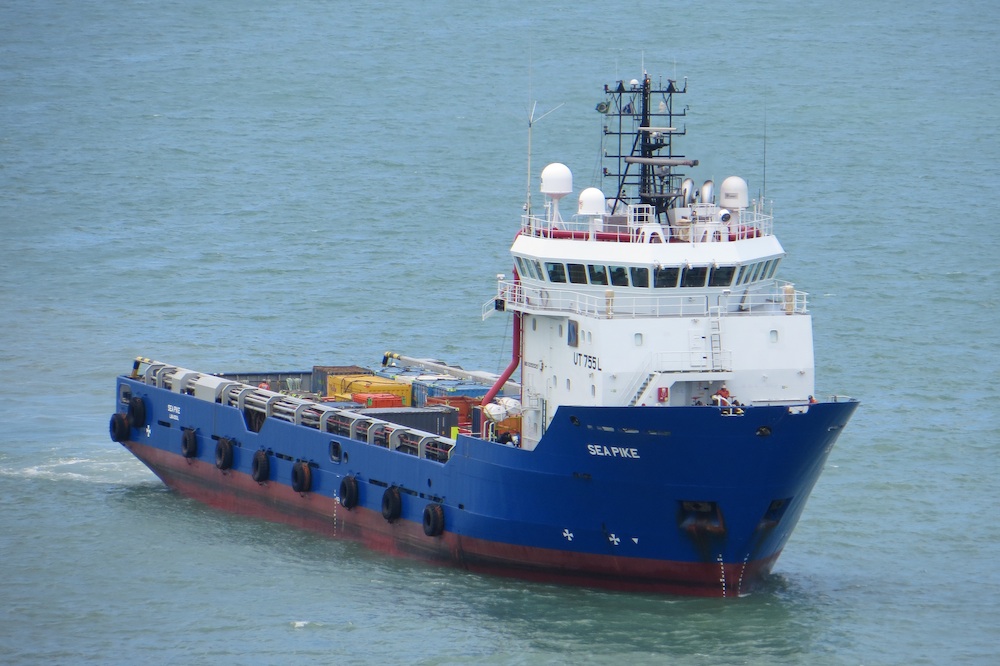

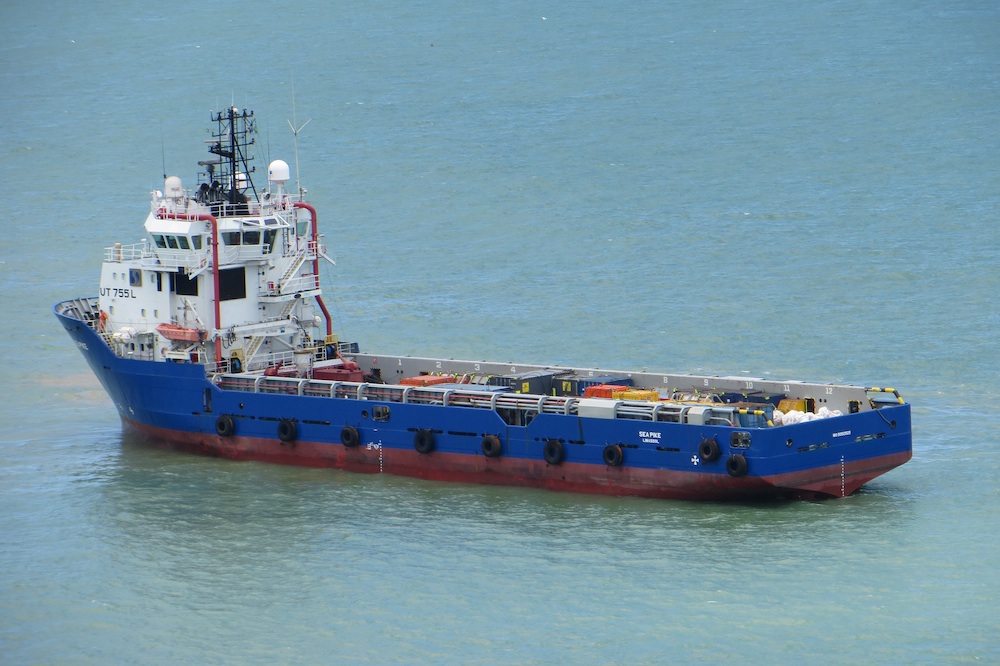

TYPE: UT 755L NAME: Sea Pike PHOTO: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 71.90 m Engines 2 Fuel   1000 m3
Breadth 16.00 m BHP 5450 Pot water   840 m3
DWT 3250 t For'd Thrusters 2 x 590 kW Mud   970 m3
Deck area 680 m2 Az Thruster   Base oil   200 m3
    Aft Thrusters 1 x 590 kW Brine   390 m3
Year built 2007 Joystick Yes Dry bulk   315 m3
Shipyard  Cochin India DP Kongsberg DP1 Tank Cleaning   -
Previous names
Comments -



TYPE: UT 755L NAME: Sea Bass PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 71.90 m Engines 2 Fuel   1000 m3
Breadth 16.00 m BHP 5450 Pot water   840 m3
DWT 3250 t For'd Thrusters 2 x 590 kW Mud   970 m3
Deck area 680 m2 Az Thruster   Base oil   200 m3
    Aft Thrusters 1 x 590 kW Brine   390 m3
Year built 2008 Joystick Yes Dry bulk   315 m3
Shipyard  Cochin India DP Kongsberg DP1 Tank Cleaning   -
Previous names
Comments -

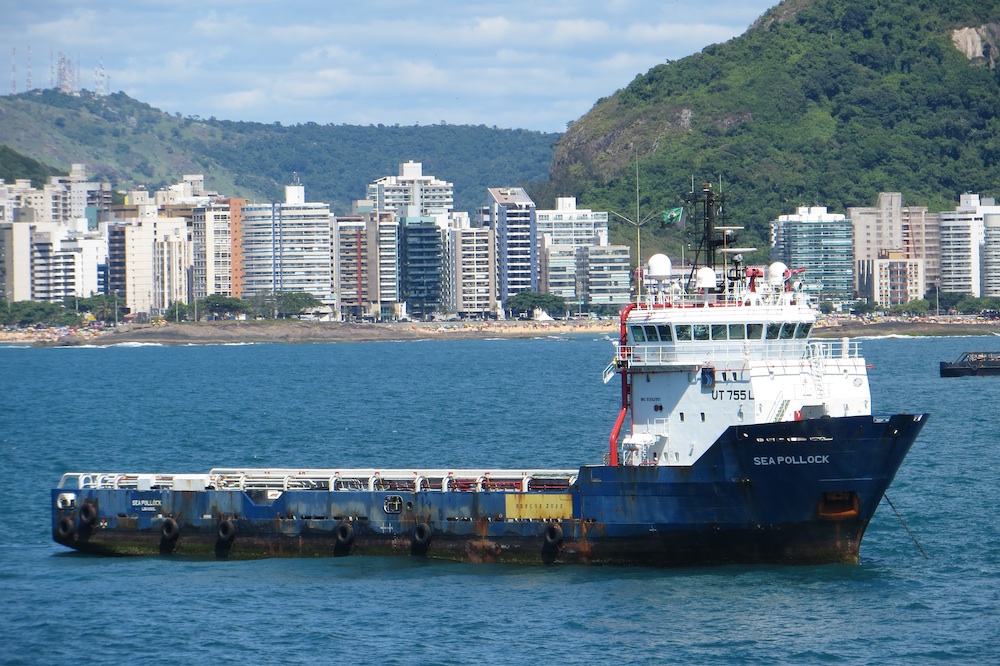

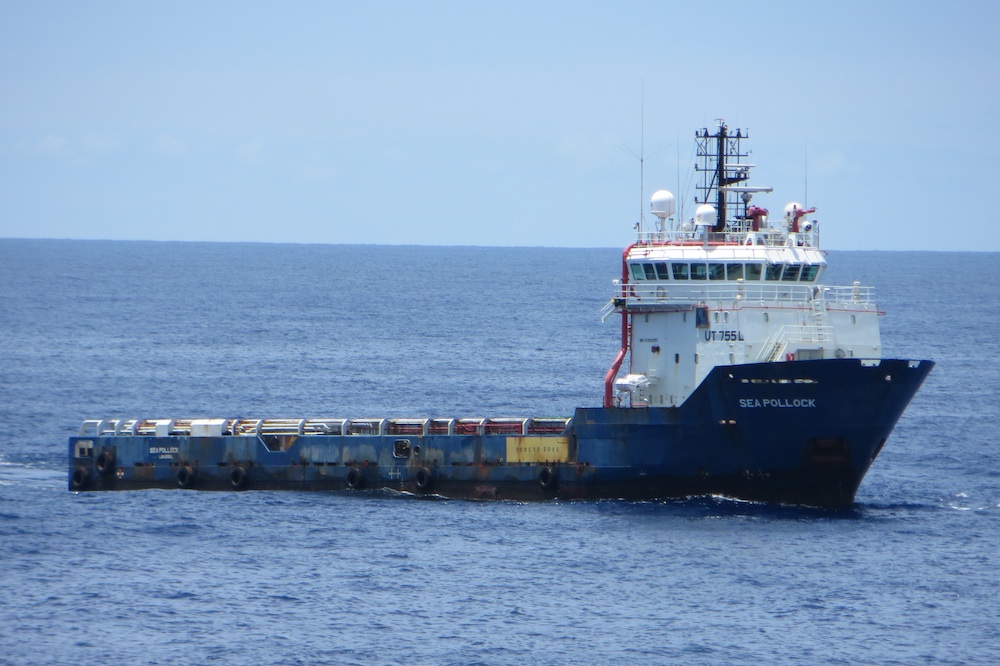

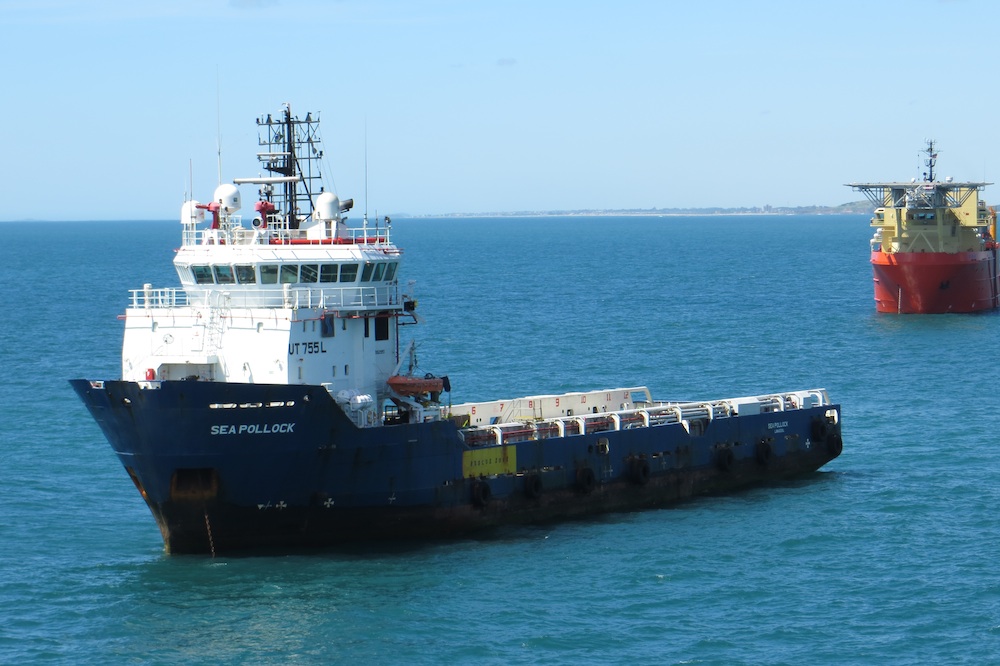

TYPE: UT 755L NAME: Sea Pollock PHOTO: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 71.90 m Engines 2 Fuel   1000 m3
Breadth 16.00 m BHP 5450 Pot water   840 m3
DWT 3250 t For'd Thrusters 2 x 590 kW Mud   970 m3
Deck area 680 m2 Az Thruster   Base oil   200 m3
    Aft Thrusters 1 x 590 kW Brine   390 m3
Year built 2007 Joystick Yes Dry bulk   315 m3
Shipyard  Cochin India DP Kongsberg DP1 Tank Cleaning   -
Previous names
Comments -



TYPE: UT 755L NAME: Sea Turbot PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 71.90 m Engines 2 Fuel   1000 m3
Breadth 16.00 m BHP 5450 Pot water   840 m3
DWT 3250 t For'd Thrusters 2 x 590 kW Mud   970 m3
Deck area 680 m2 Az Thruster   Base oil   200 m3
    Aft Thrusters 1 x 590 kW Brine   390 m3
Year built 2007 Joystick Yes Dry bulk   315 m3
Shipyard  Cochin India DP Kongsberg DP1 Tank Cleaning   -
Previous names
Comments -

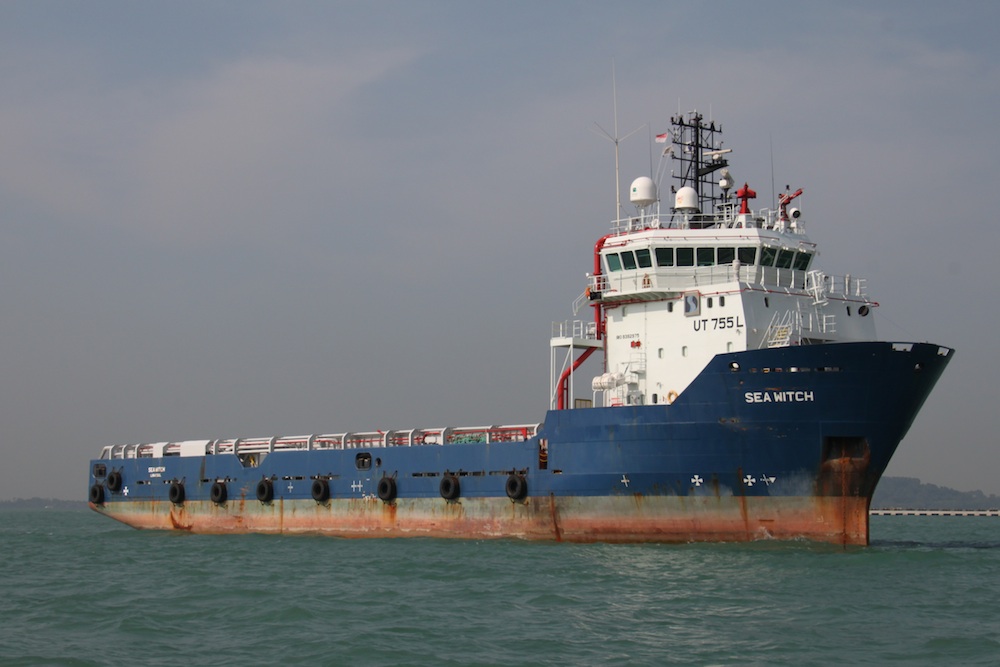

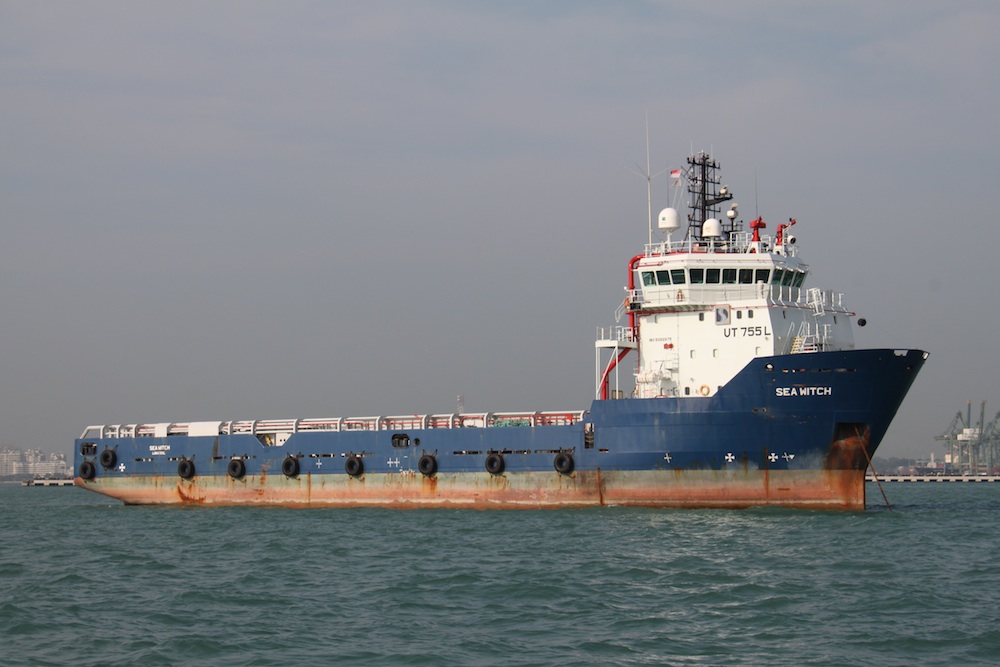

TYPE: UT 755L NAME: Sea Witch PHOTO: Mike Prendergast
GENERAL PROPULSION CARGO CAPACITY
Length OA 71.90 m Engines 2 Fuel   1000 m3
Breadth 16.00 m BHP 5450 Pot water   840 m3
DWT 3250 t For'd Thrusters 2 x 590 kW Mud   970 m3
Deck area 680 m2 Az Thruster   Base oil   200 m3
    Aft Thrusters 1 x 590 kW Brine   390 m3
Year built 2007 Joystick Yes Dry bulk   315 m3
Shipyard  Cochin India DP Kongsberg DP1 Tank Cleaning   -
Previous names
Comments -



TYPE: VS 470 Mk II NAME: Sea Trout PHOTO: Vic Gibson, Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 73.4 m Engines Cat 3606 Fuel   1109 mt
Breadth 16.6 m BHP 2 x 2730 bhp Pot water   912 mt
DWT 3800 tonnes For'd Thrusters 2 x 800 bhp Mud   1071 m3
Deck area 710 m2 Az Thruster   Base oil   214 m3
    Aft Thrusters 2 x 800 bhp Brine
Year built 2008 Joystick Yes Dry bulk   371 m3
Shipyard  Karmsund DP No Tank Cleaning   ?
Previous Names Stril Mariner
Comments -

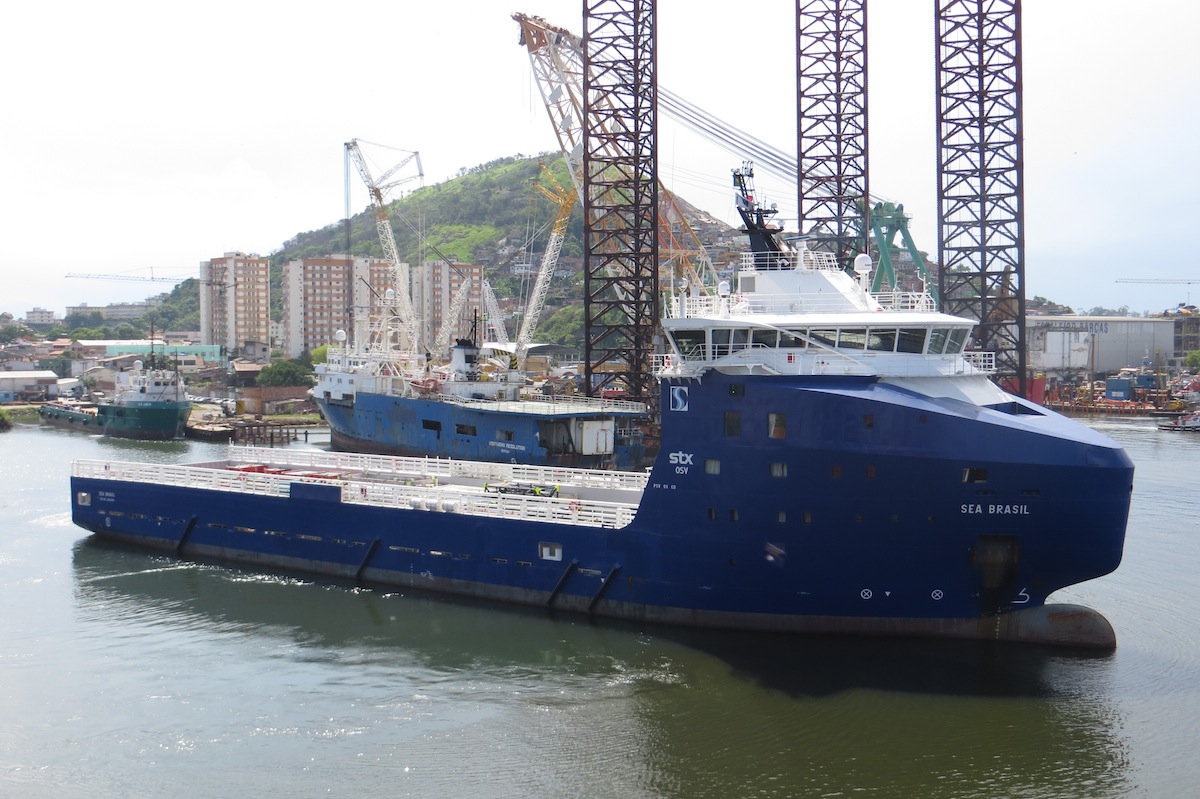

TYPE: STX 09 CD NAME: SEA BRASIL PHOTO: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 86.6 m Engines 4 x Cat 3516 TBA Fuel 1038 m3
Breadth 19 m BHP/kW 10700/7867 Pot water 1175 m3
DWT 4850 t

For'd Thrusters

 2 X 1200 bhp Mud 1000 m3
Deck area 1000 m2 Az Thruster - Base oil 318 m3
Year built 2012 Aft Aziprops 5867 bhp Brine 1866 m3
Shipyard Promar Joystick Kongsberg Dry bulk 264 m3
Berths - DP Kongsberg SDP21 Tank Cleaning Yes
Previous names -
Comments Details taken from another STX 09 CD



TYPE: Ulstein PX 105 NAME: SEA FALCON PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4731 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2013 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard As Seville Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA FLYER PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4731 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2013 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA FORTH PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4731 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2013 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA FROST PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4731 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2013 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: STX 05L CD NAME: SEA TANTALUS PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 82.2 m Engines 4 Fuel -
Breadth 17.0 m BHP/kW 6528/4800 Pot water -
DWT 4000 t

For'd Thrusters

 - Mud -
Deck area - Az Thruster - Base oil -
Year built 2013 Aft Aziprops 3200 kW Brine -
Shipyard Cochin Joystick - Dry bulk -
Berths 28 DP - Tank Cleaning -
Previous names -
Comments -



TYPE: STX 05L CD NAME: SEA TITUS PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 82.2 m Engines 4 Fuel -
Breadth 17.0 m BHP/kW 6528/4800 Pot water -
DWT 4000 t

For'd Thrusters

 - Mud -
Deck area - Az Thruster - Base oil -
Year built 2014 Aft Aziprops 3200 kW Brine -
Shipyard Cochin Joystick - Dry bulk -
Berths 28 DP - Tank Cleaning -
Previous names -
Comments -



TYPE: STX 05L CD NAME: SEA TRIUMPH PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 82.2 m Engines 4 Fuel -
Breadth 17.0 m BHP/kW 6528/4800 Pot water -
DWT 4000 t

For'd Thrusters

 - Mud -
Deck area - Az Thruster - Base oil -
Year built 2014 Aft Aziprops 3200 kW Brine -
Shipyard Cochin Joystick - Dry bulk -
Berths 28 DP - Tank Cleaning -
Previous names -
Comments -



TYPE: STX 05L CD NAME: SEA TORTUGA PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 82.2 m Engines 4 Fuel -
Breadth 17.0 m BHP/kW 6528/4800 Pot water -
DWT 4000 t

For'd Thrusters

 - Mud -
Deck area - Az Thruster - Base oil -
Year built 2014 Aft Aziprops 3200 kW Brine -
Shipyard Cochin Joystick - Dry bulk -
Berths 28 DP - Tank Cleaning -
Previous names -
Comments -



TYPE: Ulstein PX 105 NAME: SEA SPARK PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4600 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2013 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA SPEAR PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4600 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2014 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA SPIDER PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4600 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2014 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA SPRINGER PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4600 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2014 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA SUPRA PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4600 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2014 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA SURFER PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4600 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2014 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA SWAN PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4600 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2014 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



TYPE: Ulstein PX 105 NAME: SEA SWIFT PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 88.8 m Engines 4 x Wartsila 9L20 Fuel 1128 m3
Breadth 19.0 m BHP/kW 8600/6320 Pot water 1261 m3
DWT 4600 t For'd Thrusters 1 x 1200 kW Mud 756 m3
Deck area 985 m2 Az Thruster 1 x 850 kW Base oil 217 m3
Year built 2014 Aft Aziprops 2 x 2200 kW Brine 471 m3
Shipyard Sinopacific Joystick - Dry bulk 390 m3
Berths 23 DPII Kongsberg SDP21 Tank Cleaning -
Previous names -
Comments Details taken from another PX 105.



DISPOSALS

  TYPE: SEATECH P-729 NAME: SEA WEASEL   PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2008     Shipyard ABG India
Previous names
Comments Sold to TMM, Mexico

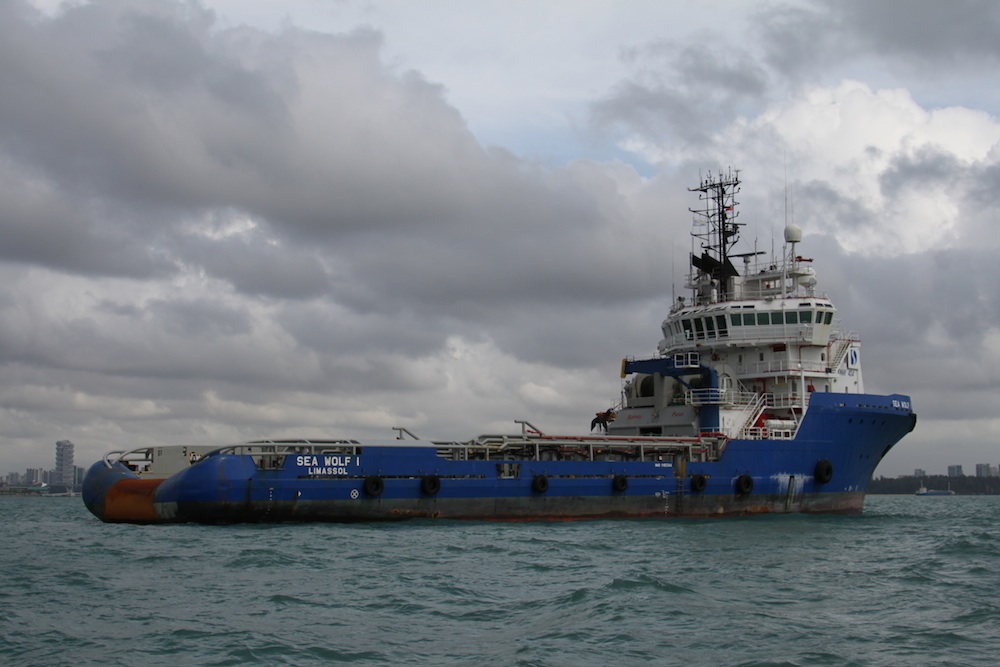

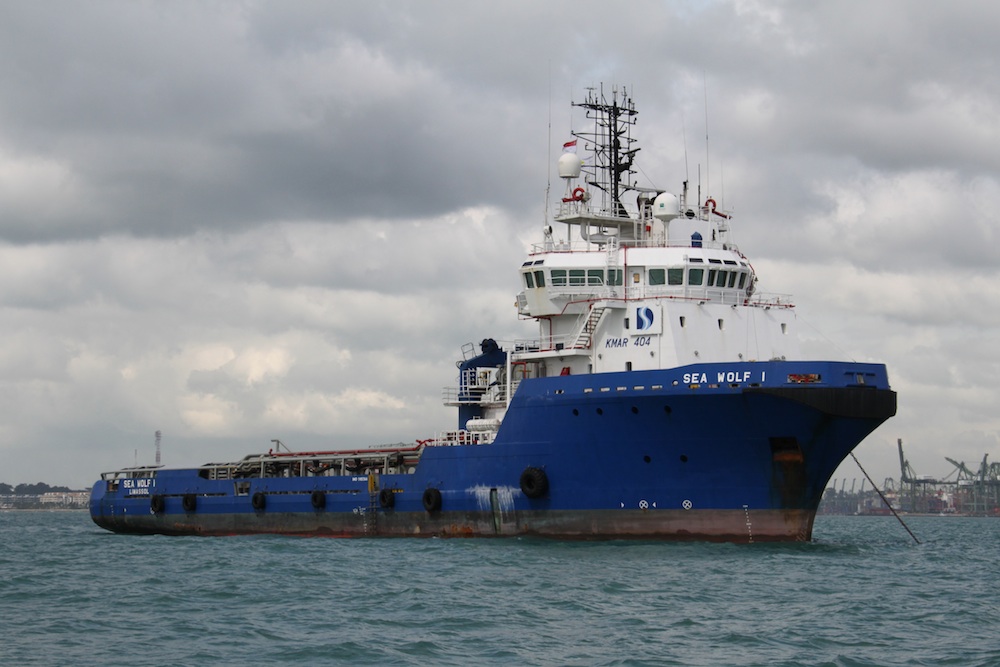

  TYPE: KMAR 404 NAME: Sea Wolf 1   PHOTO:


GENERAL

PROPULSION

EQUIPMENT
Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull   300t
Breadth 16.40 m BHP 15000 Capacity 1   2000m x76mm
DWT 2082 mt kW 11060 Capacity 2
Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull   300t
Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1   2000m x76mm
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw   Karmforks
Brine 581 m3 DP None Cranes   4.5t x 14m
Dry bulk 240 m3 Joystick KaMeWa Tank cleaning   None
Year built 1999     Shipyard   Kvaerner Leirvik
Previous names Sea Wolf
Comments -

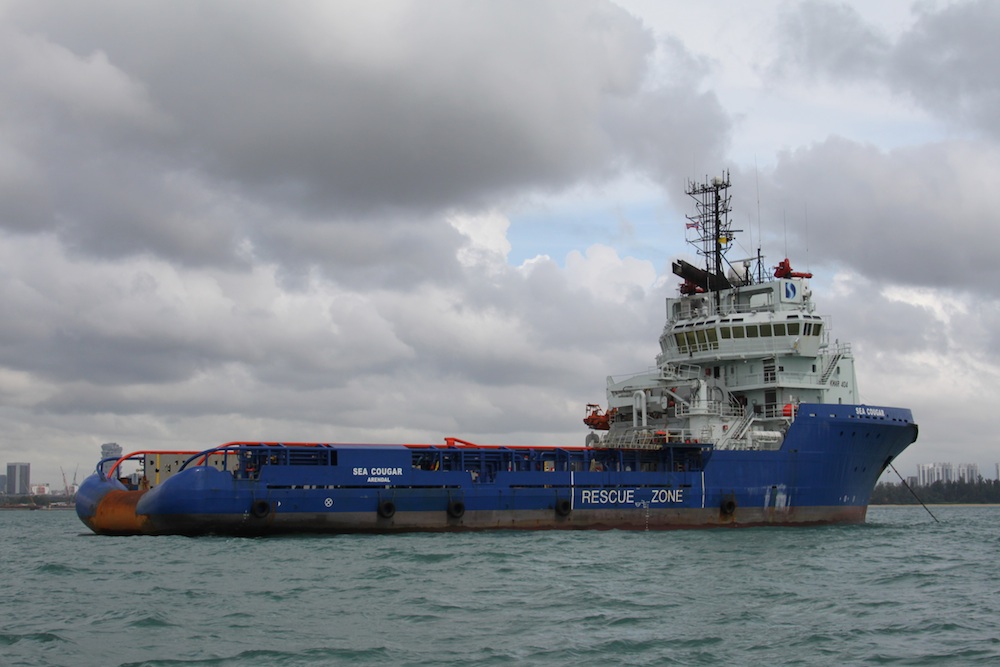

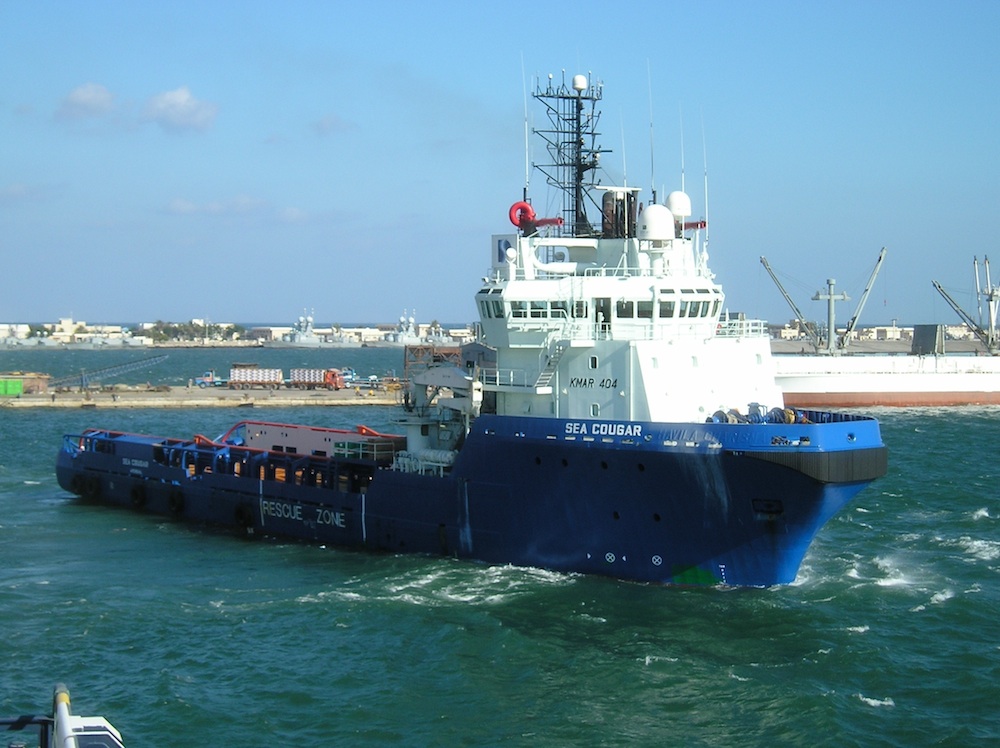

  TYPE: KMAR 404 NAME: Sea Cougar PHOTO: Mike Prendergast, Scott Vardy

GENERAL

PROPULSION

EQUIPMENT
Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull   300t
Breadth 16.40 m BHP 15000 Capacity 1   2000m x76mm
DWT 2082 mt kW 11060 Capacity 2
Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull   300t
Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1   2000m x76mm
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw   Karmforks
Brine 581 m3 DP None Cranes   4.5t x 14m
Dry bulk 240 m3 Joystick KaMeWa Tank cleaning   None
Year built 1999     Shipyard Ulsteinvik
Previous names Havila Charisma, Bourbon Charisma
Comments -

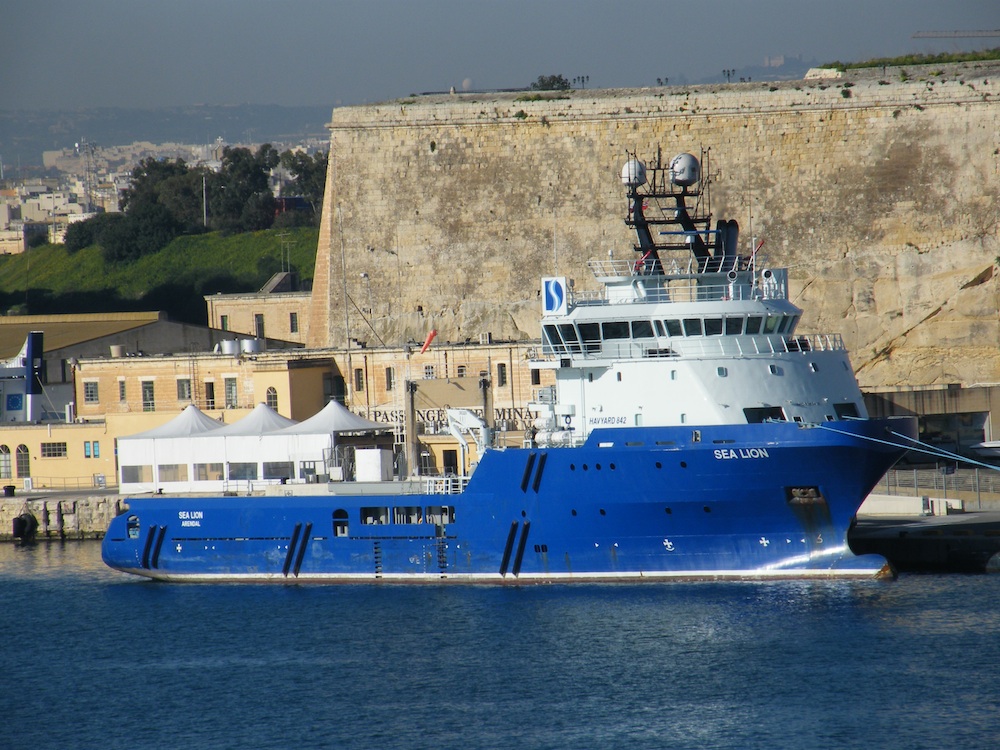

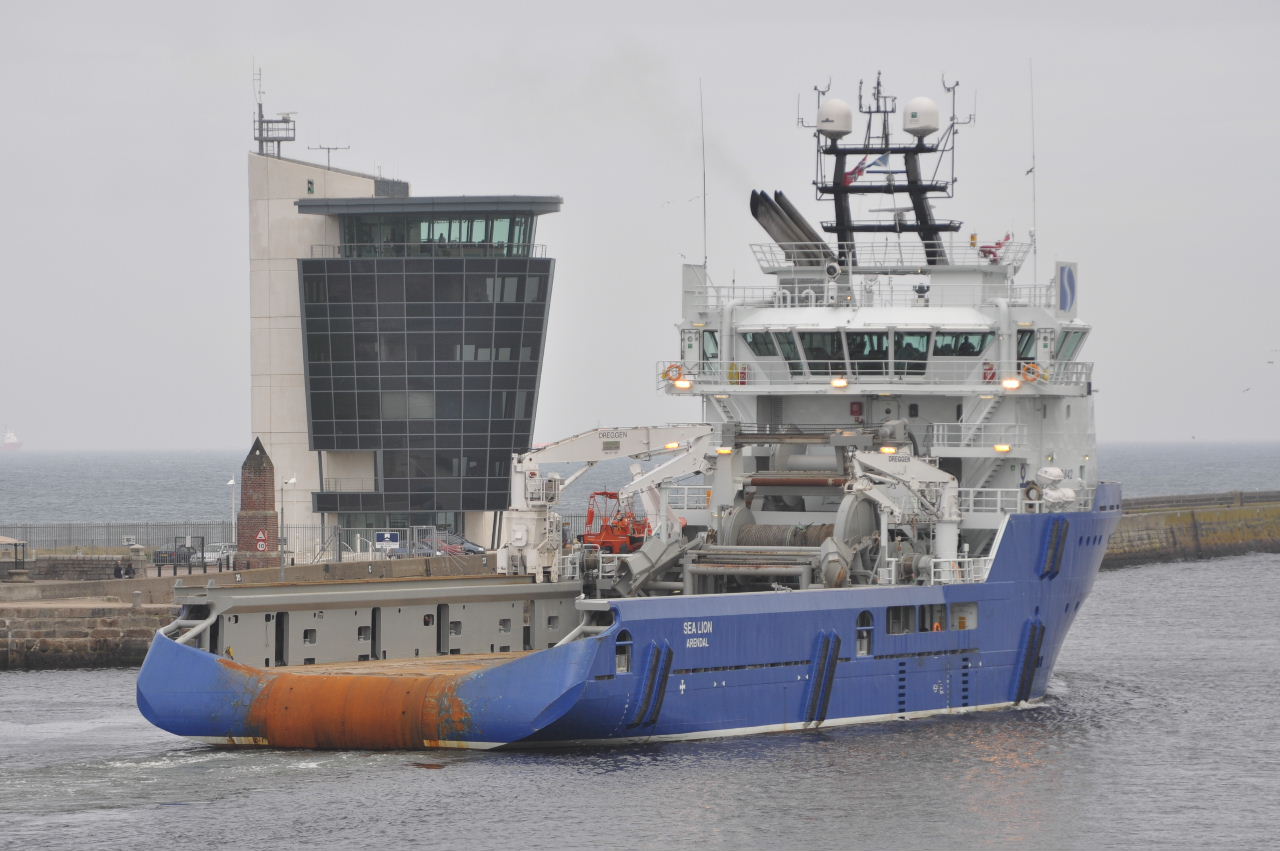

  TYPE: HAVYARD 842 NAME: Sea Lion PHOTO: Vic Gibson, Gejtu Spiteri

GENERAL

PROPULSION

EQUIPMENT
Length OA 74.50 m Engines 2 x MAK Workdrum pull   350t
Breadth 17.20 m BHP 17520 Capacity 1   5500m x77mm
DWT 3000 mt kW 12883 Capacity 2
Deck area 520 m2 For'd Thruster 1 x 883 kW Towdrum pull   350t
Fuel 1100 m3 Az Thruster 1 x 883 kW Capacity 1   2480m x77mm
Pot water 725 m3 Aft Thrusters 1 x 883 kW Capacity 2   2480m x77mm
Mud 570 m3 Bollard pull 200 t + Sharks Jaw   -
Brine 545 m3 DP Rolls Royce DP2 Cranes   5t x 15m
Dry bulk 220 m3 Joystick Yes Tank cleaning   None
Year built 2008     Shipyard Leirvik - Norway
Previous names
Comments -



  TYPE: SEATECH P-729 NAME: Sea Otter   PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2007     Shipyard ABG India
Previous names
Comments -



  TYPE: SEATECH P-729 NAME: SEA WEASEL   PHOTO: Mike Prendergast




GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2009     Shipyard ABG India
Previous names
Comments This ship is an identical replacement for the ship of the same name sold to TMM Mexico (Probably)



  TYPE: SEATECH P-729 NAME: SEA MARTEN   PHOTO:






GENERAL

PROPULSION

EQUIPMENT
Length OA 63.0 m Engines 2 x Bergen C25 Workdrum pull   160 t
Breadth 15.80 m BHP 6500 Capacity 1   1200m x 62mm
DWT - mt kW 4800 Capacity 2
Deck area 420 m2 For'd Thruster 1 x 500 kW Towdrum pull   160 t
Fuel 700 m3 Az Thruster - Capacity 1   1200m x 62mm
Pot water 500 m3 Aft Thrusters 1 x 680 kW Capacity 2
Mud 380 m3 Bollard pull 80 t Sharks Jaw   -
Brine - m3 DP None Cranes   3 t x 12m
Dry bulk 200 m3 Joystick - Tank cleaning   None
Year built 2010     Shipyard ABG India
Previous names
Comments This ship now owned by a subsidiary of Topaz Energy but the name not changed











SHIPPING COMPANY INFORMATION UPDATED IN 2014
Abeille Bourbon
Acergy
Acomarit
Active Offshore
Aker Solutions
Allseas
ALP Maritime
Arctia Shipping
Arendal Offshore
Aries Offshore
Arktikmor
Atlantic Offshore
Axis Offshore
Bergen Offshore
Bibby Offshore
Blue Star Line
Boa Offshore
Boston Putford
Bourbon Norway
Bourbon Offshore
BP
Branding Offshore
British Antarctic Survey (New)
Brovig Offshore
BUE Marine
BUE Viking
Bukser og Bergung
Deep Sea Supply
Deepocean
DOF
DOF Subsea
Eide Offshore
Eidesvik
ER Schiffahrt
Esvagt
Fairmount
Fairplay Towage
Farstad
Femco Management
FS Shipping
Fugro
Gardline
Geoships
Golden Energy
GulfOffshore Norg
Gulf Offshore UK
Hanzevast Capital
Harms Bergung
Harrisons
Hartmann Offshore
Havila Shipping
Heerema
Irish Mainport
Island Offshore
JPKnight
K Line Offshore
Maersk Supply
Marine Carrier AB
Marine Subsea
Myklebusthaug
Chornomornaftogaz
NAO
N-Sea
Nomis
Nordic American
Nordane Shipping
North Sea Shipping
North Star
O.H.Meling
OIL
Olympic Shipping
OOC
OSA
Ostenjo Rederi
PetroBaltic
Portosalvo
Rem Offshore
Remoy Managment
Rovde Shipping
SBS
SeaMar Shipping
Sealion
Seaworx
Siem Offshore
Simon Mokster
Smit Lloyd
Smitwijs
SMS
Solstad
Subsea7
Stirling
Surf
Technip
Trico Offshore
Tschudi Offshore
Troms Offshore
URAG
URS
Varada Marine
Vestland Marine
Viking Supply
Volstad Shipping
Vroon
Vroon Standby
World Wide Supply
Zafiro Marine














ALL CONTENT OF THIS SITE REMAINS THE PROPERTY OF THE WRITERS AND THE PHOTOGRAPHERS AND MUST NOT BE REPRODUCED WITHOUT PERMISSION
