ANCHOR-HANDLERS

TYPE:			NAME: Uranus		PHOTO: -
GENERAL			PROPULSION		EQUIPMENT
Length OA	74.3 m		Engines	4 x ?	Workdrum pull		500 t
Breadth	18.5 m		BHP	24400	Capacity 1		1200m x 83mm
DWT	-		kW	18000	Capacity 2		-
Deck area	315 m2		For'd Thruster	2 x 1200 kW	Towdrum pull		500 t
Fuel	3420 m3		Az Thruster	-	Capacity 1		2000m x 83mm
Pot water	83 m3		Aft Thrusters	1 x 400 kW	Capacity 2		-
Mud	-		Bollard pull	280 t	Sharks Jaw		-
Brine	-		DP	-	Cranes		2 x 4t
Dry bulk	-		Joystick	-	Tank cleaning		-
Year built	2009				Shipyard		Mützefeldt
Previous names	-
Comments	-
Current Charter		-		Available		-

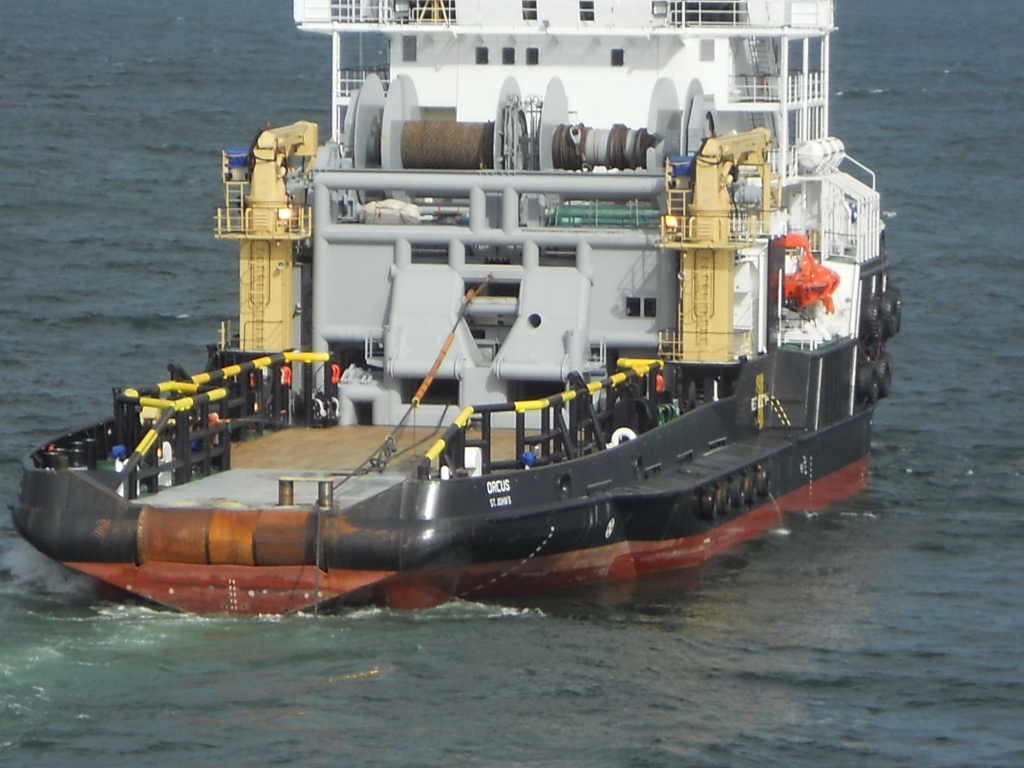

TYPE:			NAME: Orcus		PHOTO: Jurgen Scholz, Dick Spellacy
GENERAL			PROPULSION		EQUIPMENT
Length OA	74.3 m		Engines	4 x ?	Workdrum pull		500 t
Breadth	18.5 m		BHP	24400	Capacity 1		1200m x 83mm
DWT	-		kW	18000	Capacity 2		-
Deck area	315 m2		For'd Thruster	2 x 1200 kW	Towdrum pull		500 t
Fuel	3420 m3		Az Thruster	-	Capacity 1		2000m x 83mm
Pot water	83 m3		Aft Thrusters	1 x 400 kW	Capacity 2		-
Mud	-		Bollard pull	280 t	Sharks Jaw		-
Brine	-		DP	-	Cranes		2 x 4t
Dry bulk	-		Joystick	-	Tank cleaning		-
Year built	2009				Shipyard		Mützefeldt
Previous names	-
Comments	-
Current Charter		-		Available		-

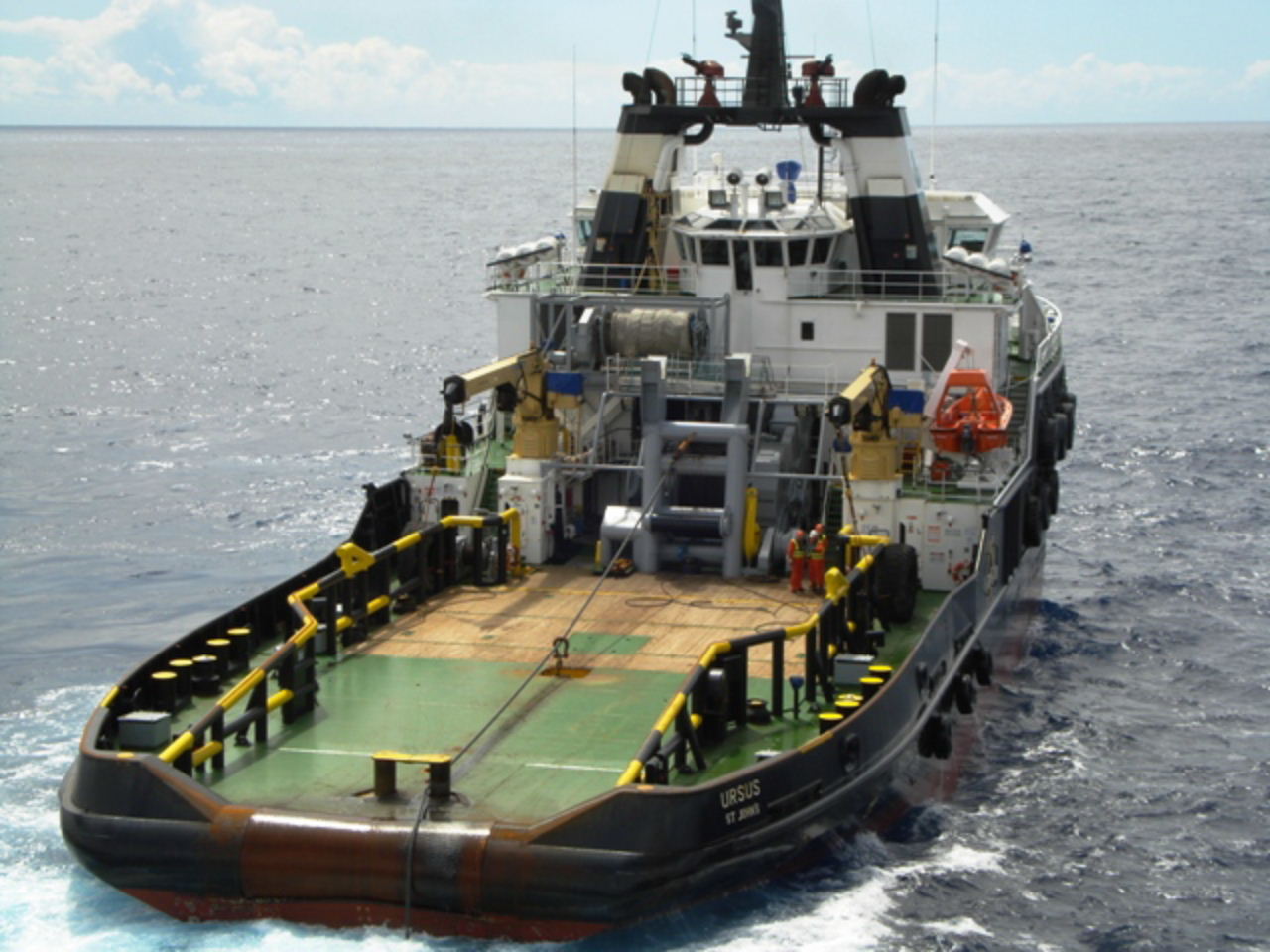

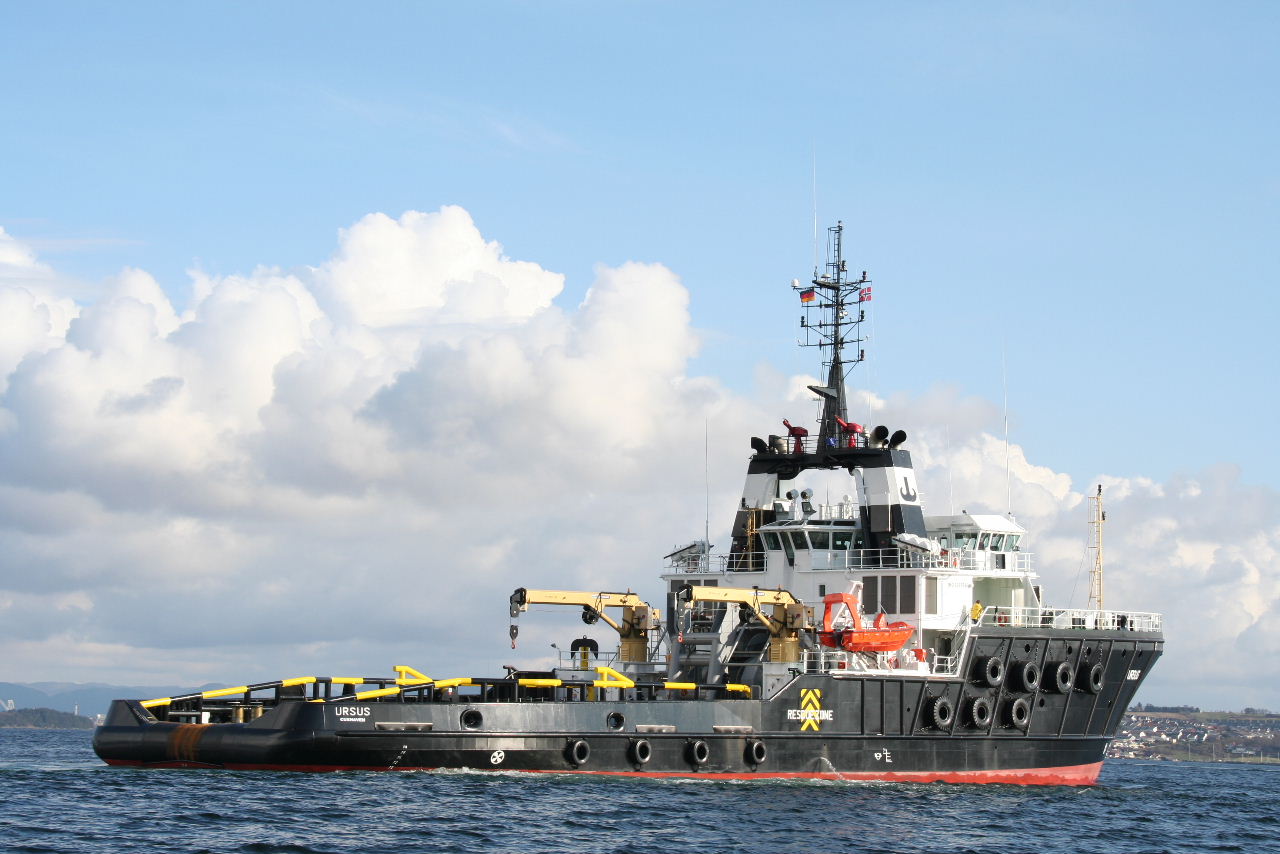

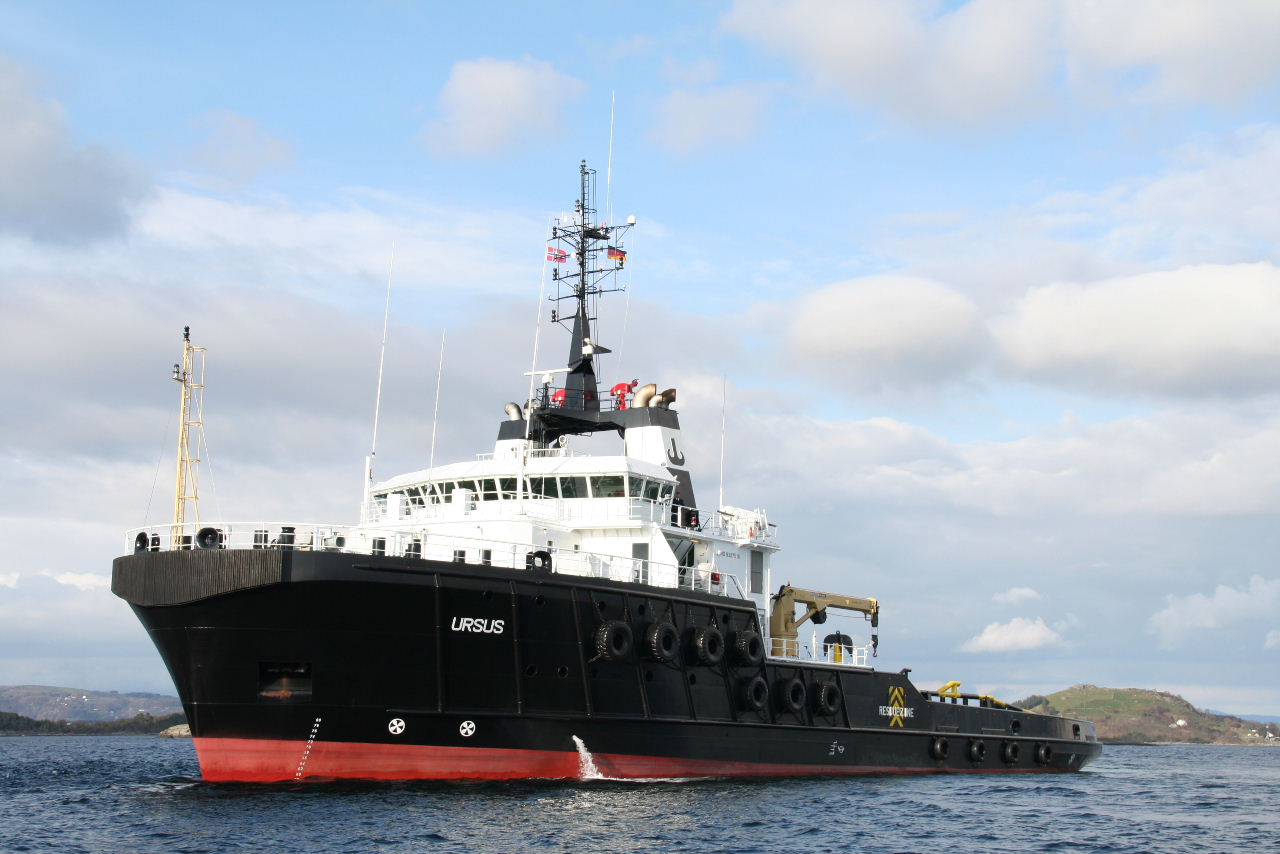

TYPE:			NAME: Ursus		PHOTO: Jan Plug, Jeff DeJean
GENERAL			PROPULSION		EQUIPMENT
Length OA	65.0 m		Engines	4 x M32C	Workdrum pull		300 t
Breadth	18.5 m		BHP	19000	Capacity 1		1600m x 76mm
DWT	-		kW	14000	Capacity 2		-
Deck area	297 m2		For'd Thruster	2 x 400 kW	Towdrum pull		300 t
Fuel	2440 m3		Az Thruster	-	Capacity 1		1600m x 76mm
Pot water	130 m3		Aft Thrusters	-	Capacity 2		-
Mud	-		Bollard pull	218 t	Sharks Jaw		-
Brine	-		DPII	Yes	Cranes		2 x 5.2 t
Dry bulk	-		Joystick	-	Tank cleaning		-
Year built	2008				Shipyard		Mützefeldt
Previous names	-
Comments	-
Current Charter		-		Available		-

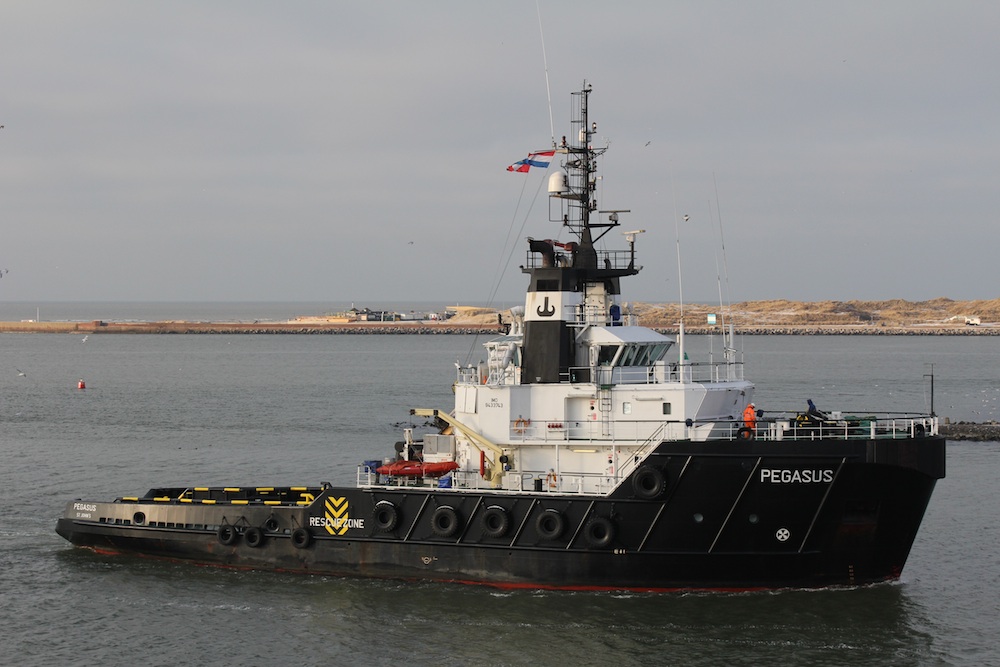

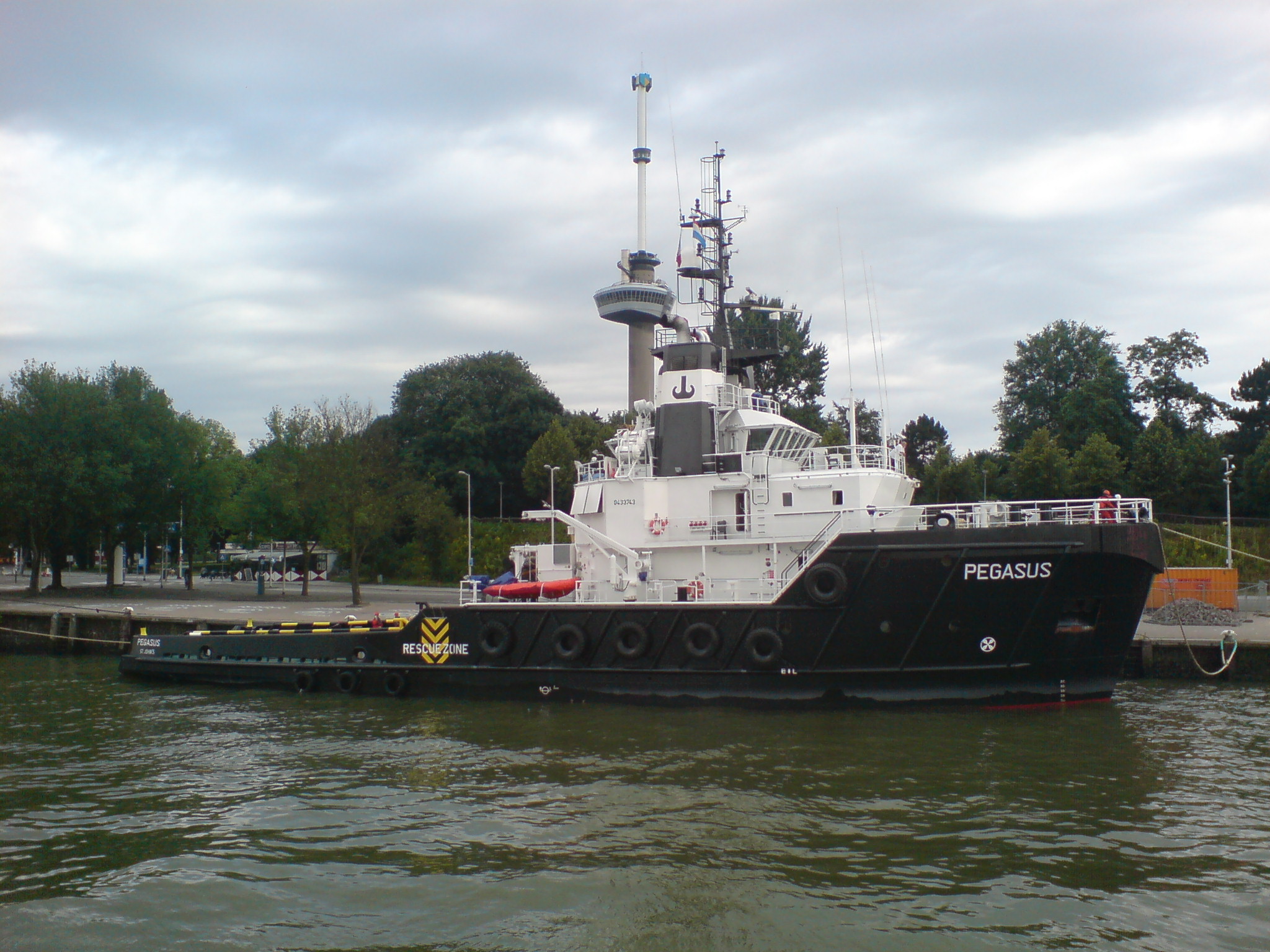

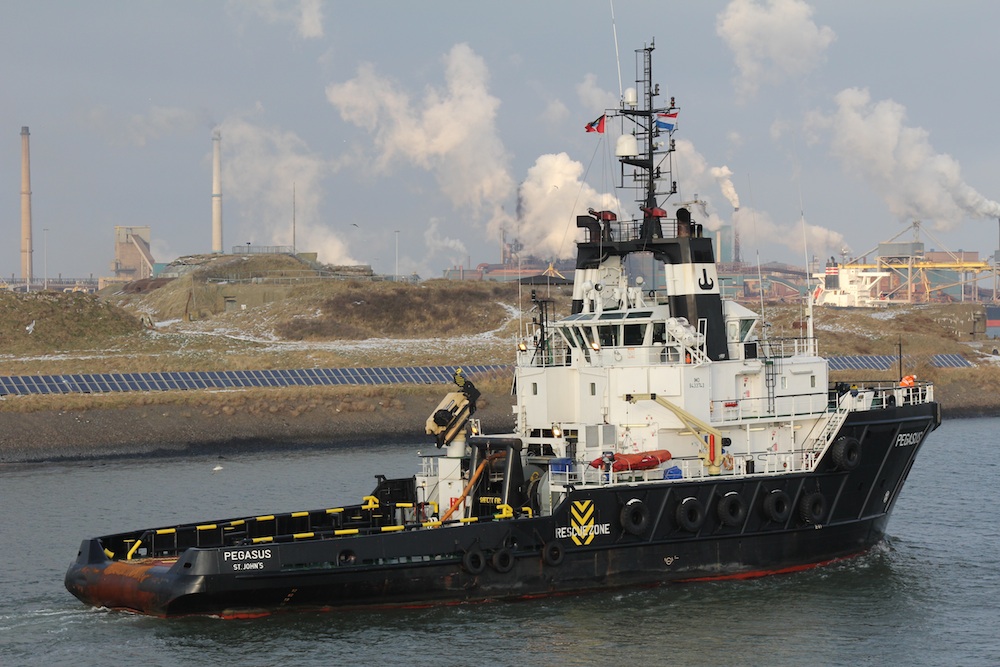

TYPE:			NAME: Pegasus		PHOTO: Andriy Kalov, Jan Plug
GENERAL			PROPULSION		EQUIPMENT
Length OA	48.81 m		Engines	2 x MAK 9M25	Workdrum pull		100 t
Breadth	13.8 m		BHP	8080	Capacity 1		1200m x 70mm
DWT	-		kW	5940	Capacity 2		-
Deck area	172 m2		For'd Thruster	1 x 400kW	Towdrum pull		100 t
Fuel	475 m3		Az Thruster	-	Capacity 1		1200m x 70mm
Pot water	85 m3		Aft Thrusters	-	Capacity 2		-
Mud	-		Bollard pull	104 t	Sharks Jaw		-
Brine	-		DP	-	Cranes		1 x 4 t
Dry bulk	-		Joystick	Lips	Tank cleaning		-
Year built	2009				Shipyard		Mützefeldt
Previous names	-
Comments	-
Current Charter		-		Available		-

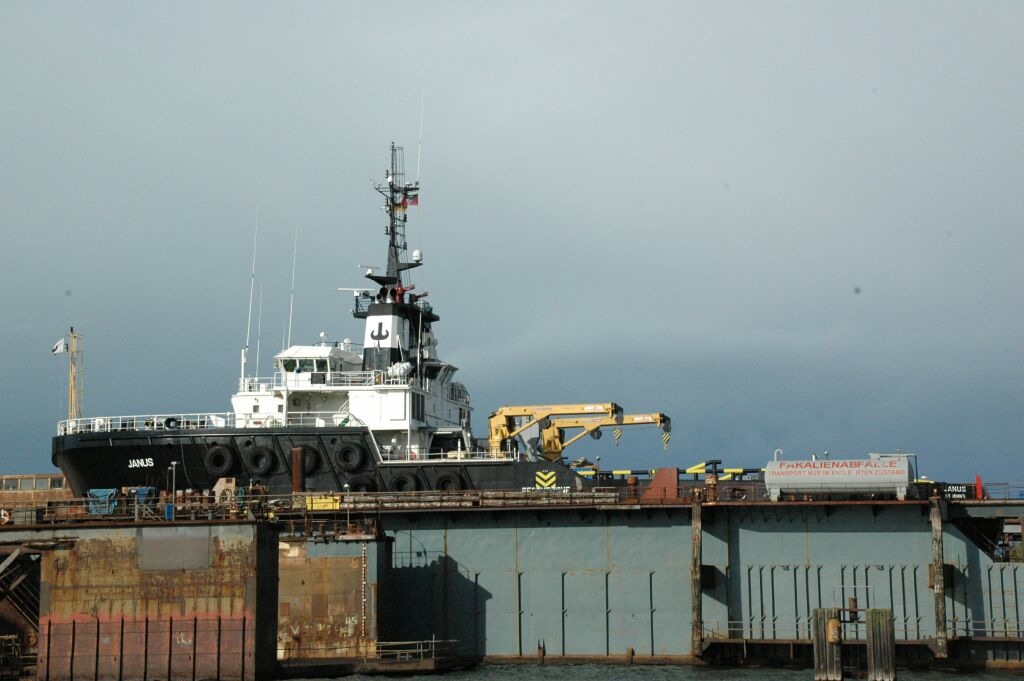

TYPE:			NAME: Janus		PHOTO: Udo Herkenrath
GENERAL			PROPULSION		EQUIPMENT
Length OA	65.0 m		Engines	4 x M32C	Workdrum pull		300 t
Breadth	18.5 m		BHP	19000	Capacity 1		1600m x 76mm
DWT	-		kW	14000	Capacity 2		-
Deck area	297 m2		For'd Thruster	2 x 400 kW	Towdrum pull		300 t
Fuel	2440 m3		Az Thruster	-	Capacity 1		1600m x 76mm
Pot water	130 m3		Aft Thrusters	-	Capacity 2		-
Mud	-		Bollard pull	218 t	Sharks Jaw		-
Brine	-		DPII	Yes	Cranes		2 x 5.2 t
Dry bulk	-		Joystick	-	Tank cleaning		-
Year built	2007				Shipyard		Mützefeldt
Previous names	-
Comments	-
Current Charter		-		Available		-

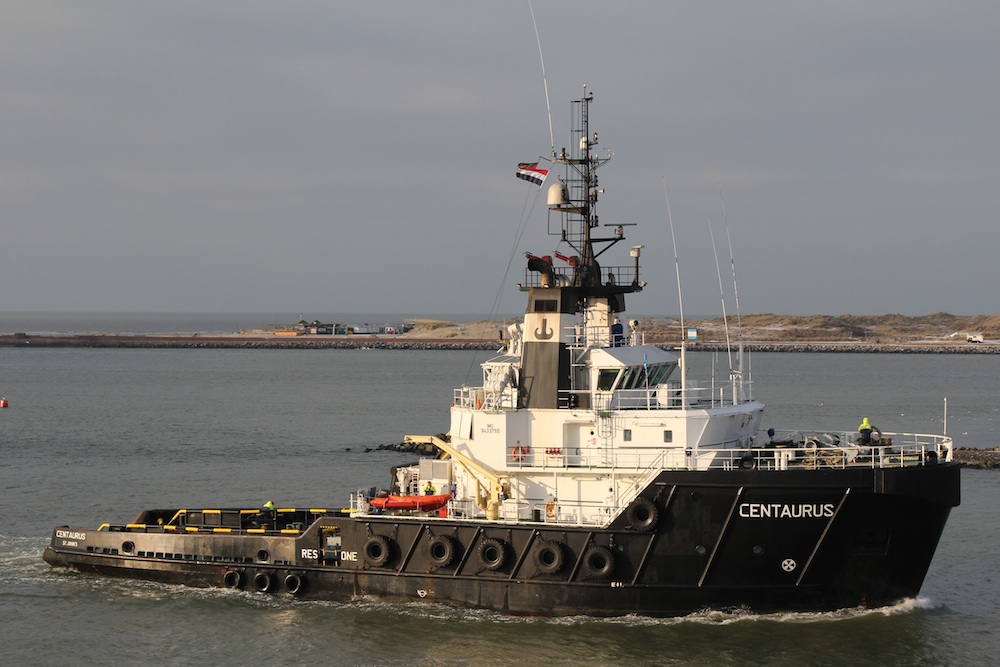

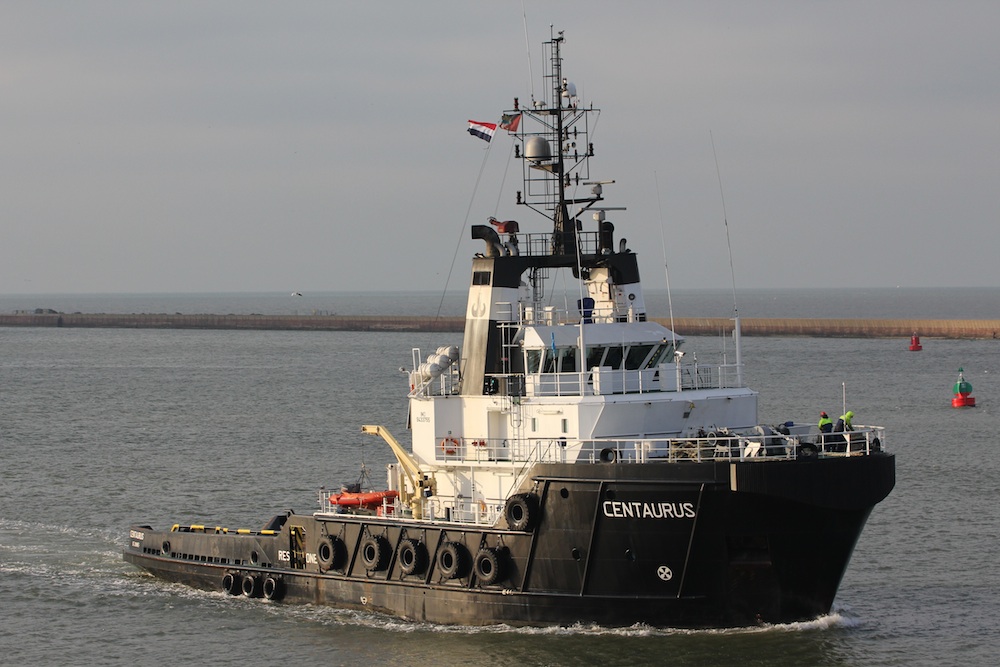

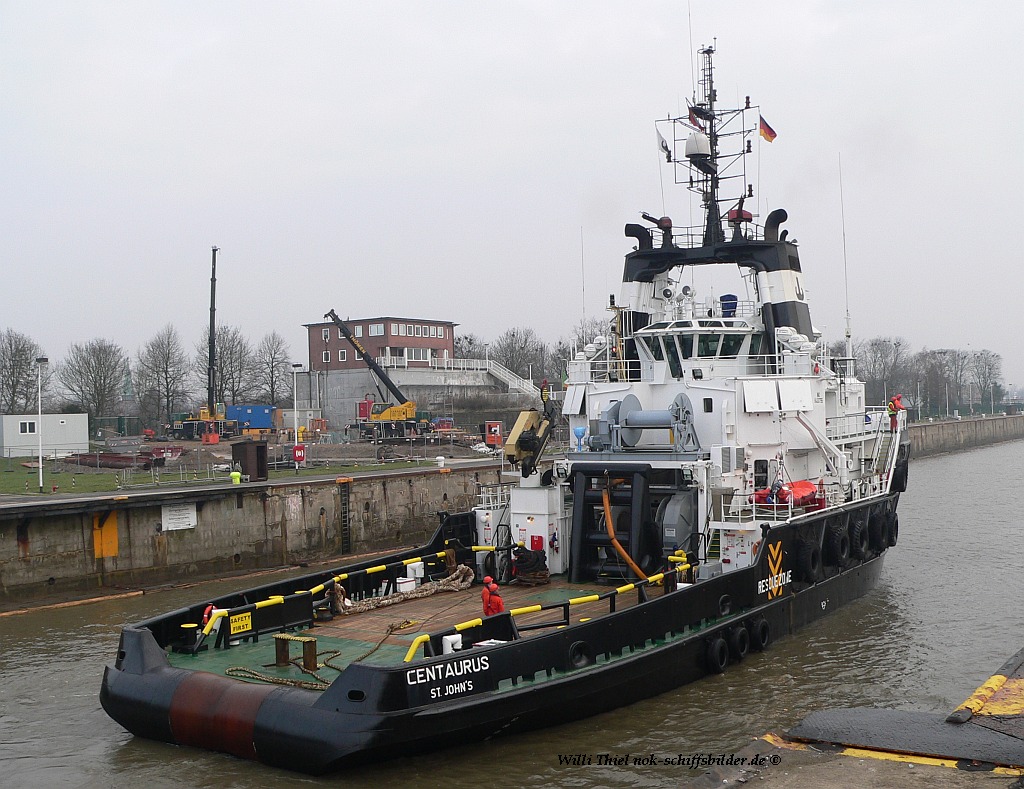

TYPE:			NAME: Centaurus		PHOTO: Willi Thiel, Jan Plug
GENERAL			PROPULSION		EQUIPMENT
Length OA	47.8 m		Engines	2 x MAK 9M25	Workdrum pull		100 t
Breadth	13.8 m		BHP	8080	Capacity 1		1200m x 70mm
DWT	-		kW	5940	Capacity 2		-
Deck area	150 m2		For'd Thruster	1 x 400kW	Towdrum pull		100 t
Fuel	468/223 m3		Az Thruster	-	Capacity 1		1200m x 70mm
Pot water	86 m3		Aft Thrusters	-	Capacity 2		-
Mud	-		Bollard pull	104 t	Sharks Jaw		-
Brine	-		DP	-	Cranes		1 x 4 t
Dry bulk	-		Joystick	Lips	Tank cleaning		-
Year built	2009				Shipyard		Mützefeldt
Previous names	-
Comments	-
Current Charter		-		Available		-

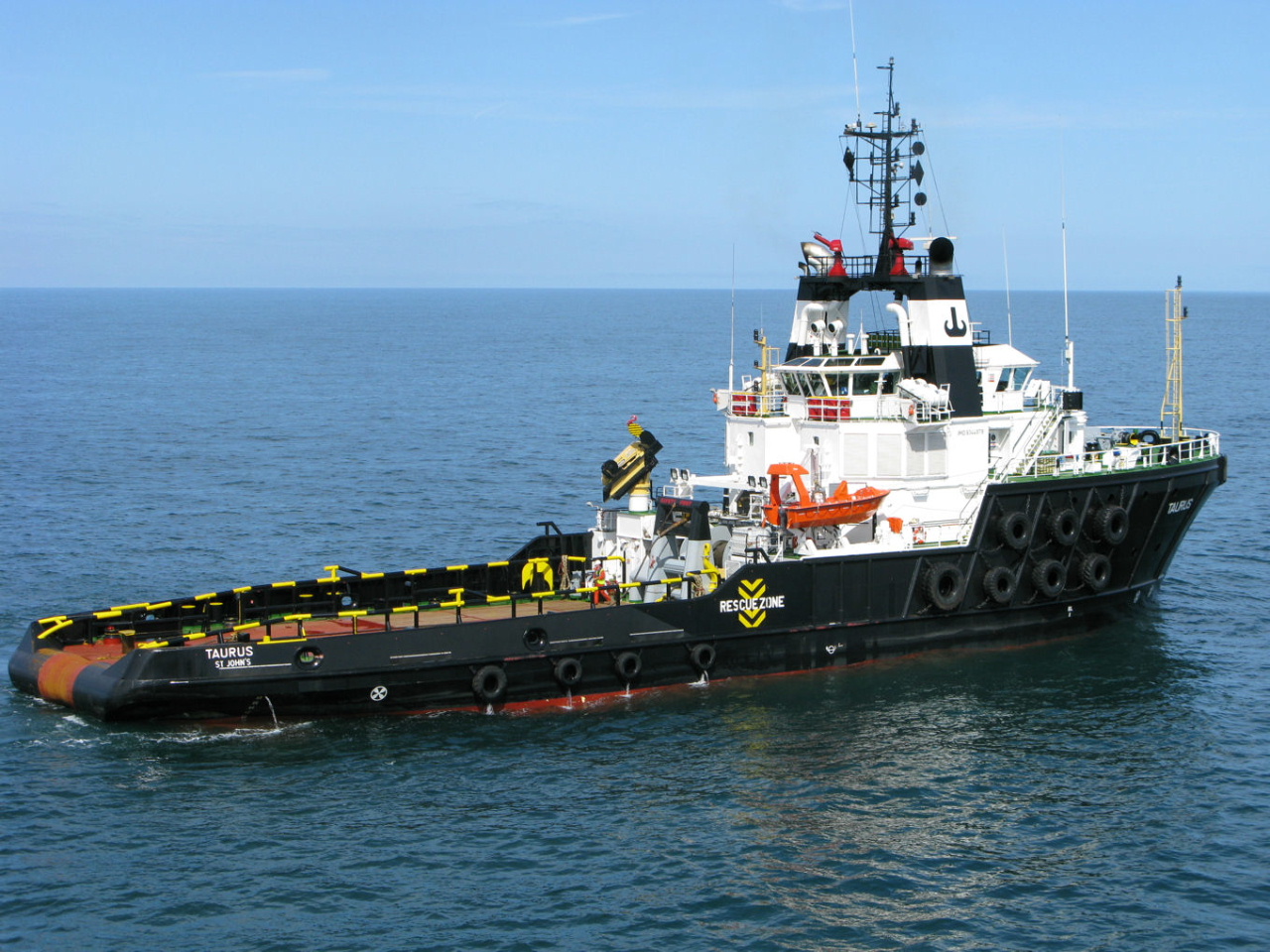

TYPE:			NAME: Taurus		PHOTO: Wullie Bremner
GENERAL			PROPULSION		EQUIPMENT
Length OA	65.0 m		Engines	4 x M32C	Workdrum pull		300 t
Breadth	18.5 m		BHP	19000	Capacity 1		1600m x 76mm
DWT	-		kW	14000	Capacity 2		-
Deck area	297 m2		For'd Thruster	2 x 400 kW	Towdrum pull		300 t
Fuel	2440 m3		Az Thruster	-	Capacity 1		1600m x 76mm
Pot water	130 m3		Aft Thrusters	-	Capacity 2		-
Mud	-		Bollard pull	218 t	Sharks Jaw		-
Brine	-		DPII	Yes	Cranes		2 x 5.2 t
Dry bulk	-		Joystick	-	Tank cleaning		-
Year built	2007				Shipyard		Mützefeldt
Previous names	-
Comments	-
Current Charter		-		Available		-

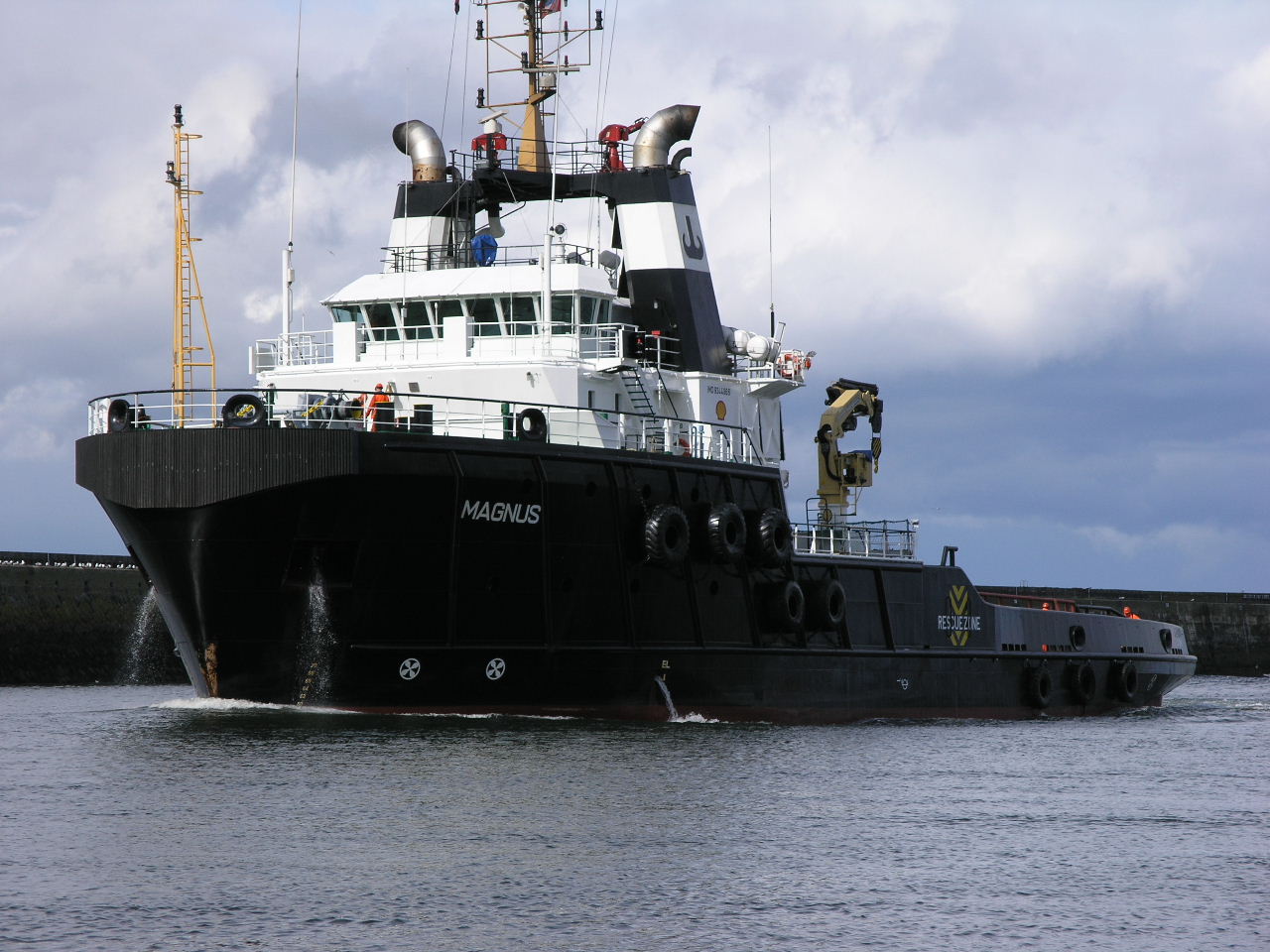

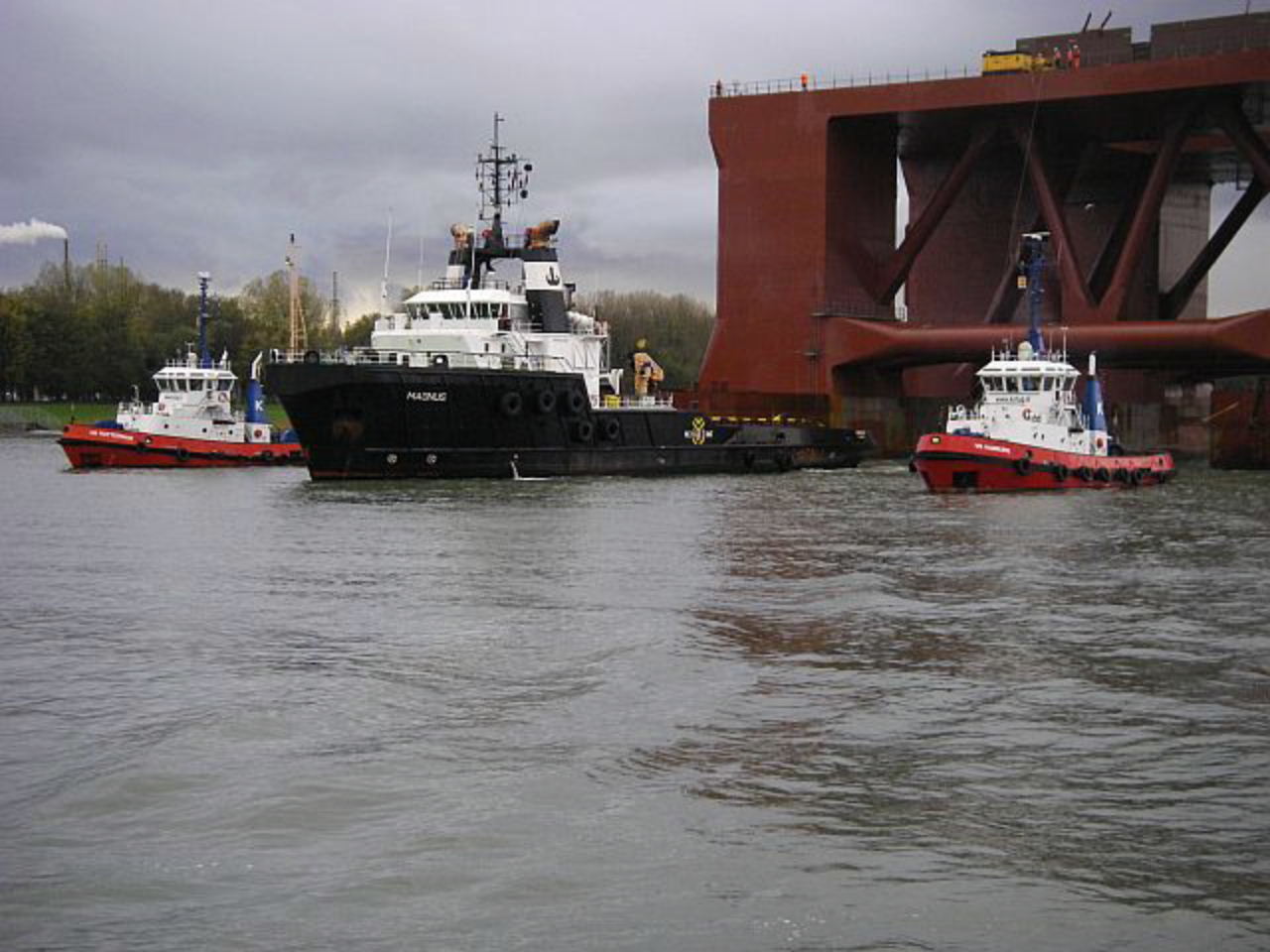

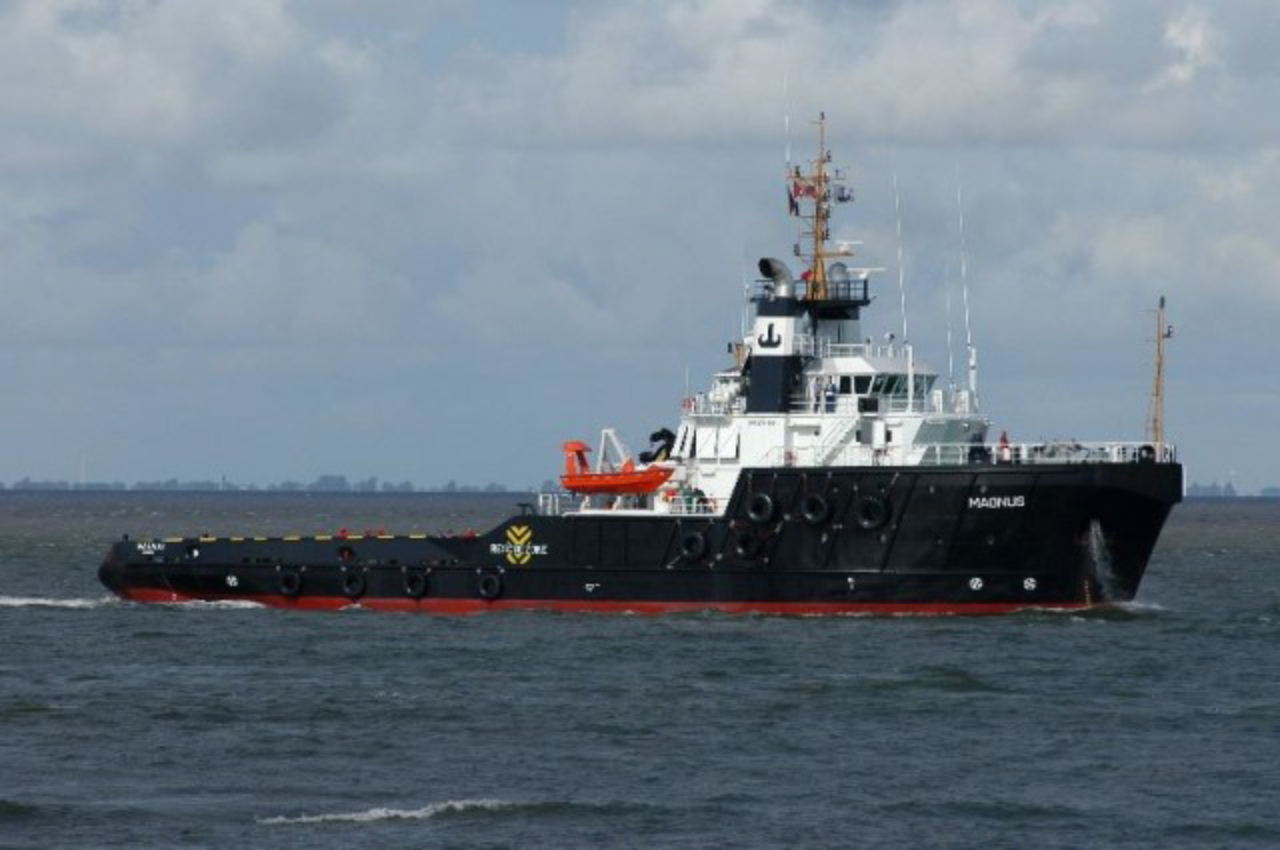

TYPE:			NAME: Magnus		PHOTO: Gerard Tel, Holger Bartels, Vic Gibson
GENERAL			PROPULSION		EQUIPMENT
Length OA	58.8 m		Engines	4 x MAN 14V32	Workdrum pull		300 t
Breadth	14.8 m		BHP	19000	Capacity 1		1600m x 76mm
DWT	-		kW	14000	Capacity 2		-
Deck area	205 m2		For'd Thruster	2 x 400 kW	Towdrum pull		300 t
Fuel	1115 m3		Az Thruster	-	Capacity 1		1600m x 76mm
Pot water	77 m3		Aft Thrusters	-	Capacity 2		-
Mud	-		Bollard pull	192 t	Sharks Jaw		-
Brine	-		DPII	Yes	Cranes		1 x 2.6 t
Dry bulk	-		Joystick	-	Tank cleaning		-
Year built	2006				Shipyard		Mützefeldt
Previous names	-
Comments	-
Current Charter		-		Available		-

DISPOSALS

		VARIUS		BUILT 1977 KAARBOS
GENERAL		PROPULSION		EQUIPMENT
Length OA	42.82m	Engines	2 x ALCO 16F	Workdrum pull
Breadth	11.03m	BHP	7300	Capacity 1	1500m x 58mm
DWT	499.5	For'd Thruster	Brunvoll 600 bhp	Capacity 2
Deck area		Az Thruster		Towdrum pull
Fuel	600 m3	Aft Thrusters		Capacity 1	1000m x58m
Pot water	51 m3	Bollard pull	93 tonnes	Capacity 2
Mud				Sharks Jaw
Brine		DP		Cranes
Dry bulk		Joystick		Tank cleaning
Year built	1977			Shipyard

TYPE:		NAME: Primus		PHOTO: Jan Plug
GENERAL		PROPULSION		EQUIPMENT
Length OA	48.81 m	Engines	2 x MAK 9M25	Workdrum pull	100 t
Breadth	13.8 m	BHP	8080	Capacity 1	1200m x 70mm
DWT	-	kW	5940	Capacity 2	-
Deck area	172 m2	For'd Thruster	1 x 400kW	Towdrum pull	100 t
Fuel	475 m3	Az Thruster	-	Capacity 1	1200m x 70mm
Pot water	85 m3	Aft Thrusters	-	Capacity 2	-
Mud	-	Bollard pull	104 t	Sharks Jaw	-
Brine	-	DP	-	Cranes	1 x 4 t
Dry bulk	-	Joystick	Lips	Tank cleaning	-
Year built	2005			Shipyard	Mützefeldt
Previous names	-
Comments	Became Bremen Fighter I think
