MAERSK SUPPLY

Maersk Supply dominates the European support vessel market, and every other European Company takes a second or lesser place. There are potential rivals now that the American owners have started to build and buy large ships.

Maersk operates a fleet of vessels divided between the Danish and UK flags. Their first toehold in the support vessel market was with a fleet of four small platform ships, but it all changed when they built the Maersk Ruler Class which entered service in about 1978. Those vessels were then the most powerful ships in the world.

The Maersk fleet continues to increase in size and horsepower, to the point that it is quite difficult to keep track of what is going on, and worse, manage to record it. But I have done my best, and think that I have managed to capture most of it.

Because Maersk have not chosen to separate their UK, Danish and South American fleets, and if it comes to that Canadian fleets they are all listed here. At the time of the 2013 review it has become more difficult to determine whether the fleet list remains the same, but we think it does. There are also a number of new buildings taking place.

At the 2014 review it was seen that the company have sold a couple of ships and sent one at least to the breakers. Otherwise things are pretty stable with only a couple of what they would call "Fleet Support Vessels" being built.

Updated 22nd October 2014.

SHIP TYPE	NOW	ORDERED
AHTS Under 10000 bhp	-	-
AHTS 10000bhp to 20000bhp	32	-
AHTS 20000 bhp and over	13	-
Cable layers	2	1
Heavy lift ships	3	-
Pipelayers	-	-
IMR ships	1	-
PSVs deck less than 1000 m2	10	-
PSVs deck 1000 m2 +	-	-
SBSs/ERRVs/FSVs	-	2

ANCHOR HANDLERS

TYPE: mAERSK a CLASS		NAME: Maersk Assister		photo: Vic Gibson, Jan Plug

General		Propulsion		Deck Equipment
Length OA	90 m	Engines	4 x MAK	Workdrum pull	625 tonnes
Breadth	23 m	BHP	23,480	Capacity 1	12000m x 84mm
DWT	5010 tonnes	kW		Capacity 2
Deck area	803 m2	For'd Thrusters	1 x 2040 bhp	Towdrum pull
Fuel	1156 m3	Azimuthing	1 x 1770 bhp	Capacity 1	2600m x 84mm
Pot water	660 m3	Aft Thrusters	2 x 1200 bhp	Capacity 2	2600m x 84mm
Mud	605 m3	Bollard Pull	278 tonnes	Sharks Jaw	2 x Triplex
Base oil	224 m3	DP	Kongsberg SDP21	Cranes	2 x 10 tonnes
Brine	602 m3	Joystick	KaMeWa	Tank Cleaning	None
Dry bulk		Year built	2000	Shipyard	Volkswerft
Former Names
Comments

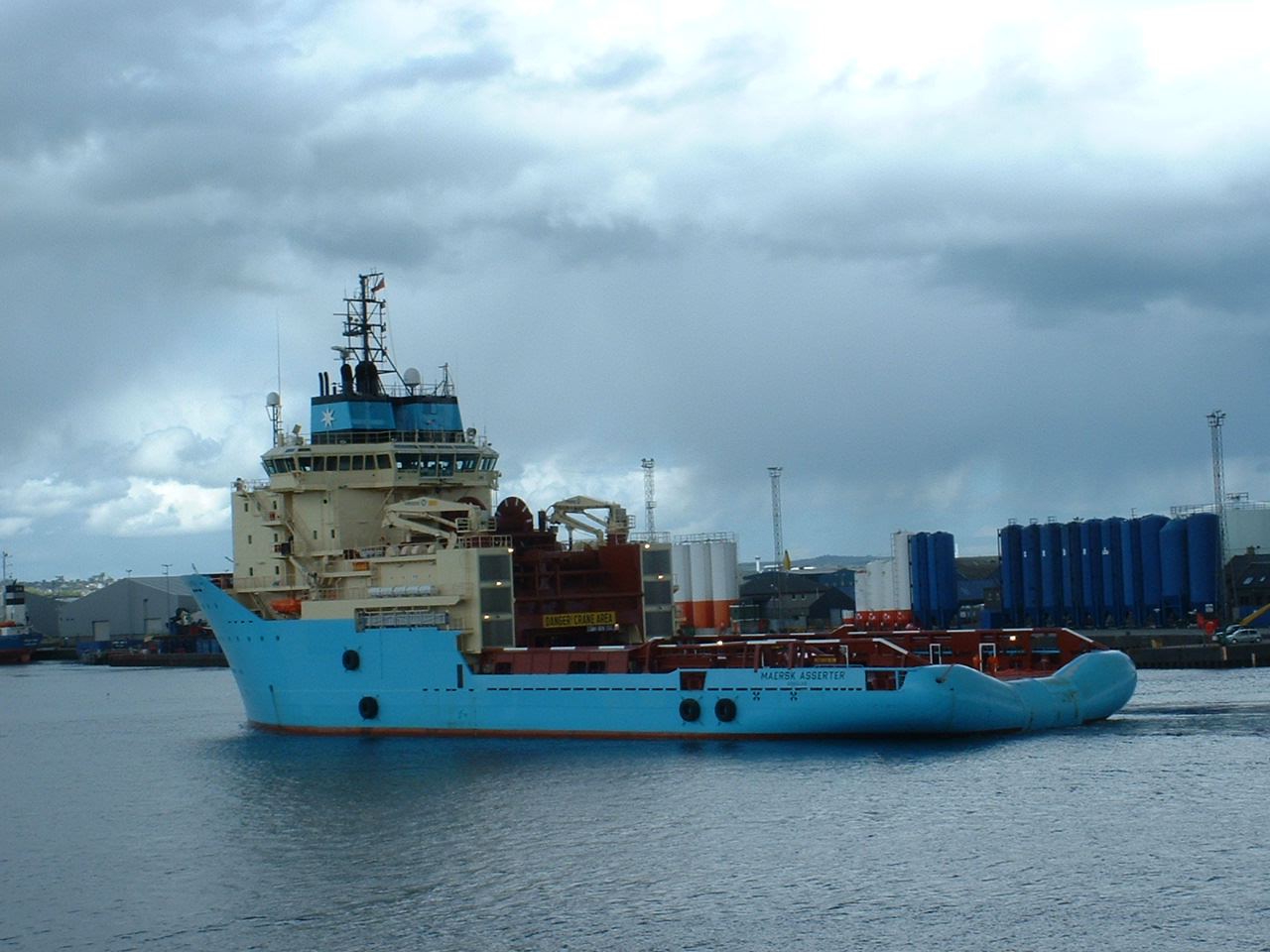

TYPE: mAERSK a CLASS		NAME: Maersk Asserter		PHOTO: George Craigen

General		Propulsion		Deck EquipMENT
Length OA	90 m	Engines	4 x MAK	Workdrum pull	625 tonnes
Breadth	23 m	BHP	23,480	Capacity 1	12000m x 84mm
DWT	5010 tonnes	kW		Capacity 2
Deck area	803 m2	For'd Thrusters	1 x 2040 bhp	Towdrum pull
Fuel	1156 m3	Azimuthing	1 x 1770 bhp	Capacity 1	2600m x 84mm
Pot water	660 m3	Aft Thrusters	2 x 1200 bhp	Capacity 2	2600m x 84mm
Mud	605 m3	Bollard Pull	278 tonnes	Sharks Jaw	2 x Triplex
Base oil	224 m3	DP	Kongsberg SDP21	Cranes	2 x 10 tonnes
Brine	602 m3	Joystick	KaMeWa	Tank Cleaning	None
Dry bulk		Year built	2004	Shipyard	Volkswerft
Former Names
Comments

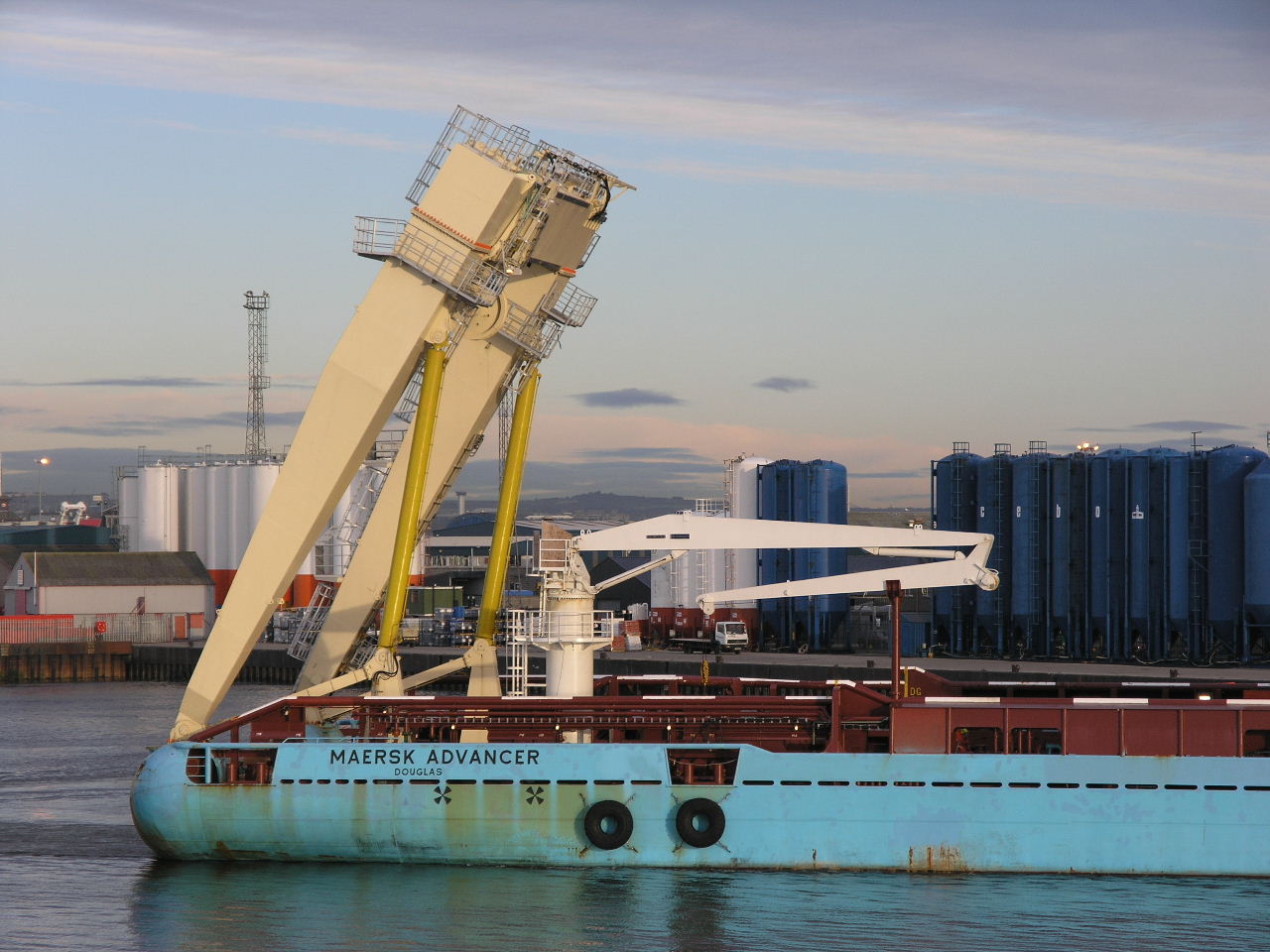

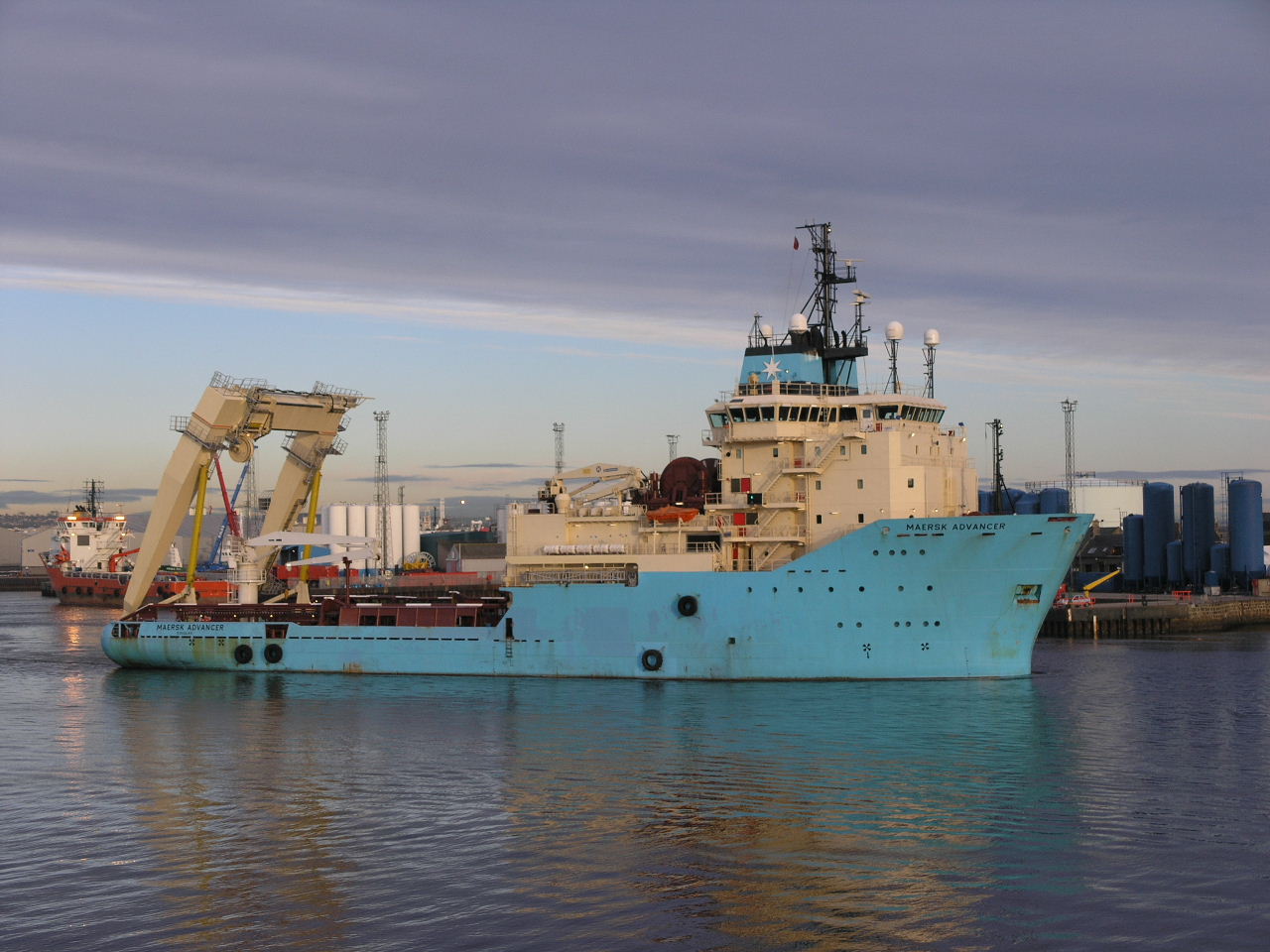

TYPE: mAERSK a CLASS		NAME: Maersk Advancer		PHOTO: Vic Gibson, Thorleif Moar

General		Propulsion		Deck EquipMENT
Length OA	90 m	Engines	4 x MAK	Workdrum pull	625 tonnes
Breadth	23 m	BHP	23,480	Capacity 1	12000m x 84mm
DWT	5010 tonnes	kW	17300	Capacity 2
Deck area	803 m2	For'd Thrusters	1 x 2040 bhp	Towdrum pull
Fuel	1156 m3	Azimuthing	1 x 1770 bhp	Capacity 1	2600m x 84mm
Pot water	660 m3	Aft Thrusters	2 x 1200 bhp	Capacity 2	2600m x 84mm
Mud	605 m3	Bollard Pull	278 tonnes	Sharks Jaw	2 x Triplex
Base oil	224 m3	DP	Kongsberg SDP21	Cranes	2 x 10 tonnes
Brine	602 m3	Joystick	KaMeWa	Tank Cleaning	None
Dry bulk		Year built	2004	Shipyard	Volkswerft
Former Names
Comments

TYPE: ME 909		NAME: Maersk Battler		PHOTO: Joshua Stack

General		Propulsion		Deck EquipMENT
Length OA	84.6 m	Engines	MAK	Workdrum pull	500 tonnes
Breadth	18.8 m	BHP	20,200	Capacity 1	2610m x 88mm
DWT	4030 tonnes	kW	-	Capacity 2	2610m x 88mm
Deck area	660 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	840 m3	Az Thruster	1 x 1200 bhp	Capacity 1	5850m x 84mm
Pot water	735 m3	Aft Thrusters	2 x 800 bhp	Capacity 2
Mud	600 m3	Bollard pull	230 tonnes	Sharks Jaw
Base oil	230 m3	DP	Simrad	Cranes
Brine	480 m3	Joystick	Kamewa	Tank Cleaning	None
Dry bulk	312 m3	Year built	1997	Shipyard	Simek
Former Names
Comments

TYPE: ME 909		NAme: Maersk Beater		PHOTO: George Craigen, Nigel Sly

General		Propulsion		Deck EquipMENT
Length OA	84.6 m	Engines	MAK	Workdrum pull	500 tonnes
Breadth	18.8 m	BHP	20,200	Capacity 1	2610m x 88mm
DWT	4030 tonnes	kW	-	Capacity 2	2610m x 88mm
Deck area	660 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	840 m3	Az Thruster	1 x 1200 bhp	Capacity 1	5850m x 84mm
Pot water	735 m3	Aft Thrusters	2 x 800 bhp	Capacity 2
Mud	600 m3	Bollard pull	230 tonnes	Sharks Jaw
Base oil	230 m3	DP	Simrad	Cranes
Brine	480 m3	Joystick	Kamewa	Tank Cleaning	None
Dry bulk	312 m3	Year built	1997	Shipyard	Simek
Former Names
Comments

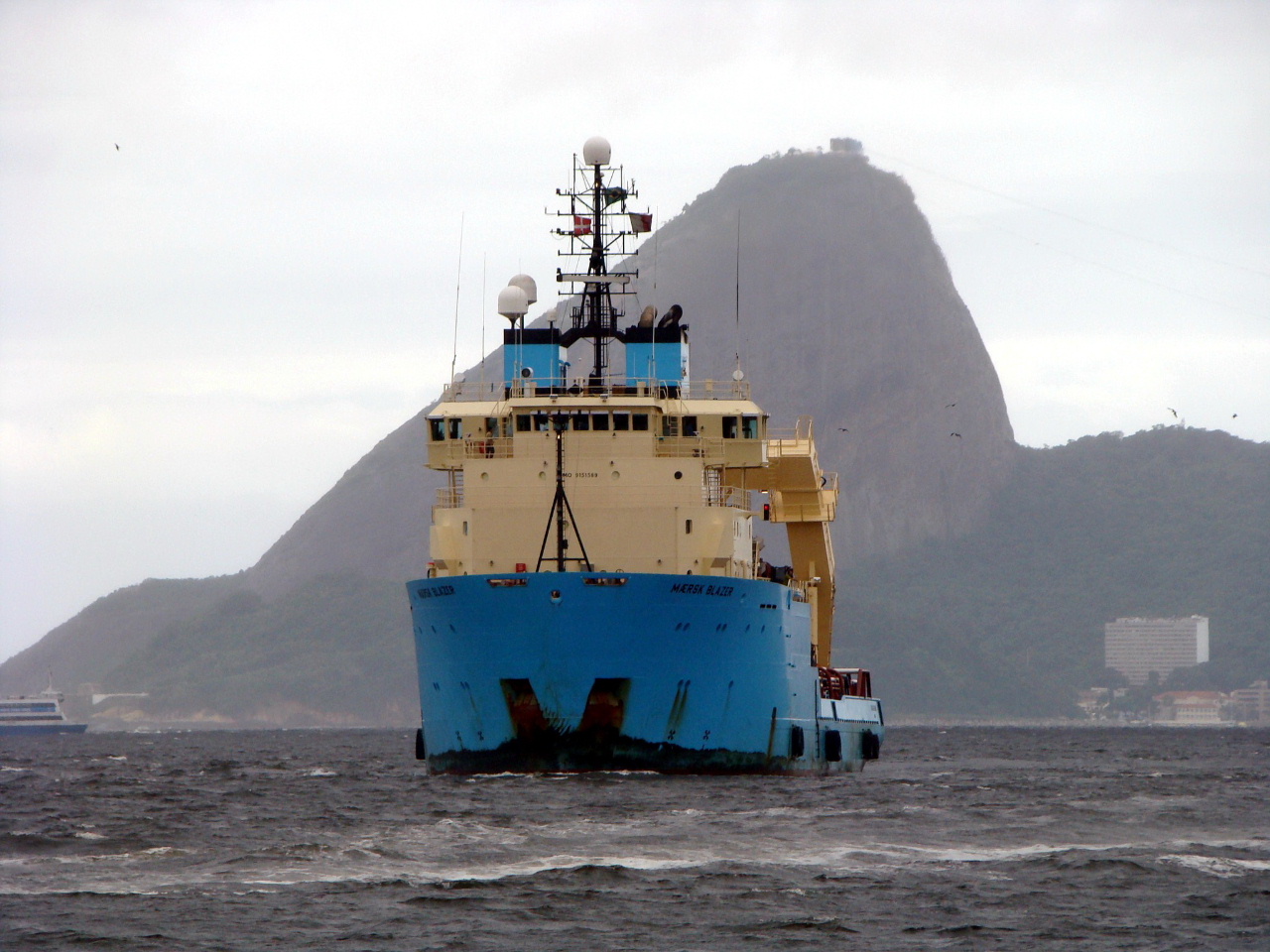

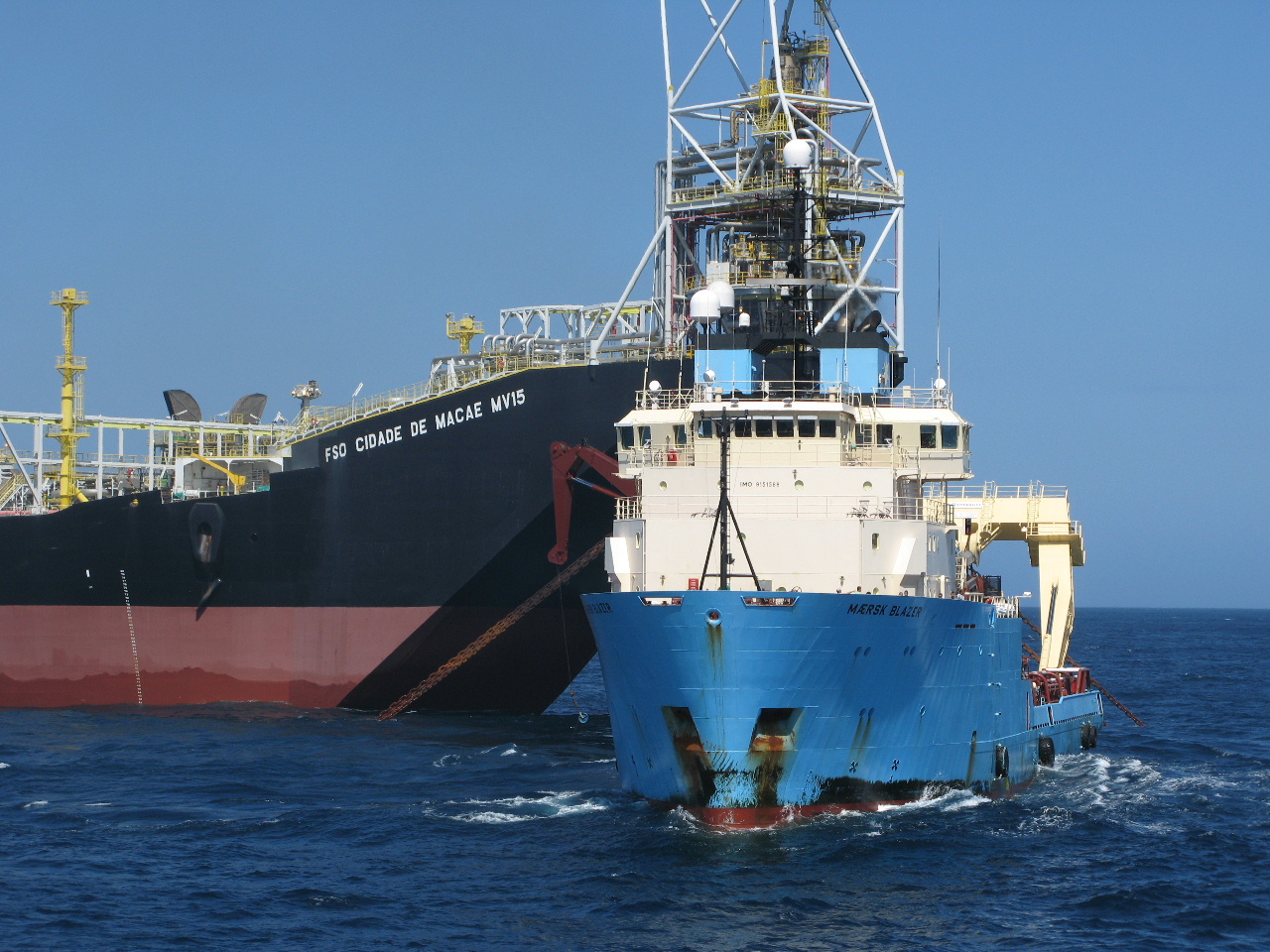

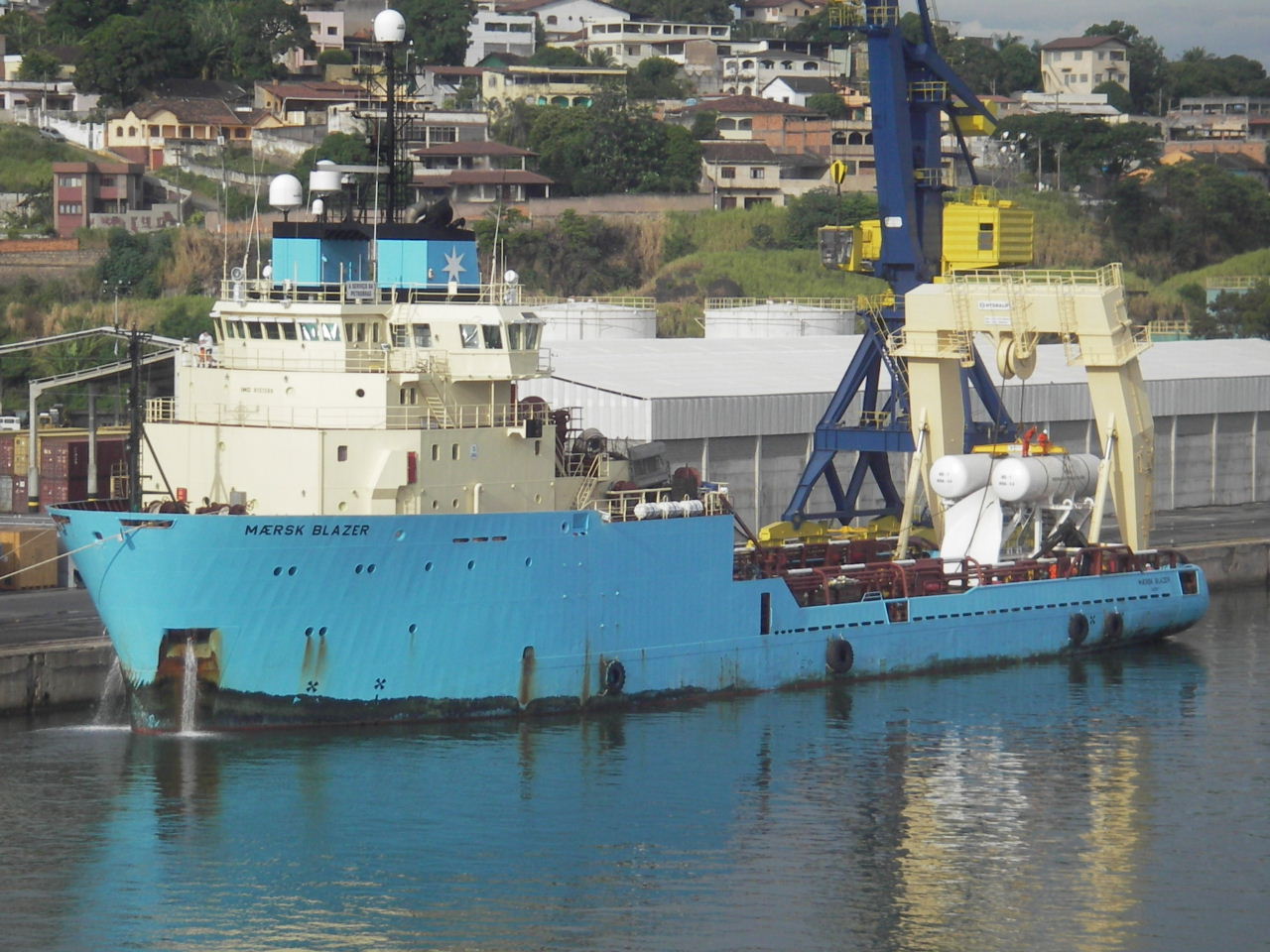

TYPE: ME 909		NAME: Maersk Blazer		PHOTO: Cesar Neves, Tony Poll, Torleif Klokset

General		Propulsion		Deck EquipMENT
Length OA	84.6 m	Engines	MAK	Workdrum pull	500 tonnes
Breadth	18.8 m	BHP	20,200	Capacity 1	2610m x 88mm
DWT	4030 tonnes	kW	-	Capacity 2	2610m x 88mm
Deck area	660 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	840 m3	Az Thruster	1 x 1200 bhp	Capacity 1	5850m x 84mm
Pot water	735 m3	Aft Thrusters	2 x 800 bhp	Capacity 2
Mud	600 m3	Bollard pull	230 tonnes	Sharks Jaw
Base oil	230 m3	DP	Simrad	Cranes
Brine	480 m3	Joystick	Kamewa	Tank Cleaning	None
Dry bulk	312 m3	Year built	1998	Shipyard	Simek
Former Names
Comments

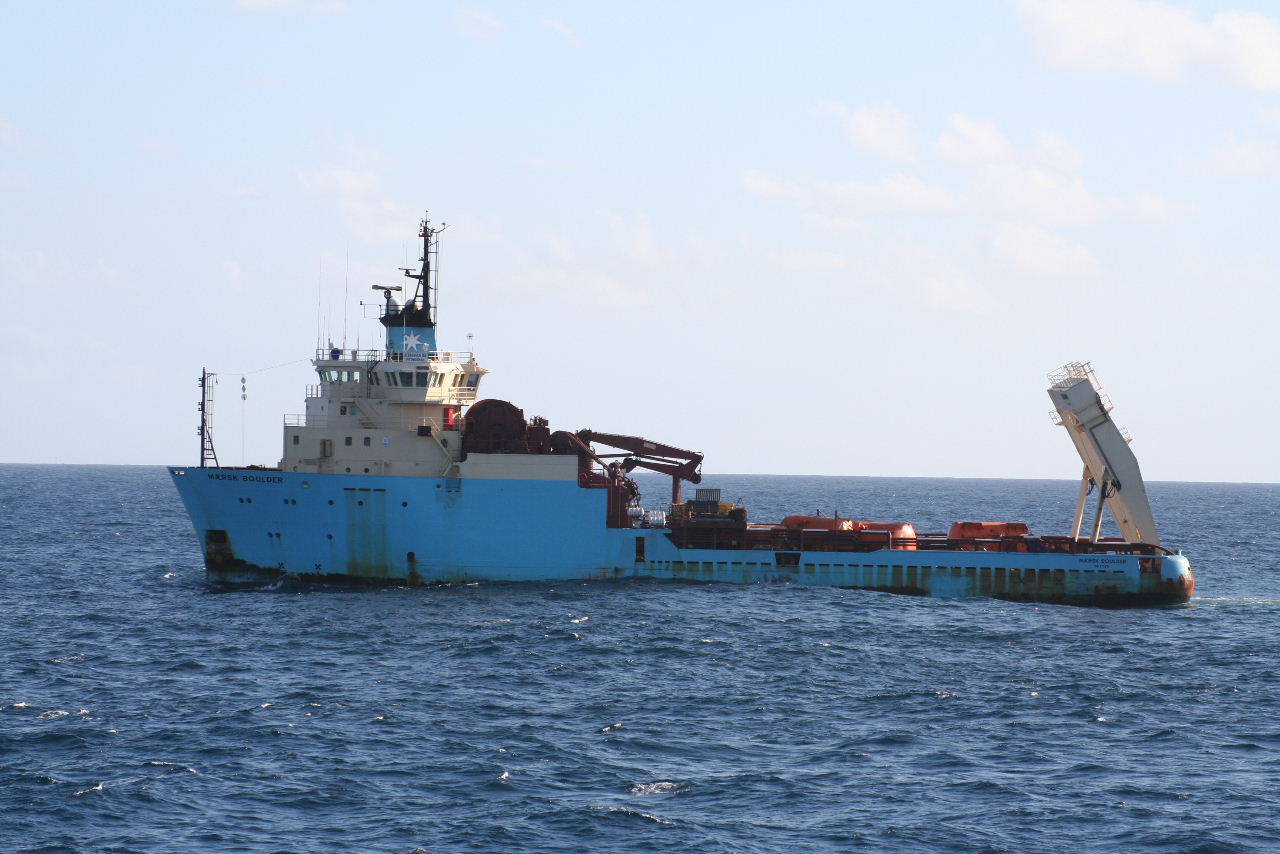

TYPE: ME 909		NAME: Maersk Boulder		PHOTO: Tony Poll

General		Propulsion		Deck EquipMENT
Length OA	84.6 m	Engines	MAK	Workdrum pull	500 tonnes
Breadth	18.8 m	BHP	20,200	Capacity 1	2610m x 88mm
DWT	4030 tonnes	kW	-	Capacity 2	2610m x 88mm
Deck area	660 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	840 m3	Az Thruster	1 x 1200 bhp	Capacity 1	5850m x 84mm
Pot water	735 m3	Aft Thrusters	2 x 800 bhp	Capacity 2
Mud	600 m3	Bollard pull	230 tonnes	Sharks Jaw
Base oil	230 m3	DP	Simrad	Cranes
Brine	480 m3	Joystick	Kamewa	Tank Cleaning	None
Dry bulk	312 m3	Year built	1998	Shipyard	Simek
Former Names
Comments

TYPE: VS 476		NAME: Maersk Chancellor		PHOTO: george Craigen

General		Propulsion		Deck Equip
Length OA	76.4 m	Engines	4 x B&W Alpha	Workdrum pull	300t
Breadth	17.61 m	BHP	14400	Capacity 1	1200m x 74mm
DWT	2440 t	kW	10600	Capacity 2
Deck area	633 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	350t
Fuel	1398 m3	Az Thruster		Capacity 1	1400m x 64mm
Pot water	508 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	1400m x 64mm
Mud	618 m3	Bollard pull	160 tonnes	Sharks Jaw
Base oil	213 m3	DP		Cranes
Brine	619 m3	Joystick	Robertson	Tank Cleaning	None
Dry bulk	284m3	Year built	1986	Shipyard	Orskov
Former Names	Kingshav, Oil Chancellor
Comments	These vessels were all built at Orskov and spent some time bareboated to OIL, but at the end of the contract period they were purchased by Maersk.

TYPE: VS 476		NAME: Maersk Champion		PHOTO: Tony Poll

General		Propulsion		Deck Equip
Length OA	76.4 m	Engines	4 x B&W Alpha	Workdrum pull	300t
Breadth	17.61 m	BHP	14400	Capacity 1	1200m x 74mm
DWT	2440 t	kW	10600	Capacity 2
Deck area	633 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	350t
Fuel	1398 m3	Az Thruster		Capacity 1	1400m x 64mm
Pot water	508 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	1400m x 64mm
Mud	618 m3	Bollard pull	160 tonnes	Sharks Jaw
Base oil	213 m3	DP		Cranes
Brine	619 m3	Joystick	Robertson	Tank Cleaning	None
Dry bulk	284m3	Year built	1986	Shipyard	Orskov
Former Names	Kongsgaad, Oil Champion
Comments	These vessels were all built at Orskov and spent some time bareboated to OIL, but at the end of the contract period they were purchased by Maersk.

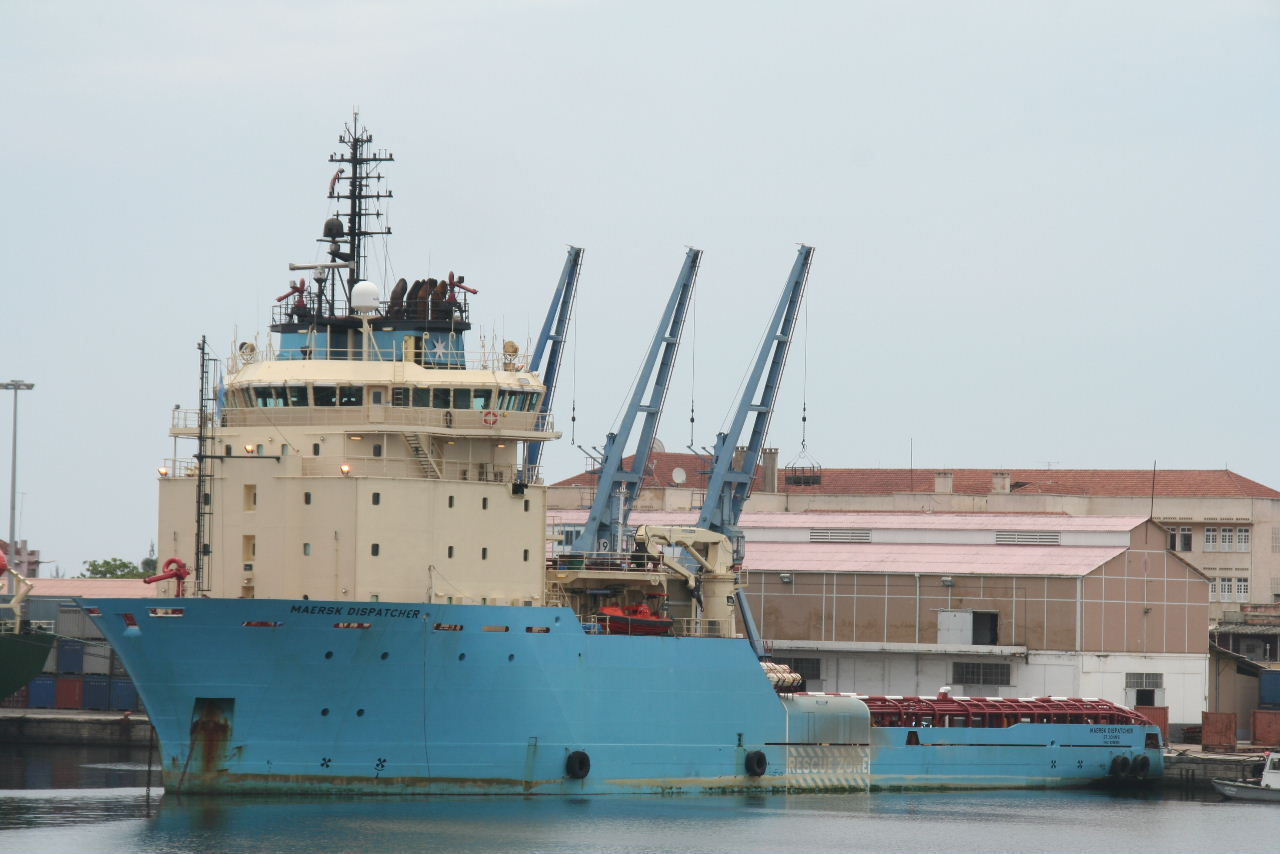

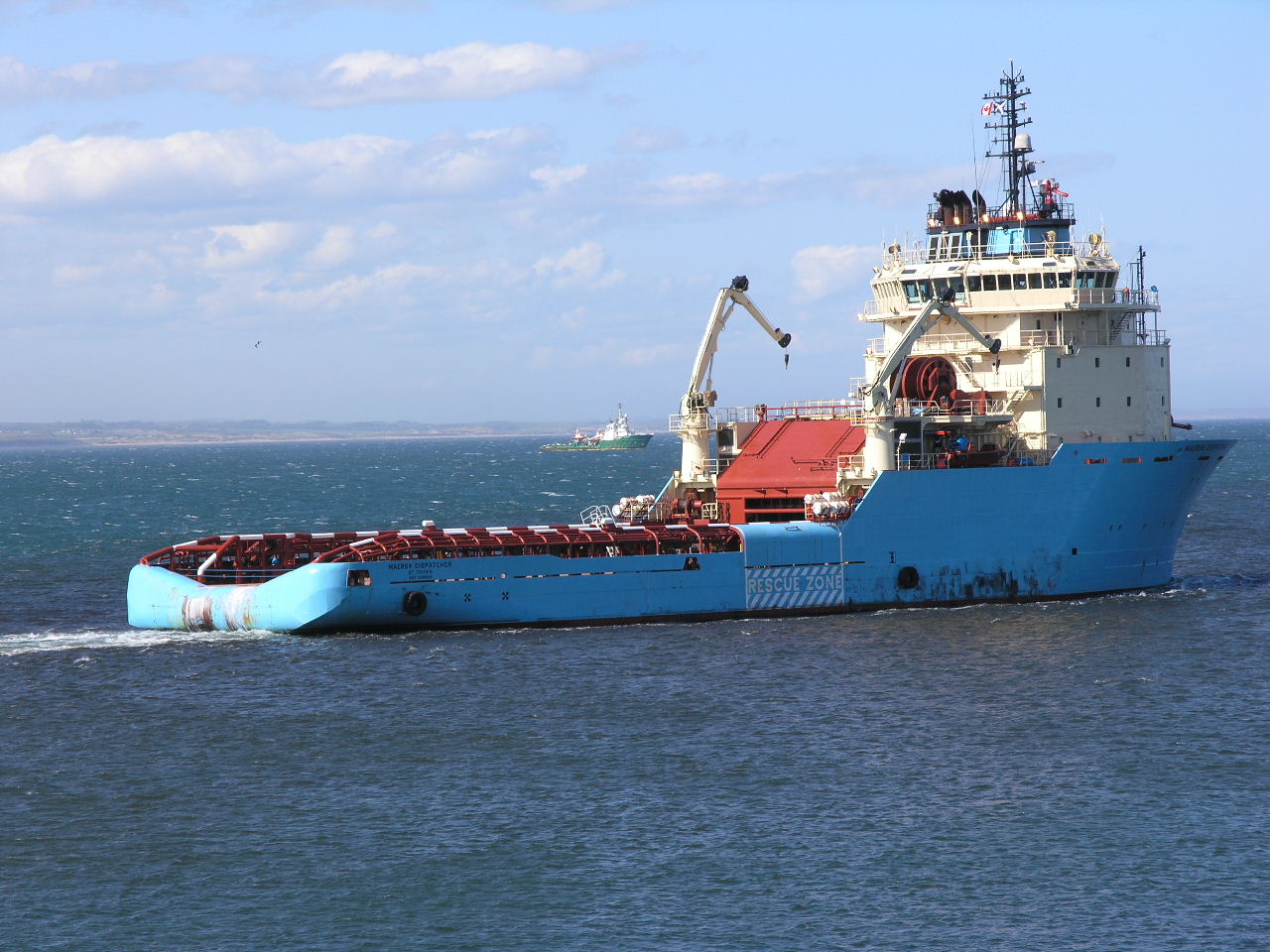

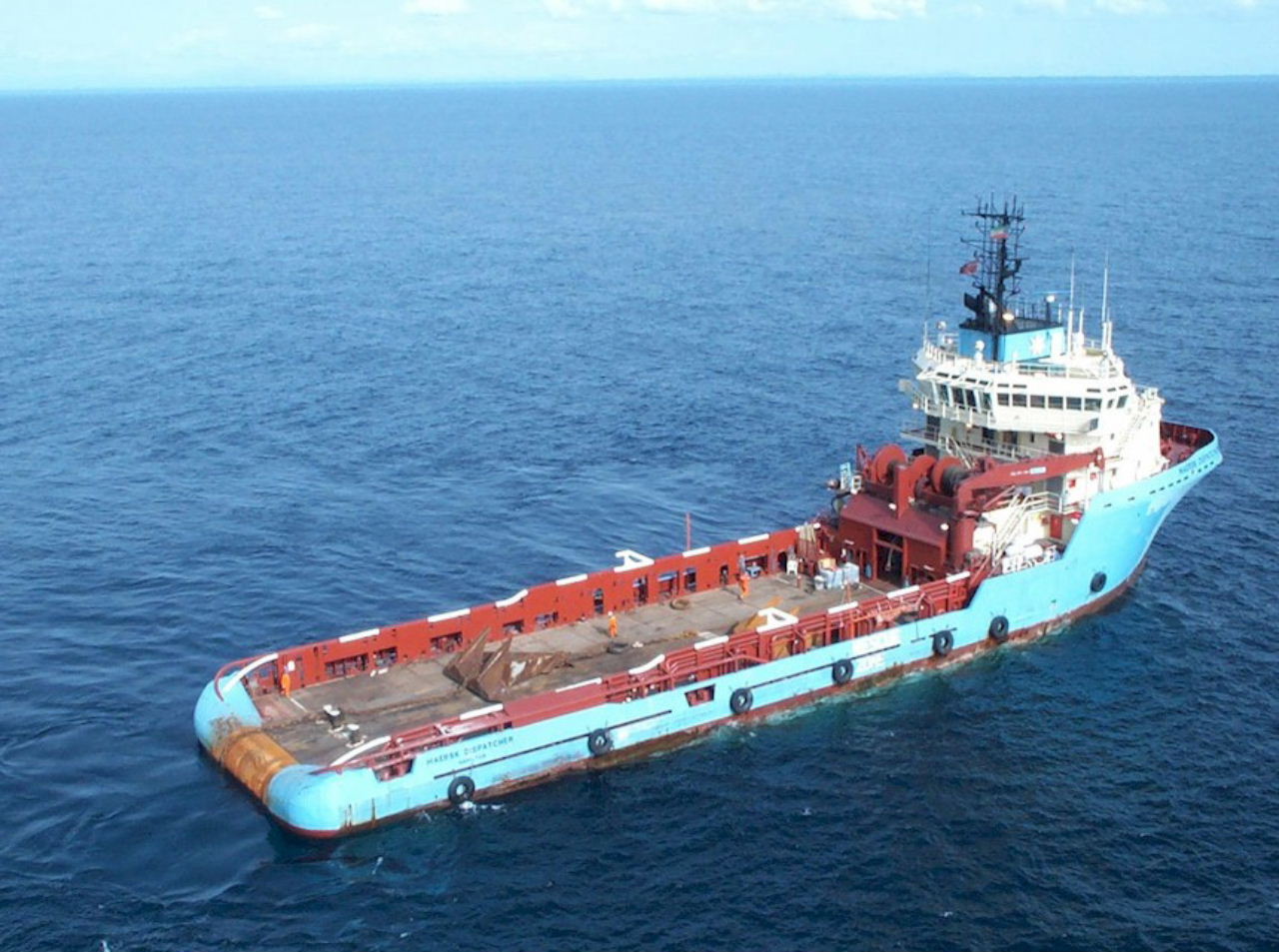

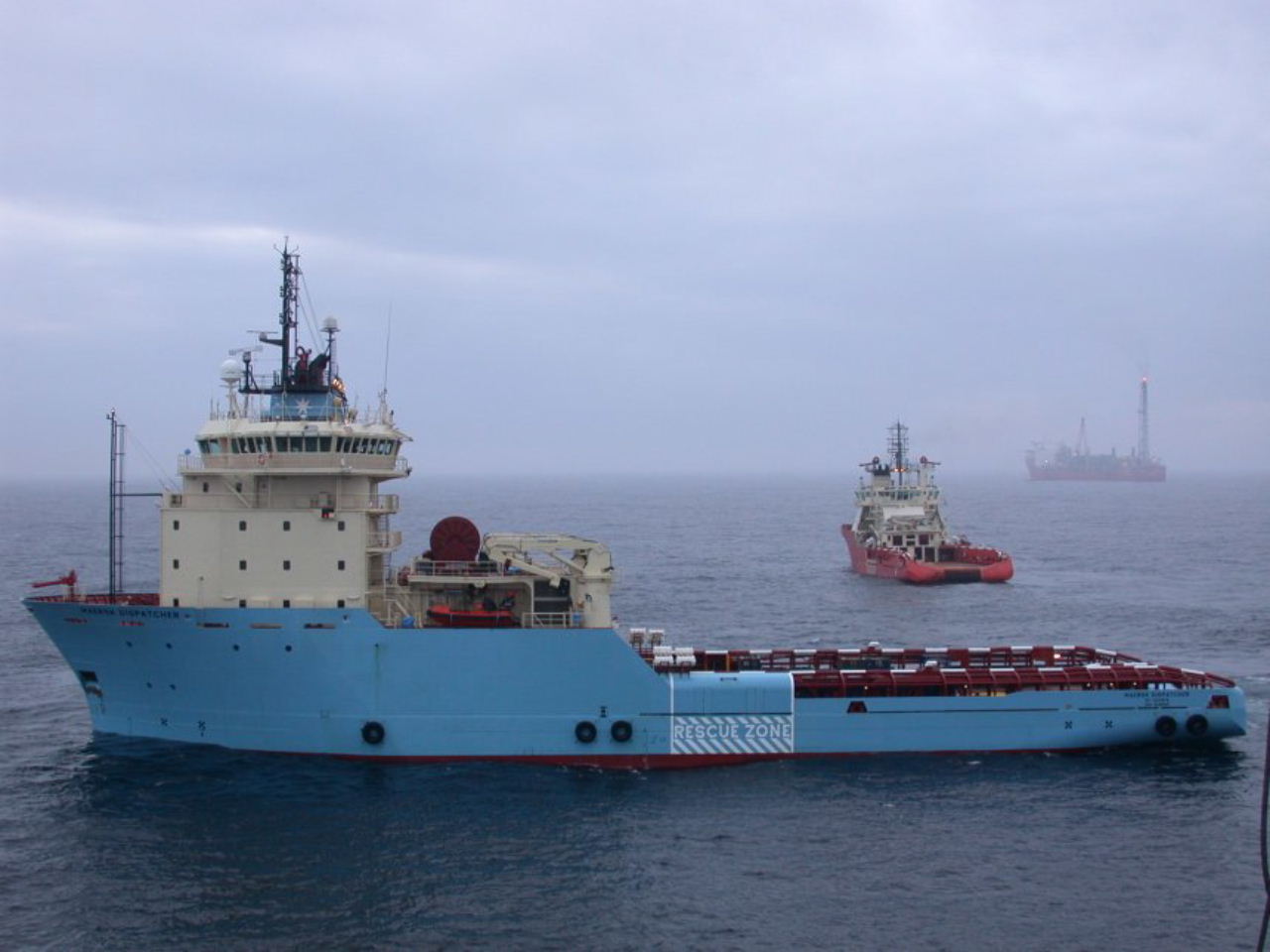

TYPE: MAERSK D Type		NAME: Maersk Dispatcher		PHOTO: Vic Gibson, Jan Plug, Perry White

General		Propulsion		Deck Equip
Length OA	89.3 m	Engines	4 x MAK 8M/6M 32	Workdrum pull	400 t
Breadth	20.6 m	BHP	18280	Capacity 1	4000m x 77mm
DWT	4050 t	kW	13440	Capacity 2	-
Deck area	755 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull	400 t
Fuel	2166 m3	Az Thruster	1 x 1200 bhp	Capacity 1	2500m x 77mm
Pot water	803 m3	Aft Thrusters	2 x 950 bhp	Capacity 2	2500m x 77mm
Mud	480 m3	Bollard pull	219 t	Sharks Jaw	2 x Triplex
Base oil	260 m3	DPII	Simrad SDP 21	Cranes	2 x 6.5 t
Brine	475 m3	Joystick	Yes	Tank Cleaning	-
Dry bulk	282 m3	Year built	2006	Shipyard	Volksverft?
Former Names
Comments

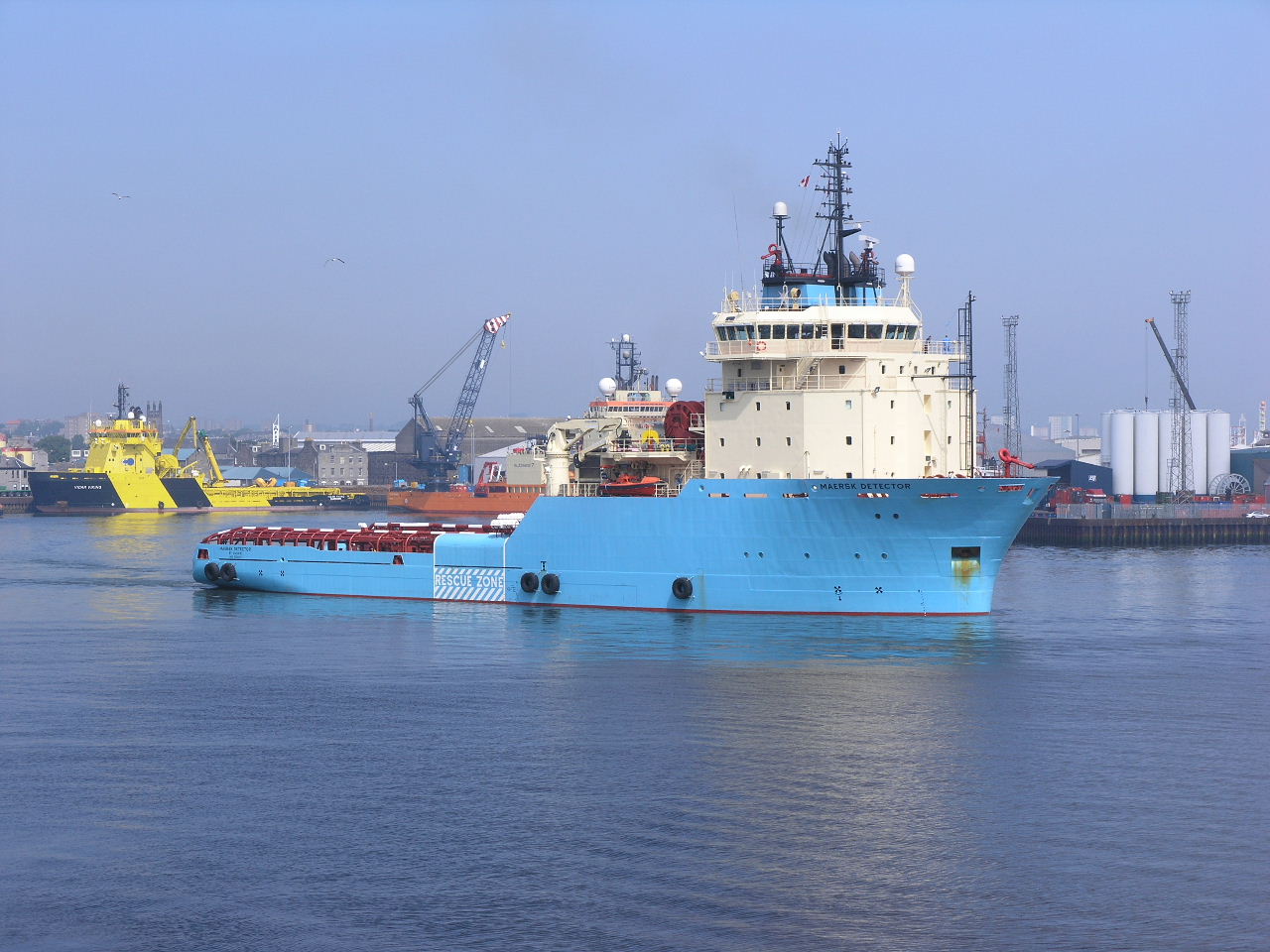

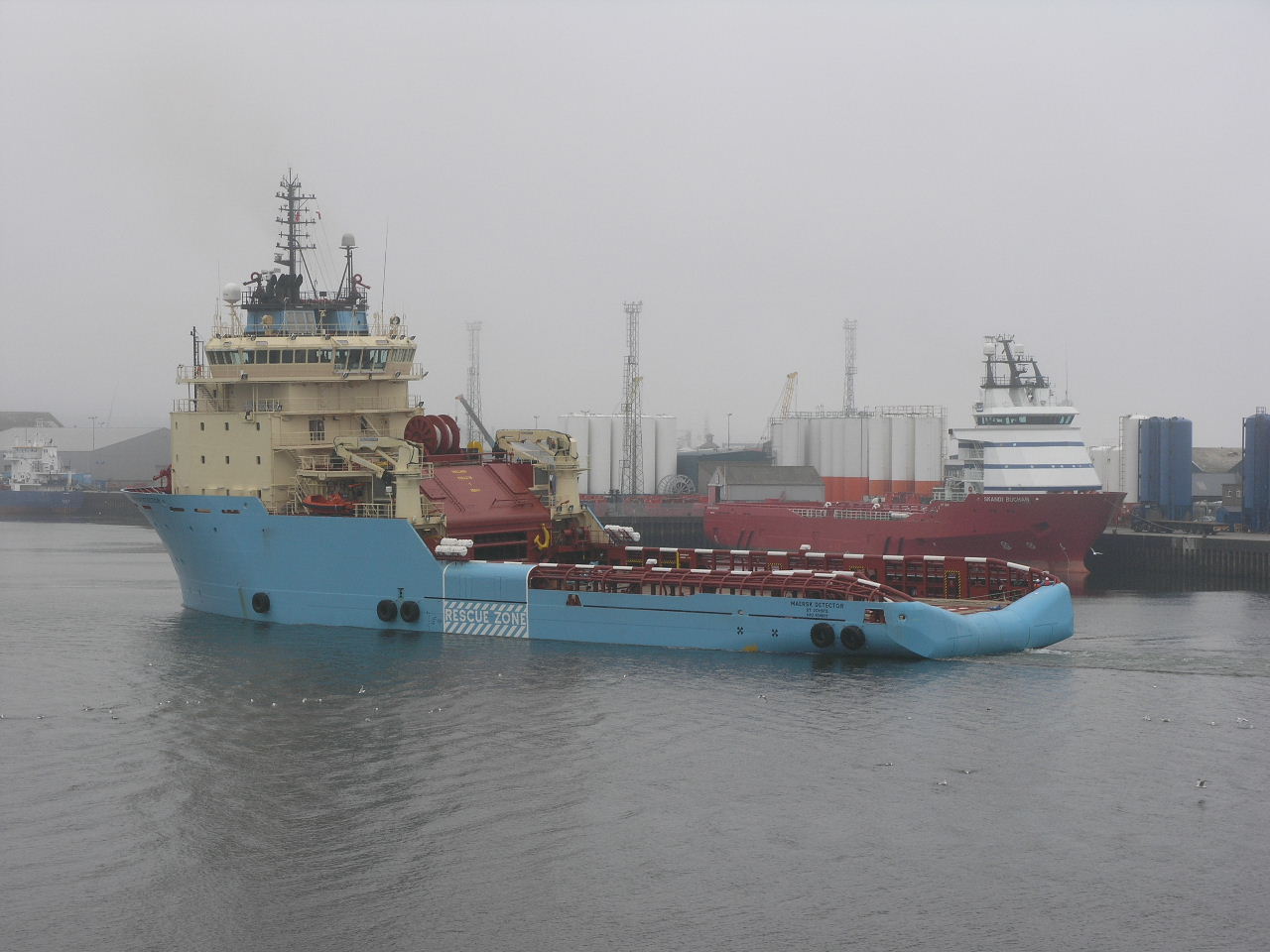

TYPE: Maersk D Type		NAME: Maersk Detector		PHOTO: Vic Gibson

General		Propulsion		Deck Equip
Length OA	89.3 m	Engines	4 x MAK 8M/6M 32	Workdrum pull	400 t
Breadth	20.6 m	BHP	18280	Capacity 1	4000m x 77mm
DWT	4050 t	kW	13440	Capacity 2	-
Deck area	755 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull	400 t
Fuel	2166 m3	Az Thruster	1 x 1200 bhp	Capacity 1	2500m x 77mm
Pot water	803 m3	Aft Thrusters	2 x 950 bhp	Capacity 2	2500m x 77mm
Mud	480 m3	Bollard pull	219 t	Sharks Jaw	2 x Triplex
Base oil	260 m3	DPII	Simrad SDP 21	Cranes	2 x 6.5 t
Brine	475 m3	Joystick	Yes	Tank Cleaning	-
Dry bulk	282 m3	Year built	2006	Shipyard	Volksverft?
Former Names
Comments

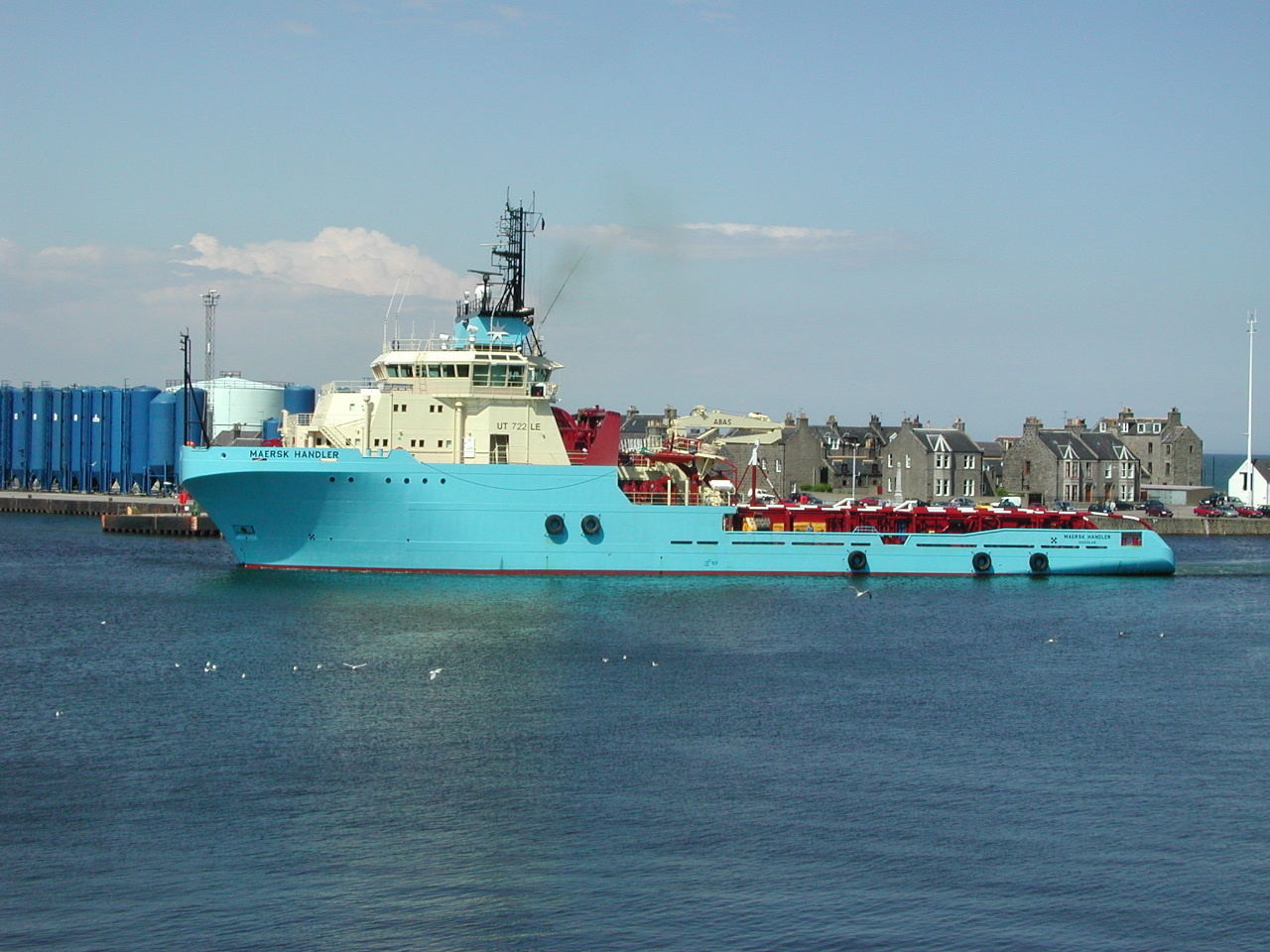

TYPE: UT 722L		NAME: Maersk Handler		PHOTO: George Craigen, Tony Poll

GENERAL		PROPULSION		EQUIPMENT
Length OA	80 m	Engines	2 x Wärtsilä	Workdrum pull	500 tonnes
Breadth	18 m	BHP	17500	Capacity 1	9100m x 76mm
DWT	2618 t	kW	12880	Capacity 2
Deck area	525 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull	500 tonnes
Fuel	590 m3	Az Thruster	1 x 1200 bhp	Capacity 1	9600m x 76mm
Pot water	500 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	445 m3	Bollard pull	197 tonnes	Sharks Jaw	2 x Triplex
Brine	500 m3	DP	Class 1	Cranes	2 x hydraulic
Dry bulk	284 m3	Joystick	Yes	Shipyard	Langsten Slip
Year built	2002			Tank cleaning	None
Former Names
Comments

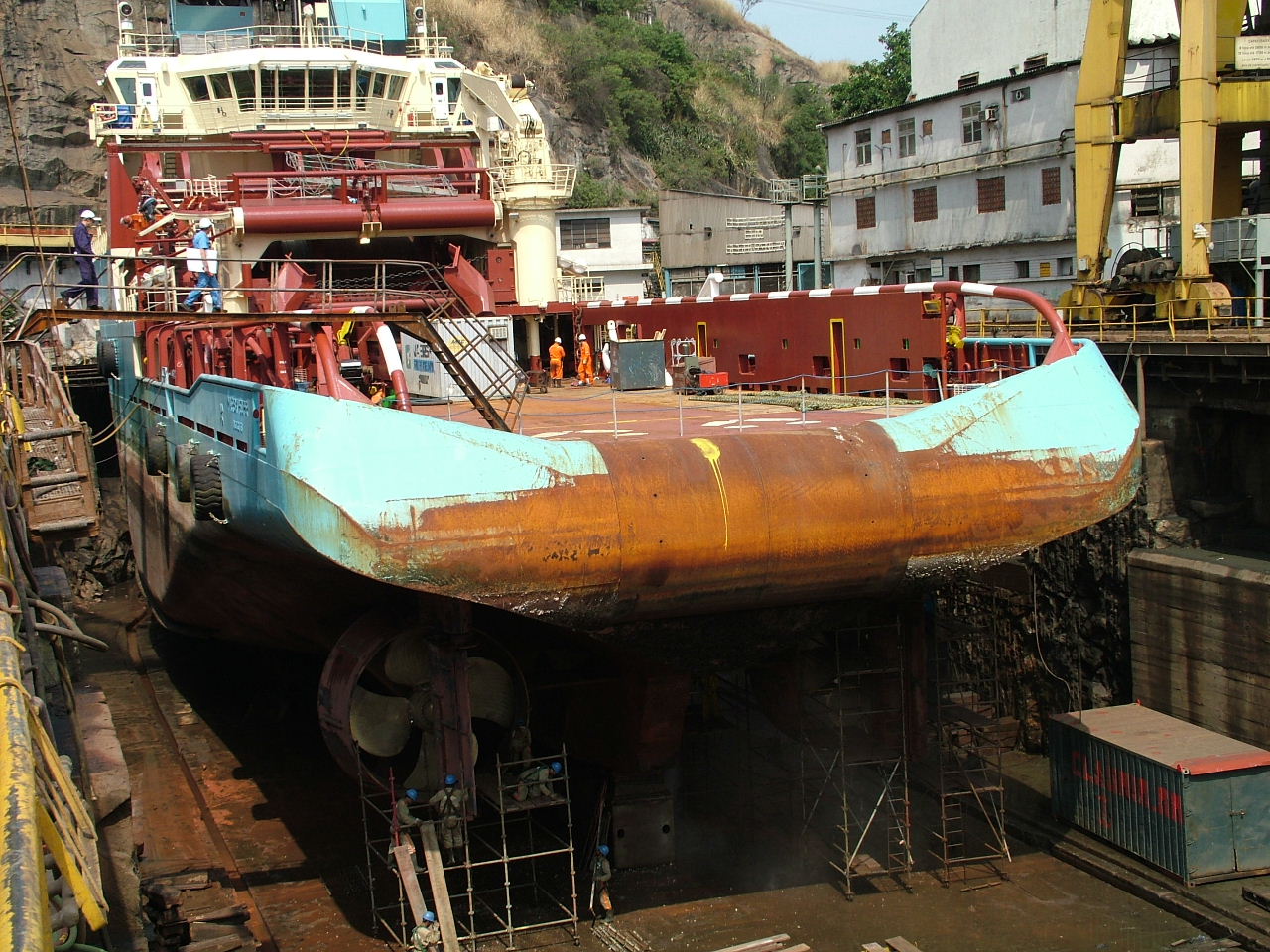

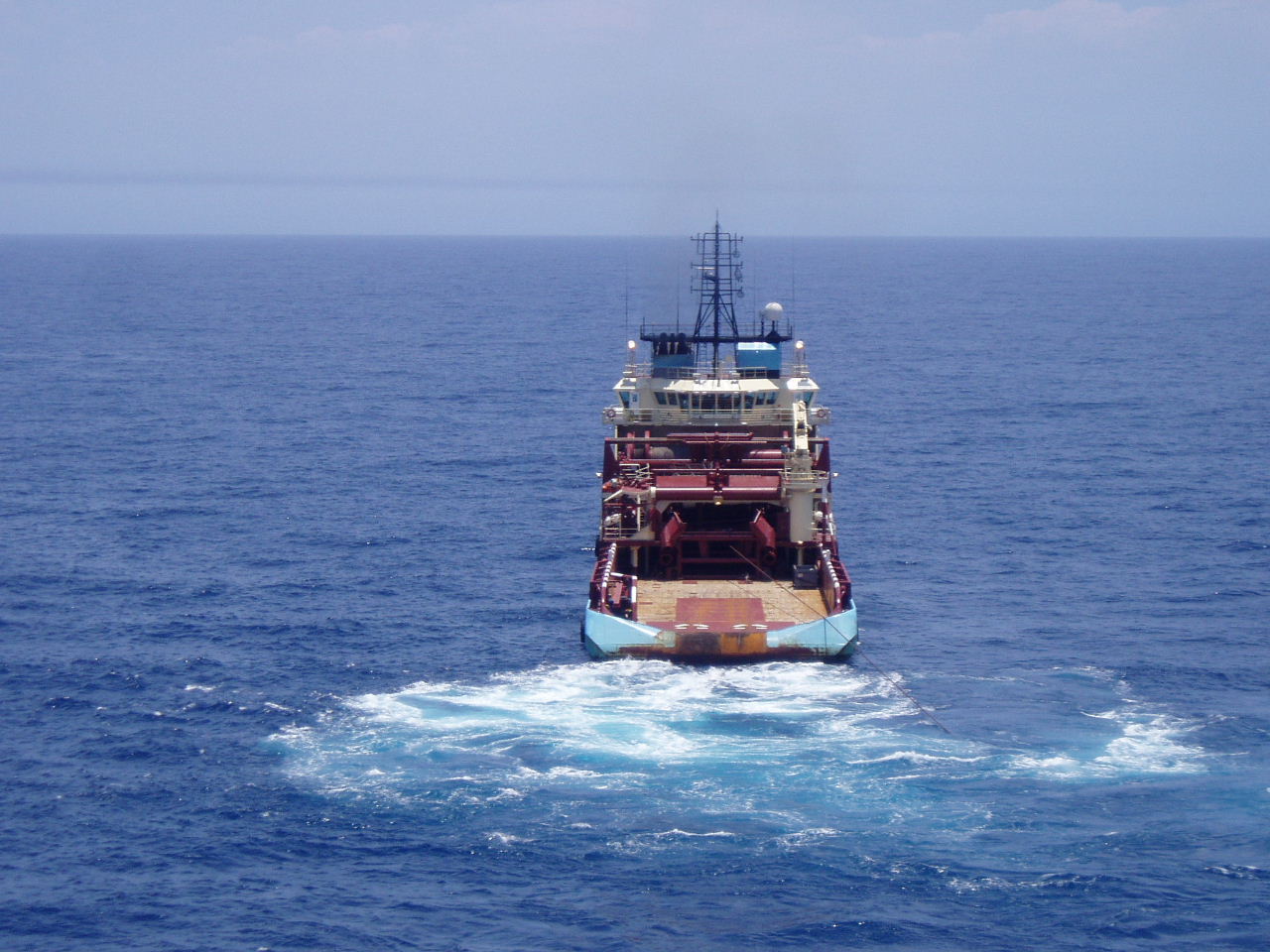

TYPE: UT 722L		NAME: Maersk Helper		PHOTO: George Craigen, Kenny Polson, Tony Poll

GENERAL		PROPULSION		EQUIPMENT
Length OA	80 m	Engines	2 x Wärtsilä	Workdrum pull	500 tonnes
Breadth	18 m	BHP	17500	Capacity 1	9100m x 76mm
DWT	2618 t	kW	12880	Capacity 2
Deck area	525 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull	500 tonnes
Fuel	590 m3	Az Thruster	1 x 1200 bhp	Capacity 1	9600m x 76mm
Pot water	500 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	445 m3	Bollard pull	197 tonnes	Sharks Jaw	2 x Triplex
Brine	500 m3	DP	Class 1	Cranes	2 x hydraulic
Dry bulk	284 m3	Joystick	Yes	Shipyard	Langsten Slip
Year built	2002			Tank cleaning	None
Former Names
Comments

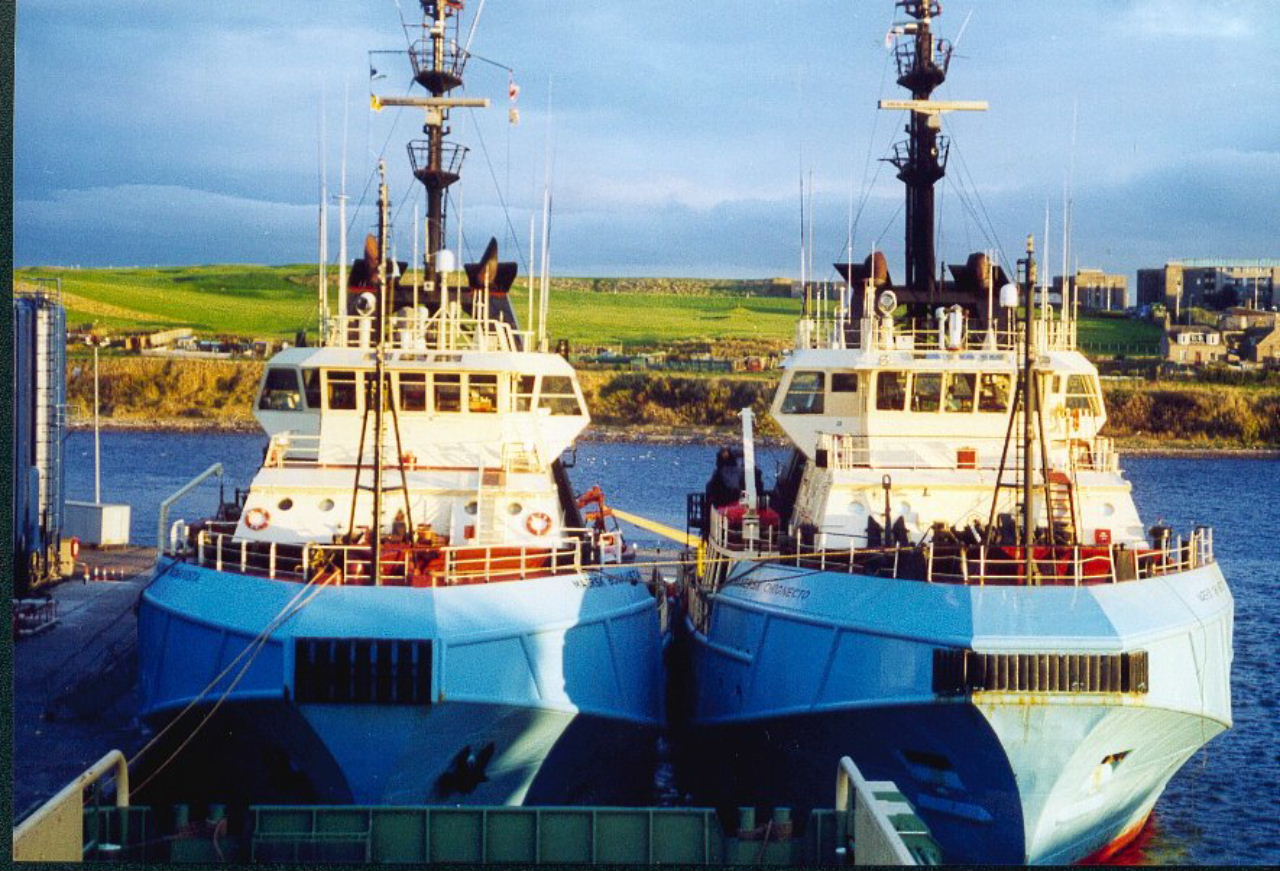

TYPE: HUSKY 83		NAME: Maersk Chignecto		PHOTO: Vic Gibson

General		Propulsion		Deck Equip
Length OA	71.50 m	Engines	4 x MAK 6M453	Workdrum pull	275 tonnes pull
Breadth	16.00 m	BHP	10880	Capacity 1	800m x 77mm
DWT	2500 tonnes	Kw	8000	Capacity 2	800m x 77mm
Deck area	475 m2	For'd Thrusters	2 x 800 bhp	Towdrum pull	275 t
Fuel	1008 m3	Az Thruster	-	Capacity 1	1300m x 77mm
Pot water	640 m3	Aft Thrusters	1 x 800 bhp	Capacity 2
Mud	320 m3	Bollard pull	125 tonnes	Sharks Jaw	Triplex/Karmfork
Base oil	165 m3	DP		Cranes
Brine	204 m3	Joystick	Kamewa	Tank Cleaning	-
Dry bulk	276 m3	Year built	1983	Shipyard	Hyundai Korea
Former Names	Chignecto Bay
Comments	-

TYPE: HUSKY 83		NAME: Maersk Placentia		PHOTO:

General		Propulsion		Deck Equip
Length OA	71.50 m	Engines	4 x MAK 6M453	Workdrum pull	275 tonnes pull
Breadth	16.00 m	BHP	10880	Capacity 1	800m x 77mm
DWT	2500 tonnes	Kw	8000	Capacity 2	800m x 77mm
Deck area	475 m2	For'd Thrusters	2 x 800 bhp	Towdrum pull	275 t
Fuel	1008 m3	Az Thruster	-	Capacity 1	1300m x 77mm
Pot water	640 m3	Aft Thrusters	1 x 800 bhp	Capacity 2
Mud	320 m3	Bollard pull	125 tonnes	Sharks Jaw	Triplex/Karmfork
Base oil	165 m3	DP		Cranes
Brine	204 m3	Joystick	Kamewa	Tank Cleaning
Dry bulk	276 m3	Year built	1983	Shipyard
Former Names	Placentia Bay, Maersk Shipper
Comments

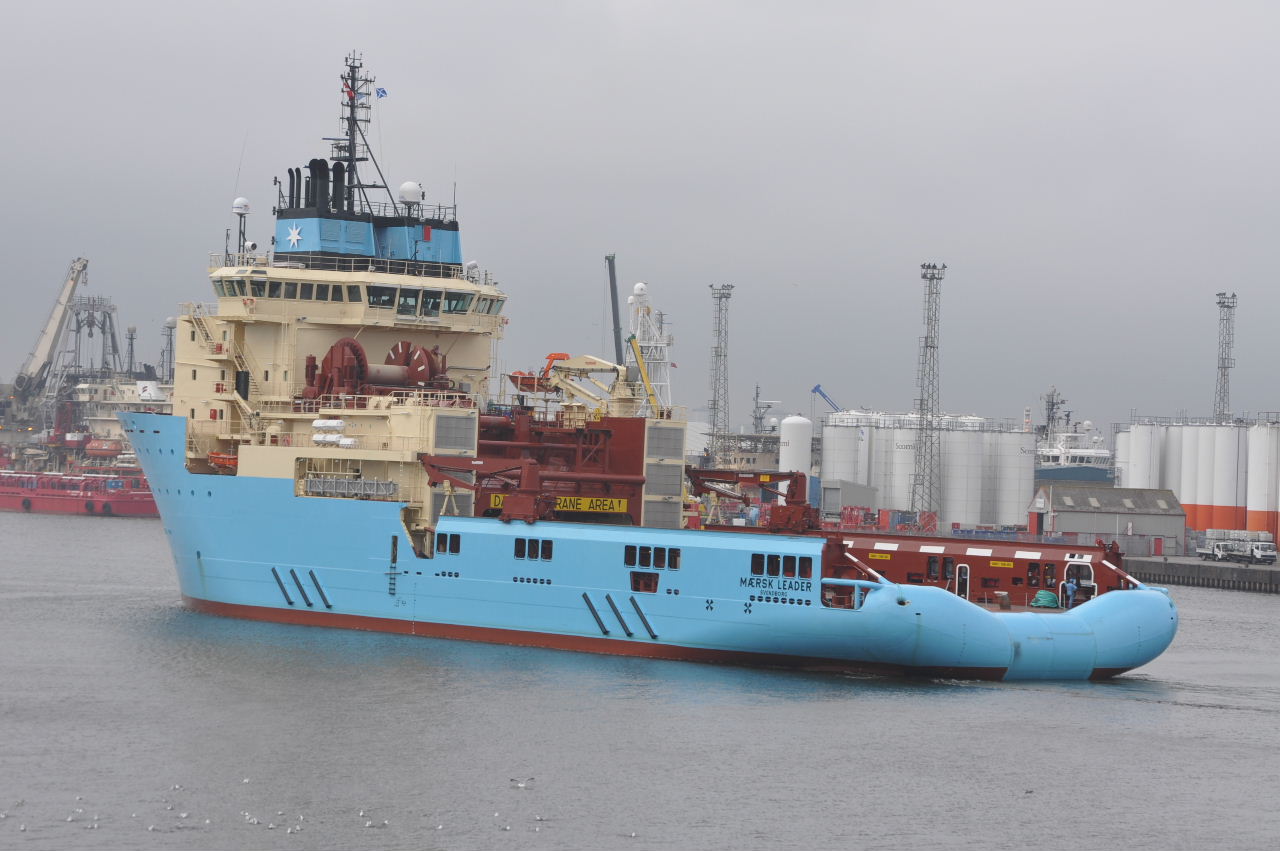

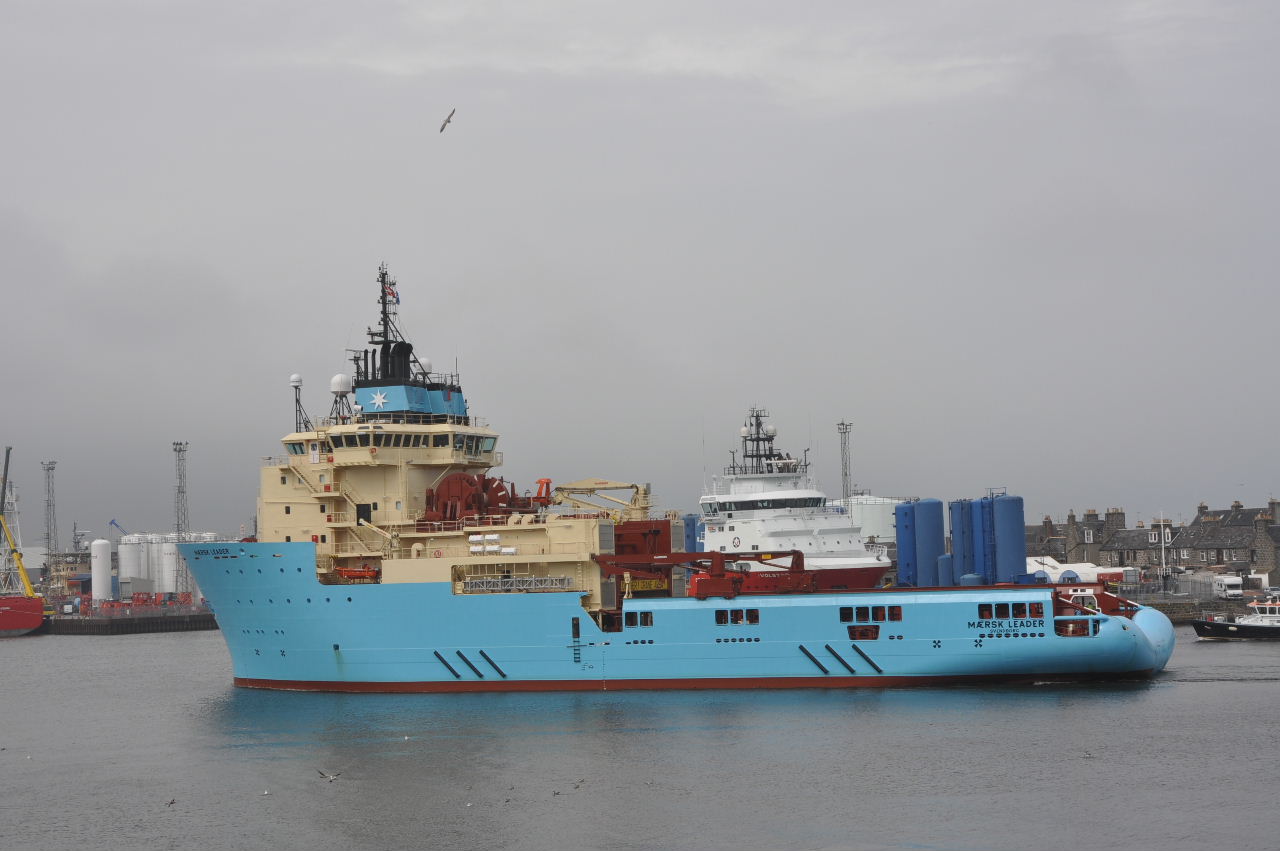

TYPE: VWS Series NAME: Maersk Leader PHOTO: Vic Gibson

GENERAL

PROPULSION

EQUIPMENT

Length OA 90.3 m Engines 4 x MAK 9M32C Workdrum pull 500 t

Breadth 23.0 m BHP 23175 Capacity 1 6450m x 84mm

DWT 4470 t kW 17040 Capacity 2 3210m x 84mm

Deck area 800 m2 For'd Thruster 2 x 2040 bhp Towdrum pull 500 t

Fuel 983 m3 Az Thruster - Capacity 1 6450m x 84mm

Pot water 611 m3 Aft Thrusters 2 x 1200 bhp Capacity 2 3210m x 84mm

Mud - Bollard pull 265 t Sharks Jaw Triplex

Brine - DPII Yes Cranes -

Dry bulk 130 m3 Joystick - Tank cleaning -

Year built 2009 Shipyard Volksverft Stral

Previous names -

Comments -

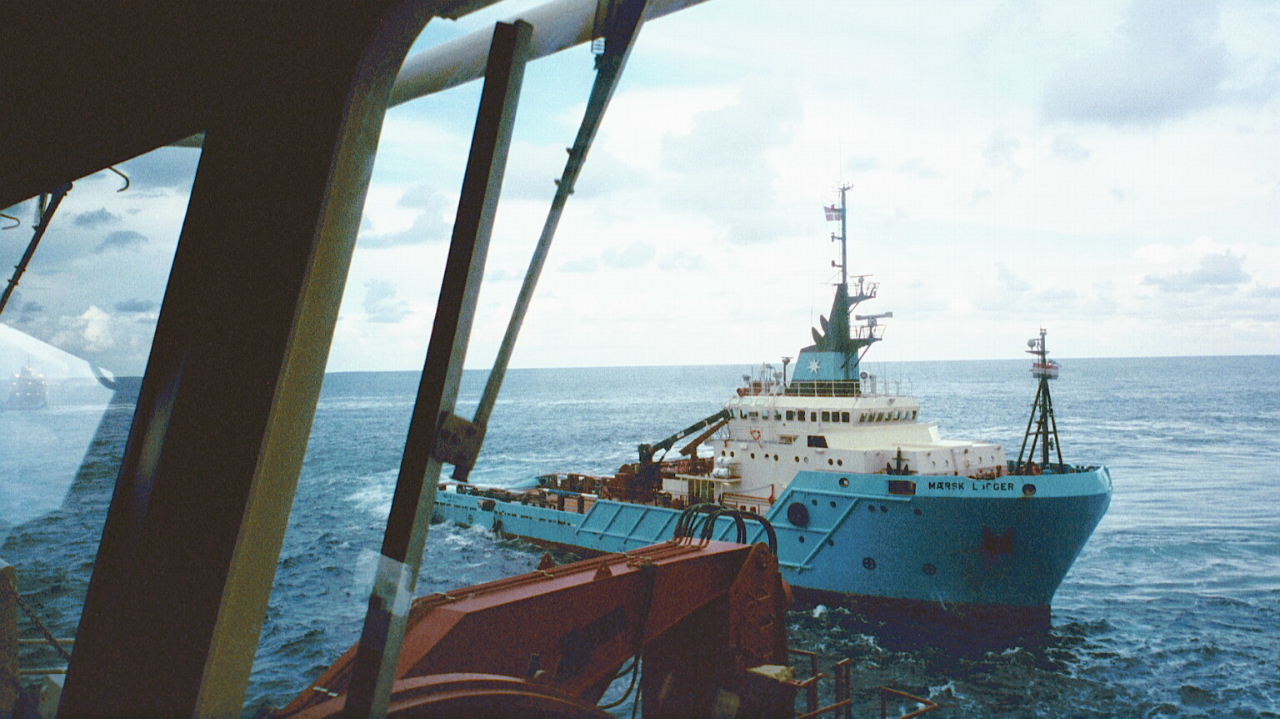

TYPE: MAERSK L NAME: Maersk Logger PHOTO: Phil Brown,

GENERAL

PROPULSION

EQUIPMENT

Length OA 90.3 m Engines 4 x MAK 9M32C Workdrum pull 500 t

Breadth 23.0 m BHP 23175 Capacity 1 6450m x 84mm

DWT 4470 t kW 17040 Capacity 2 3210m x 84mm

Deck area 800 m2 For'd Thruster 2 x 2040 bhp Towdrum pull 500 t

Fuel 983 m3 Az Thruster - Capacity 1 6450m x 84mm

Pot water 611 m3 Aft Thrusters 2 x 1200 bhp Capacity 2 3210m x 84mm

Mud - Bollard pull 265 t Sharks Jaw Triplex

Brine - DPII Yes Cranes -

Dry bulk 130 m3 Joystick - Tank cleaning -

Year built 2009 Shipyard Volksverft Stral

Previous names -

Comments -

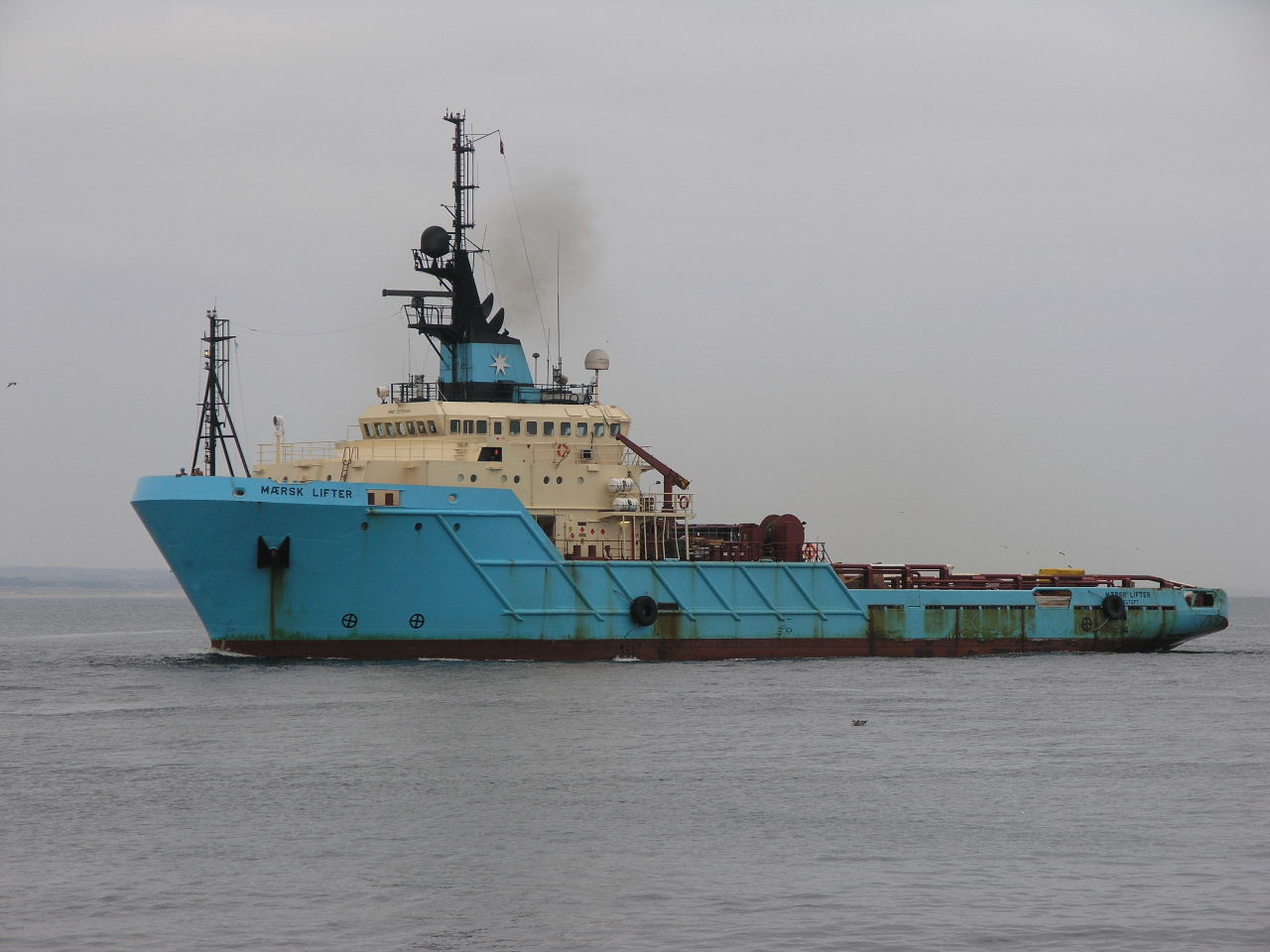

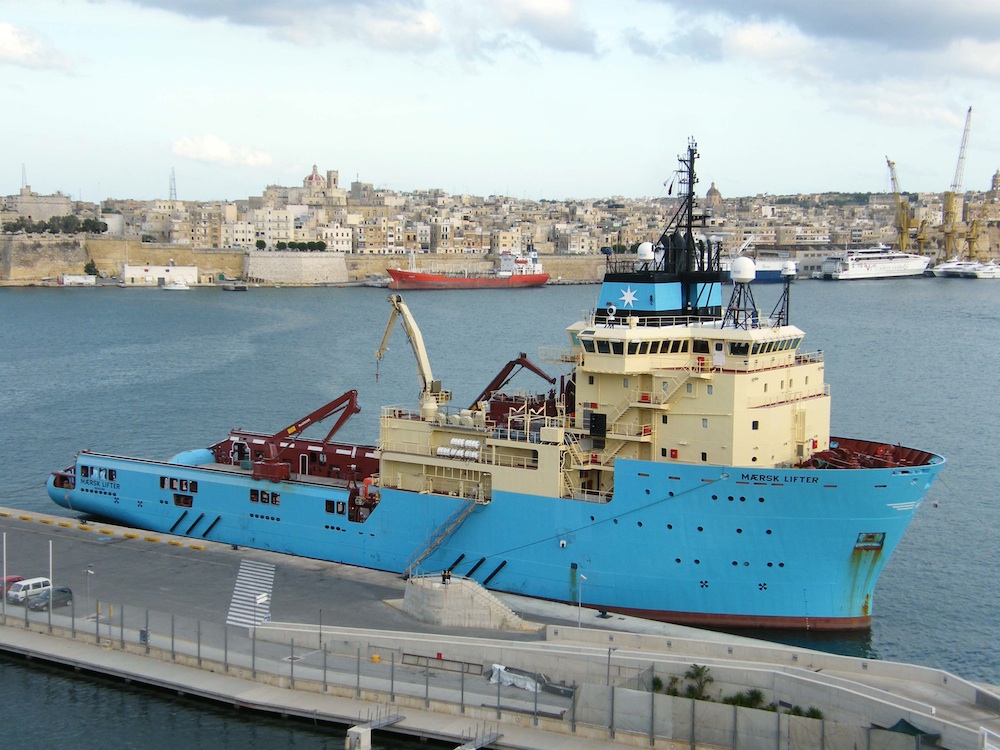

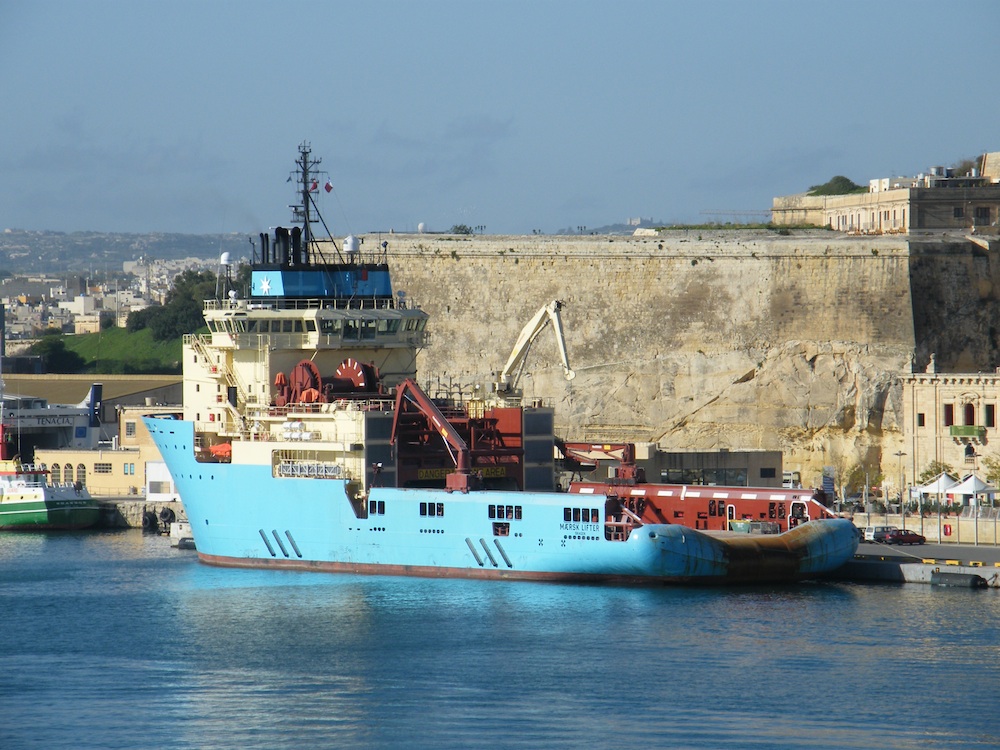

TYPE: MAERSK L NAME: Maersk Lifter PHOTO: Gaetano Spiteri

GENERAL

PROPULSION

EQUIPMENT

Length OA 90.3 m Engines 4 x MAK 9M32C Workdrum pull 500 t

Breadth 23.0 m BHP 23175 Capacity 1 6450m x 84mm

DWT 4470 t kW 17040 Capacity 2 3210m x 84mm

Deck area 800 m2 For'd Thruster 2 x 2040 bhp Towdrum pull 500 t

Fuel 983 m3 Az Thruster - Capacity 1 6450m x 84mm

Pot water 611 m3 Aft Thrusters 2 x 1200 bhp Capacity 2 3210m x 84mm

Mud - Bollard pull 265 t Sharks Jaw Triplex

Brine - DPII Yes Cranes -

Dry bulk 130 m3 Joystick - Tank cleaning -

Year built 2009 Shipyard Volksverft Stral

Previous names -

Comments -

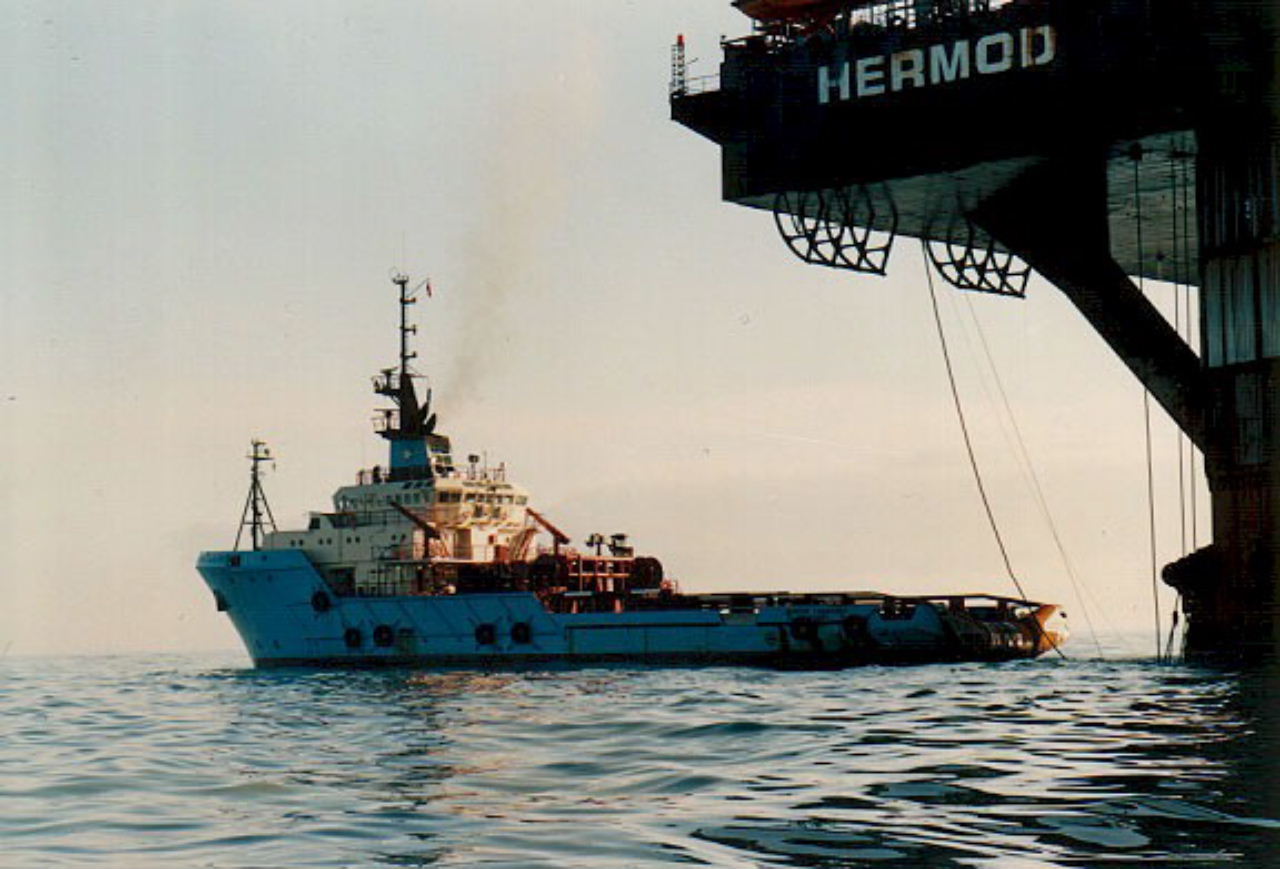

TYPE: MAERSK L NAME: Maersk Launcher PHOTO: Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 90.3 m Engines 4 x MAK 9M32C Workdrum pull 500 t

Breadth 23.0 m BHP 23175 Capacity 1 6450m x 84mm

DWT 4470 t kW 17040 Capacity 2 3210m x 84mm

Deck area 800 m2 For'd Thruster 2 x 2040 bhp Towdrum pull 500 t

Fuel 983 m3 Az Thruster - Capacity 1 6450m x 84mm

Pot water 611 m3 Aft Thrusters 2 x 1200 bhp Capacity 2 3210m x 84mm

Mud - Bollard pull 265 t Sharks Jaw Triplex

Brine - DPII Yes Cranes -

Dry bulk 130 m3 Joystick - Tank cleaning -

Year built 2010 Shipyard Volksverft Stral

Previous names -

Comments -

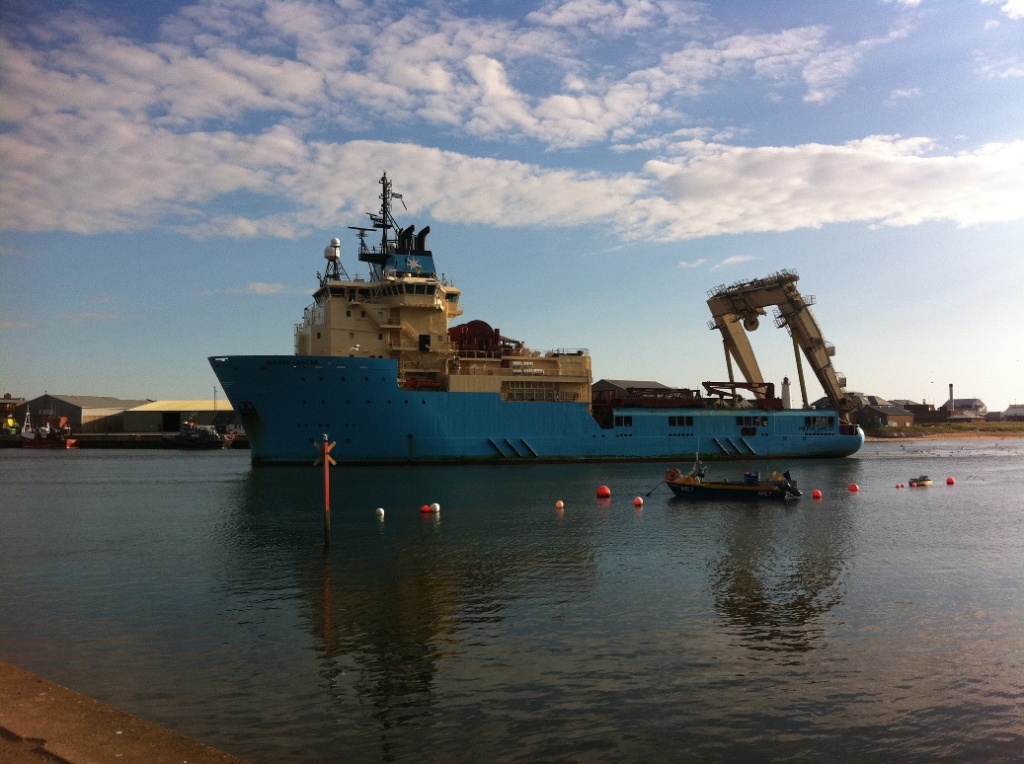

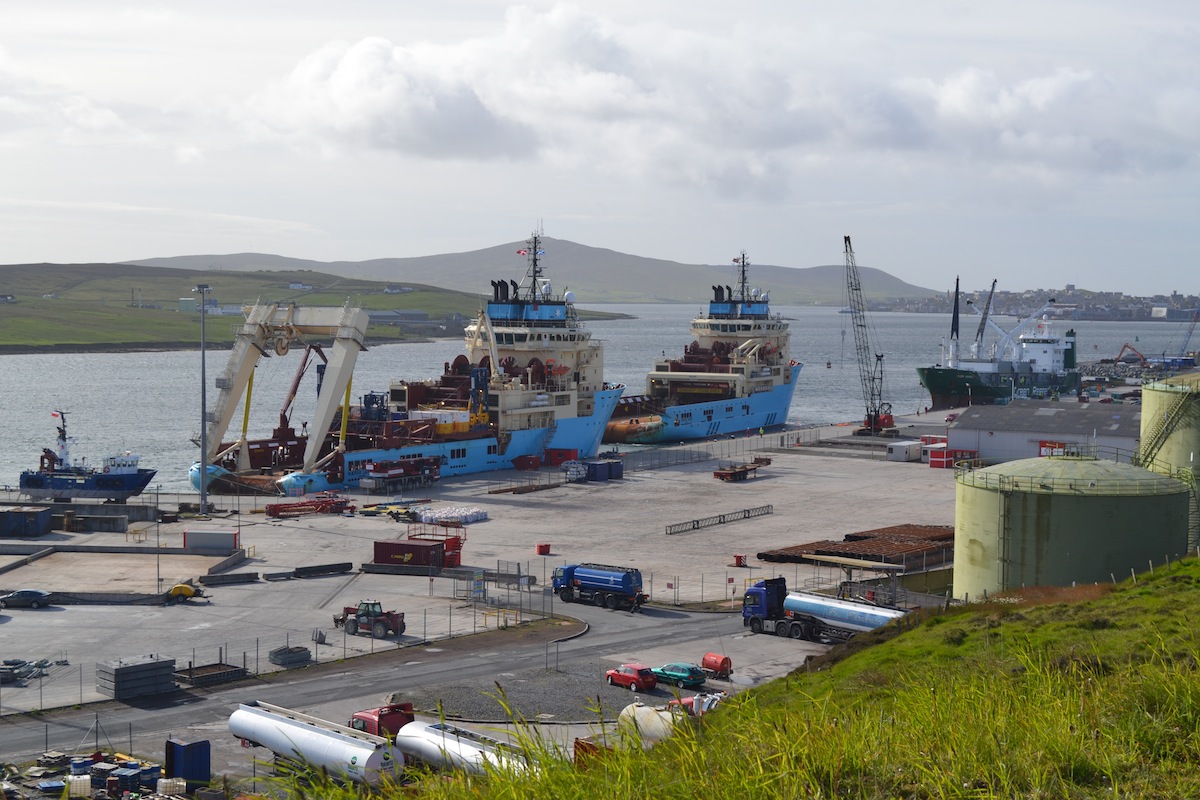

TYPE: MAERSK L NAME: Maersk Lancer PHOTO: Scott Boulter

GENERAL

PROPULSION

EQUIPMENT

Length OA 90.3 m Engines 4 x MAK 9M32C Workdrum pull 500 t

Breadth 23.0 m BHP 23175 Capacity 1 6450m x 84mm

DWT 4470 t kW 17040 Capacity 2 3210m x 84mm

Deck area 800 m2 For'd Thruster 2 x 2040 bhp Towdrum pull 500 t

Fuel 983 m3 Az Thruster - Capacity 1 6450m x 84mm

Pot water 611 m3 Aft Thrusters 2 x 1200 bhp Capacity 2 3210m x 84mm

Mud - Bollard pull 265 t Sharks Jaw Triplex

Brine - DPII Yes Cranes -

Dry bulk 130 m3 Joystick - Tank cleaning -

Year built 2010 Shipyard Volksverft Stral

Previous names -

Comments -

TYPE: MAERSK L NAME: Maersk Laser PHOTO: Udo Herkenrath, Alex Simpson

GENERAL

PROPULSION

EQUIPMENT

Length OA 90.3 m Engines 4 x MAK 9M32C Workdrum pull 500 t

Breadth 23.0 m BHP 23175 Capacity 1 6450m x 84mm

DWT 4470 t kW 17040 Capacity 2 3210m x 84mm

Deck area 800 m2 For'd Thruster 2 x 2040 bhp Towdrum pull 500 t

Fuel 983 m3 Az Thruster - Capacity 1 6450m x 84mm

Pot water 611 m3 Aft Thrusters 2 x 1200 bhp Capacity 2 3210m x 84mm

Mud - Bollard pull 265 t Sharks Jaw Triplex

Brine - DPII Yes Cranes -

Dry bulk 130 m3 Joystick - Tank cleaning -

Year built 2010 Shipyard Volksverft Stral

Previous names -

Comments -

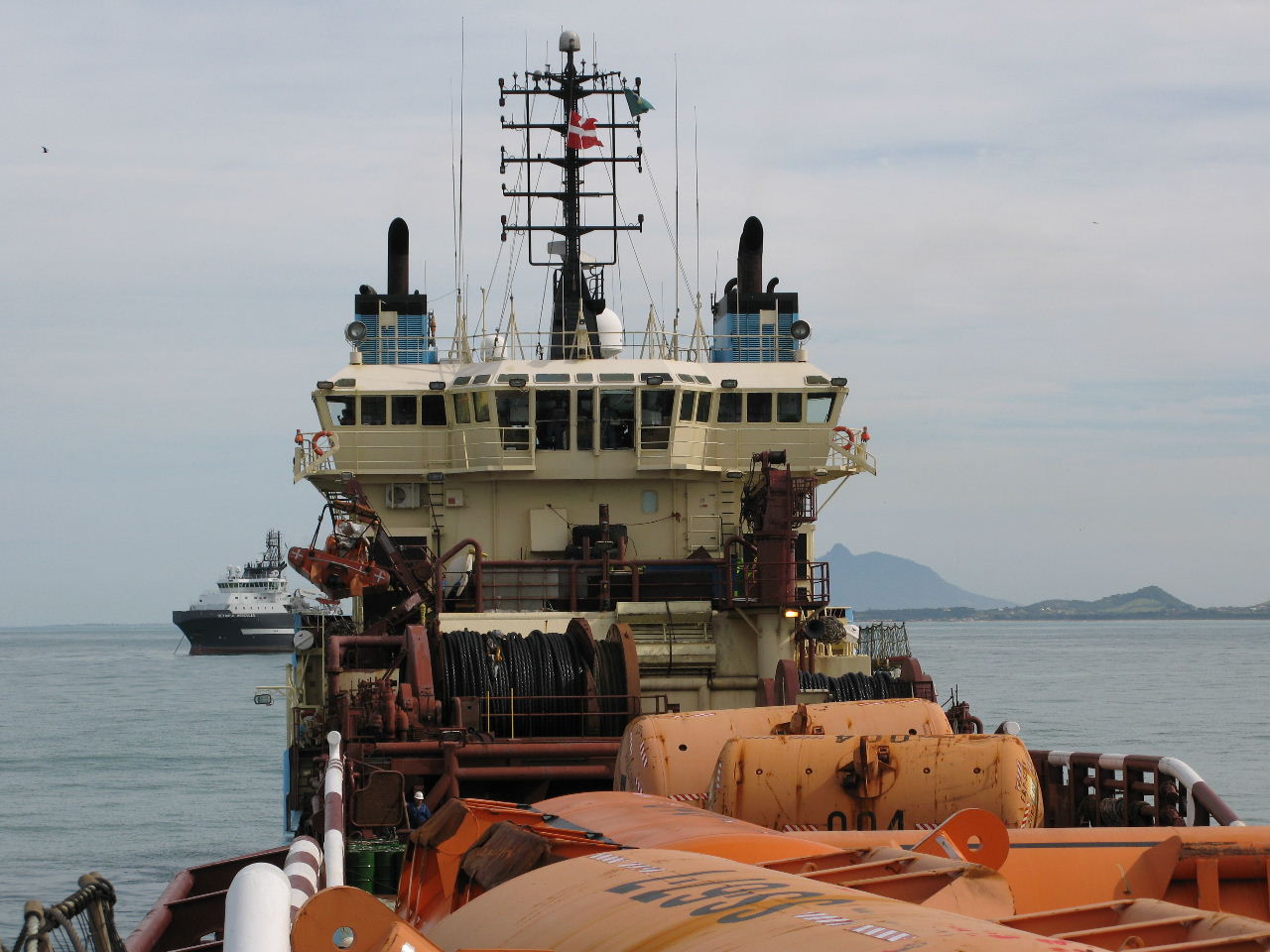

TYPE: ME 606		NAME: Maersk Promoter		PHOTO: Andrew Woodrow, Tony Poll

General		Propulsion		Deck Equip
Length OA	76.0 m	Engines	4 x Wartsila	Workdrum pull	350 t
Breadth	17.2 m	BHP	15600	Capacity 1	2000m x 77mm
DWT	3393 t	kW	11470	Capacity 2	2000m x 77mm
Deck area	607 m2	For'd Thruster	1 x 1000 bhp	Towdrum pull	350t
Fuel	543 m3	Az Thruster	1 x 1080 bhp	Capacity 1	2000m x 77mm
Pot water	625 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	2000m x 77mm
Mud	504 m3	Bollard pull	198 t	Sharks Jaw	2 x Triplex
Base oil	314 m3	DPI	Alstrom 900	Cranes	1 x 2t
Brine	569 m3	Joystick	KaMeWa	Tank Cleaning
Dry bulk	313 m3	Year built	1992	Shipyard	Soeviknes Verft
Former Names	-
Comments	These vessels are known by Maersk as the large "P"s

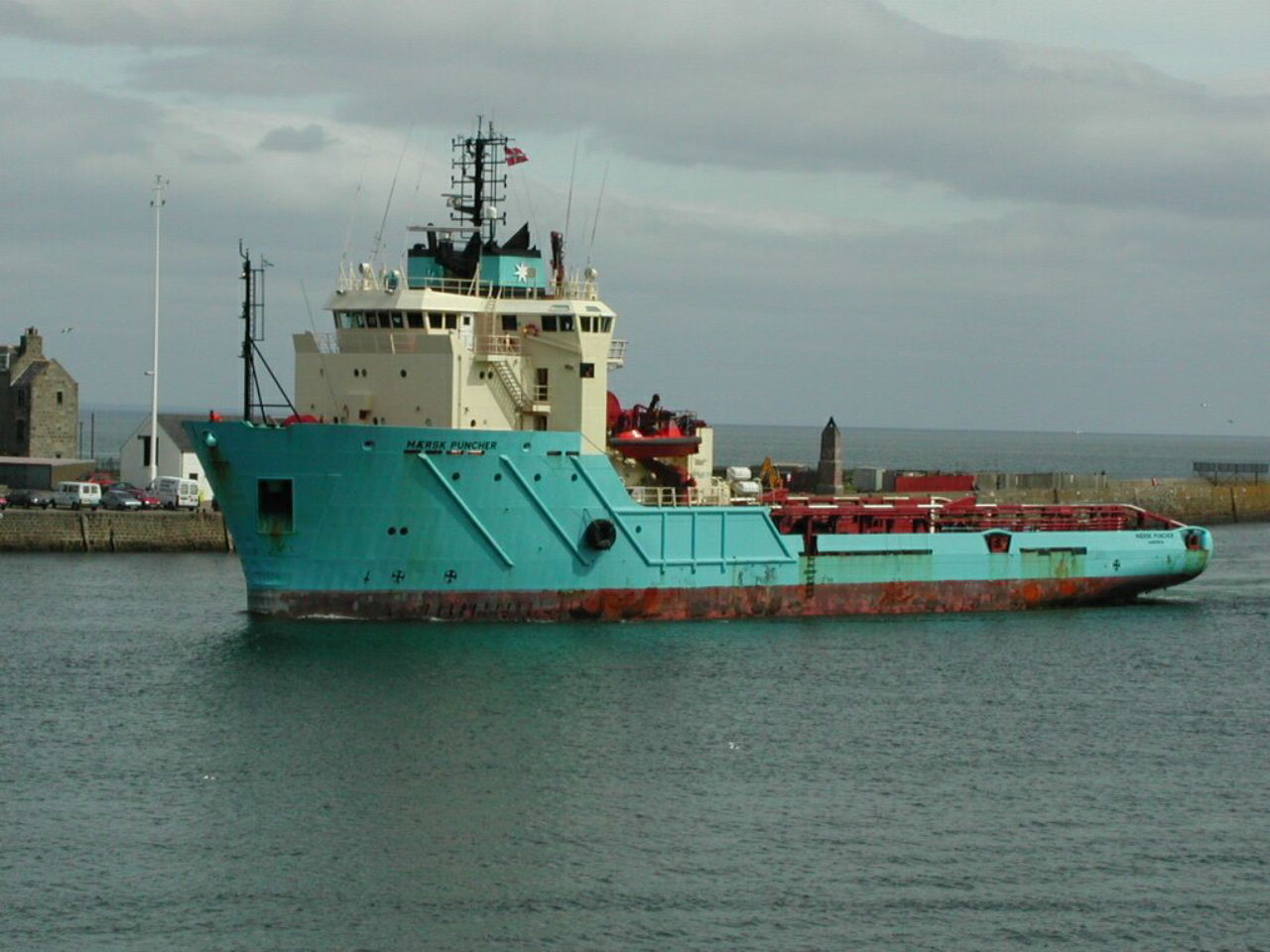

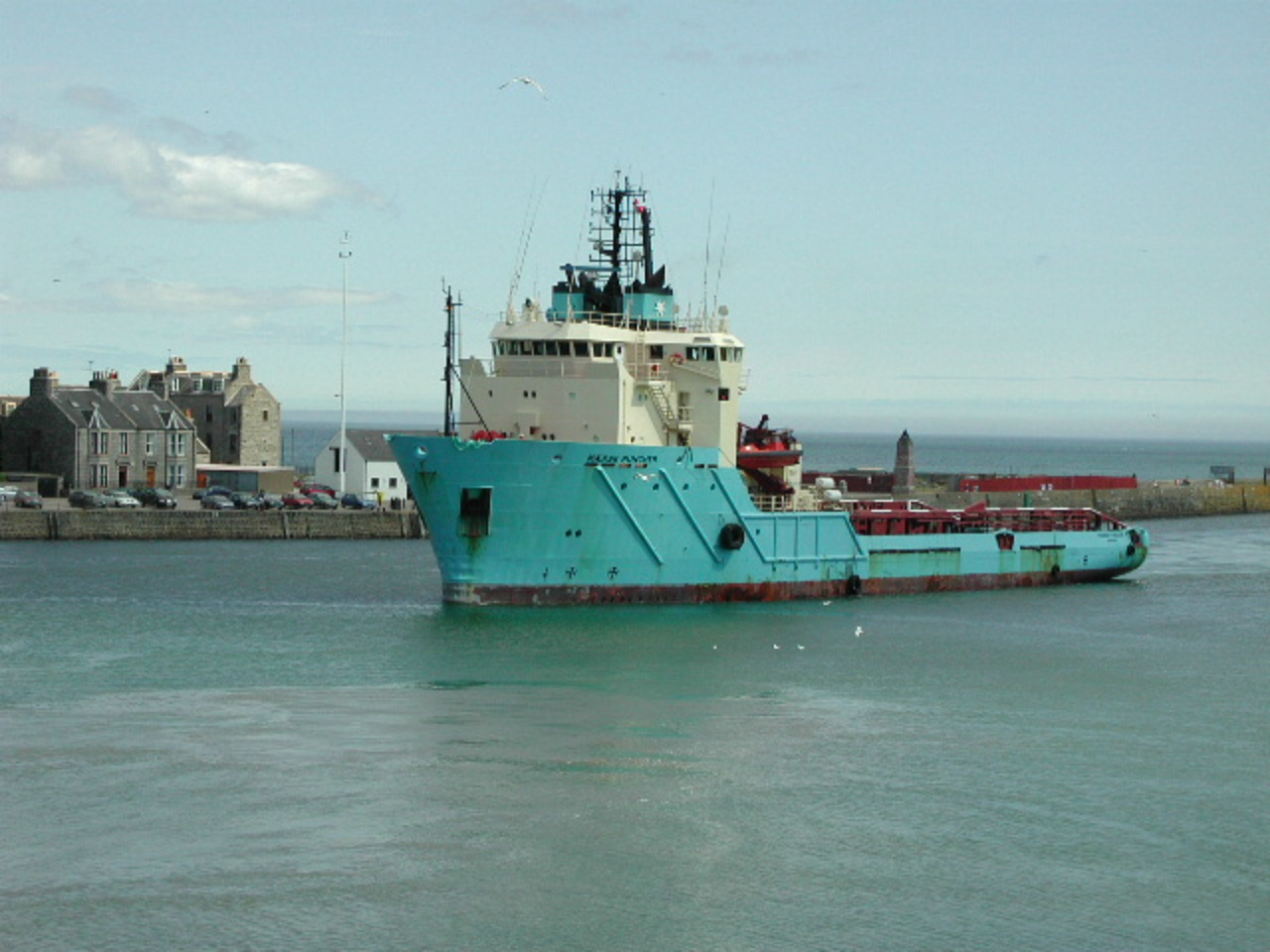

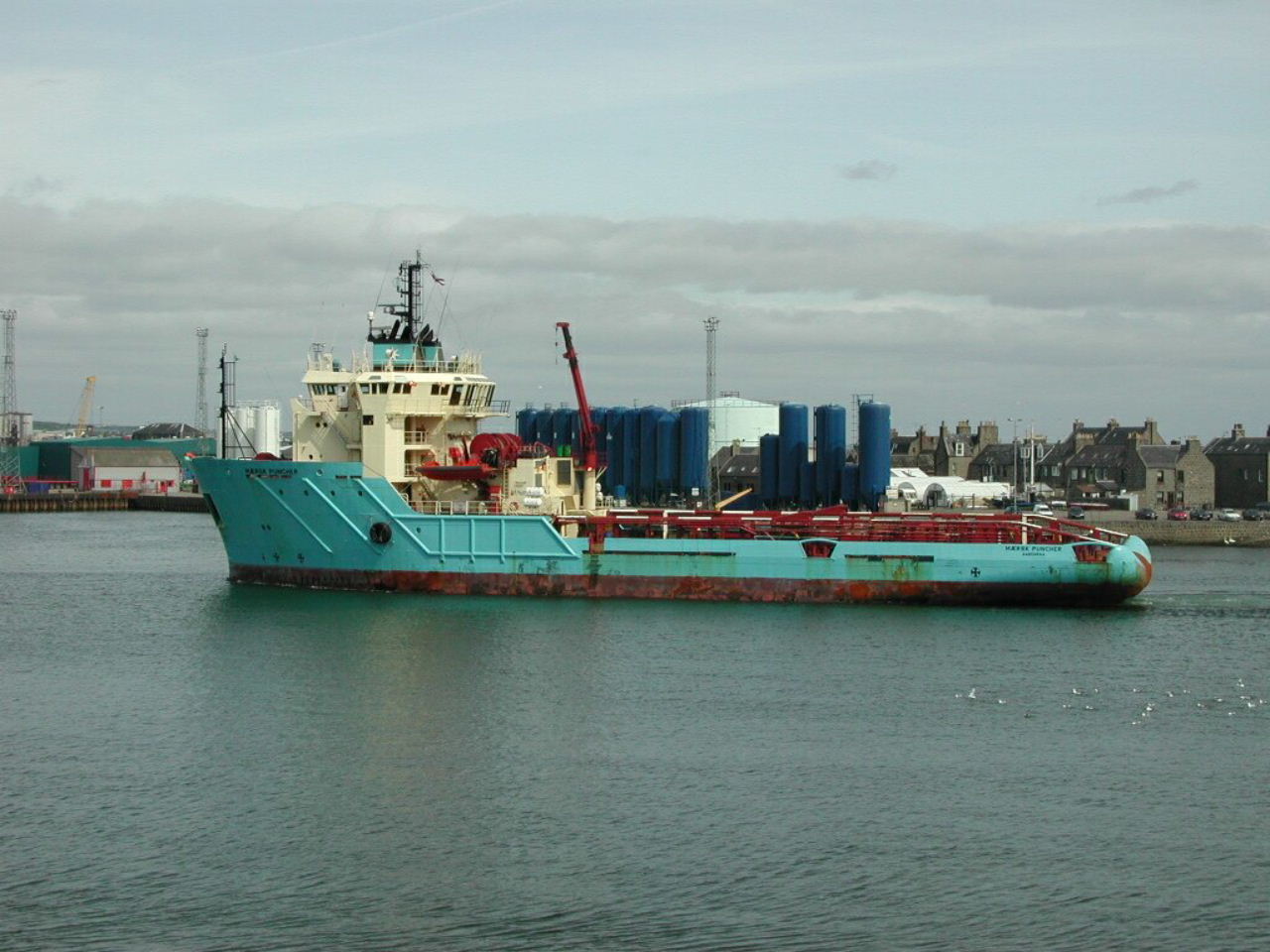

TYPE: ME 606		NAME: Maersk Puncher		PHOTO: George Craigen

General		Propulsion		Deck Equipment
Length OA	76.0 m	Engines	4 x Wartsila	Workdrum pull	350 t
Breadth	17.2 m	BHP	15600	Capacity 1	2000m x 77mm
DWT	3393 t	kW	11470	Capacity 2	2000m x 77mm
Deck area	607 m2	For'd Thruster	1 x 1000 bhp	Towdrum pull	350t
Fuel	543 m3	Az Thruster	1 x 1080 bhp	Capacity 1	2000m x 77mm
Pot water	625 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	2000m x 77mm
Mud	504 m3	Bollard pull	198 t	Sharks Jaw	2 x Triplex
Base oil	314 m3	DPI	Alstrom 900	Cranes	1 x 2t
Brine	569 m3	Joystick	KaMeWa	Tank Cleaning
Dry bulk	313 m3	Year built	1992	Shipyard	Soeviknes Verft
Former Names	-
Comments	These vessels are known by Maersk as the large "P"s

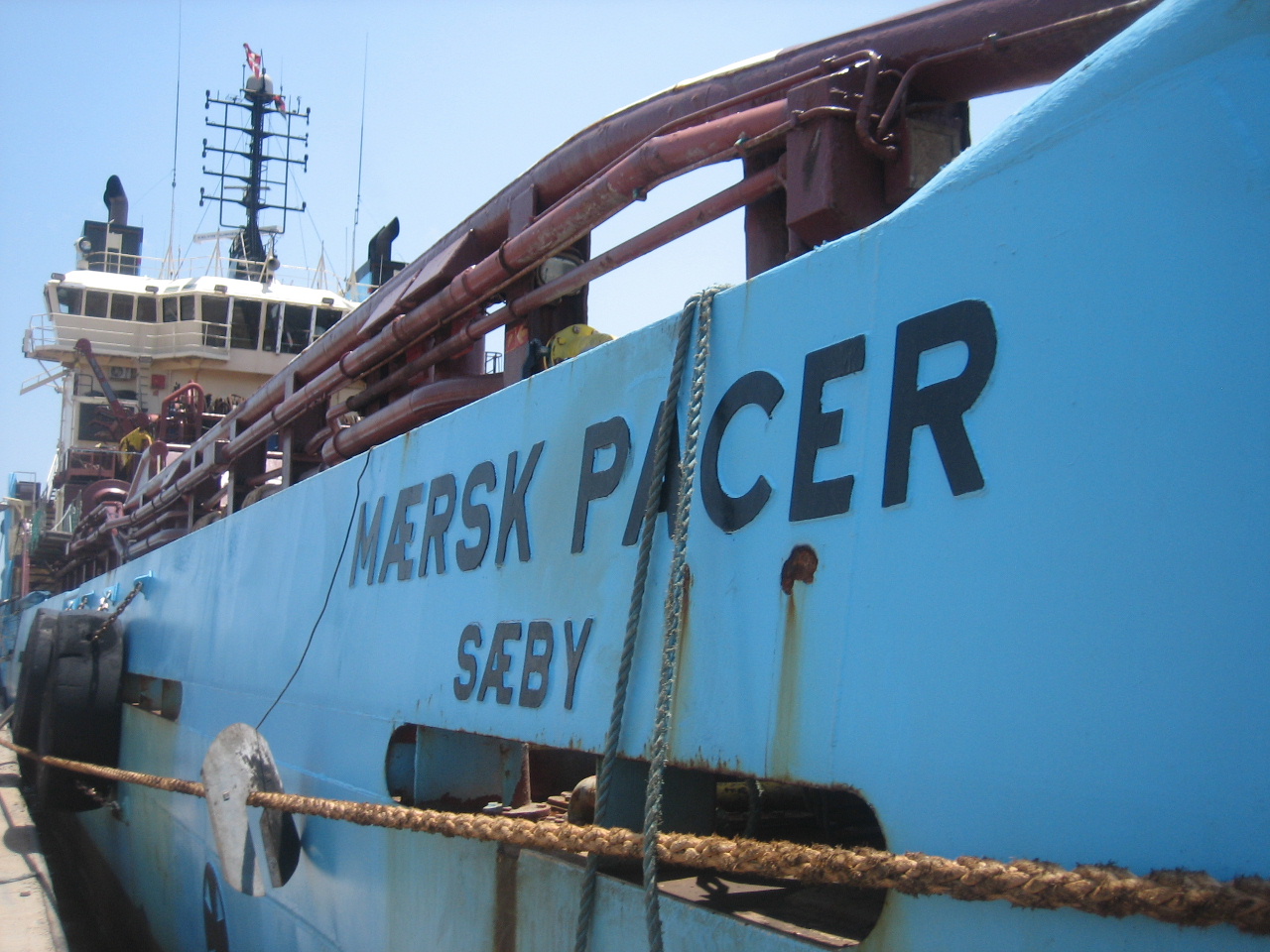

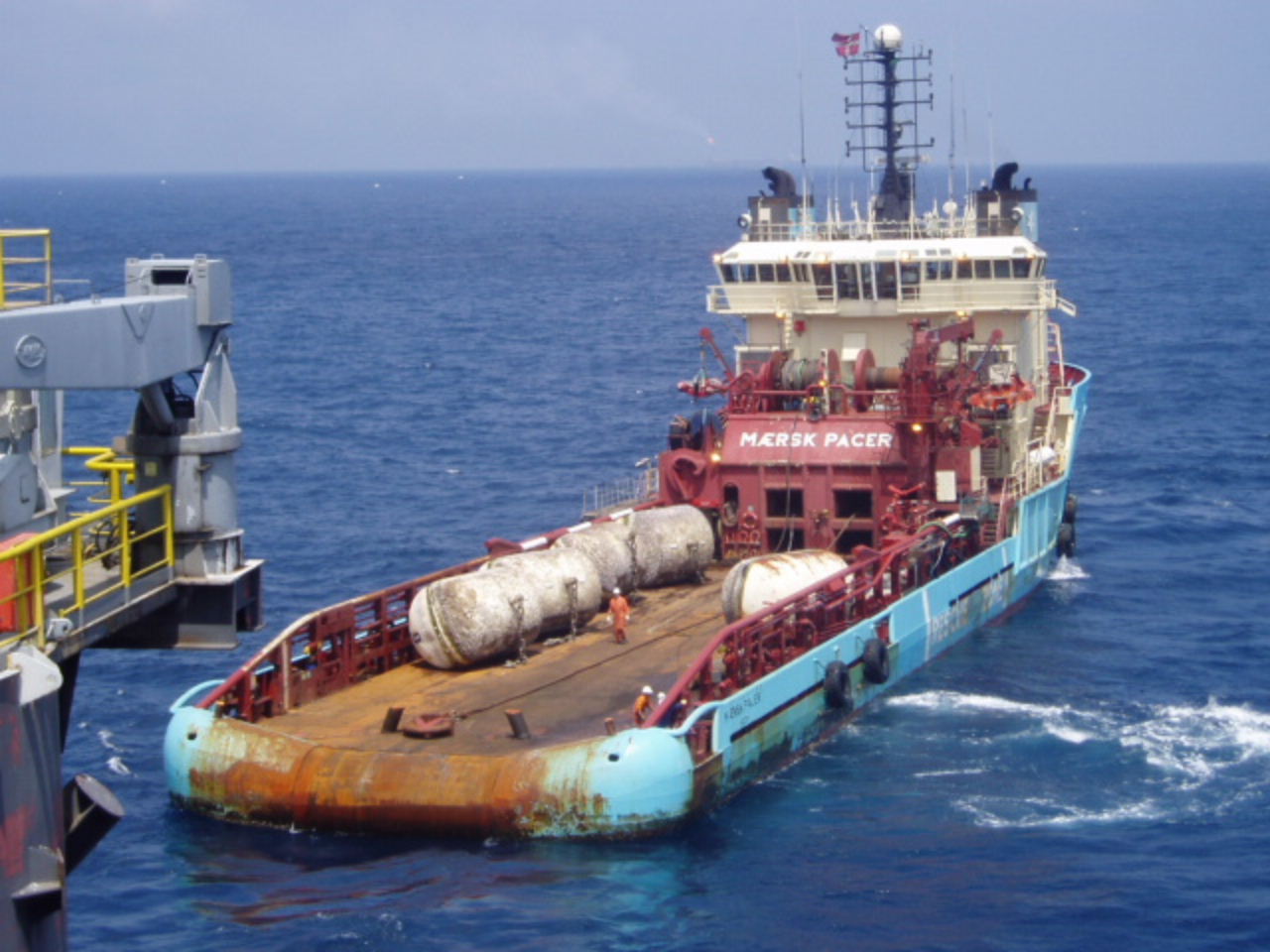

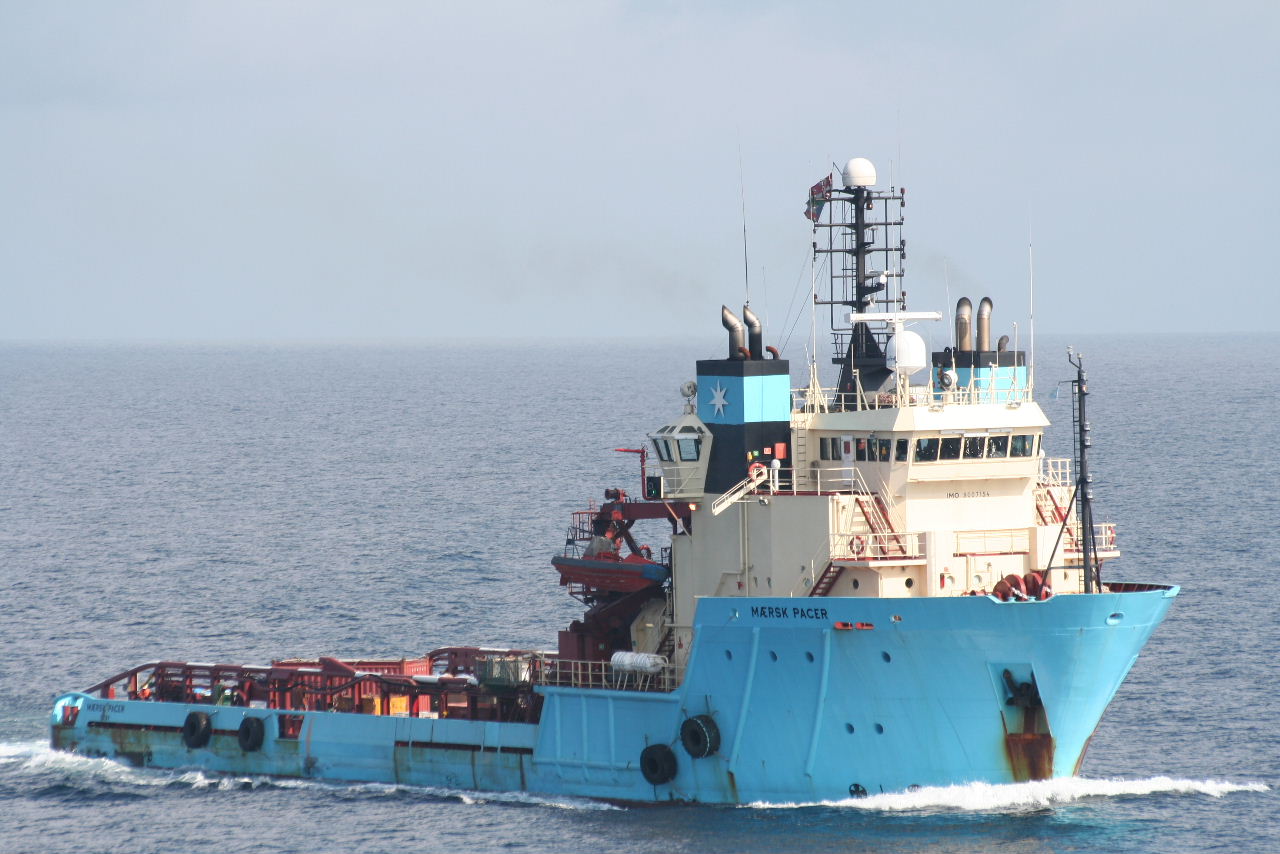

TYPE: ME 303		NAME: Maersk Pacer		PHOTO: Jan Plug, Bob Smith, Joshua Stack

General		Propulsion		Deck EquipMENT
Length OA	73.6 m	Engines	4 x Wartsila	Workdrum pull	350 t
Breadth	16.4 m	BHP	15600	Capacity 1	1815m x 77mm
DWT	2780 t	kW	11470	Capacity 2	1815m x 77mm
Deck area	543 m2	For'd Thruster	1 x 1000 bhp	Towdrum pull	350t
Fuel	647 m3	Az Thruster	1 x 1080 bhp	Capacity 1	1936m x 77mm
Pot water	557 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	1936m x 77mm
Mud	520 m3	Bollard pull	180 t	Sharks Jaw	2 x Triplex
Base oil	286 m3	DP		Cranes	1 x 2t
Brine	478 m3	Joystick	KaMeWa	Tank Cleaning
Dry bulk	284 m3	Year built	1991	Shipyard	Soeviknes Verft
Former Names	-
Comments	These vessels are known by Maersk as the small "P"s

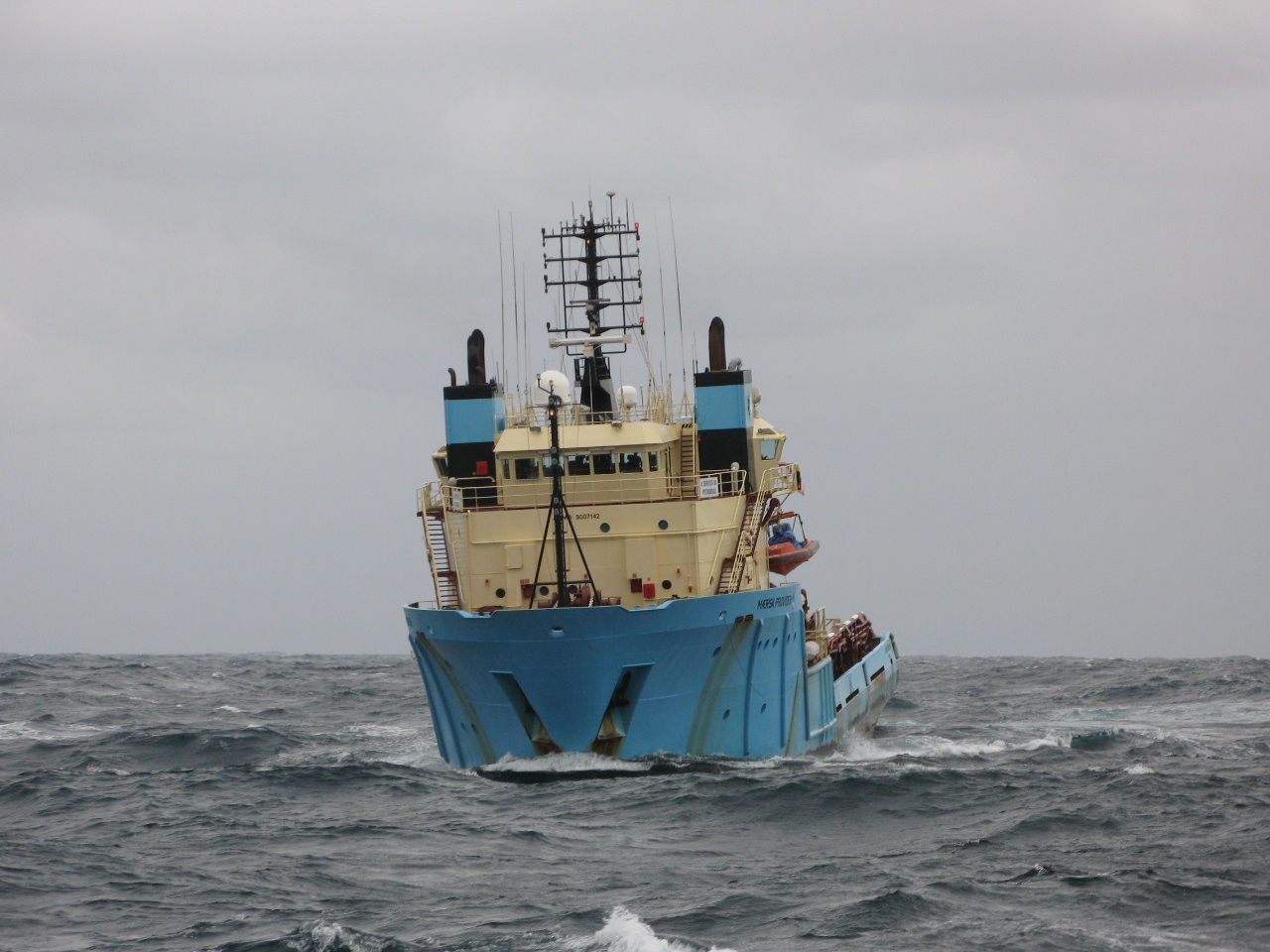

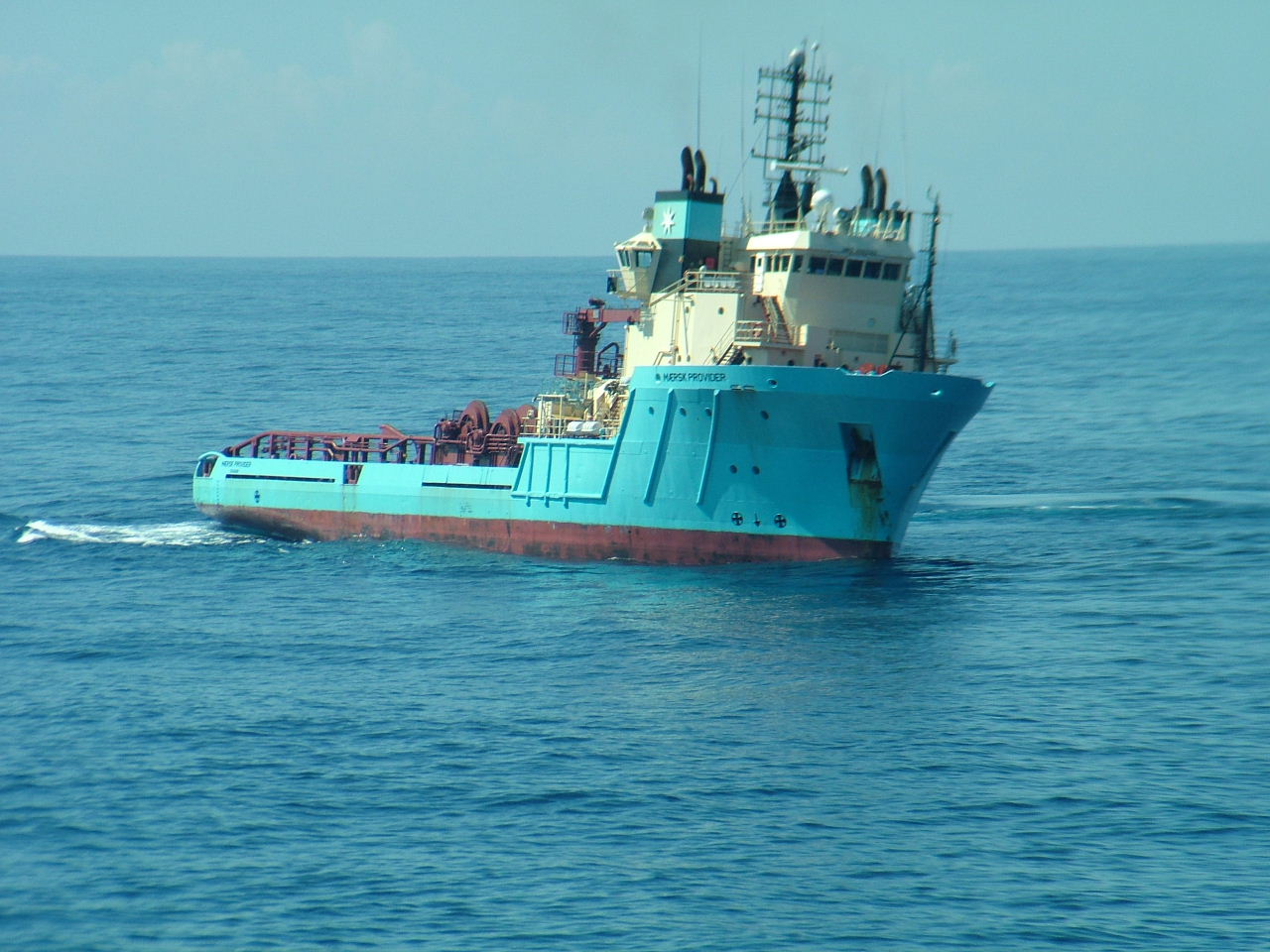

TYPE: ME 303		NAME: Maersk Provider		PHOTO: Tony Poll

General		Propulsion		Deck EquipMENT
Length OA	73.6 m	Engines	4 x Wartsila	Workdrum pull	350 t
Breadth	16.4 m	BHP	15600	Capacity 1	1815m x 77mm
DWT	2780 t	kW	11470	Capacity 2	1815m x 77mm
Deck area	543 m2	For'd Thruster	1 x 1000 bhp	Towdrum pull	350t
Fuel	647 m3	Az Thruster	1 x 1080 bhp	Capacity 1	1936m x 77mm
Pot water	557 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	1936m x 77mm
Mud	520 m3	Bollard pull	180 t	Sharks Jaw	2 x Triplex
Base oil	286 m3	DP		Cranes	1 x 2t
Brine	478 m3	Joystick	KaMeWa	Tank Cleaning
Dry bulk	284 m3	Year built	1991	Shipyard	Soeviknes Verft
Former Names	-
Comments	These vessels are known by Maersk as the small "P"s

TYPE: MAERSK R (L)		NAME: MAERSK ROVER		PHOTO: Alan Souteer, Andrew Woodrow, Tony Poll

General		Propulsion		Deck EquipMENT
Length OA	67.11 m	Engines	4 x MAK 8M453AK	Workdrum pull	260 t
Breadth	15.51 m	BHP	14400	Capacity 1	1200m x 77mm
DWT	1925 t	kW	10588	Capacity 2	-
Deck area	462.5 m2	For'd Thruster	2 x 600 bhp	Towdrum pull	260 t
Fuel	710 m3	Az Thruster	1 x 1080 bhp	Capacity 1	1100m x 77mm
Pot water	339 m3	Aft Thrusters	1 x 800 bhp	Capacity 2
Mud	276 m3	Bollard pull	149 t	Sharks Jaw	2 x Triplex
Base oil	-	DP		Cranes
Brine	197 m3	Joystick	Nautronix	Tank Cleaning
Dry bulk	209 m3	Year built	1982	Shipyard	Odense Denmark
Former Names	-
Comments	-

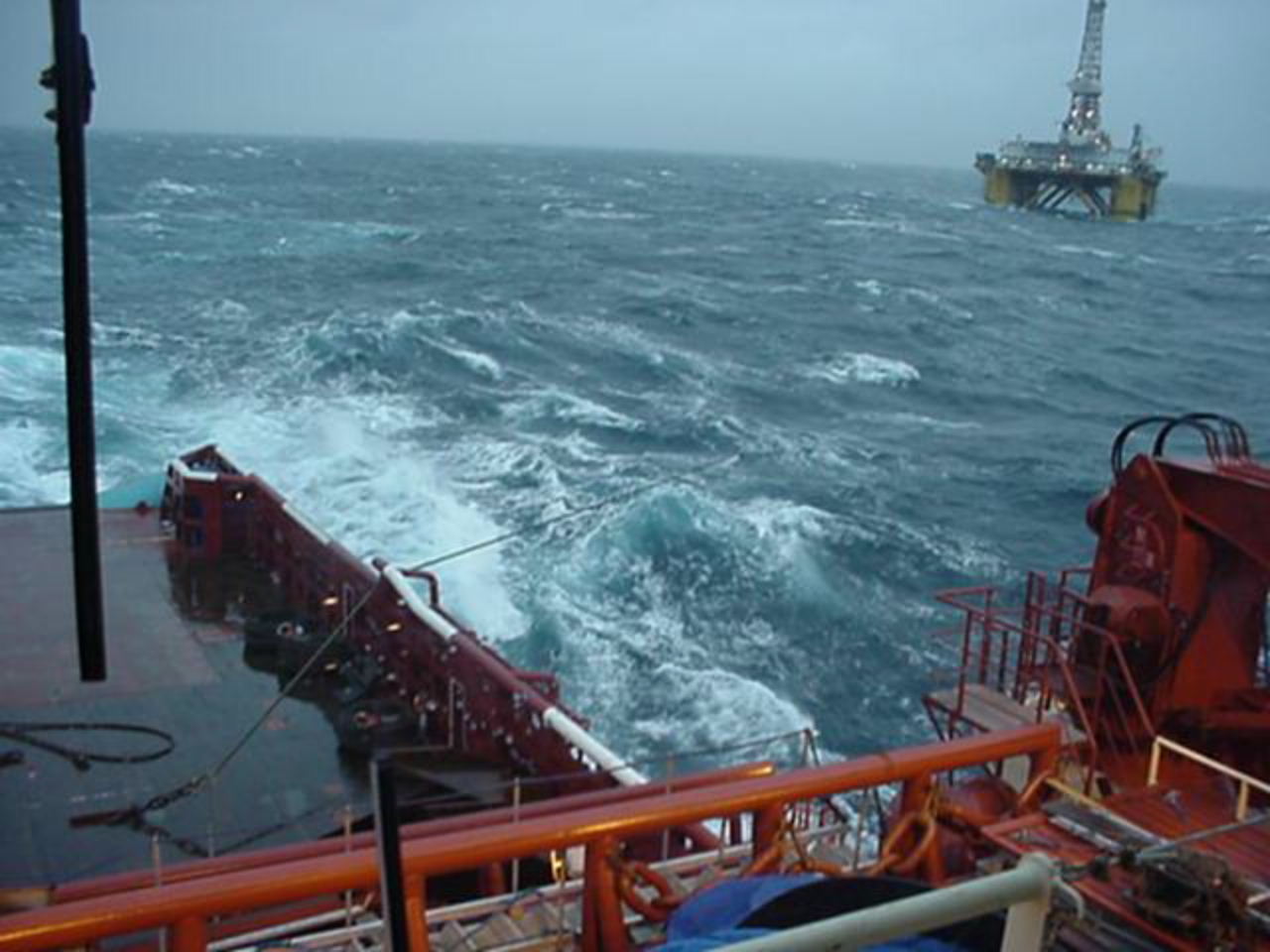

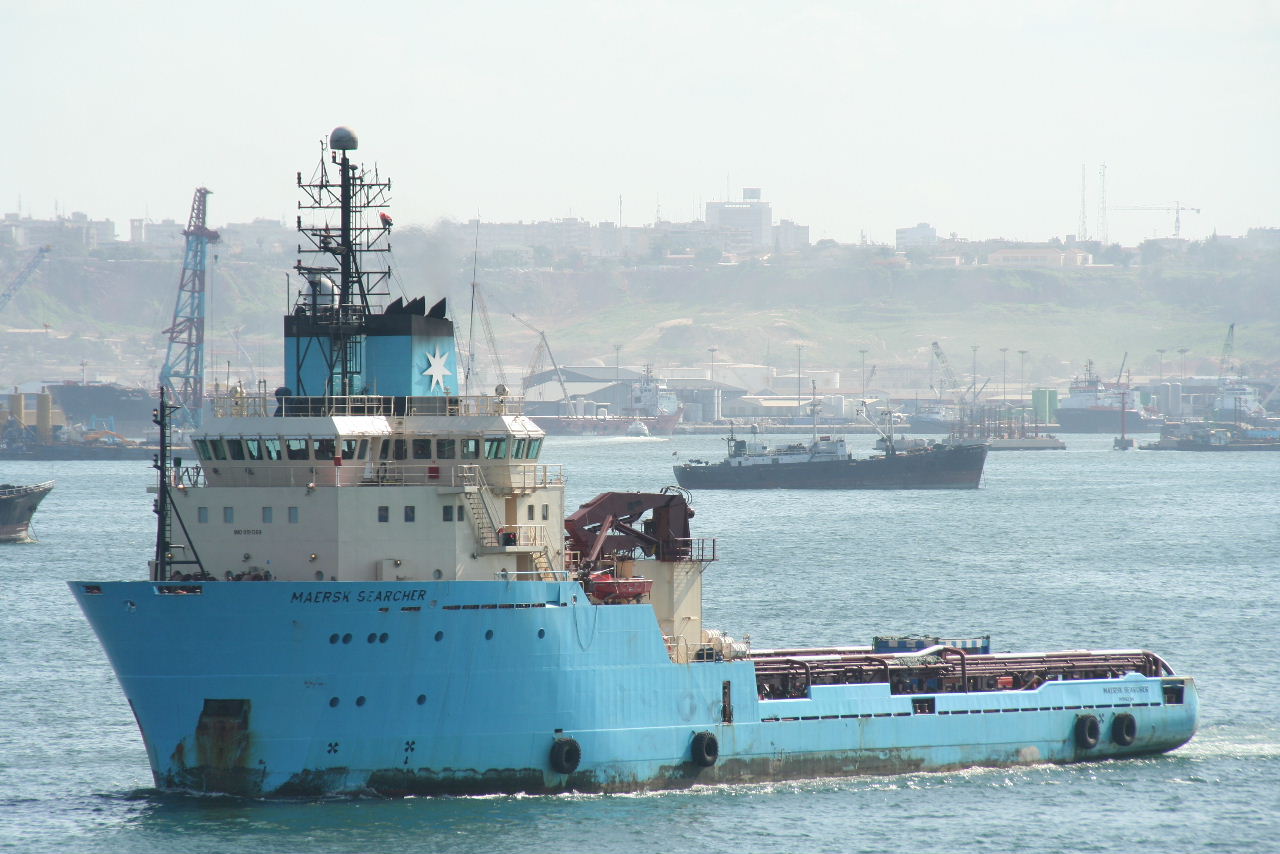

TYPE: MAERSK S		NAME: Maersk Searcher		PHOTO: Maersk Searcher, Jan Plug

general		Propulsion		Deck EquipMENT
Length OA	82 m	Engines	4 x MAK 8M32	Workdrum pull	350 tonnes
Breadth	15.5 m	BHP	18250	Capacity 1	4000 m x 77mm
DWT	3490 tonnes	kW	13420	Capacity 2	4000m x 77mm
Deck area	620 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	1577 m3	Az Thruster	1 x 1200 bhp	Capacity 1	2500m x 77mm
Pot water	748 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	496 m3	Bollard pull	210 t	Sharks Jaw	Triplex
Base oil		DPII	Kongsberg SDPII	Cranes	2
Brine		Joystick		Tank Cleaning
Dry bulk	496 m3	Year Built	1999	Shipyard	Singmarine
Former Names	-
Comments	The Maersk Searcher is one of six "S" class vessels delivered in the latter part of 1999 and early in 2000. She was built at Keppel Singmarine in Singapore and once her trials were completed she sailed straight to Aberdeen via the Suez Canal. She is one of the UK Maersk fleet and so is registered in the Isle of Man. Although the S class are later additions to the Maersk fleet than the impressive B class, from which their design is obviously derived, their 4 MAK engines develop slightly less power, providing 18,250 BHP and in the Maersk Searcher's case a bollard pull of 210 tonnes. This is probably the first time that the Maersk Company have brought out a class of anchor-handlers of lesser power than the previous newbuildings and suggests that the industry considers that 200 tonnes of bollard pull is good for what-ever you wish to do. In addition to the main propulsion the Searcher is provided with a 1200 BHP tunnel thruster at the bow and the stern and a 1200 BHP azimuthing thruster at the bow. The azimuthing thruster has proved particularly useful in adverse weather because it is deeper in the water and so is less likely to draw air as the ship pitches. One of the downsides of operating such large vessels is the windage created by the accommodation, and sometimes all the thrust which is available is required in order to maintain station. The joystick is also provided with an "anchor-handling mode." This reduces thruster activity apart from the azimuthing thruster which is set to thrust astern with small changes to port and starboard to maintain the heading. The heart of any anchor-handler is the winch and, due initially to the known lead time required for low pressure hydraulic winches, the company opted for electric winches. The winch on the Searcher has proved itself in anger and the design seems to have overcome the traditional difficulties of electric winches. When lowering anchors to the seabed the old electric winches had to be operated on the brake because otherwise the motors would turn into generators and blow up parts of the ship's electrical systems. The winch on the Maersk Searcher is actually designed to turn the motors into generators, excess power being dissipated through resistor banks which turn it into heat. The work drum is large enough to take the 2000 meter work wire which was required for the Sovereign Explorer job and one of the two tow drums is used as a work drum for lesser activities, so that the main workwire remains undamaged due to contact with shackles links and other connections. Since starting work in the UK sector the ship has been variously employed as the state of the market and the requirements for different types of vessel have changed. At the other end of the scale from the Sovereign Explorer job was a supply run to a jack-up and somewhere in the middle was the changing of the crude oil delivery hose on the Maureen field's ALC (Articulated Loading Column). The ship was employed for this task because of its DP capability, being fitted with a Kongsberg DP system and MDL Fanbeam. The ship was required to maintain station directly under the end of the loading arm during the change-over of the hoses to prevent putting any extra loading on the winch, but when it came to it, the target for the Fanbeam was on at too great an elevation and so DGPS was used instead. No problems were experienced throughout the operation, the ship maintaining station within one meter, and the ALC turned out to be in the right place on the surface of the planet. Like all the very large ships which are now being provided to service the needs of the oil industry, the specification of the Maersk Searcher seems to include anything that anyone could possible require for any job. She has split rollers to ease the task of connecting two parts of a mooring system; she has two enormous chain lockers and provision is made to handle chain sizes from 3" to 6". She has three cranes, two at the forward end of the deck for heavy work and one small Palfinger two tonne crane at the port side aft, to assist with making and breaking connections at the Triplex sharks jaws. For the carriage of cargo the ship offers over 600 square meters of deck space, which for some reason seems to be the magic figure when it comes to hiring platform ships and can carry large quantities of bulk cargo, the most significant of which might be the ability to carry over 4000 barrels of liquid mud in four cylindrical tanks. This is the sort of quantity required for drilling a deep water well due to the extra length of riser. Up on the bridge the Master and Chief Engineer are provided with a bewildering number of VDUs to look at everything from the ship's position on the surface of the earth to the gearing of the winch. The Chief has four screens for the winch alone, however the electronics assist in the operation of the ship and typically he can select a specific drum on the winch and the system carries out the clutching out and clutching in without anything further being required. But despite all the equipment the bridge is extremely spacious and any visitor would be re-assured by the presence of a small conference table which easily fits in the bridge wing. Even in this electronic age proper communication is still taking place. These words first appeared in the Offshore Support Journal in August 2000

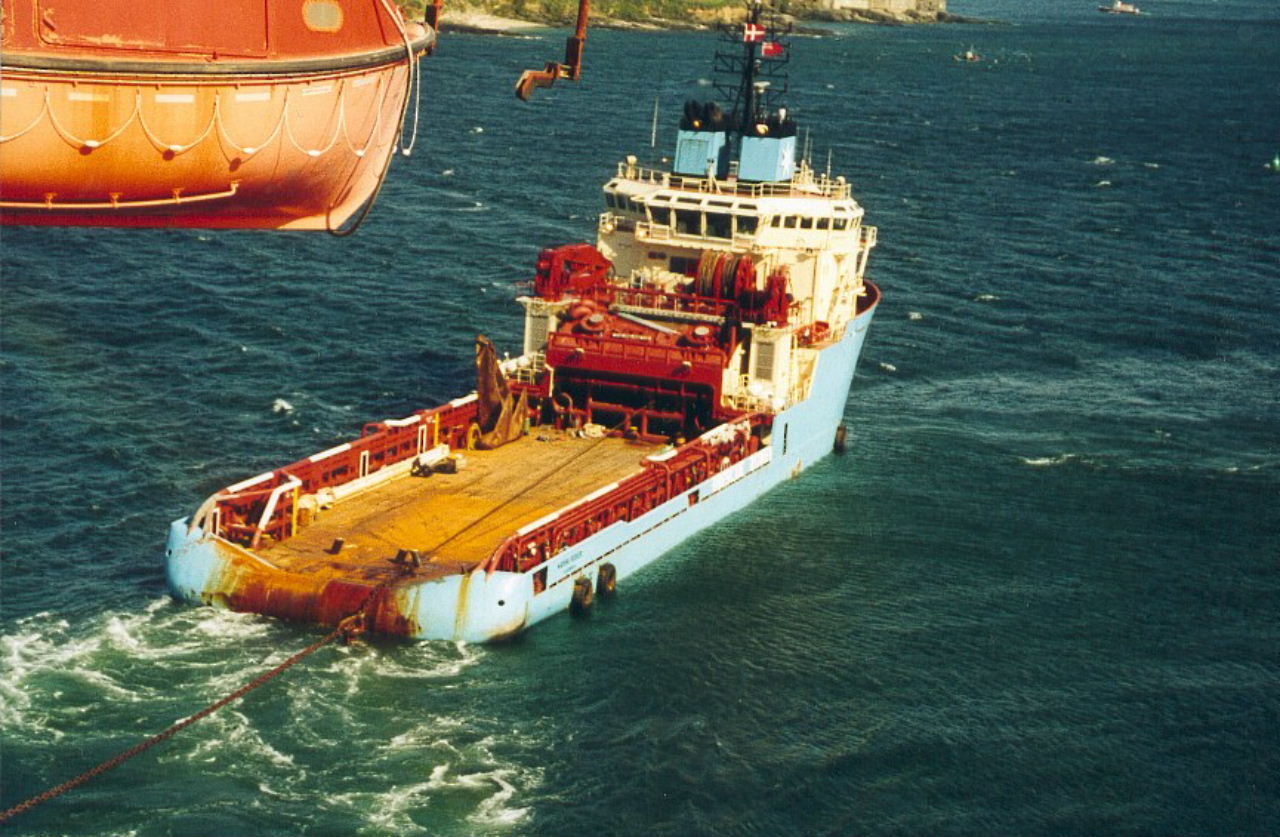

TYPE: MAERSK S		NAME: Maersk Seeker		PHOTO: Vic Gibson, Mike Prendergast

general		Propulsion		Deck EquipMENT
Length OA	82 m	Engines	4 x MAK 8M32	Workdrum pull	350 tonnes
Breadth	15.5 m	BHP	18250	Capacity 1	4000 m x 77mm
DWT	3490 tonnes	kW	13420	Capacity 2	4000m x 77mm
Deck area	620 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	1577 m3	Az Thruster	1 x 1200 bhp	Capacity 1	2500m x 77mm
Pot water	748 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	496 m3	Bollard pull	210 t	Sharks Jaw	Triplex
Base oil		DPII	Kongsberg SDPII	Cranes	2
Brine		Joystick		Tank Cleaning
Dry bulk	496 m3	Year Built	1999	Shipyard	Singmarine
Former Names	-
Comments

TYPE: MAERSK S		NAME: Maersk Shipper		PHOTO: Andrew Woodrow

general		Propulsion		Deck EquipMENT
Length OA	82 m	Engines	4 x MAK 8M32	Workdrum pull	350 tonnes
Breadth	15.5 m	BHP	18250	Capacity 1	4000 m x 77mm
DWT	3490 tonnes	kW	13420	Capacity 2	4000m x 77mm
Deck area	620 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	1577 m3	Az Thruster	1 x 1200 bhp	Capacity 1	2500m x 77mm
Pot water	748 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	496 m3	Bollard pull	210 t	Sharks Jaw	Triplex
Base oil		DPII	Kongsberg SDPII	Cranes	2
Brine		Joystick		Tank Cleaning
Dry bulk	496 m3	Year Built	1999	Shipyard	Singmarine
Former Names	-
Comments

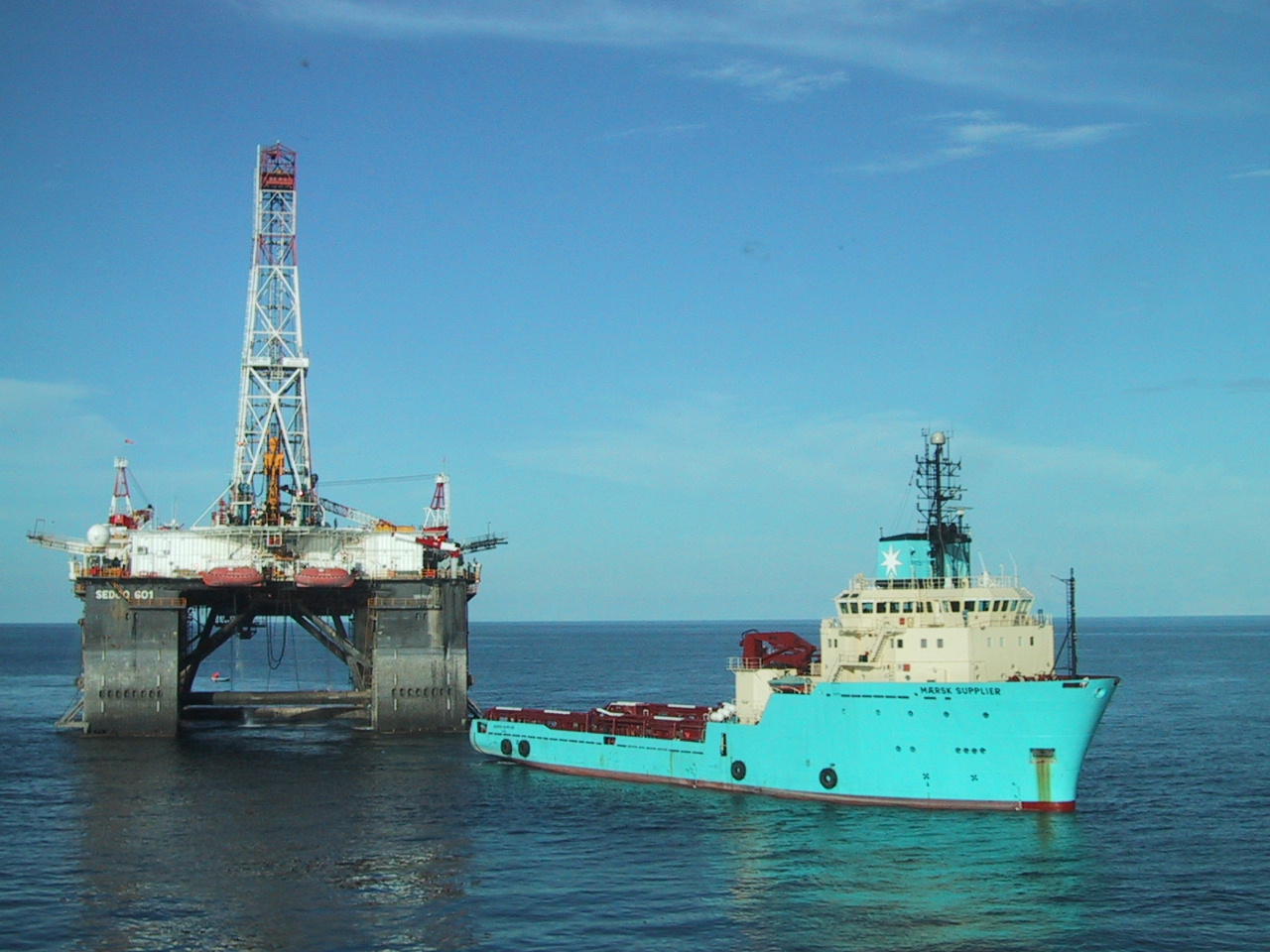

TYPE: MAERSK S		NAME: Maersk Supplier		PHOTO: Hans Bosch, Tony Poll

general		Propulsion		Deck EquipMENT
Length OA	82 m	Engines	4 x MAK 8M32	Workdrum pull	350 tonnes
Breadth	15.5 m	BHP	18250	Capacity 1	4000 m x 77mm
DWT	3490 tonnes	kW	13420	Capacity 2	4000m x 77mm
Deck area	620 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	1577 m3	Az Thruster	1 x 1200 bhp	Capacity 1	2500m x 77mm
Pot water	748 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	496 m3	Bollard pull	210 t	Sharks Jaw	Triplex
Base oil		DPII	Kongsberg SDPII	Cranes	2
Brine		Joystick		Tank Cleaning
Dry bulk	496 m3	Year Built	1999	Shipyard	Singmarine
Former Names	-
Comments

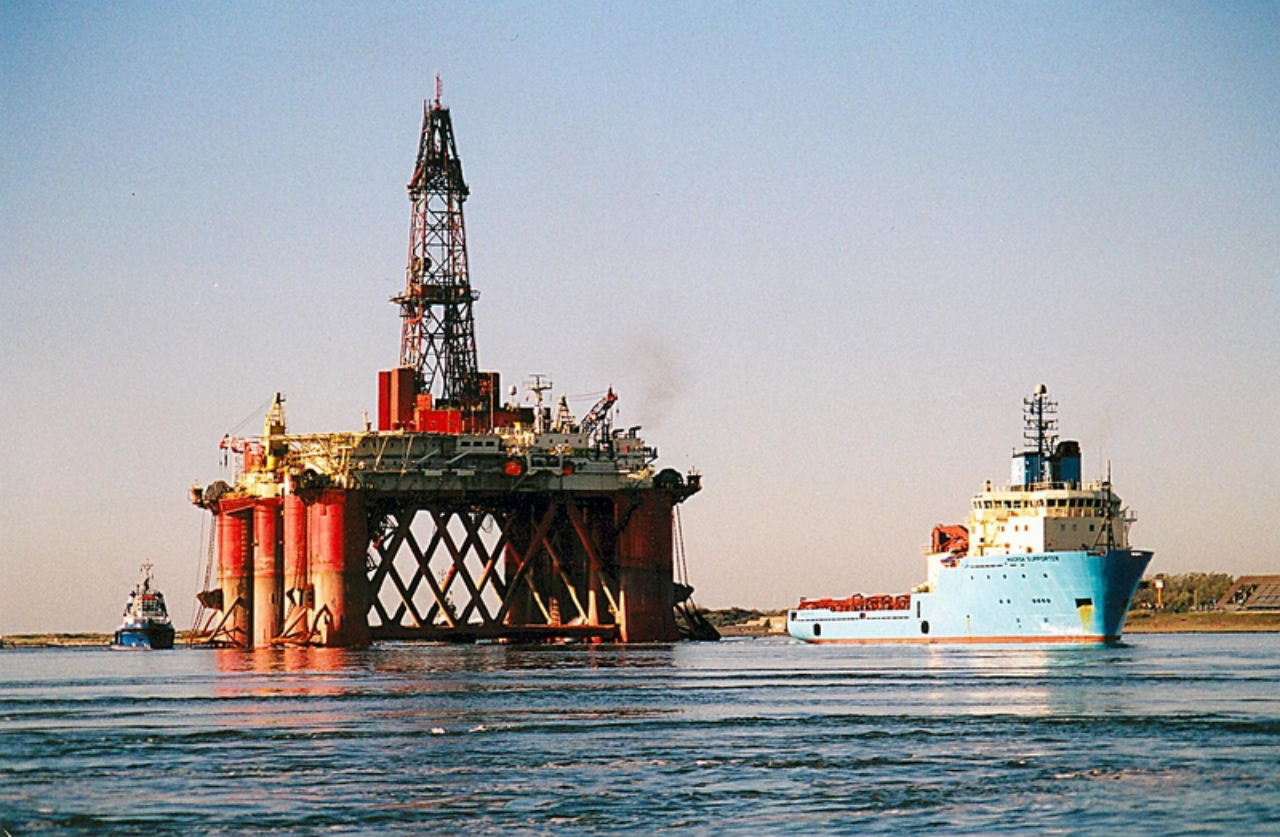

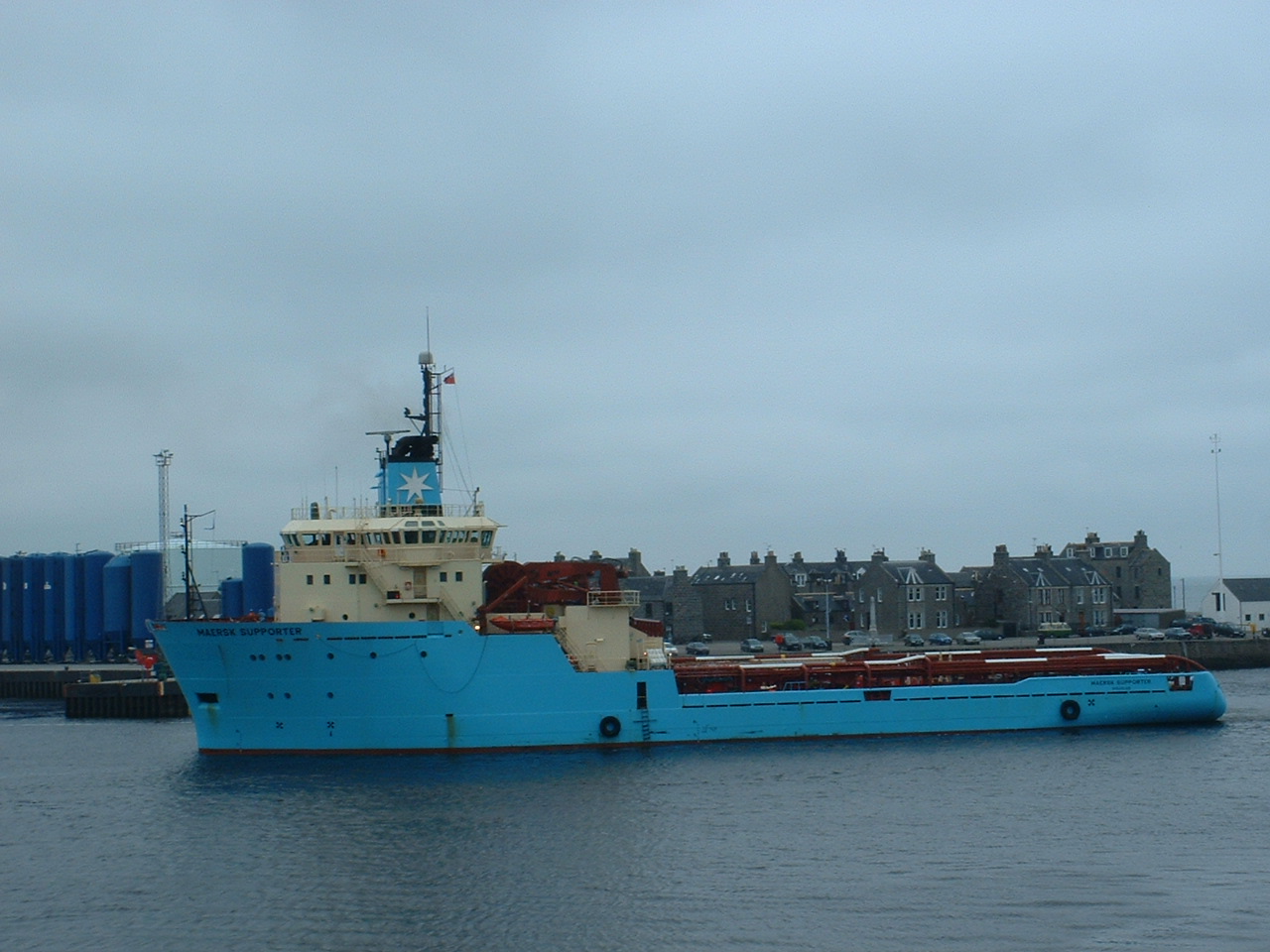

TYPE: MAERSK S		NAME: Maersk Supporter		PHOTO: George Craigen, Vic Gibson, Maurice Scholten

general		Propulsion		Deck EquipMENT
Length OA	82 m	Engines	4 x MAK 8M32	Workdrum pull	350 tonnes
Breadth	15.5 m	BHP	18250	Capacity 1	4000 m x 77mm
DWT	3490 tonnes	kW	13420	Capacity 2	4000m x 77mm
Deck area	620 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	1577 m3	Az Thruster	1 x 1200 bhp	Capacity 1	2500m x 77mm
Pot water	748 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	496 m3	Bollard pull	210 t	Sharks Jaw	Triplex
Base oil		DPII	Kongsberg SDPII	Cranes	2
Brine		Joystick		Tank Cleaning
Dry bulk	496 m3	Year Built	1999	Shipyard	Singmarine
Former Names	-
Comments

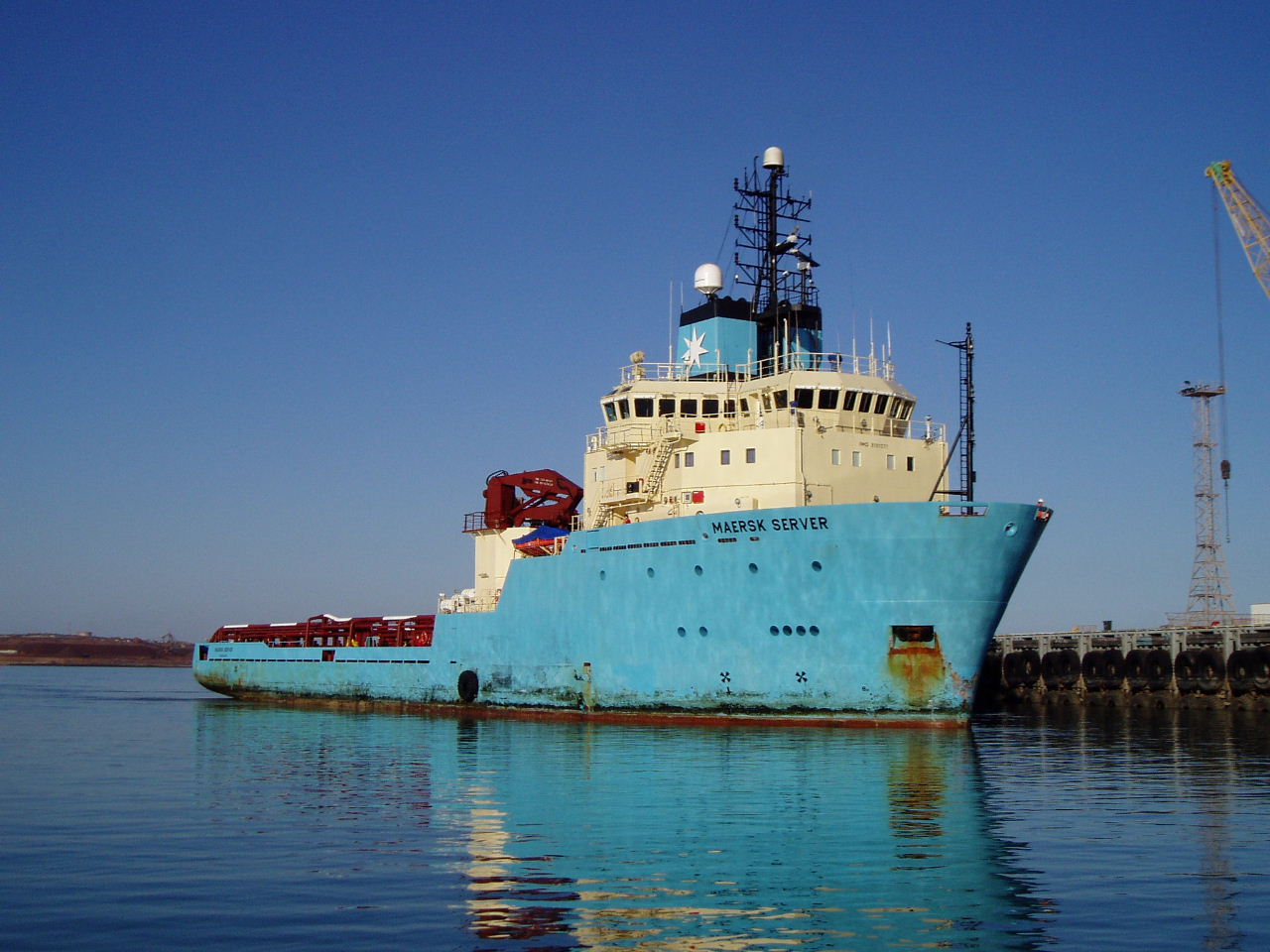

TYPE: MAERSK S		NAME: Maersk Server		PHOTO: George Craigen, Kenny Polson

general		Propulsion		Deck EquipMENT
Length OA	82 m	Engines	4 x MAK 8M32	Workdrum pull	350 tonnes
Breadth	15.5 m	BHP	18250	Capacity 1	4000 m x 77mm
DWT	3490 tonnes	kW	13420	Capacity 2	4000m x 77mm
Deck area	620 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	1577 m3	Az Thruster	1 x 1200 bhp	Capacity 1	2500m x 77mm
Pot water	748 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	496 m3	Bollard pull	210 t	Sharks Jaw	Triplex
Base oil		DPII	Kongsberg SDPII	Cranes	2
Brine		Joystick		Tank Cleaning
Dry bulk	496 m3	Year Built	2000	Shipyard	Singmarine
Former Names	-
Comments

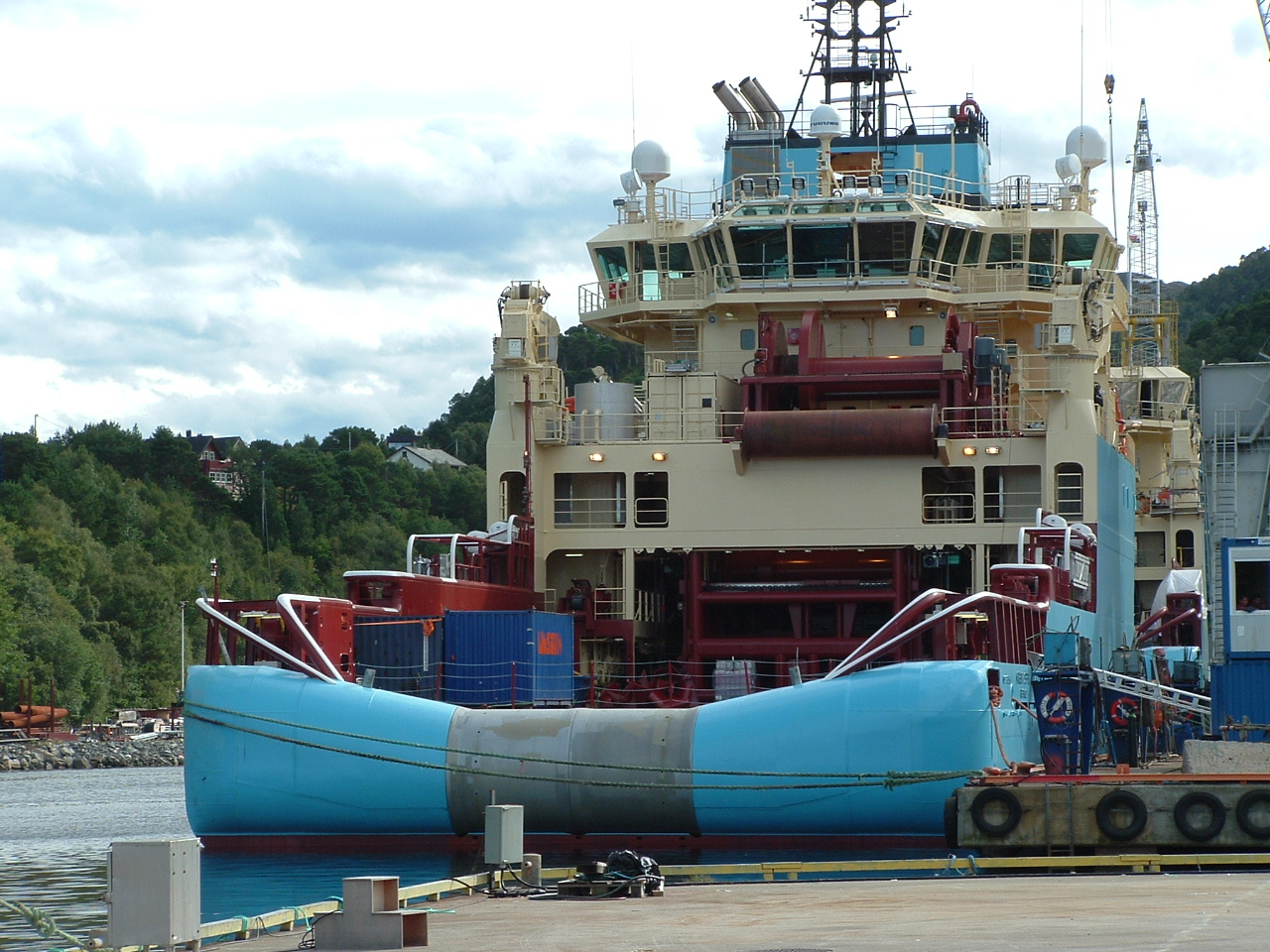

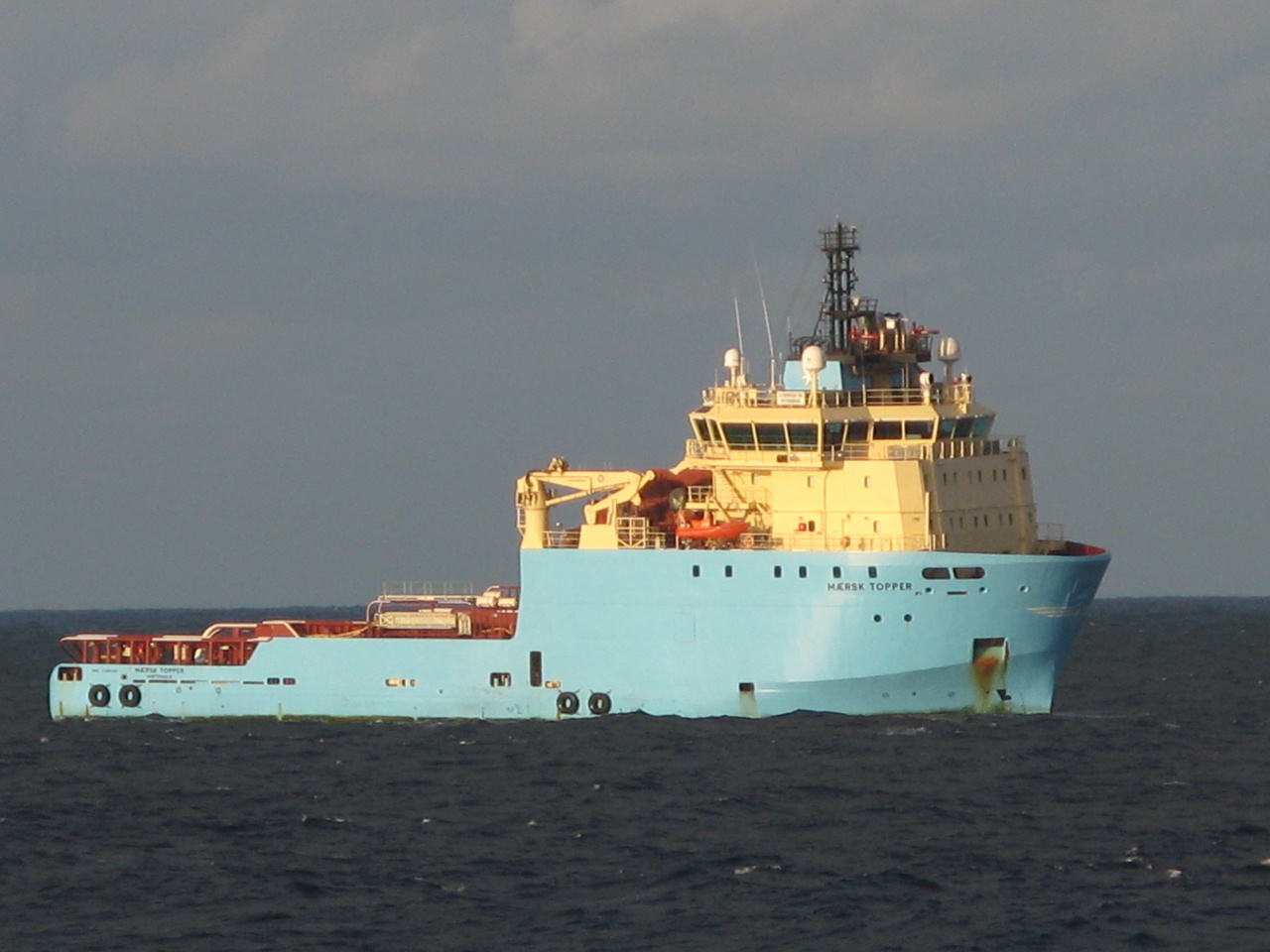

TYPE: VS 472		NAME: Maersk Topper		PHOTO: Tony Poll, Nigel Sly,

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2008	Shipyard	Aker Yards
Former Names	-
Comments

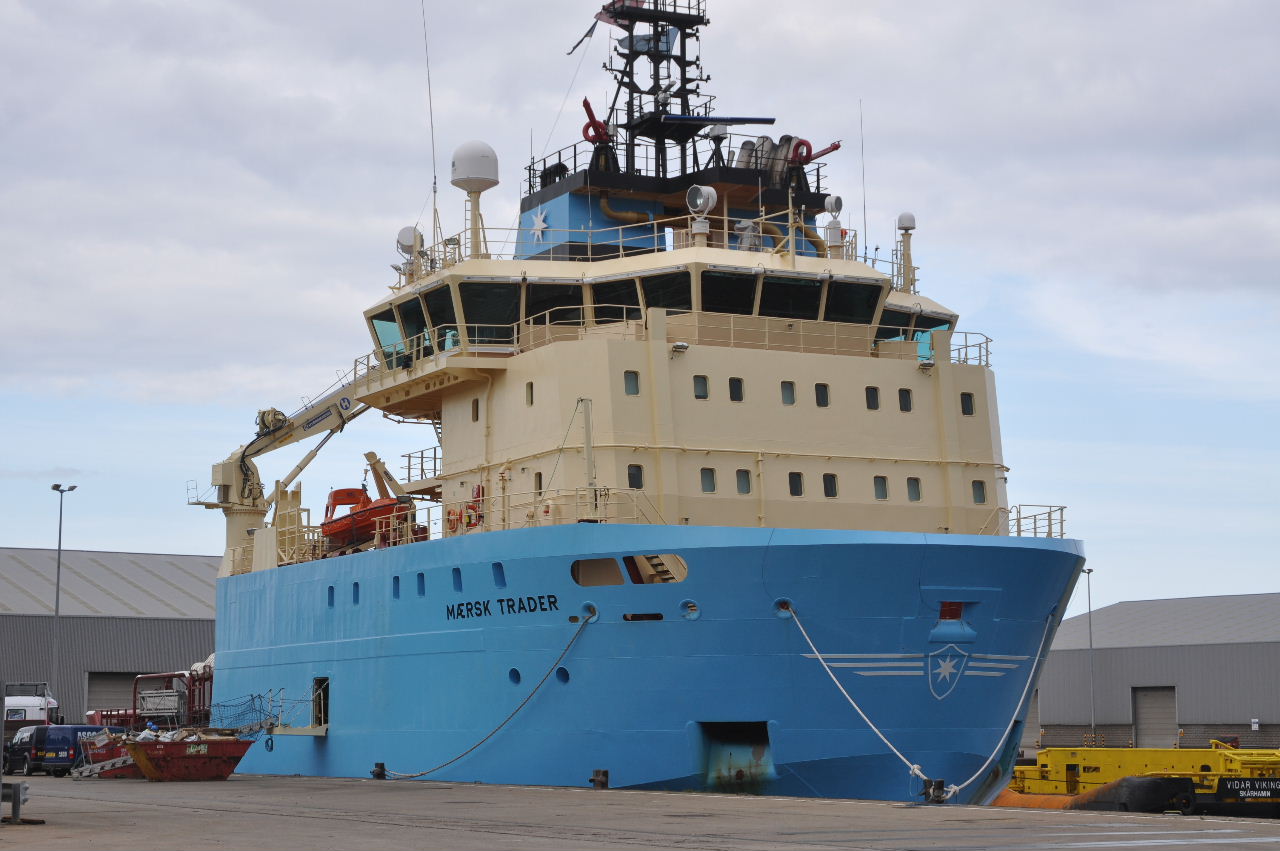

TYPE: VS 472		NAME: Maersk Trader		PHOTO: Vic Gibson

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2008	Shipyard	Aker Yards
Former Names	-
Comments

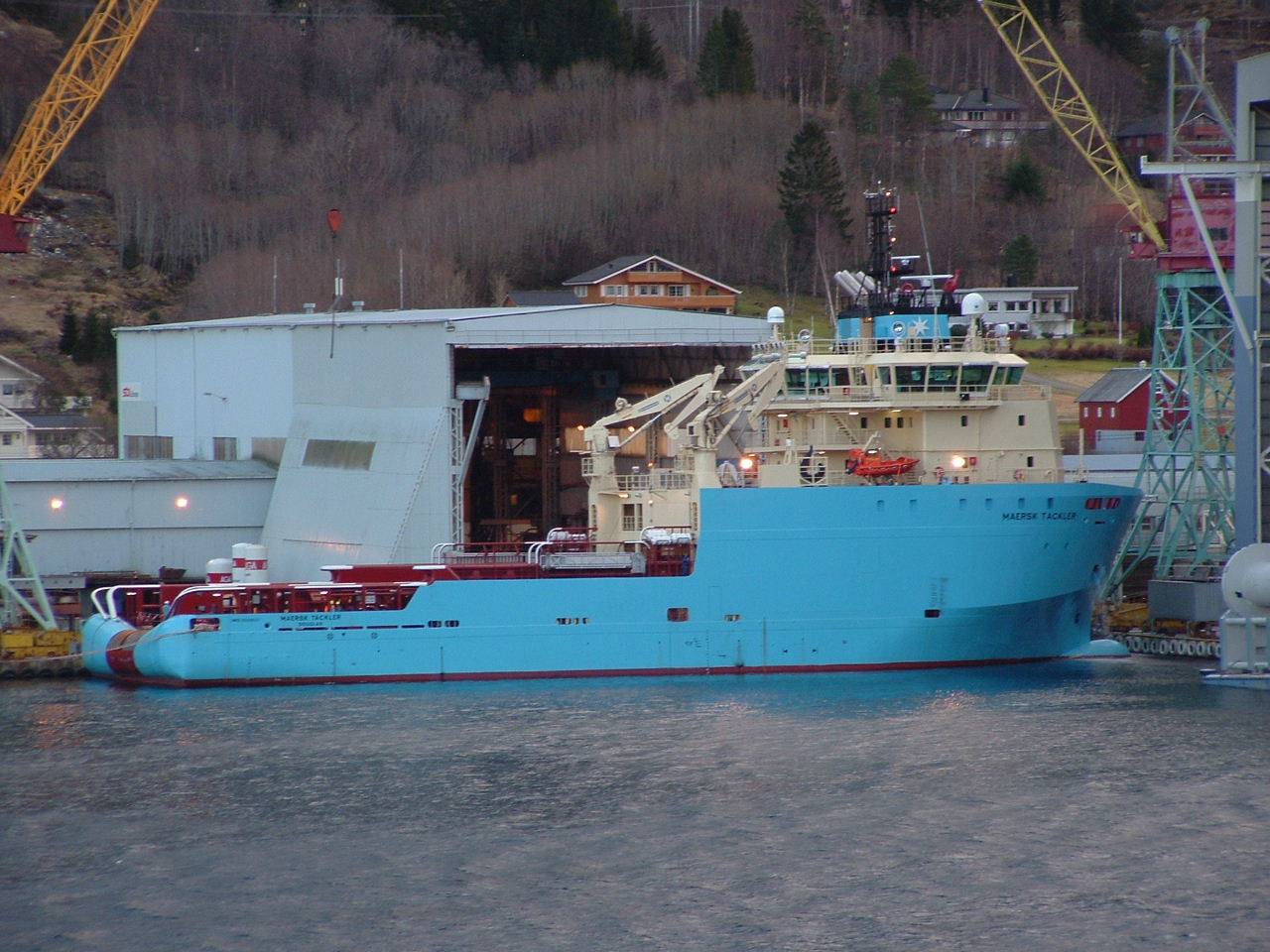

TYPE: VS 472		NAME: Maersk Tackler		PHOTO: Nigel Sly

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2009	Shipyard	Aker Yards
Former Names	-
Comments

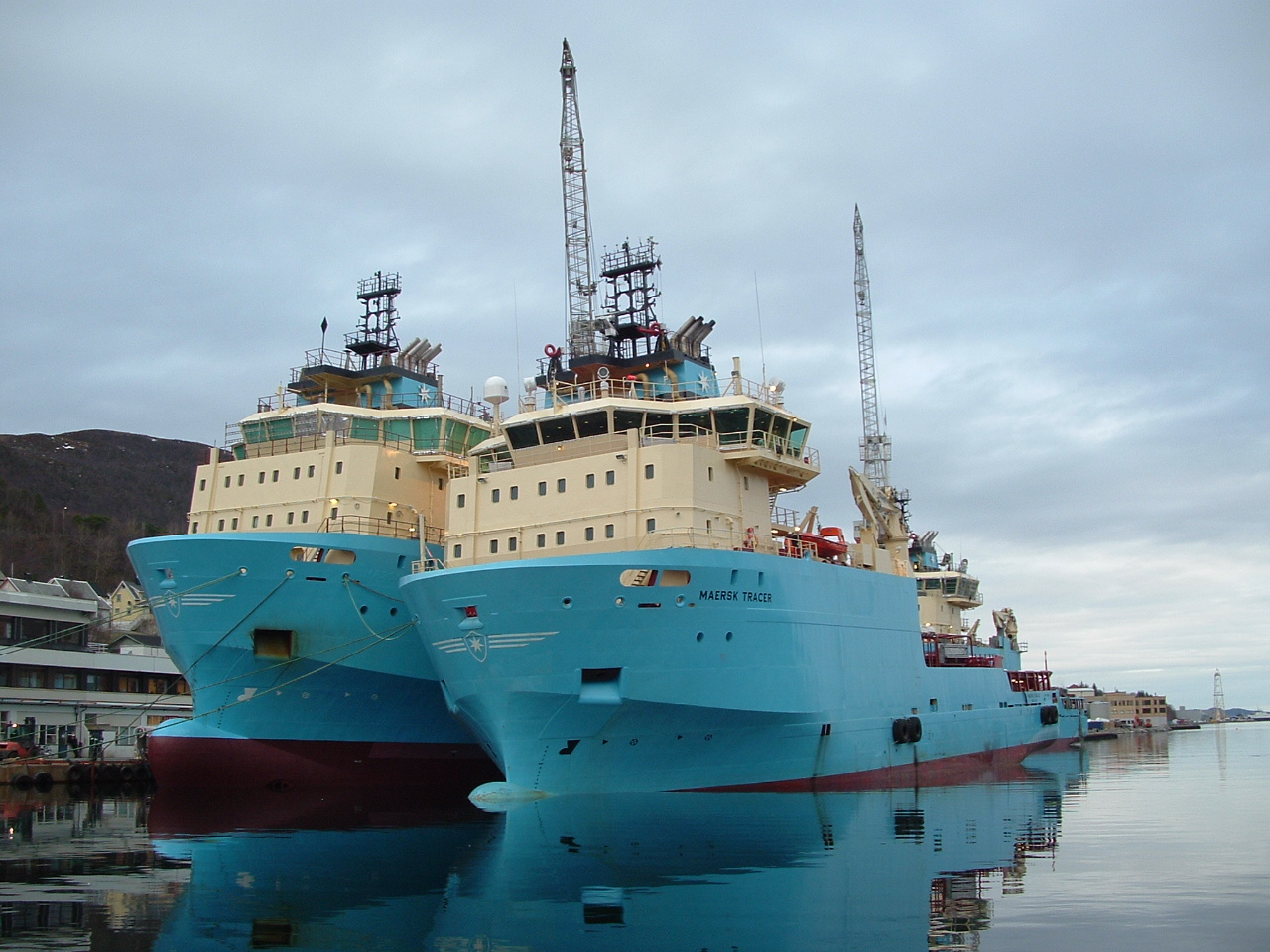

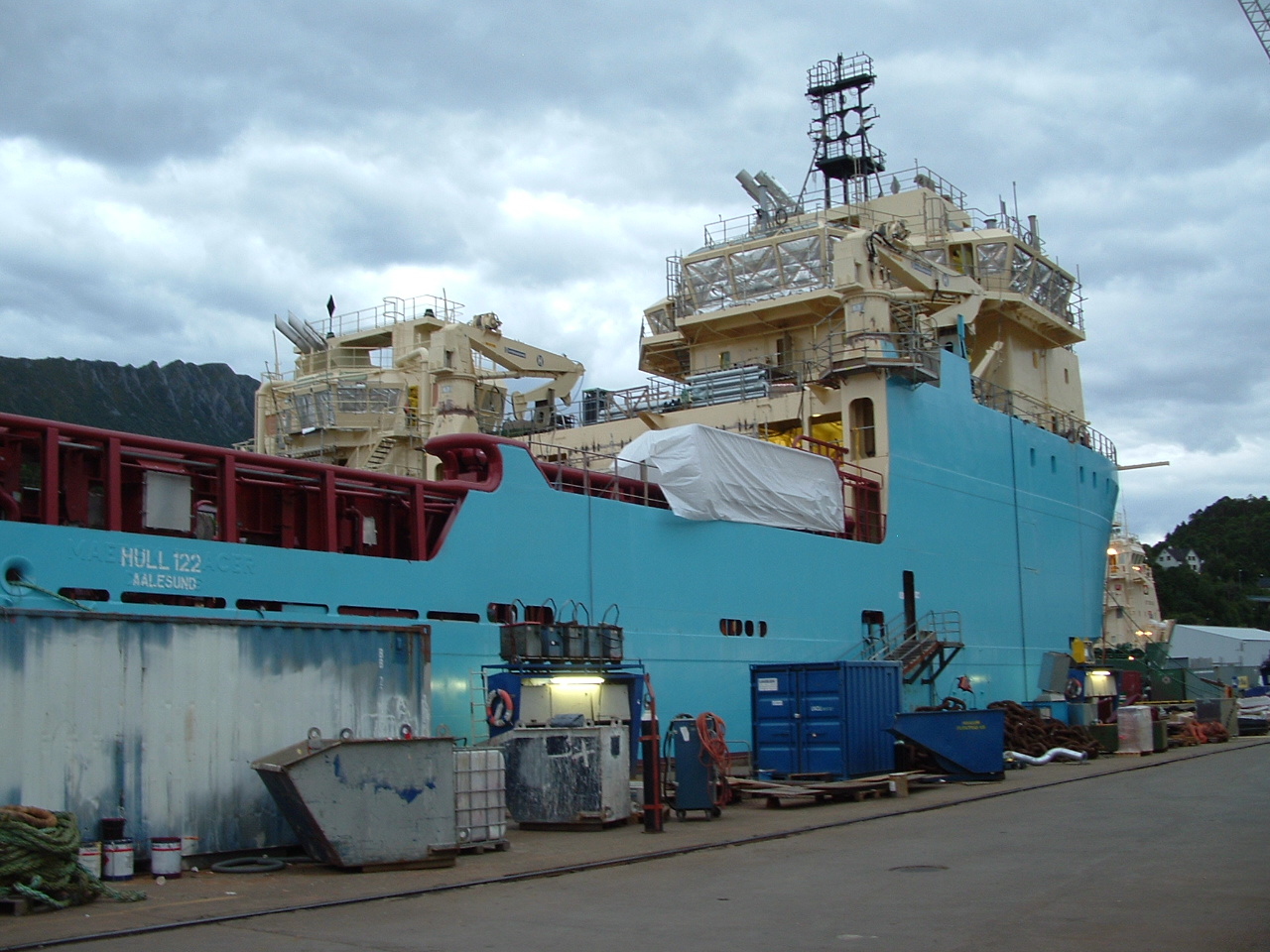

TYPE: VS 472		NAME: Maersk Tracer		PHOTO: Nigel Sly

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2009	Shipyard	Aker Yards
Former Names	-
Comments

TYPE: VS 472		NAME: Maersk Trimmer		PHOTO:

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2009	Shipyard	Aker Yards
Former Names	-
Comments

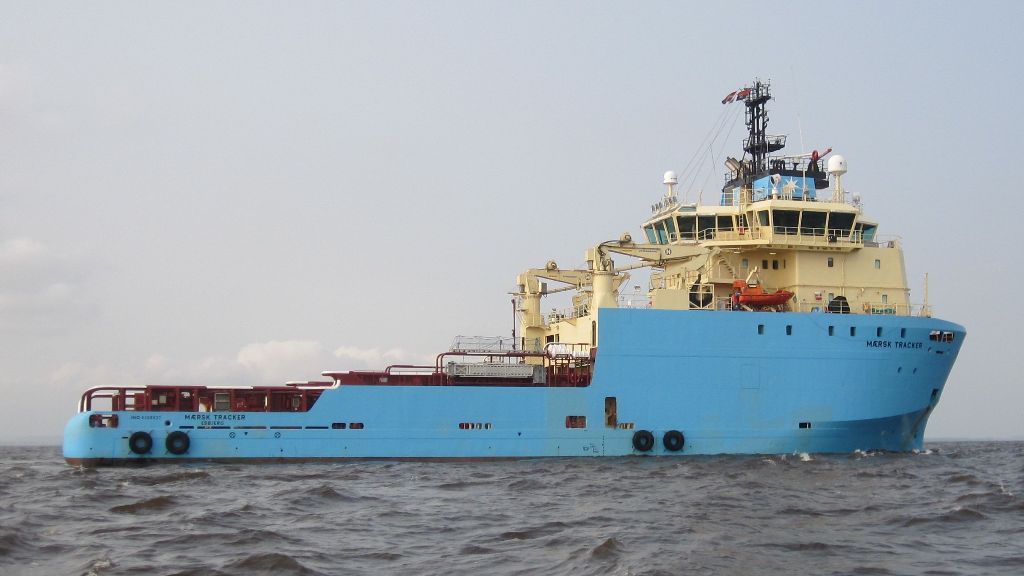

TYPE: VS 472		NAME: Maersk Tracker		PHOTO: Joshua Stack

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2009	Shipyard	Aker Yards
Former Names	-
Comments

TYPE: VS 472		NAME: Maersk Transporter		PHOTO:

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2009	Shipyard	Aker Yards
Former Names	-
Comments

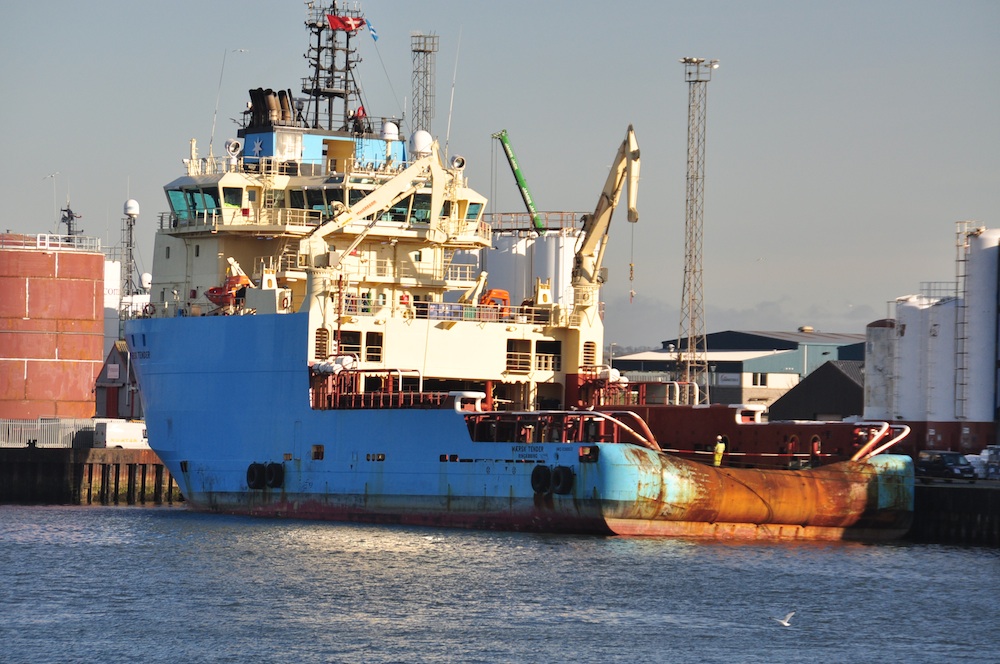

TYPE: VS 472		NAME: Maersk Tender		PHOTO: Vic Gibson

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2009	Shipyard	Aker Yards
Former Names	-
Comments

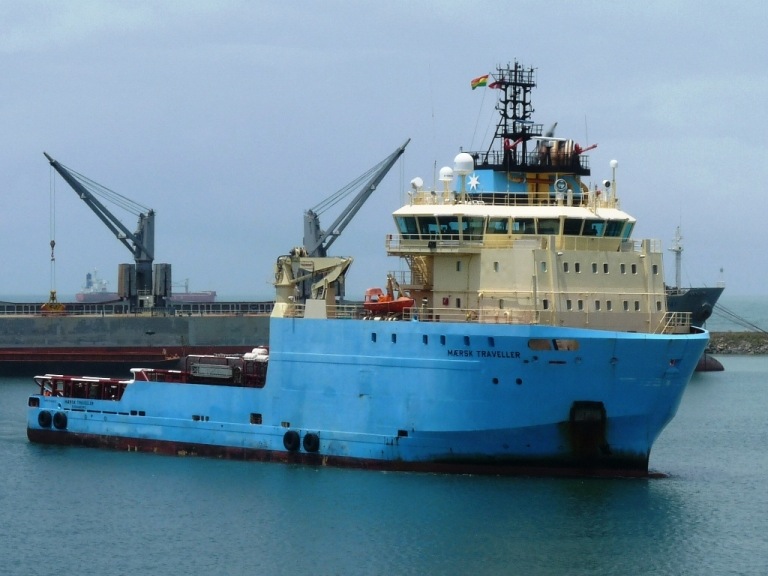

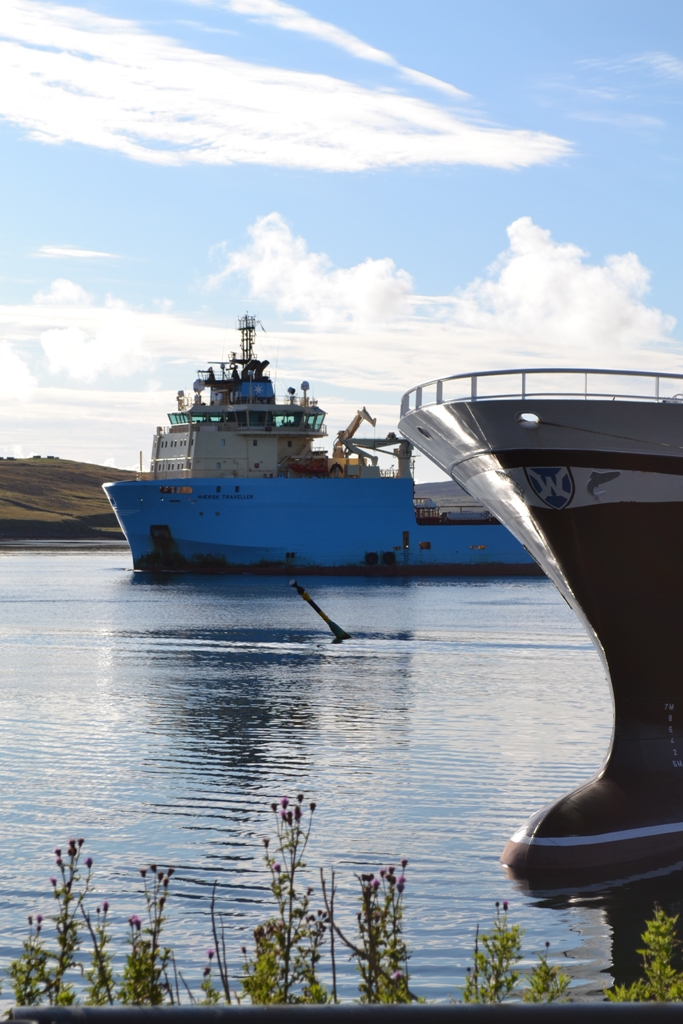

TYPE: VS 472		NAME: Maersk Traveller		PHOTO: Alex Simpson

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2009	Shipyard	Aker Yards
Former Names	-
Comments

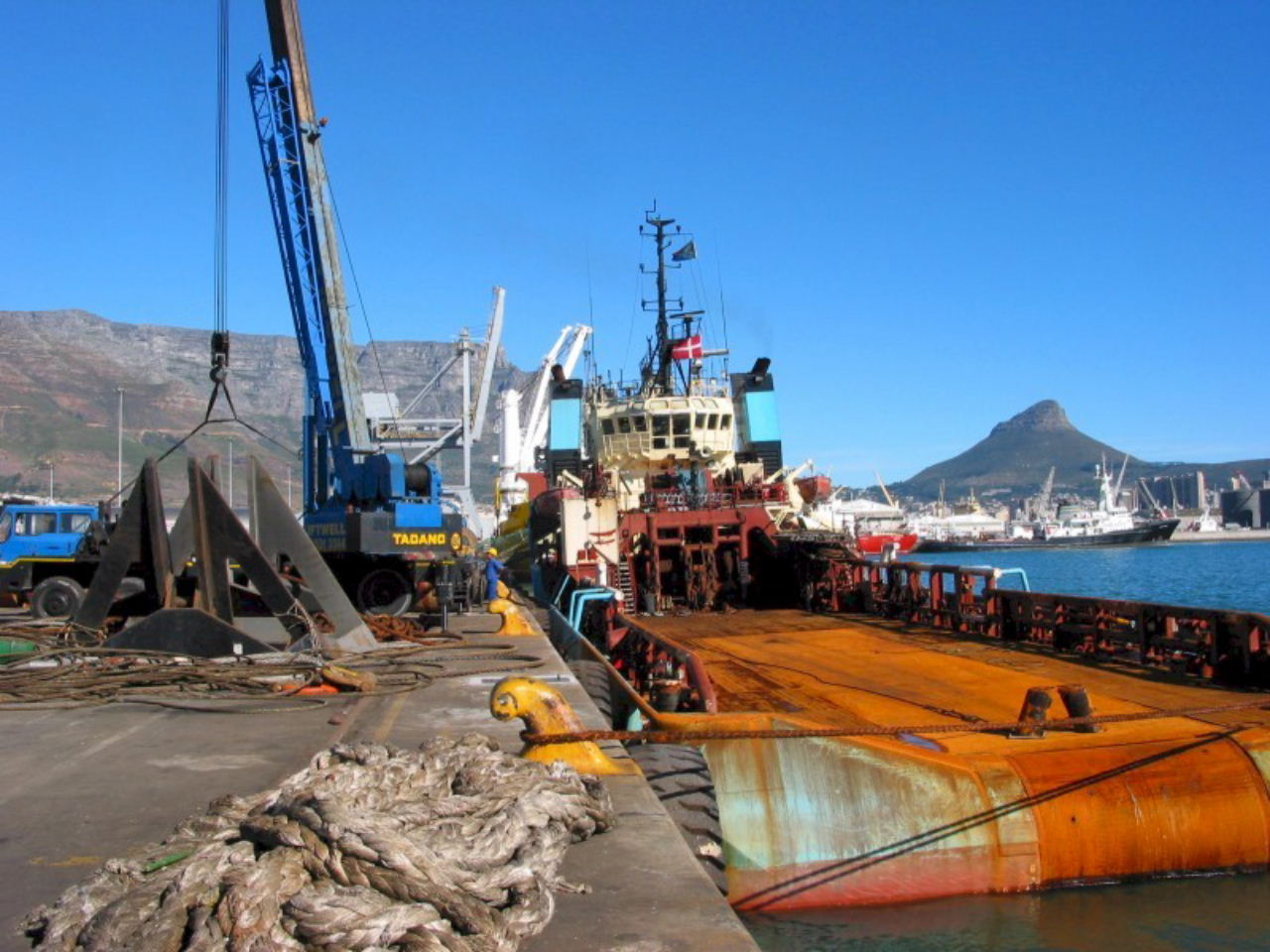

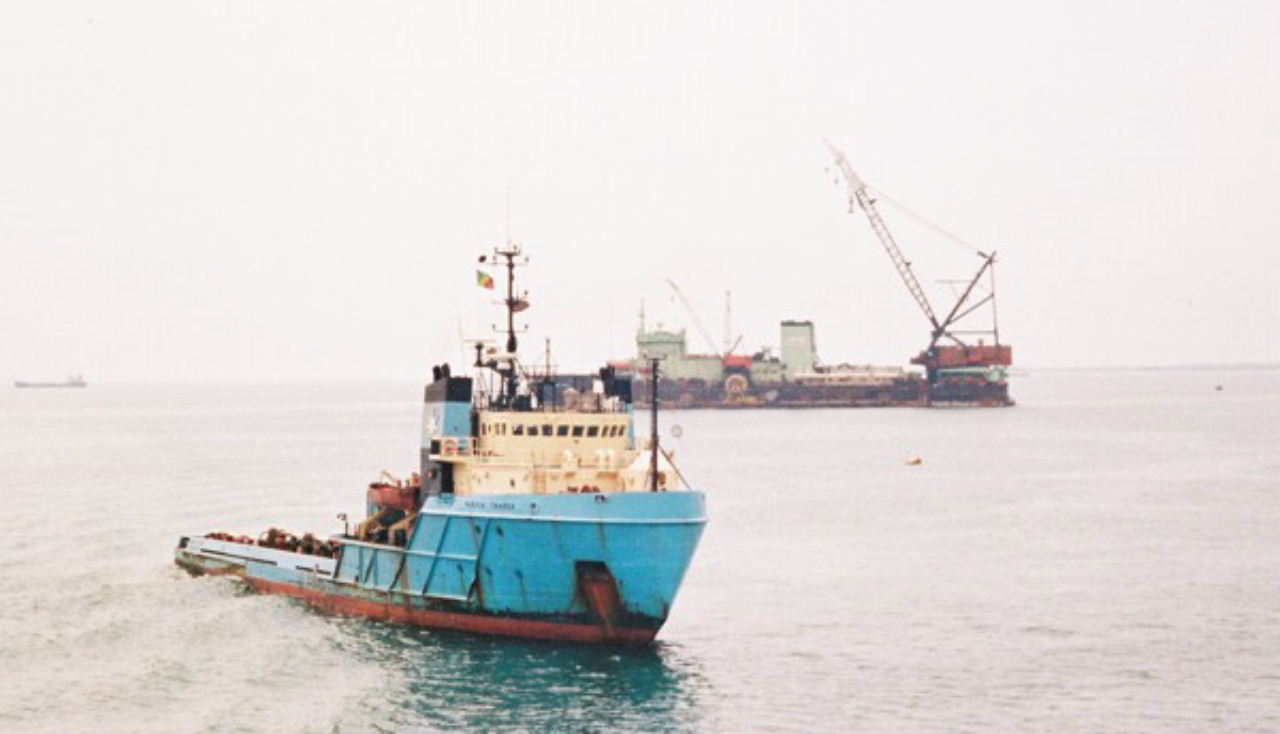

TYPE: VS 472		NAME: Maersk Terrier		PHOTO: Jan Plug

general		Propulsion		Deck EquipMENT
Length OA	73.2 m	Engines	4 x MAN B&W	Workdrum pull	400 tonnes
Breadth	20.0 m	BHP	15540	Capacity 1	9800m x 77mm
DWT	3100 tonnes	kW	11420	Capacity 2	-
Deck area	600 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	400 tonnes
Fuel	1160 m3	Az Thruster	-	Capacity 1	3240m x 77mm
Pot water	618 m3	Aft Thrusters	2 x 700 bhp	Capacity 2	3240m x 77mm
Mud	639 m3	Bollard pull	177 t	Sharks Jaw	2 x Triplex
Base oil	129 m3	DP	-	Cranes	2
Brine	769 m3	Joystick	Kongsberg C-Joy	Tank Cleaning
Dry bulk	207 m3	Year Built	2009	Shipyard	Aker Yards
Former Names	-
Comments

CONSTRUCTION AND OTHER VESSELS

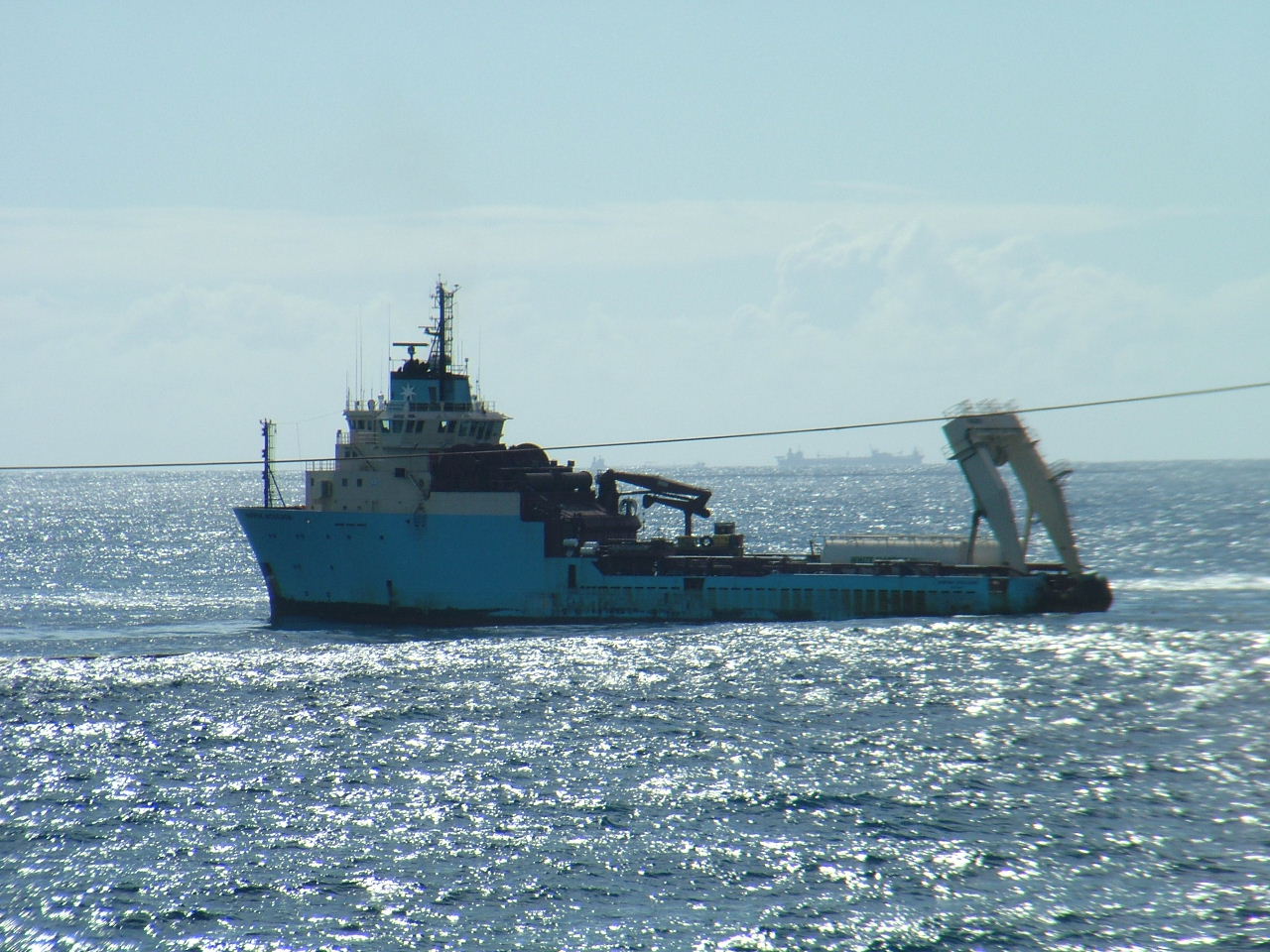

TYPE: mAERSK a CLASS

NAME: Maersk Attender

PHOTO: Bob Smith, George Craigen, Tony Poll

General

Propulsion

Deck Equipment

Length OA 90 m Engines 4 x MAK Workdrum pull 625 tonnes

Breadth 23 m BHP 23,480 Capacity 1 12000m x 84mm

DWT 5010 tonnes kW Capacity 2

Deck area 803 m2 For'd Thrusters 1 x 2040 bhp Towdrum pull

Fuel 1156 m3 Azimuthing 1 x 1770 bhp Capacity 1 2600m x 84mm

Pot water 660 m3 Aft Thrusters 2 x 1200 bhp Capacity 2 2600m x 84mm

Mud 605 m3 Bollard Pull 278 tonnes Sharks Jaw 2 x Triplex

Base oil 224 m3 DP Kongsberg SDP21 Cranes 1 x 200 t

Brine 602 m3 Joystick KaMeWa Tank Cleaning None

Dry bulk Year built 2000 Shipyard Volkswerft

Former Names

Comments This vessel and the Maersk Achiever have been fitted with big cranes since the photographs were taken.

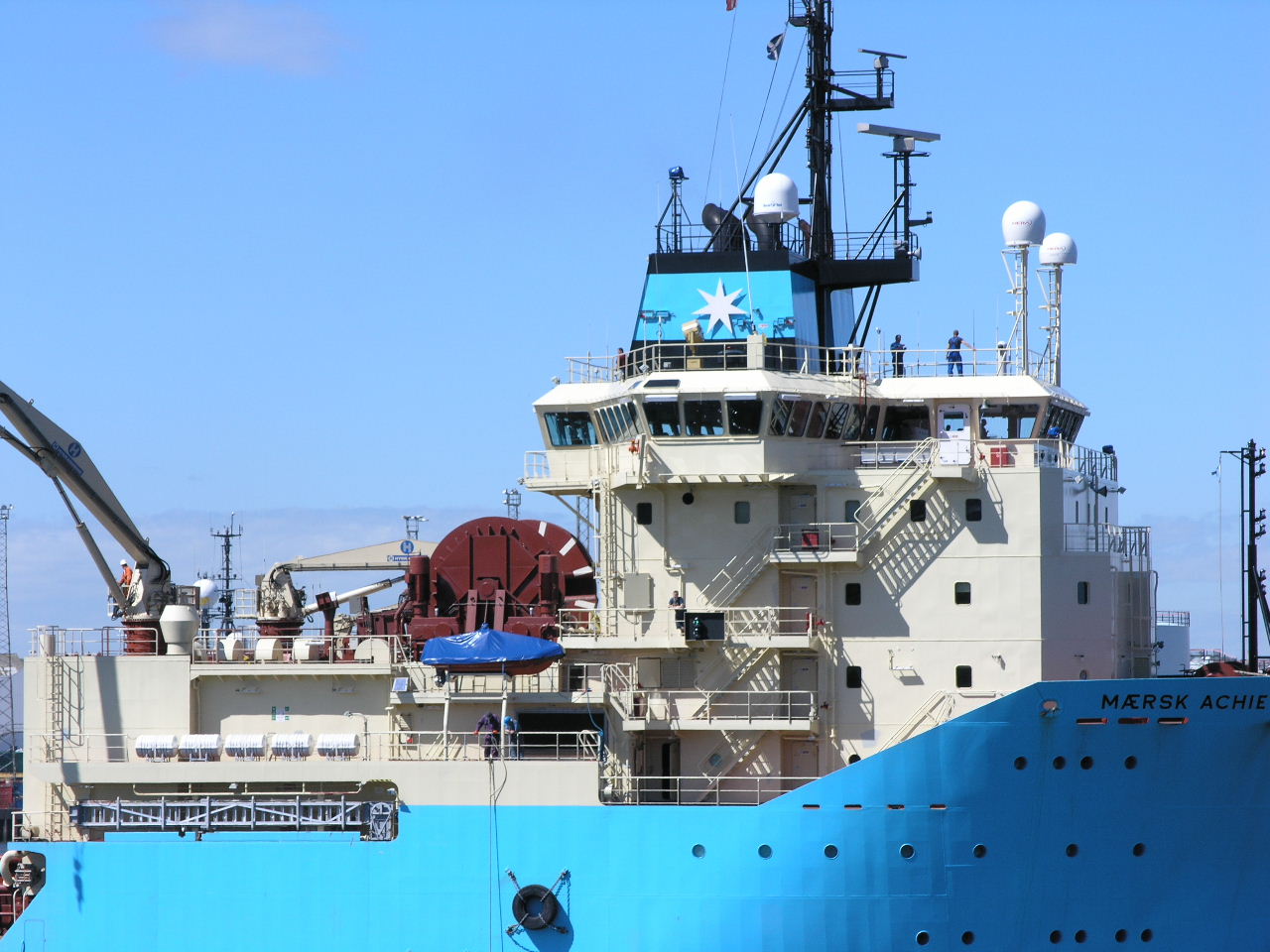

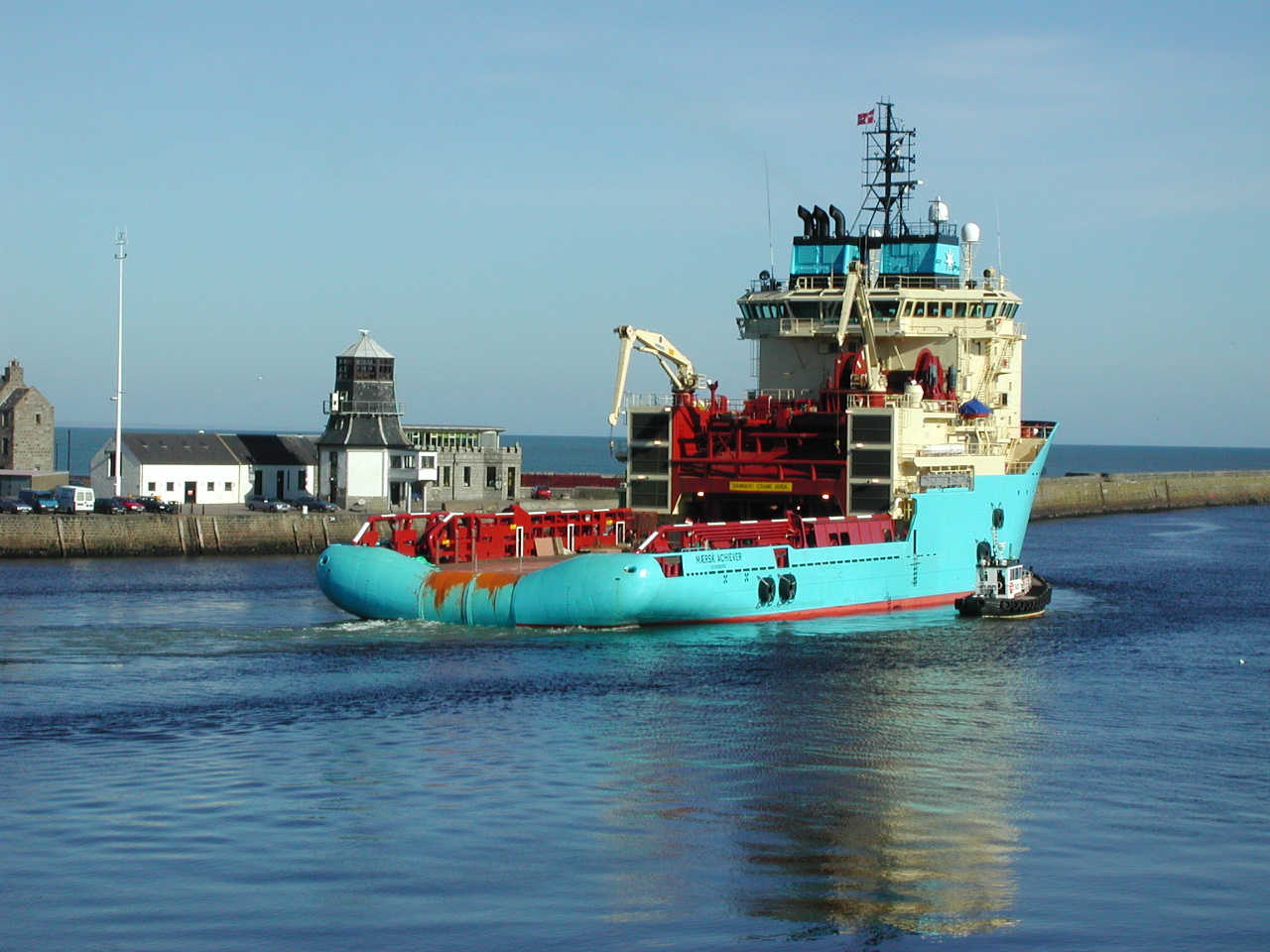

TYPE: mAERSK a CLASS		NAME: Maersk Achiever		PHOTO: Vic Gibson

General		Propulsion		Deck EquipMENT
Length OA	90 m	Engines	4 x MAK	Workdrum pull	625 tonnes
Breadth	23 m	BHP	23,480	Capacity 1	12000m x 84mm
DWT	5010 tonnes	kW		Capacity 2
Deck area	803 m2	For'd Thrusters	1 x 2040 bhp	Towdrum pull
Fuel	1156 m3	Azimuthing	1 x 1770 bhp	Capacity 1	2600m x 84mm
Pot water	660 m3	Aft Thrusters	2 x 1200 bhp	Capacity 2	2600m x 84mm
Mud	605 m3	Bollard Pull	278 tonnes	Sharks Jaw	2 x Triplex
Base oil	224 m3	DP	Kongsberg SDP21	Cranes	1 x 200 t
Brine	602 m3	Joystick	KaMeWa	Tank Cleaning	None
Dry bulk		Year built	2003	Shipyard	Volkswerft
Former Names
Comments

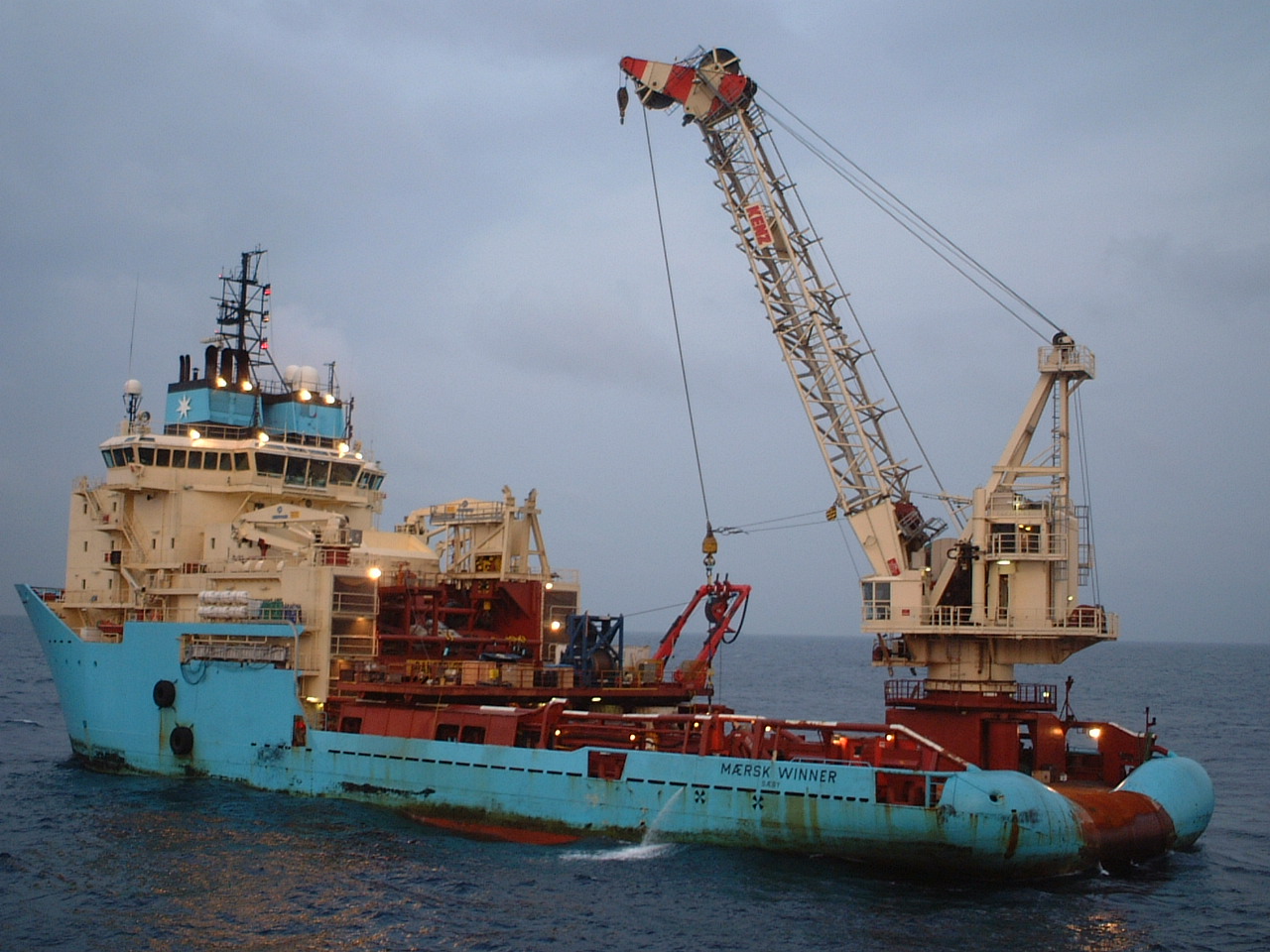

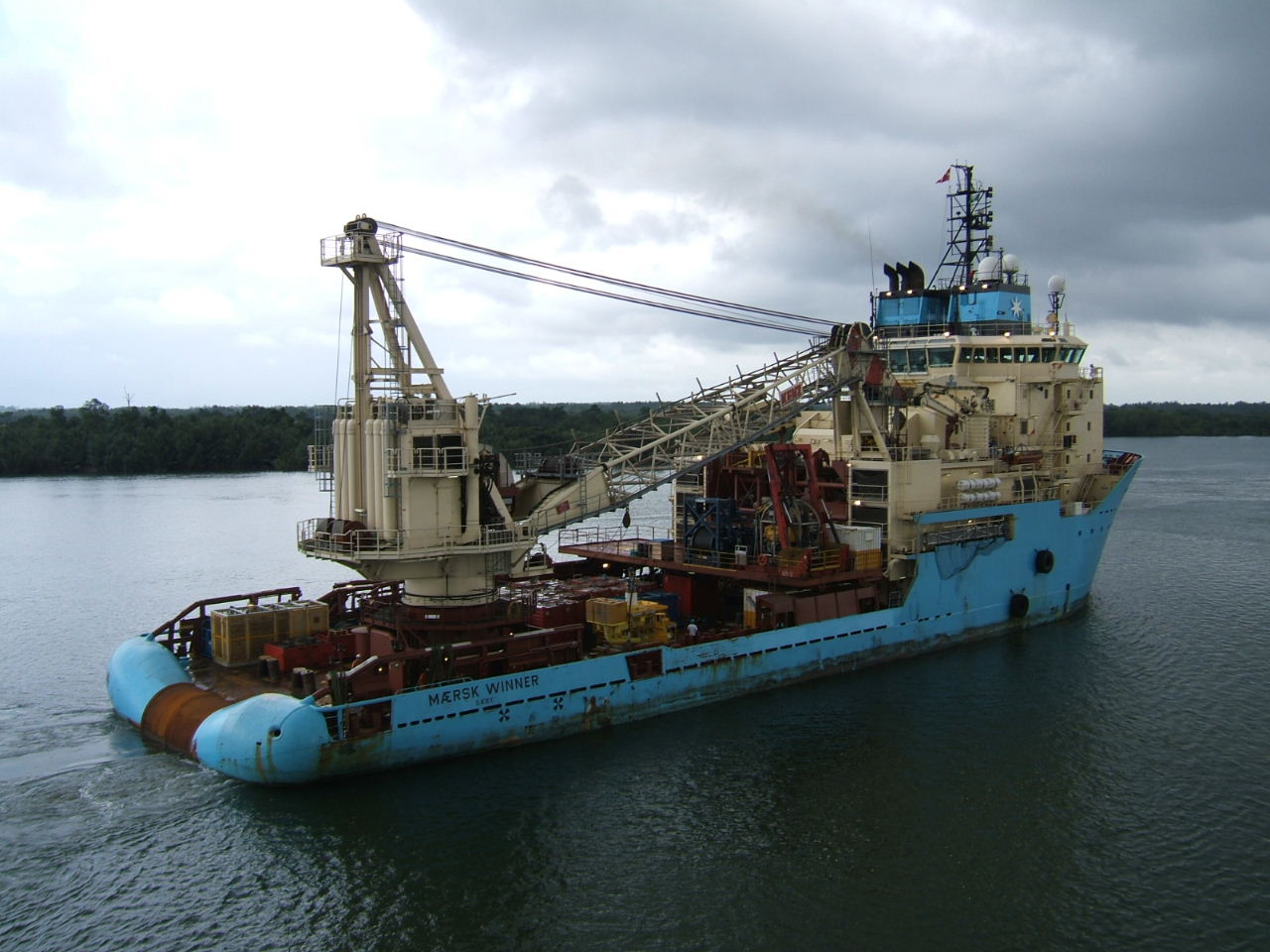

TYPE: mAERSK a CLASS

NAME: Maersk Winner

PHOTO: Vic Gibson, Andrew Woodrow, Conrad Harley

General

Propulsion

Deck Equip

Length OA 90 m Engines 4 x MAK Workdrum pull 625 tonnes

Breadth 23 m BHP 23,480 Capacity 1 12000m x 84mm

DWT 5010 tonnes For'd Thrusters 1 x 2040 bhp Capacity 2

Deck area 803 m2 Azimuthing 1 x 1770 bhp Towdrum pull

Fuel 1156 m3 Aft Thrusters 2 x 1200 bhp Capacity 1 2600m x 84mm

Pot water 660 m3 Bollard Pull 278 tonnes Capacity 2 2600m x 84mm

Mud 605 m3 DP Kongsberg SDP21 Sharks Jaw 2 x Triplex

Base oil 224 m3 Joystick KaMeWa Cranes 1 x 200 t

Brine 602 m3

Dry bulk Year built 2004 Shipyard Volkswerft

Former Names

Comments

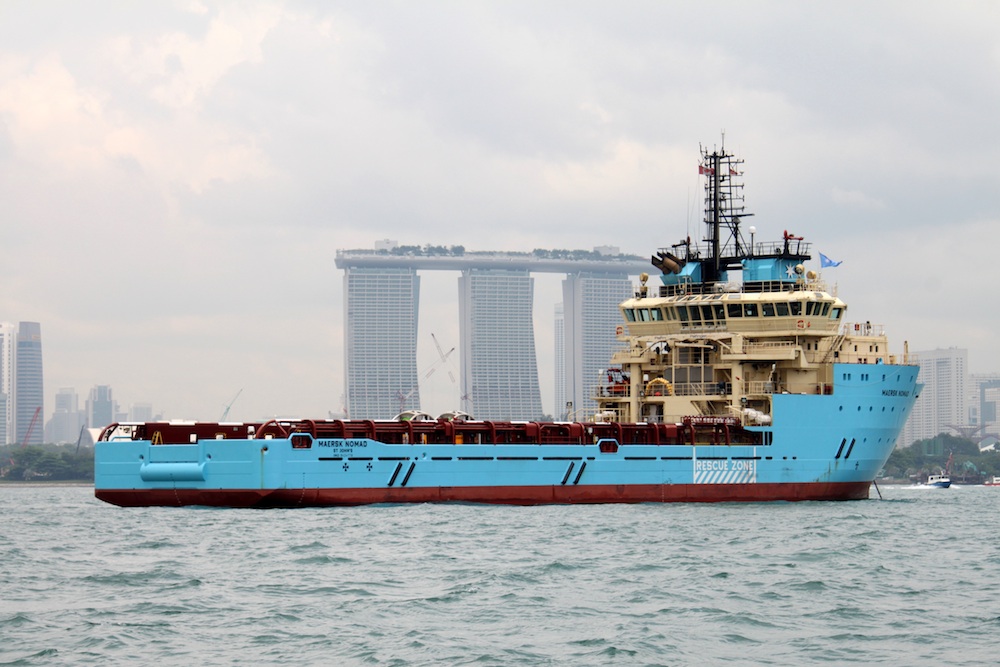

TYPE: UT 745 CDL		NAME: MAERSK NOMAD		PHOTO: Mike Prendergast

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	90.15 m	Engines	2 x MAN B&W	Fuel	552 m3
Breadth	18.8 m	BHP/kW	10445/7680	Pot water	634 m3
DWT	4400 t	For'd Thrusters	1 x 1200 bhp	Mud	822 m3
Deck area	912 m2	Az Thruster	1 x 1200 bhp	Base oil	206 m3
Year built	2009	Aft Thrusters	2 x 800 bhp	Brine	1099 m3
Shipyard	Asenav	Joystick	-	Dry bulk	362 m3
Berths	36	DP II	Yes	Tank Cleaning	-
Previous names	-
Comments	Since this photo taken the ship has been fitted with a helideck and a 165 tonne crane and garage for 2 x work class ROVs

TYPE: MAERSK R TYPE NAME: Maersk Recorder PHOTO: Erich Muller

GENERAL

PROPULSION

EQUIPMENT

Length OA 105.8 m Engines - Workdrum pull -

Breadth 20.0 m BHP 10400 bhp Capacity 1 -

DWT 7970 t kW 7650 Capacity 2 -

Deck area - For'd Thruster 1 x 1200 bhp Accomm berths 68

Fuel 1667 m3 Az Thruster 1 x 1000 bhp Storage capacity
2 x 3000 t

Pot water 700 m3 Aft Thusters 2 x 1200 bhp ROV -

Mud - Bollard pull - Diving Capability -

Brine - DP II Yes Cranes 1 x 30 t

Dry bulk - Joystick - Tank cleaning -

Year built 2000 Shipyard -

Previous names -

Comments -

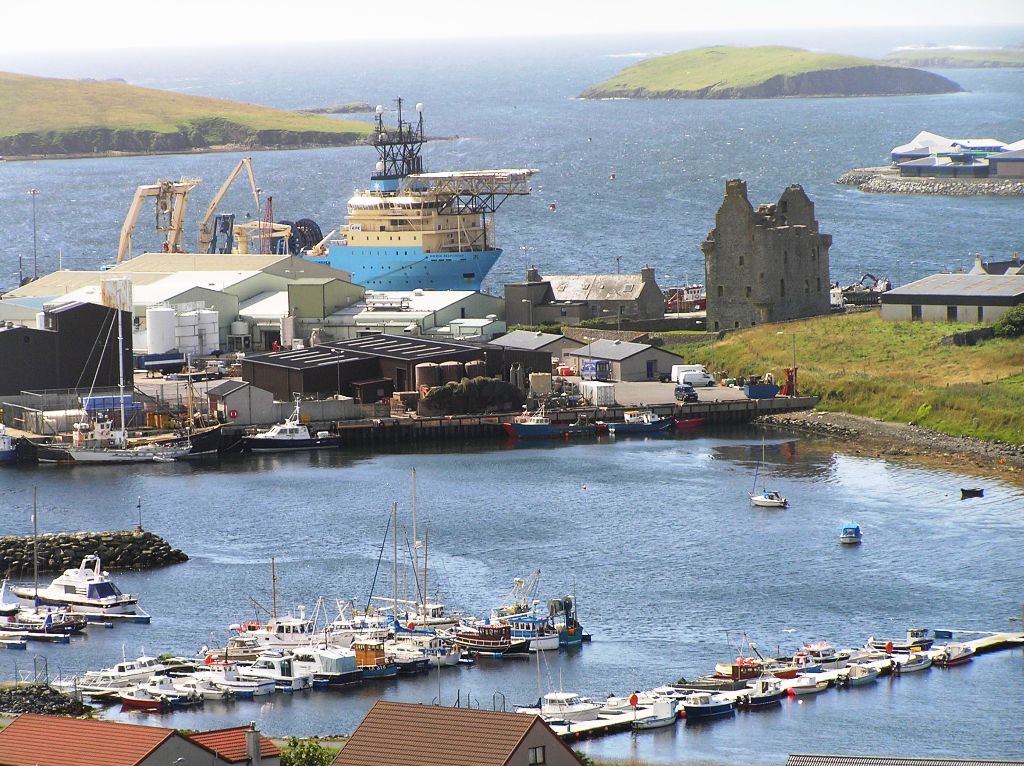

TYPE: MAERSK R TYPE NAME: Maersk Responder PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 105.8 m Engines - Workdrum pull -

Breadth 20.0 m BHP 10400 bhp Capacity 1 -

DWT 7970 t kW 7650 Capacity 2 -

Deck area - For'd Thruster 1 x 1200 bhp Accomm berths 68

Fuel 1667 m3 Az Thruster 1 x 1000 bhp Storage capacity
2 x 300 t

Pot water 700 m3 Aft Thusters 2 x 1200 bhp ROV -

Mud - Bollard pull - Diving Capability -

Brine - DP II Yes- Cranes 1 x 50 t

Dry bulk - Joystick - Tank cleaning -

Year built 2000 Shipyard -

Previous names -

Comments -

PLATFORM SHIPS

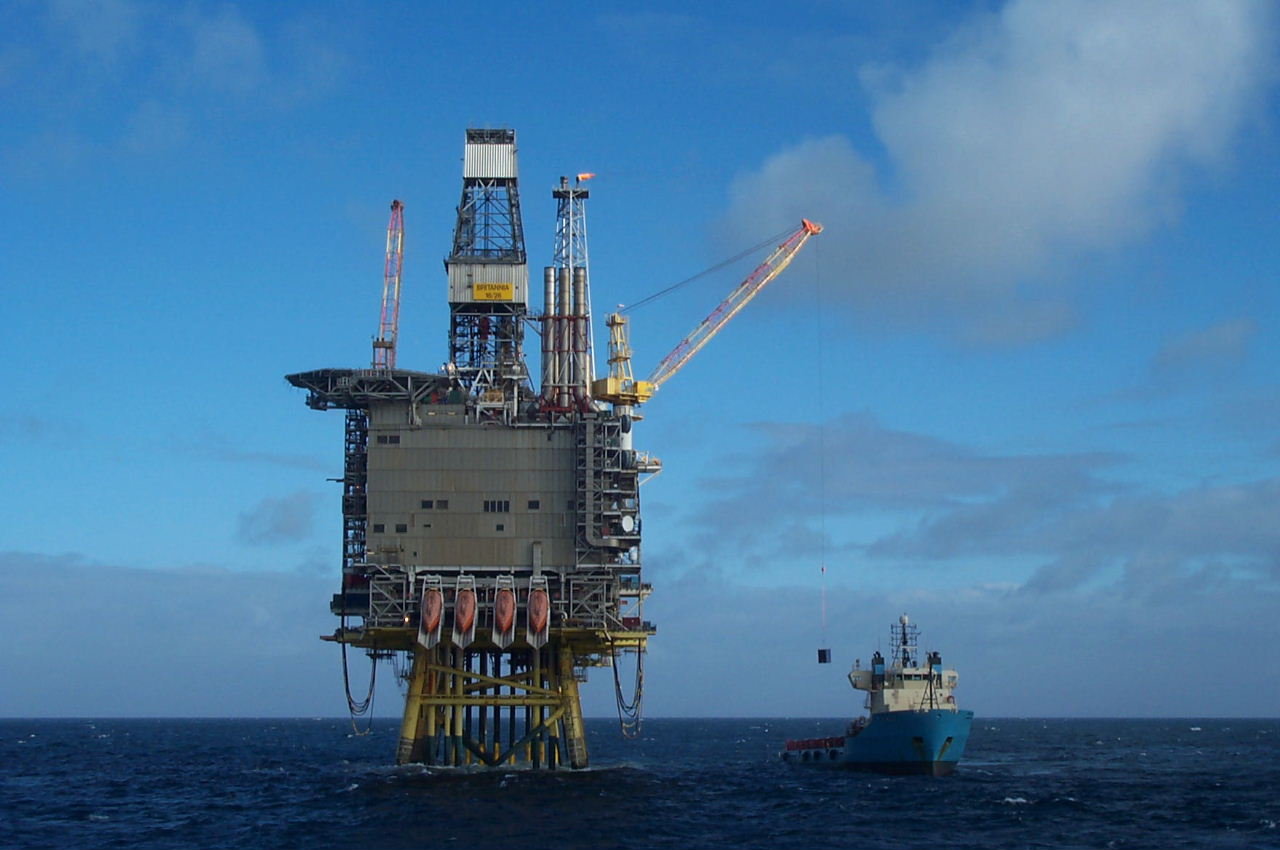

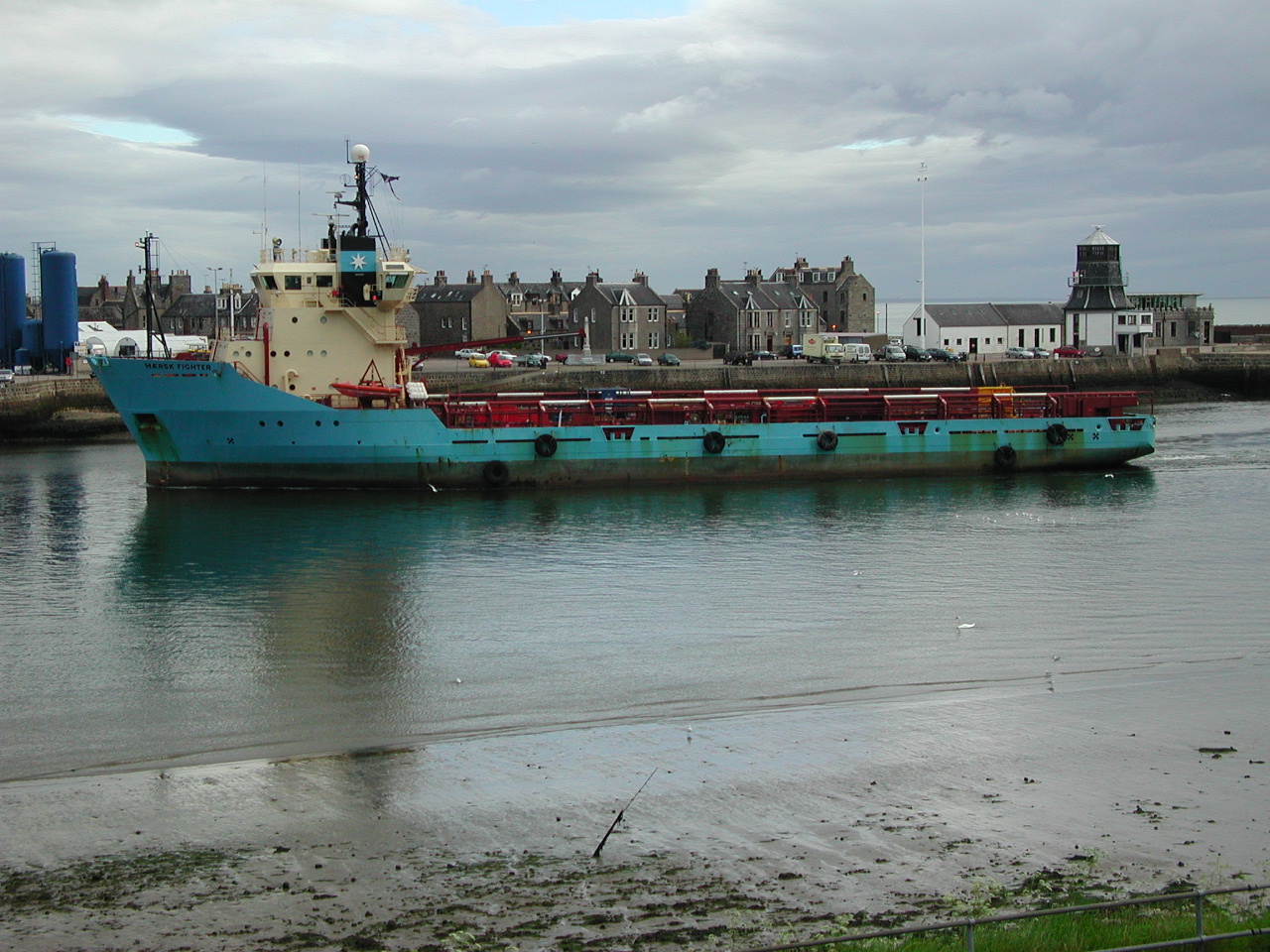

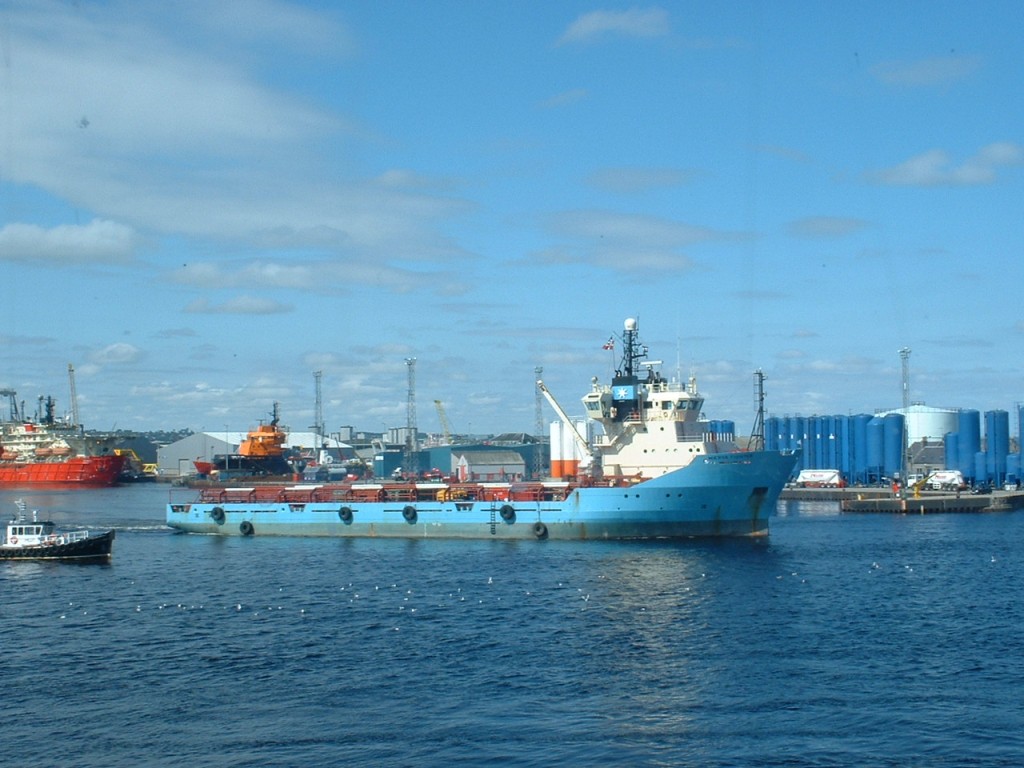

TYPE: UT 745 NAME: Maersk Fighter PHOTO: Derek Mackay, Vic Gibson

General Propulsion Cargo Capacity

Length OA 82.5m Engines 2 x Bergen KVMB12 Fuel 1030m3

Breadth 18.85m BHP/Kw 7200/5300 Pot water 792m3

DWT 4650t For'd Thrusters 2 x 1200 bhp Mud 657m3

Deck area 964.96m2 Az Thrusters - Base oil

Aft Thusters 2 x 800 bhp Brine

Year built 1992 Joystick Robertson Robstick Dry bulk 340m3

Shipyard Ulstein Hatlo DP Tank Cleaning

Former Names

Comments

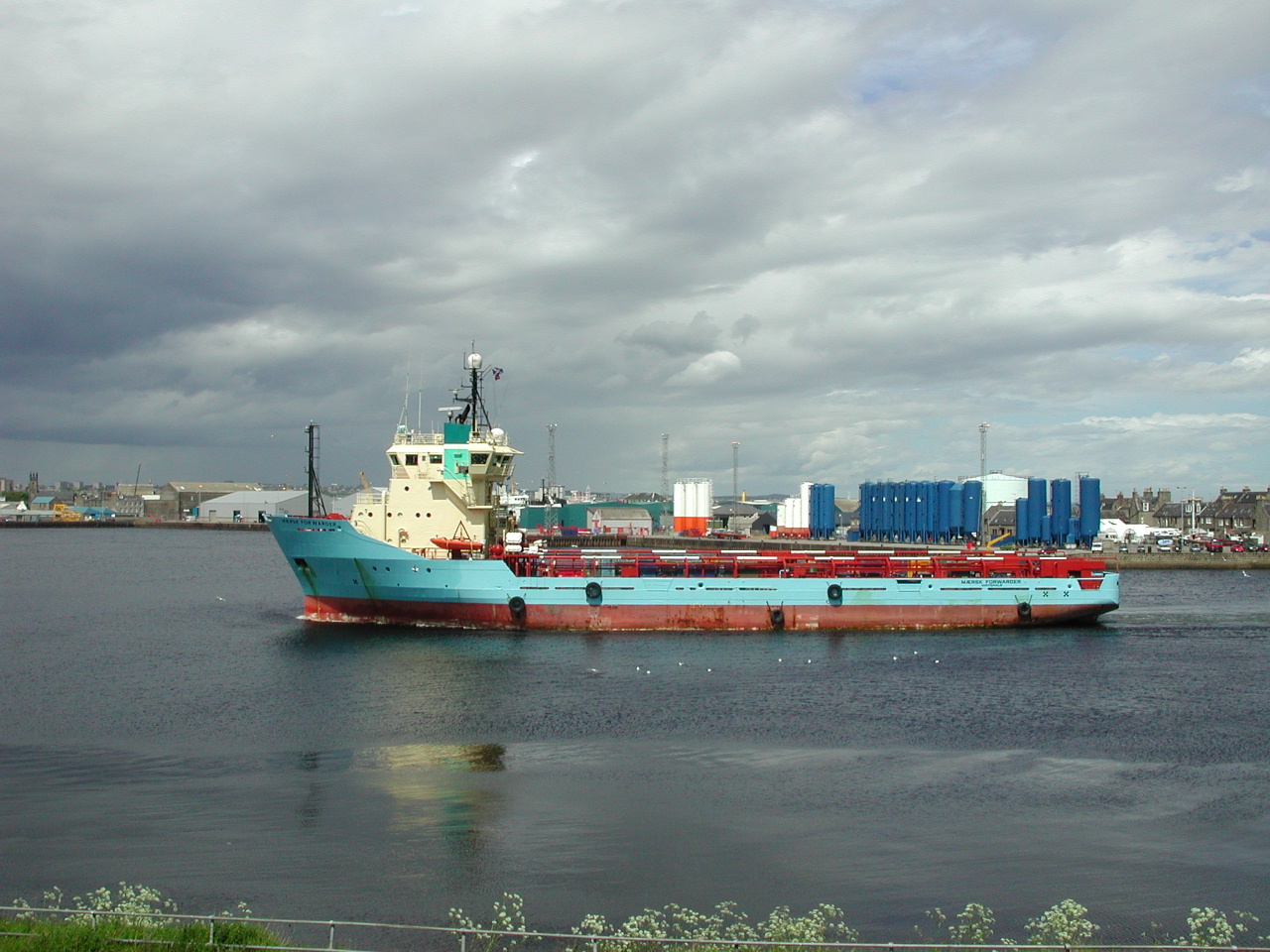

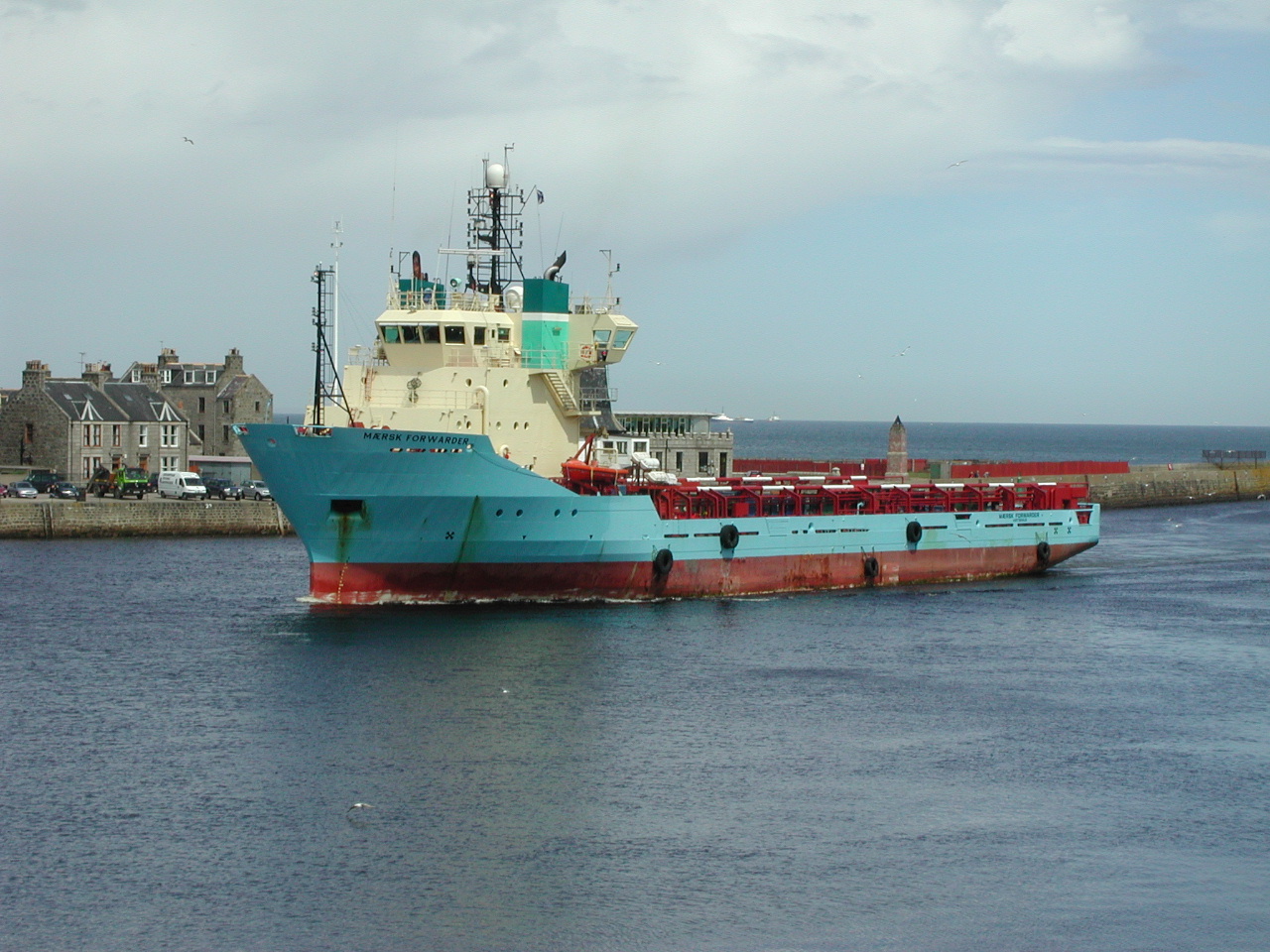

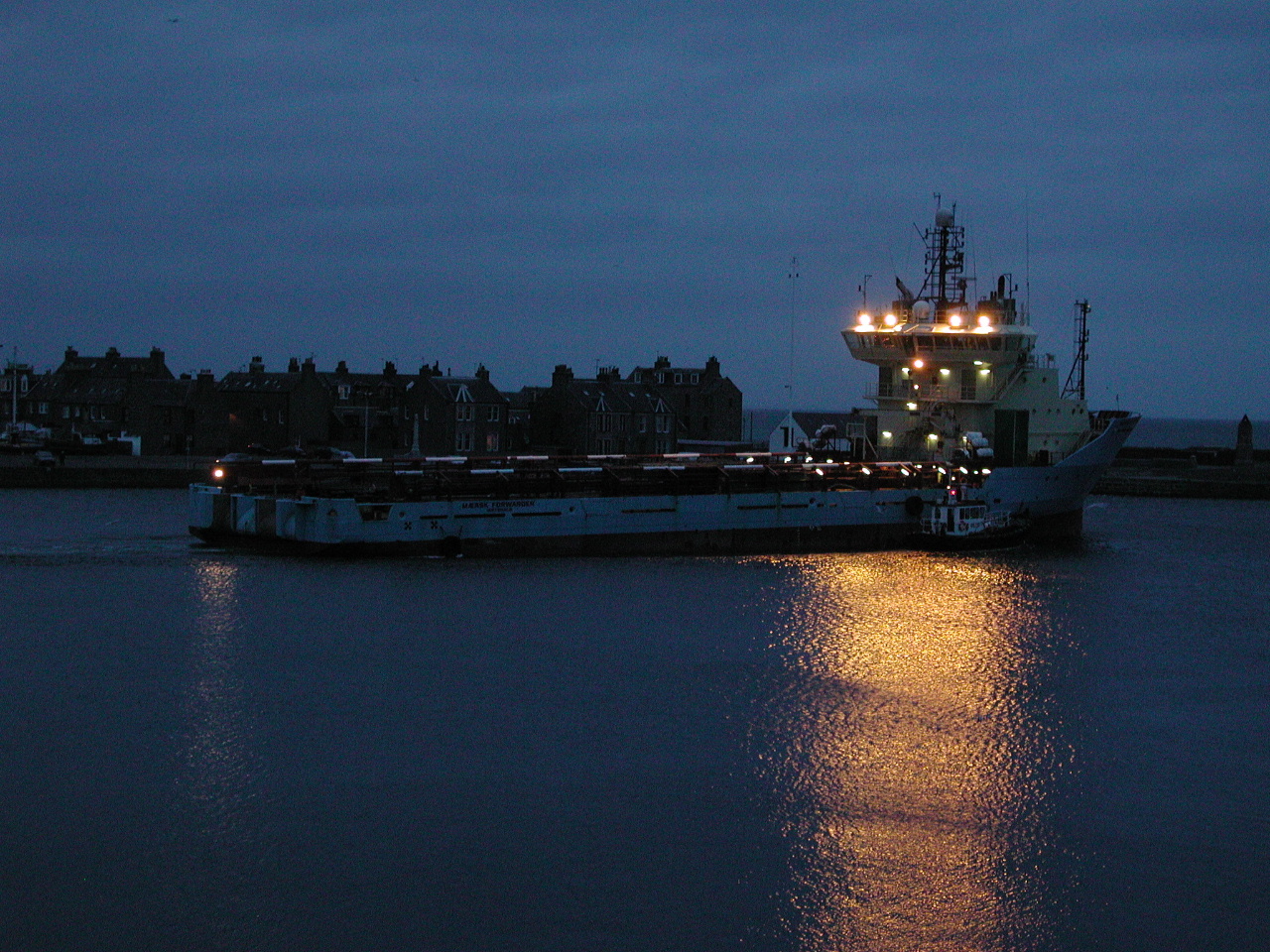

TYPE: UT 745		NAME: Maersk Forwarder		PHOTO: George Craigen

General		Propulsion		Cargo Capacity
Length OA	82.5m	Engines	2 x Bergen KVMB12	Fuel	1030m3
Breadth	18.85m	BHP/Kw	7200/5300	Pot water	792m3
DWT	4650t	For'd Thrusters	2 x 1200 bhp	Mud	657m3
Deck area	964.96m2	Az Thrusters	-	Base oil
		Aft Thusters	2 x 800 bhp	Brine
Year built	1992	Joystick	Robertson Robstick	Dry bulk	340m3
Shipyard	Ulstein Hatlo	DP		Tank Cleaning
Former Names
Comments

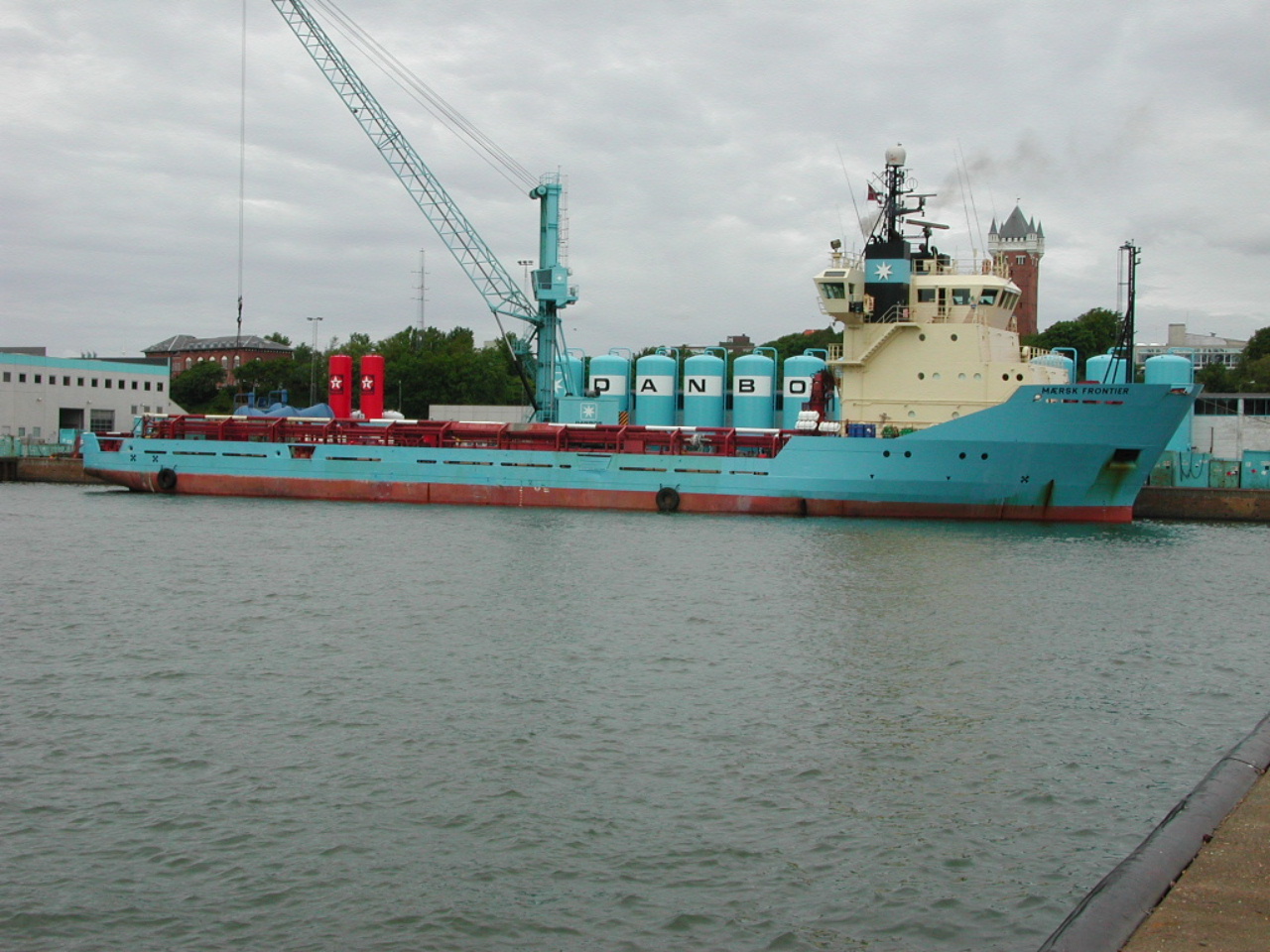

TYPE: UT 745		NAME: Maersk Frontier		PHOTO: Paul Koopman, George Craigen, Scott Vardy

General		Propulsion		Cargo Capacity
Length OA	82.5m	Engines	2 x Bergen KVMB12	Fuel	1030m3
Breadth	18.85m	BHP/Kw	7200/5300	Pot water	792m3
DWT	4650t	For'd Thrusters	2 x 1200 bhp	Mud	657m3
Deck area	964.96m2	Az Thrusters	-	Base oil
		Aft Thusters	2 x 800 bhp	Brine
Year built	1992	Joystick	Robertson Robstick	Dry bulk	340m3
Shipyard	Ulstein Hatlo	DP		Tank Cleaning
Former Names
Comments

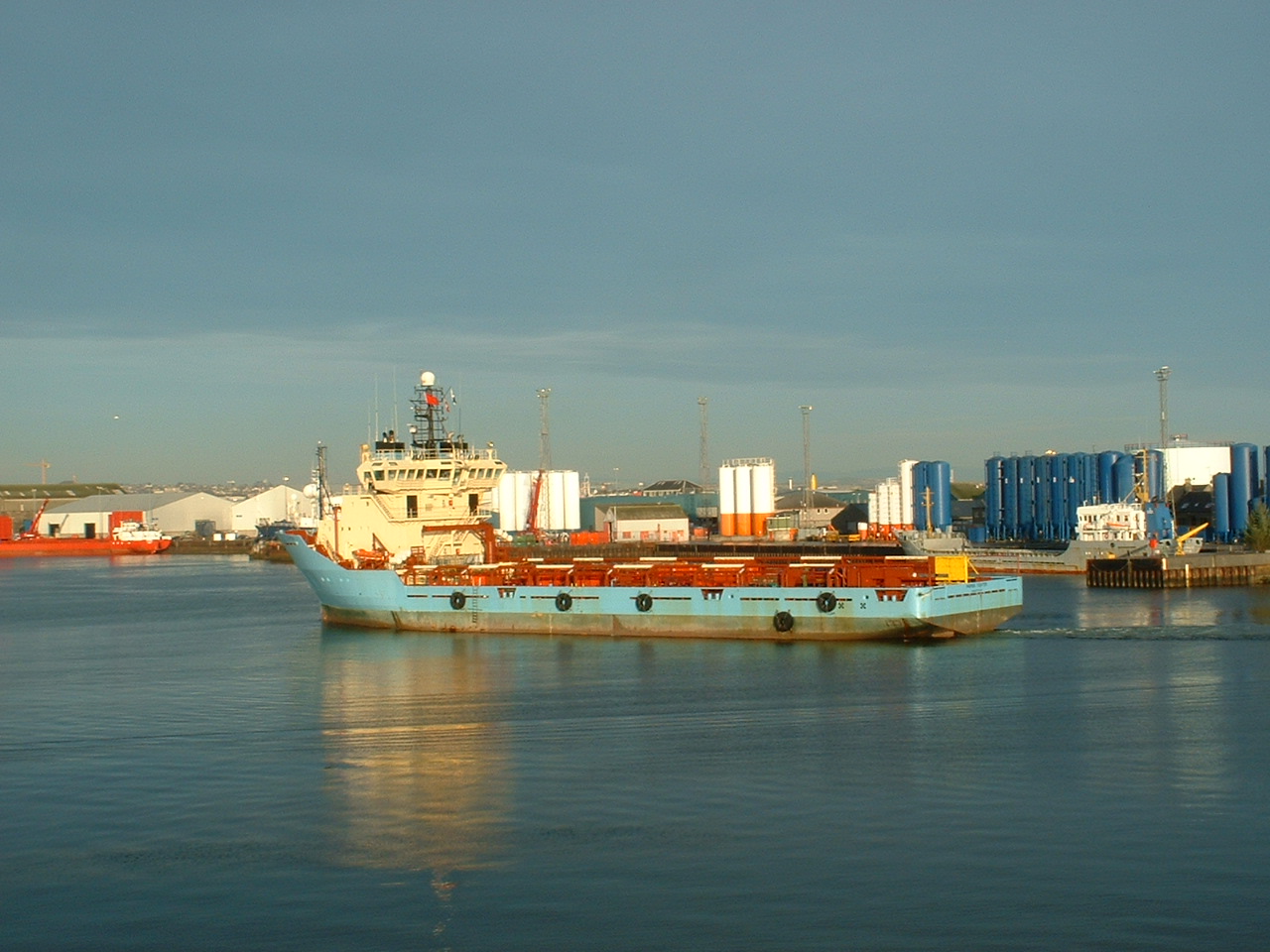

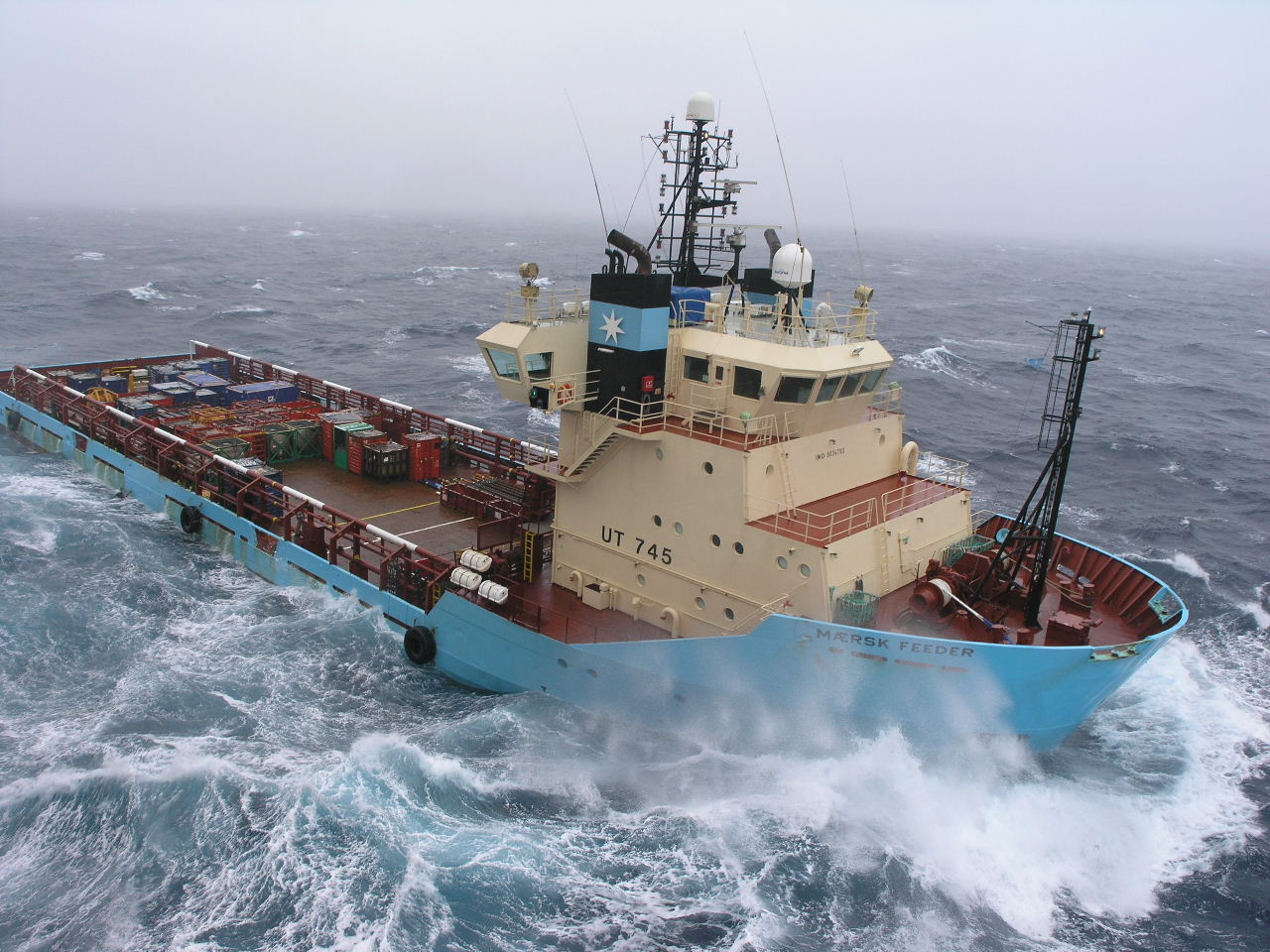

TYPE: UT 745 nAME: Maersk Feeder PHOTO: George Craigen, Vic Gibson

General Propulsion Cargo Capacity

Length OA 82.5m Engines 2 x Bergen KVMB12 Fuel 1030m3

Breadth 18.85m BHP/Kw 7200/5300 Pot water 792m3

DWT 4650t For'd Thrusters 2 x 1200 bhp Mud 657m3

Deck area 964.96m2 Az Thrusters - Base oil

Aft Thusters 2 x 800 bhp Brine

Year built 1993 Joystick Robertson Robstick Dry bulk 340m3

Shipyard Ulstein Hatlo DP Tank Cleaning

Former Names

Comments

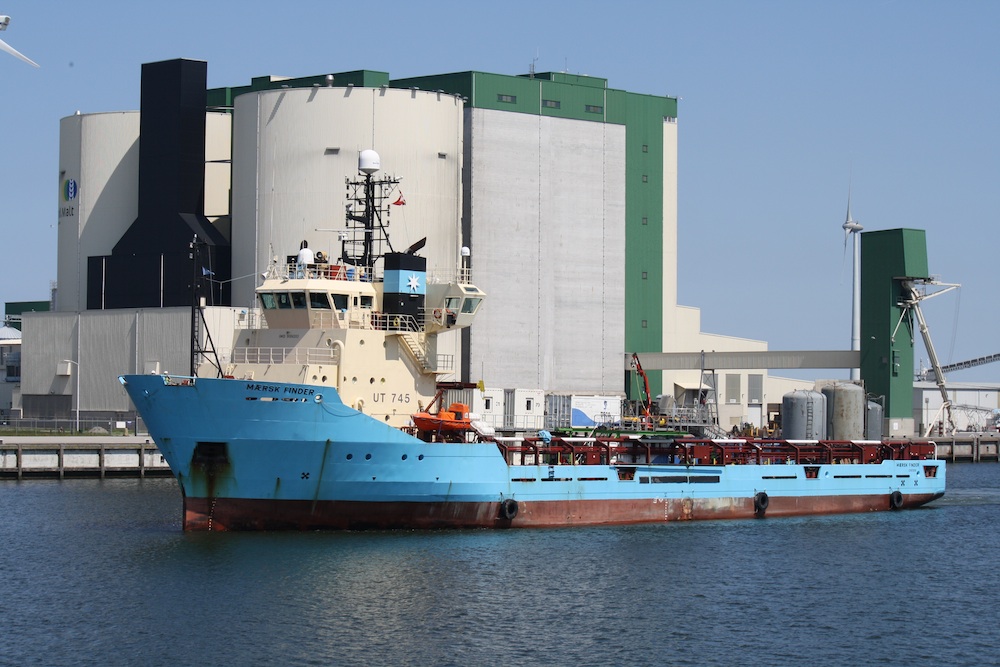

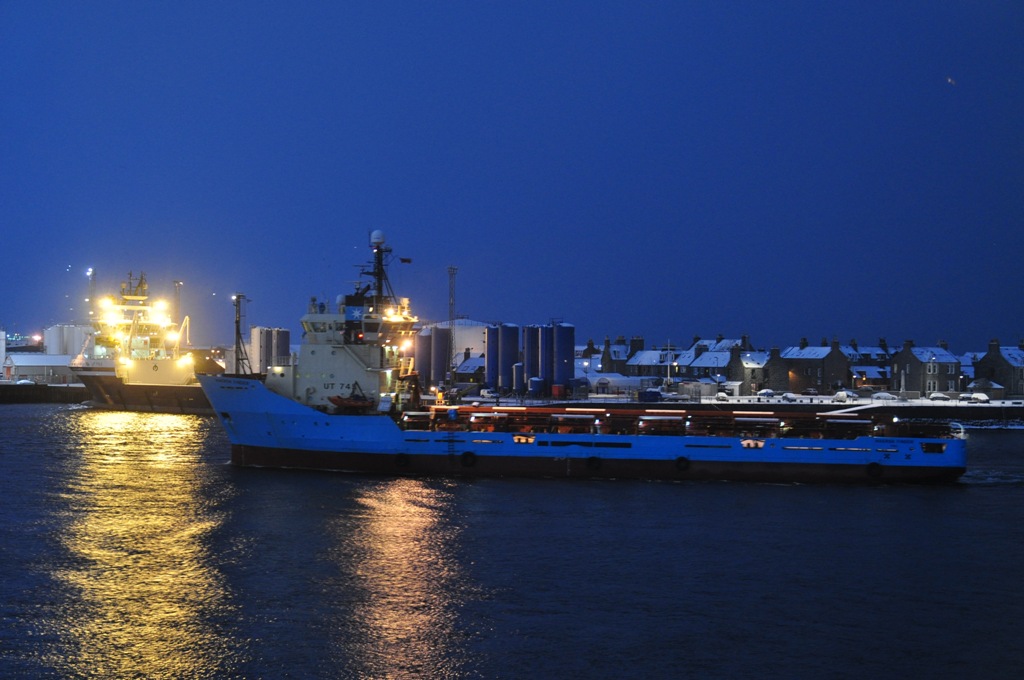

TYPE: UT 745		NAME: Maersk Finder		PHOTO: Vic Gibson, Scott Vardy

General		Propulsion		Cargo Capacity
Length OA	82.5m	Engines	2 x Bergen KVMB12	Fuel	1030m3
Breadth	18.85m	BHP/Kw	7200/5300	Pot water	792m3
DWT	4650t	For'd Thrusters	2 x 1200 bhp	Mud	657m3
Deck area	964.96m2	Az Thrusters	-	Base oil
		Aft Thusters	2 x 800 bhp	Brine
Year built	1994	Joystick	Robertson Robstick	Dry bulk	340m3
Shipyard	Ulstein Hatlo	DP		Tank Cleaning
Former Names
Comments

TYPE: UT 745 CDL		NAME: MAERSK NEXUS		PHOTO:

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	90.15 m	Engines	2 x MAN B&W	Fuel	552 m3
Breadth	18.8 m	BHP/kW	10445/7680	Pot water	634 m3
DWT	4400 t	For'd Thrusters	1 x 1200 bhp	Mud	822 m3
Deck area	912 m2	Az Thruster	1 x 1200 bhp	Base oil	206 m3
Year built	2010	Aft Thrusters	2 x 800 bhp	Brine	1099 m3
Shipyard	Asenav	Joystick	-	Dry bulk	362 m3
Berths	36	DP II	Yes	Tank Cleaning	-
Previous names	-
Comments	-

TYPE: UT 745		NAME: Maersk Nascopie		PHOTO:

General		Propulsion		Cargo Capacity
Length OA	82.45 m	Engines	2 x Bergen BRM9	Fuel	1093 m3
Breadth	18.8 m	BHP/kW	9464/6960	Pot water	771 m3
DWT	4300 t	For'd Thrusters	1 x 1200 bhp	Mud	663 m3
Deck area	766.1 m2	Az Thruster	1 x 1200 bhp	Base oil
		Aft Thrusters	2 x 800 bhp	Brine
Year built	1996	Joystick		Dry bulk	396 m3
Shipyard	Marystown Canada	DP	Simrad ADP 701	Tank Cleaning
Former Names
Comments

TYPE: UT 745		NAME: Maersk Norseman		PHOTO:

General		Propulsion		Cargo Capacity
Length OA	82.45 m	Engines	2 x Bergen BRM9	Fuel	1093 m3
Breadth	18.8 m	BHP/kW	9464/6960	Pot water	771 m3
DWT	4300 t	For'd Thrusters	1 x 1200 bhp	Mud	663 m3
Deck area	766.1 m2	Az Thruster	1 x 1200 bhp	Base oil
		Aft Thrusters	2 x 800 bhp	Brine
Year built	1996	Joystick		Dry bulk	396 m3
Shipyard	Marystown Canada	DP	Simrad ADP 701	Tank Cleaning
Former Names
Comments

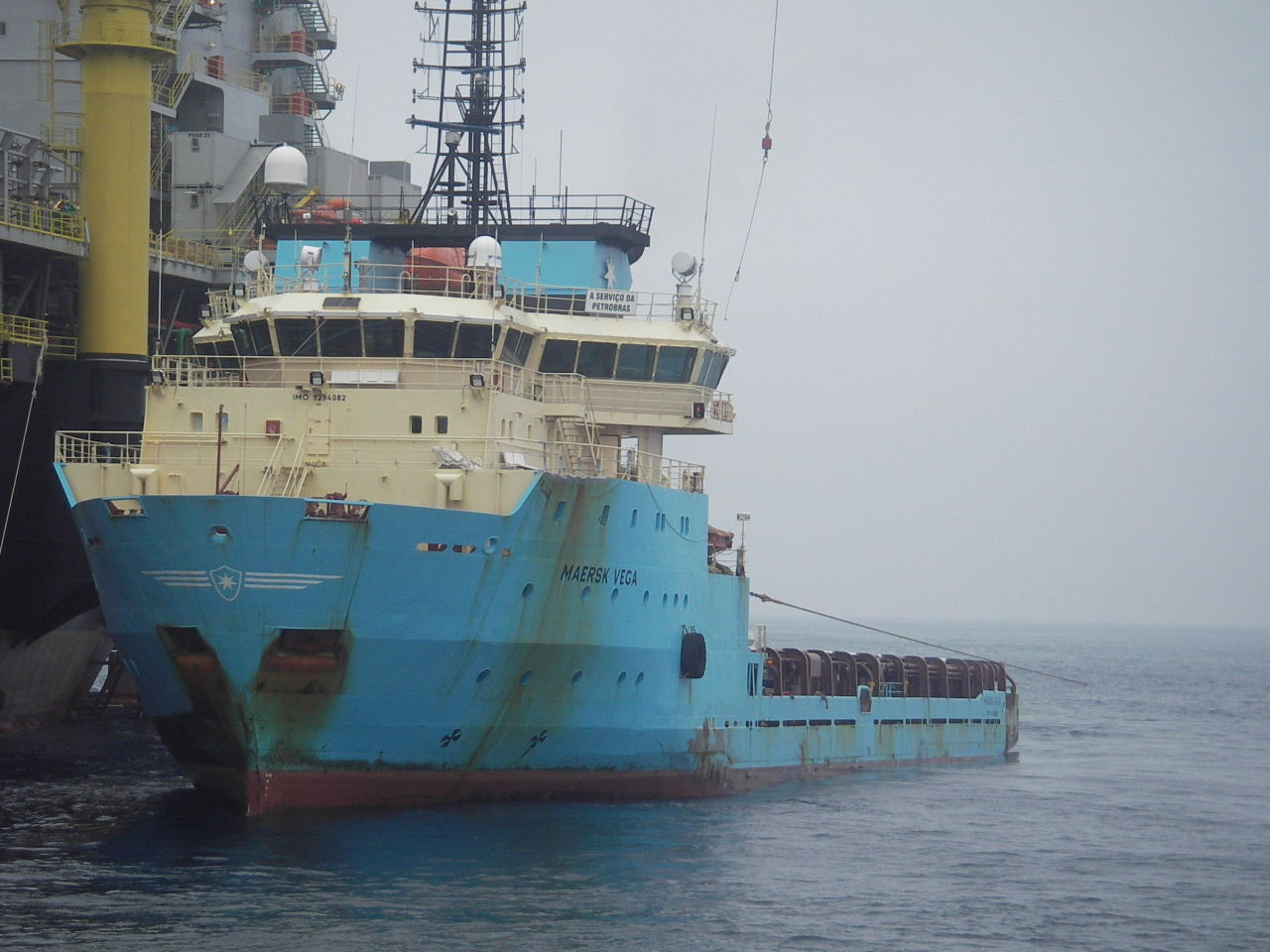

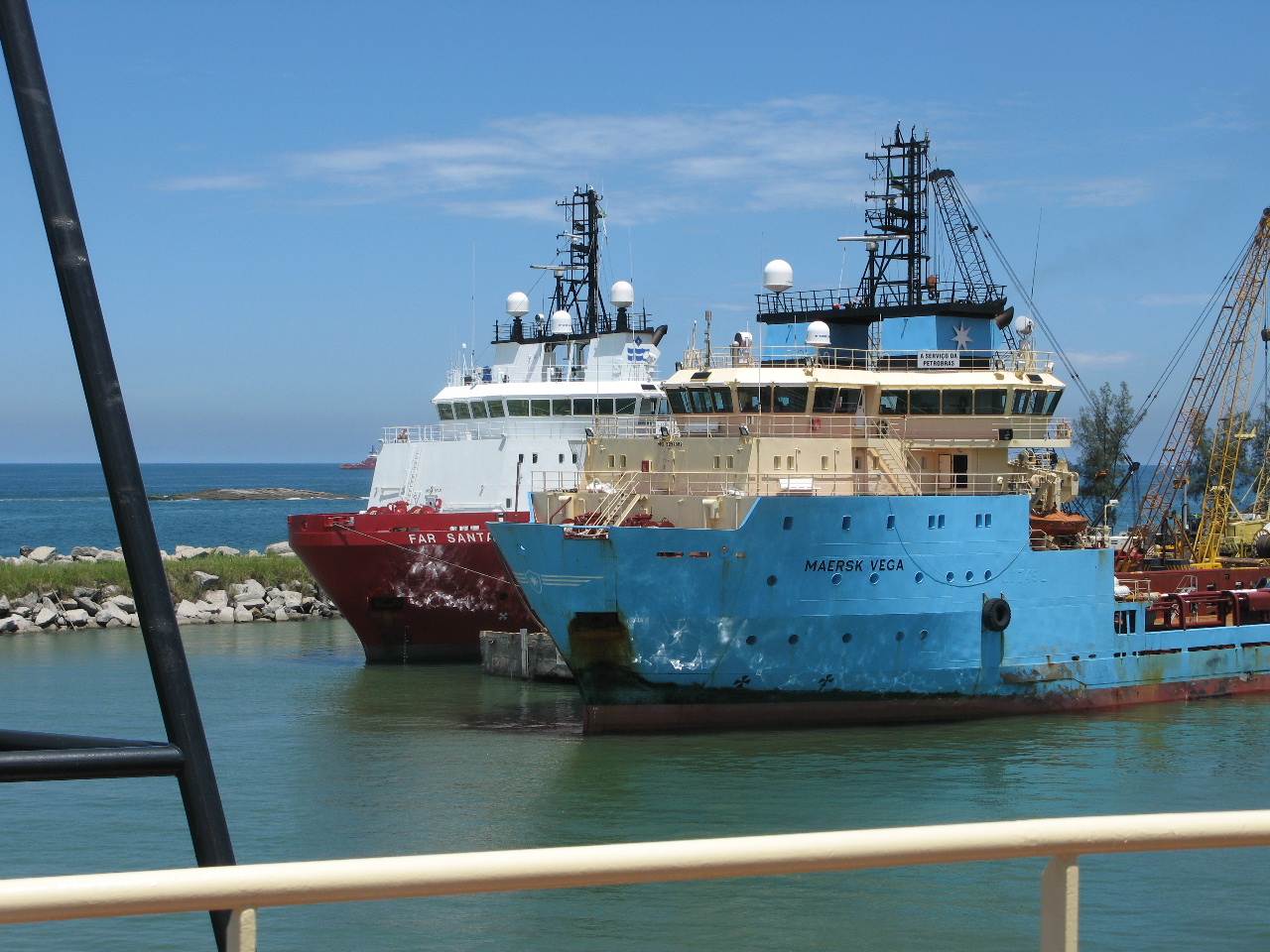

TYPE: UT 745 L		NAME: Maersk Vega		PHOTO: Tony Poll, Torleif Klokset

General		Propulsion		Cargo Capacity
Length OA	89.4 m	Engines	2 x MAK	Fuel	1490 m3
Breadth	18.8 m	BHP/kW	5200/3830	Pot water	1000 m3
DWT	4200 t	For'd Thrusters	1 x 1200 bhp	Mud	619 m3
Deck area	940 m2	Az Thruster	1 x 1200 bhp	Base oil	396 m3
		Aft Thrusters	2 x 900 bhp	Brine	1100 m3
Year built	2005	Joystick		Dry bulk	396 m3
Shipyard	-	DPI	Kongsberg	Tank Cleaning
Former Names
Comments

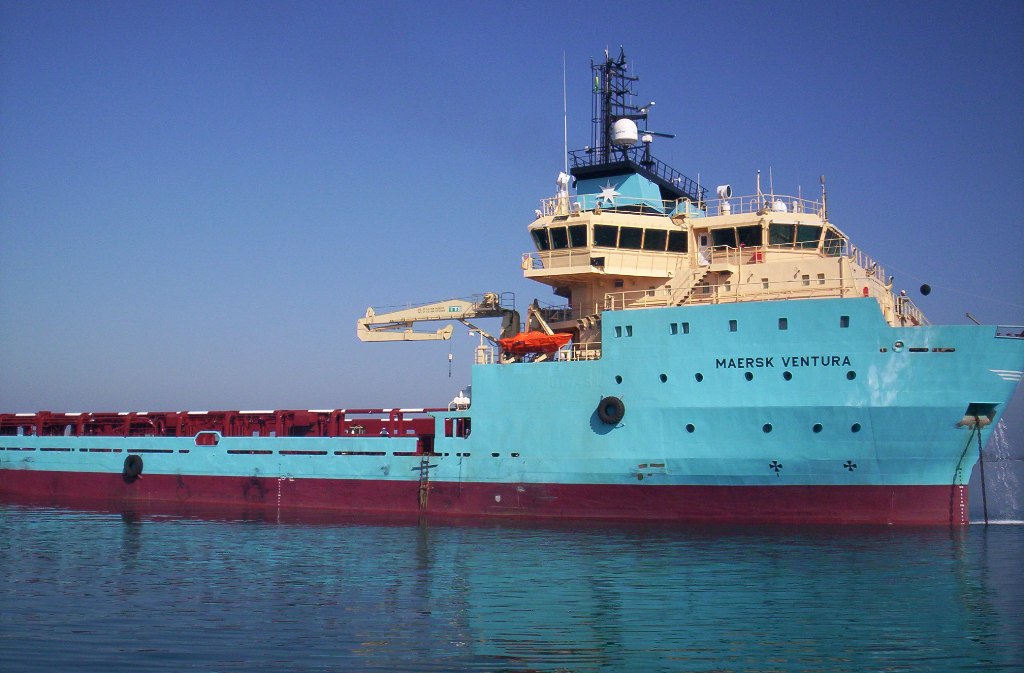

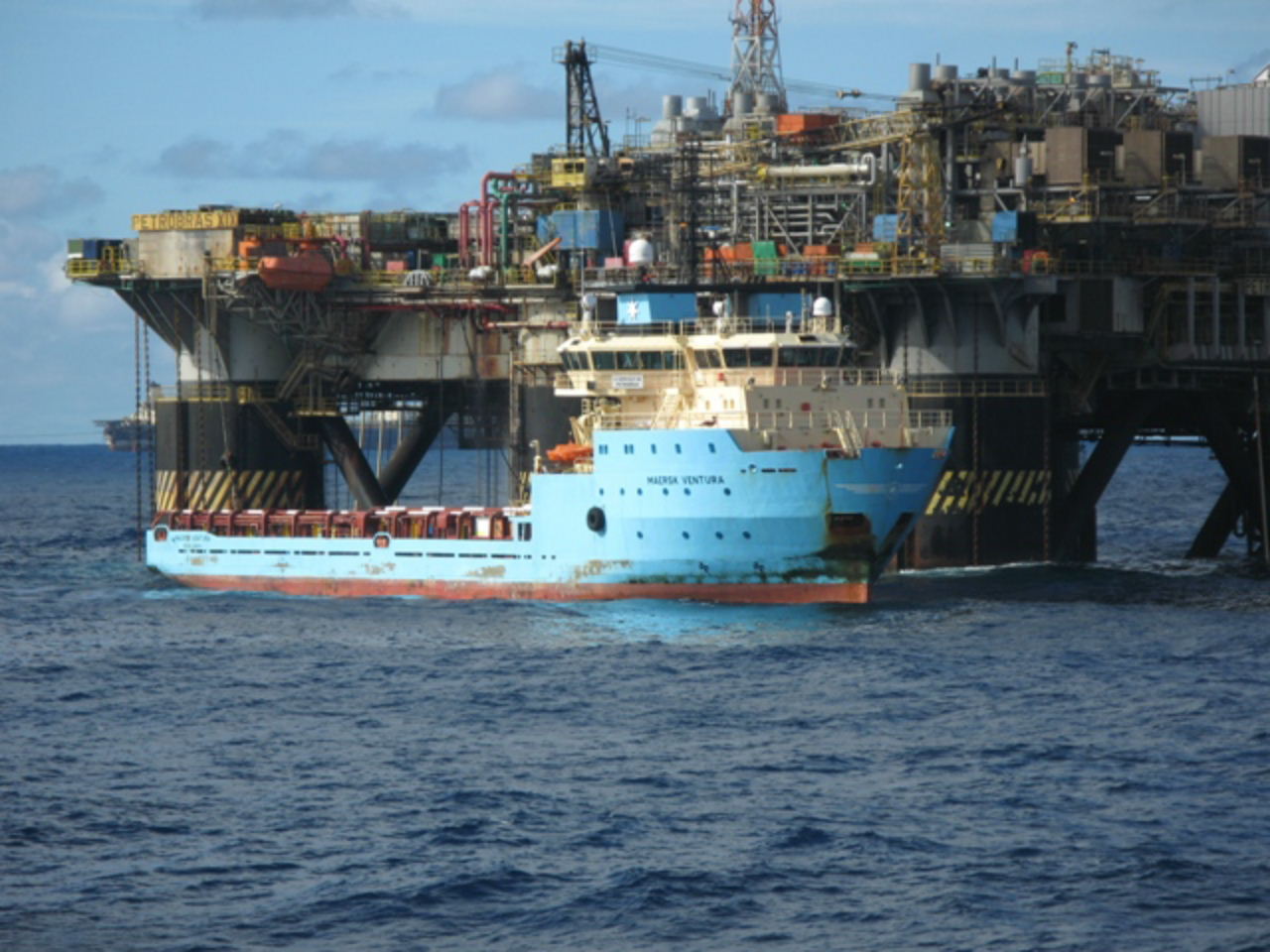

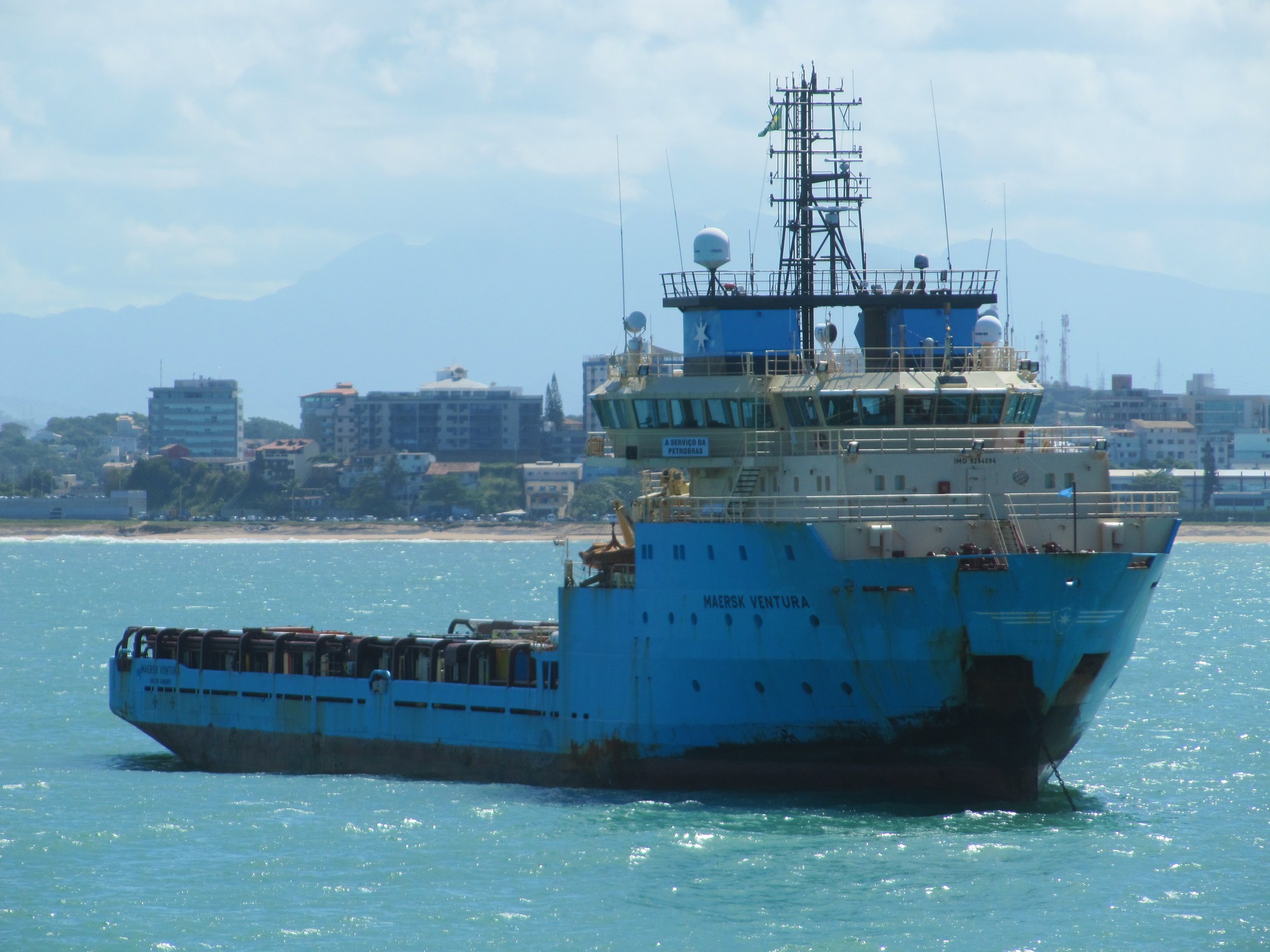

TYPE: UT 745 L		NAME: Maersk Ventura		PHOTO: Tony Poll, Anderson Neves

General		Propulsion		Cargo Capacity
Length OA	89.4 m	Engines	2 x MAK	Fuel	1490 m3
Breadth	18.8 m	BHP/kW	5200/3830	Pot water	1000 m3
DWT	4200 t	For'd Thrusters	1 x 1200 bhp	Mud	619 m3
Deck area	940 m2	Az Thruster	1 x 1200 bhp	Base oil	396 m3
		Aft Thrusters	2 x 900 bhp	Brine	1100 m3
Year built	2006	Joystick		Dry bulk	396 m3
Shipyard	-	DPI	Kongsberg	Tank Cleaning
Former Names
Comments

DISPOSALS

TYPE: KMAR 404 NAME: Maersk Detector PHOTO: Tony Poll

GENERAL

PROPULSION

EQUIPMENT

Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull 300t

Breadth 16.40 m BHP 15000 Capacity 1 2000m x76mm

DWT 2082 mt kW 11060 Capacity 2

Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull 300t

Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1 2000m x76mm

Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2

Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw Karmforks

Brine 581 m3 DP None Cranes 4.5t x 14m

Dry bulk 240 m3 Joystick KaMeWa Tank cleaning None

Year built 1999 Shipyard Kvaerner Leirvik

Previous names

Comments

TYPE: KMAR 404 NAME: Maersk Dispatcher PHOTO: Hans Bosch

GENERAL

PROPULSION

EQUIPMENT

Length OA 73.50 m Engines 2 x Wartsila 12V 32 Workdrum pull 300t

Breadth 16.40 m BHP 15000 Capacity 1 2000m x76mm

DWT 2082 mt kW 11060 Capacity 2

Deck area 654 m2 For'd Thruster 1 x 1000 bhp Towdrum pull 300t

Fuel 742 m3 Az Thruster 1 x 1000 bhp Capacity 1 2000m x76mm

Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2

Mud 616 m3 Bollard pull 180t (Max) Sharks Jaw Karmforks

Brine 581 m3 DP None Cranes 4.5t x 14m

Dry bulk 240 m3 Joystick KaMeWa Tank cleaning None

Year built 1998 Shipyard Kvaerner Kleven

Previous names

Comments

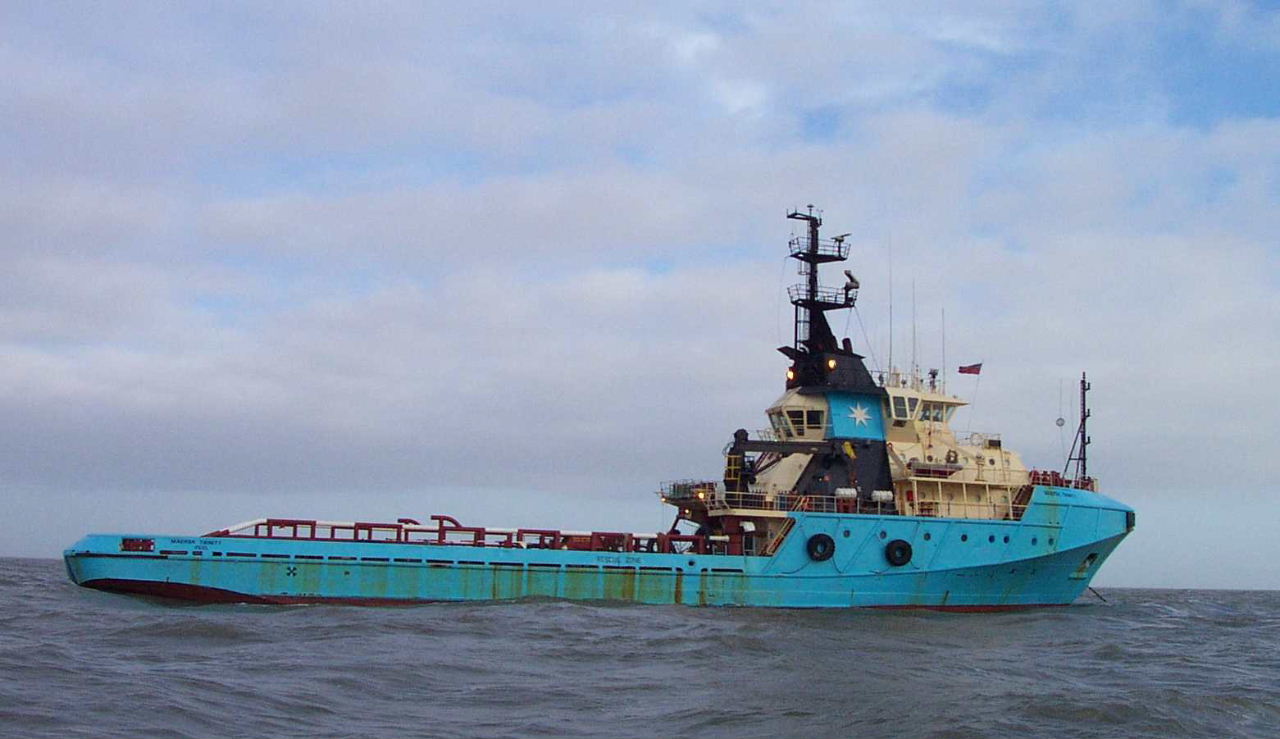

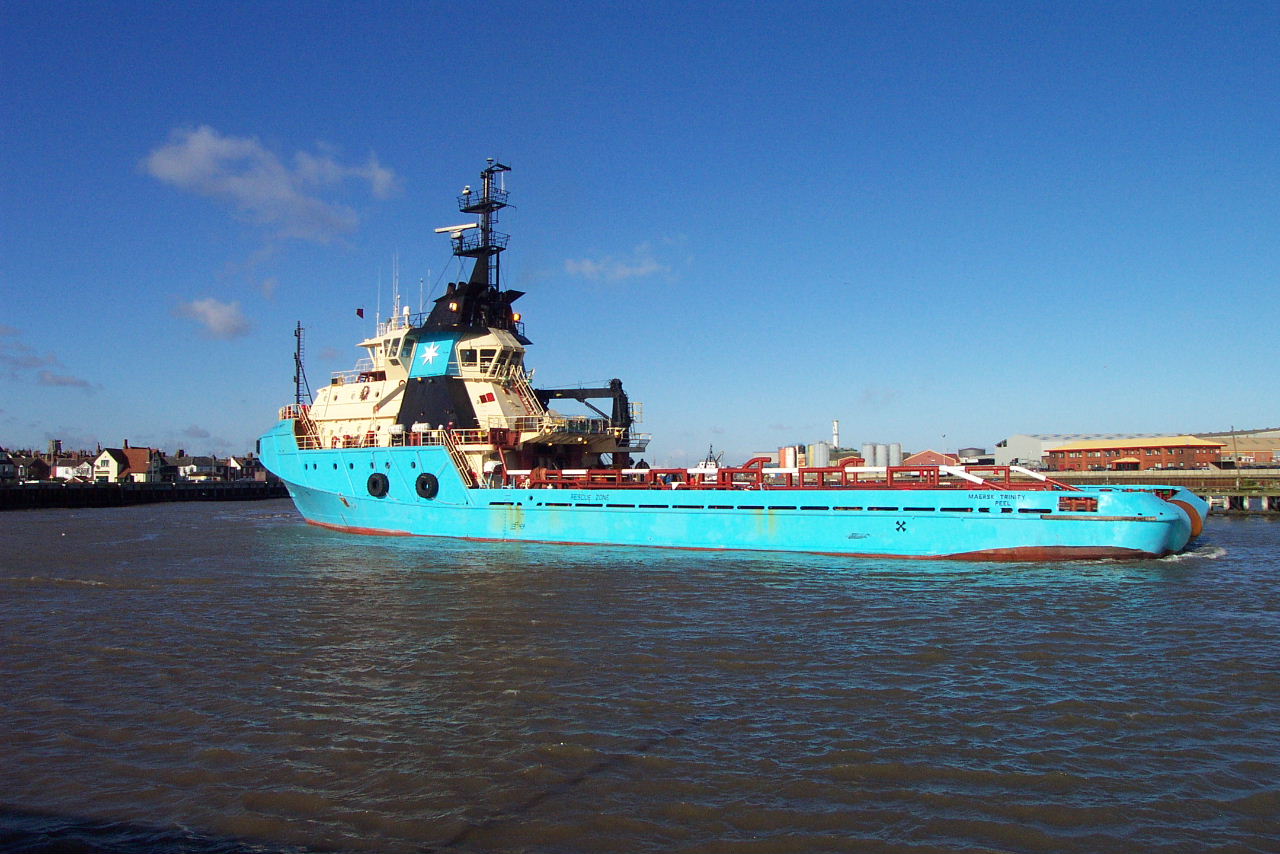

TYPE: HUSKY 83

NAME: Maersk Trinity

PHOTO: Peter Taylor

General Propulsion Deck Equip

Length OA 71.50 m Engines 4 x MAK 6M453 Workdrum pull 275 tonnes pull

Breadth 16.00 m BHP 10880 Capacity 1 800m x 77mm

DWT 2500 tonnes Kw 8000 Capacity 2 800m x 77mm

Deck area 475 m2 For'd Thrusters 2 x 800 bhp Towdrum pull 275 t

Fuel 1008 m3 Az Thruster - Capacity 1 1300m x 77mm

Pot water 640 m3 Aft Thrusters 1 x 800 bhp Capacity 2

Mud 320 m3 Bollard pull 125 tonnes Sharks Jaw Triplex/Karmfork

Base oil 165 m3 DP Cranes

Brine 204 m3 Joystick Kamewa Tank Cleaning -

Dry bulk 276 m3 Year built 1983 Shipyard Hyundai

Former Names Mahone Bay, Maersk Supporter, Maersk Handler

Comments -

TYPE: HUSKY 83

NAME: MAERSK BONAVISTA

PHOTO:

Picture Required

General Propulsion Deck Equip

Length OA 71.50 m Engines 4 x MAK 6M453 Workdrum pull 275 tonnes pull

Breadth 16.00 m BHP 10880 Capacity 1 800m x 77mm

DWT 2500 tonnes Kw 8000 Capacity 2 800m x 77mm

Deck area 475 m2 For'd Thrusters 2 x 800 bhp Towdrum pull 275 t

Fuel 1008 m3 Az Thruster - Capacity 1 1300m x 77mm

Pot water 640 m3 Aft Thrusters 1 x 800 bhp Capacity 2

Mud 320 m3 Bollard pull 125 tonnes Sharks Jaw Triplex/Karmfork

Base oil 165 m3 DP Cranes

Brine 204 m3 Joystick Kamewa Tank Cleaning -

Dry bulk 276 m3 Year built 1983 Shipyard Vito Canada

Former Names Bonavista Bay

Comments

TYPE: HUSKY 83

NAME: MAERSK MAHONE

PHOTO:

Photo Required

General Propulsion Deck Equip

Length OA 71.50 m Engines 4 x MAK 6M453 Workdrum pull 275 tonnes pull

Breadth 16.00 m BHP 10880 Capacity 1 800m x 77mm

DWT 2500 tonnes Kw 8000 Capacity 2 800m x 77mm

Deck area 475 m2 For'd Thrusters 2 x 800 bhp Towdrum pull 275 t

Fuel 1008 m3 Az Thruster - Capacity 1 1300m x 77mm

Pot water 640 m3 Aft Thrusters 1 x 800 bhp Capacity 2

Mud 320 m3 Bollard pull 125 tonnes Sharks Jaw Triplex/Karmfork

Base oil 165 m3 DP Cranes

Brine 204 m3 Joystick Kamewa Tank Cleaning Marex

Dry bulk 276 m3 Year built 1983 Shipyard Vito Canada

Former Names Trinity Bay, Maesk Trinity, Maersk Server, Maersk Helper

Comments Sold to "Glitner"

TYPE: ut 708 NAME: Maersk Terrier PHOTO: Wullie Bremner, Scott Vardy

General Propulsion Deck Equipment

Length OA 68.53m Engines 4 x Bergen KVMB12 Workdrum pull 260 t

Breadth 14.5m BHP 12240 Capacity 1 800m x 77mm

DWT 1505 t kW 9000 Capacity 2 800m x 77mm

Deck area 410.3 m2 For'd Thruster 2 x 800 bhp Towdrum pull 260 t

Fuel 914 m3 Az Thruster Capacity 1 1000m x 77mm

Pot water 382 m3 Aft Thrusters 1 x 800 bhp Capacity 2

Mud Bollard pull 120 t Sharks Jaw Triplex

Base oil DP Cranes

Brine Joystick Ulstein robertson Tank Cleaning

Dry bulk 290m3 Year built 1983 Shipyard Hyundai Korea

Former Names Takapu

Comments These ships were originally FEDNAV vessels and on their arrival in UK in the early 1980s were managed by Star Offshore. When they came up for sale they were bought by Maersk who were at that time buying everything in sight.

TYPE: ut 708 NAME: Maersk Tackler PHOTO:

Picture Required

General Propulsion Deck Equipment

Length OA 68.53m Engines 4 x Bergen KVMB12 Workdrum pull 260 t

Breadth 14.5m BHP 12240 Capacity 1 800m x 77mm

DWT 1505 t kW 9000 Capacity 2 800m x 77mm

Deck area 410.3 m2 For'd Thruster 2 x 800 bhp Towdrum pull 260 t

Fuel 914 m3 Az Thruster Capacity 1 1000m x 77mm

Pot water 382 m3 Aft Thrusters 1 x 800 bhp Capacity 2

Mud Bollard pull 120 t Sharks Jaw Triplex

Base oil DP Cranes

Brine Joystick Ulstein robertson Tank Cleaning

Dry bulk 290m3 Year built 1983 Shipyard Hyundai Korea

Former Names Tawaki

Comments These ships were originally FEDNAV vessels and on their arrival in UK in the early 1980s were managed by Star Offshore. When they came up for sale they were bought by Maersk who were at that time buying everything in sight.

TYPE: ut 708 NAME: Maersk Topper PHOTO: Andrew Woodrow

General Propulsion Deck Equipment

Length OA 68.53m Engines 4 x Bergen KVMB12 Workdrum pull 260 t

Breadth 14.5m BHP 12240 Capacity 1 800m x 77mm

DWT 1505 t kW 9000 Capacity 2 800m x 77mm

Deck area 410.3 m2 For'd Thruster 2 x 800 bhp Towdrum pull 260 t

Fuel 914 m3 Az Thruster Capacity 1 1000m x 77mm

Pot water 382 m3 Aft Thrusters 1 x 800 bhp Capacity 2

Mud Bollard pull 120 t Sharks Jaw Triplex

Base oil DP Cranes

Brine Joystick Ulstein robertson Tank Cleaning

Dry bulk 290m3 Year built 1983 Shipyard Hyundai Korea

Former Names Toanui

Comments These ships were originally FEDNAV vessels and on their arrival in UK in the early 1980s were managed by Star Offshore. When they came up for sale they were bought by Maersk who were at that time buying everything in sight.

TYPE: ut 708 NAME: Maersk Trader PHOTO:

Picture Required

General Propulsion Deck Equipment

Length OA 68.53m Engines 4 x Bergen KVMB12 Workdrum pull 260 t

Breadth 14.5m BHP 12240 Capacity 1 800m x 77mm

DWT 1505 t kW 9000 Capacity 2 800m x 77mm

Deck area 410.3 m2 For'd Thruster 2 x 800 bhp Towdrum pull 260 t

Fuel 914 m3 Az Thruster Capacity 1 1000m x 77mm

Pot water 382 m3 Aft Thrusters 1 x 800 bhp Capacity 2

Mud Bollard pull 120 t Sharks Jaw Triplex

Base oil DP Cranes

Brine Joystick Ulstein robertson Tank Cleaning

Dry bulk 290m3 Year built 1983 Shipyard Hyundai Korea

Former Names Arctic Shiko, Torea

Comments These ships were originally FEDNAV vessels and on their arrival in UK in the early 1980s were managed by Star Offshore. When they came up for sale they were bought by Maersk who were at that time buying everything in sight.

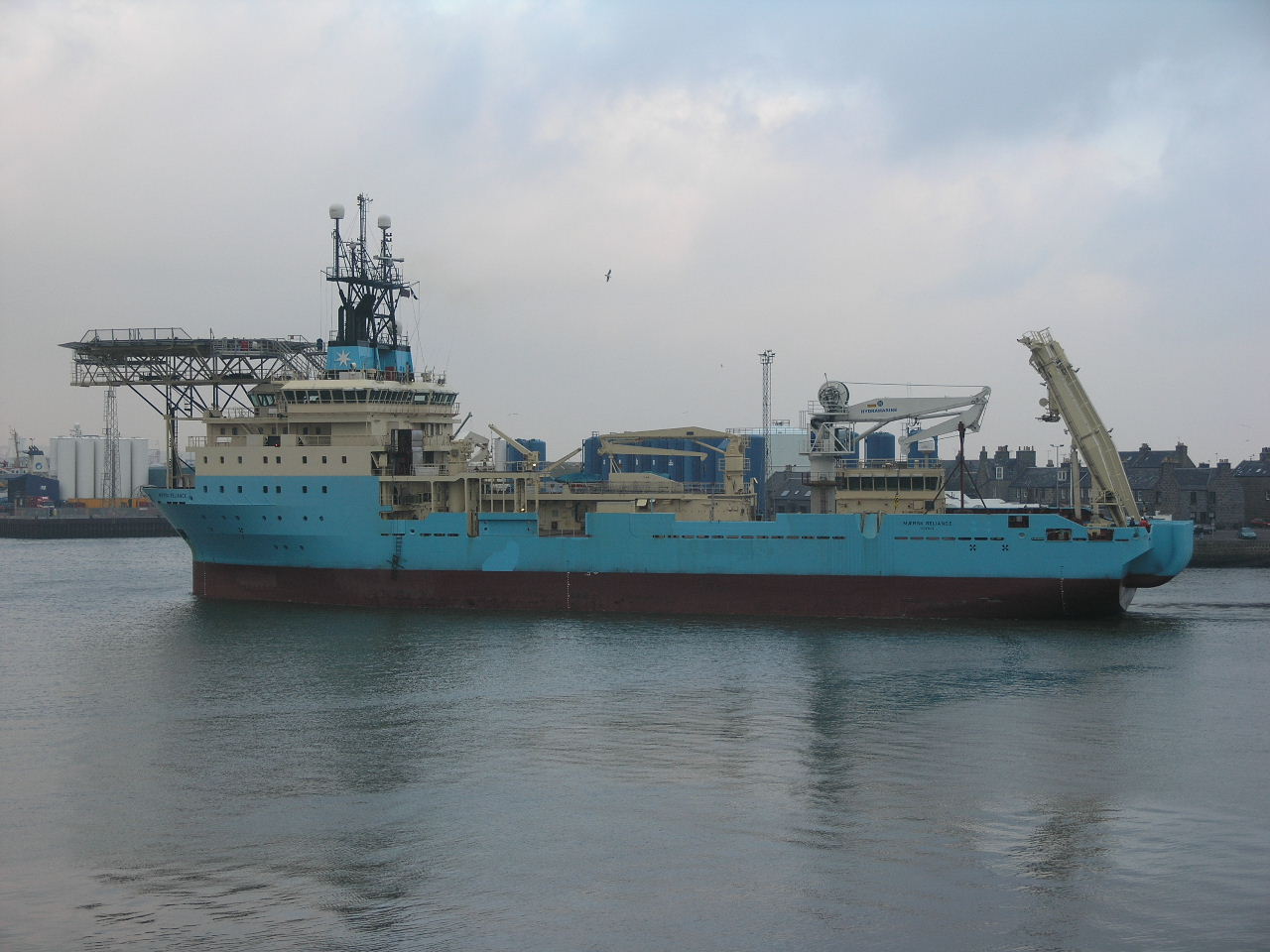

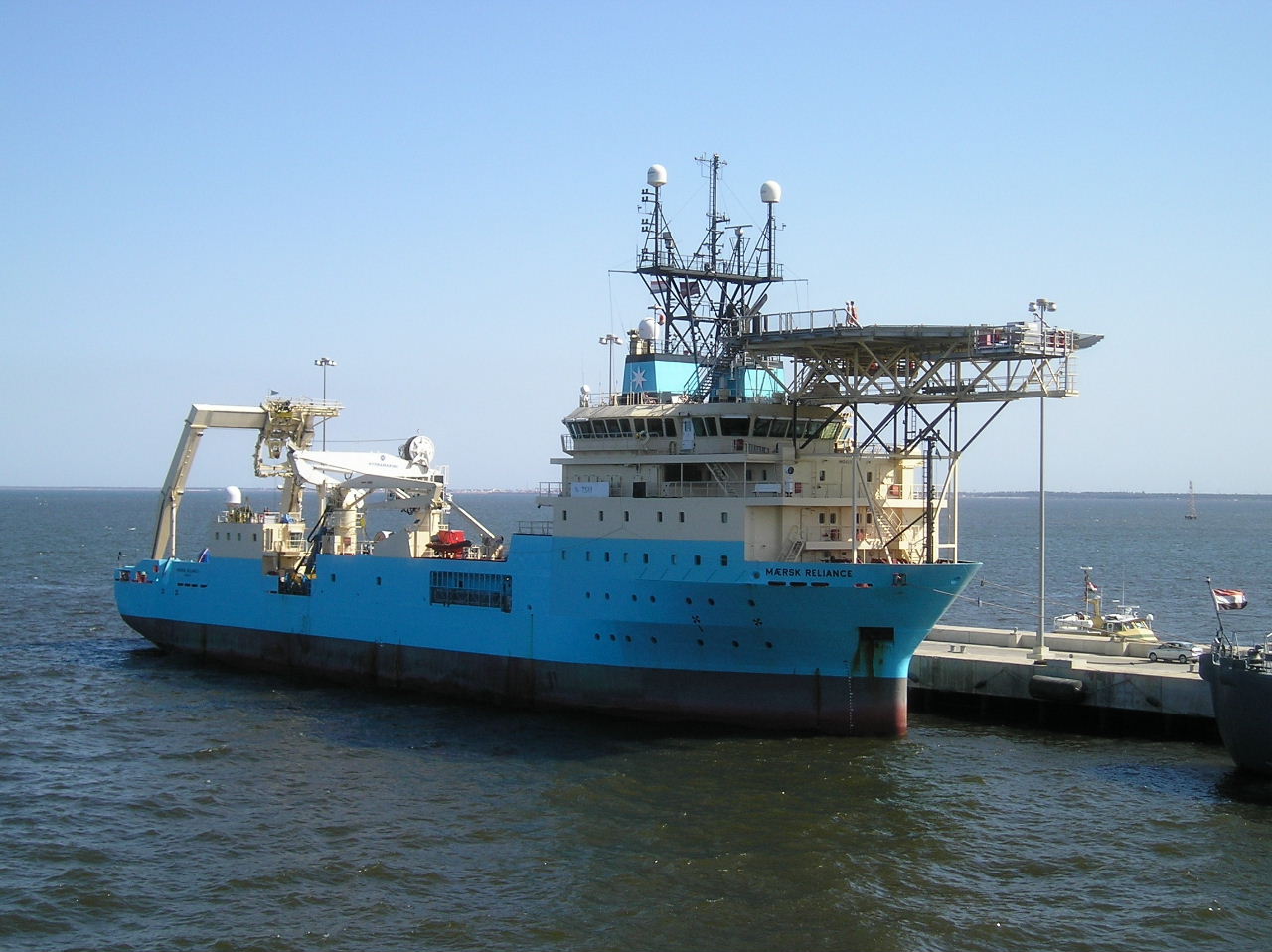

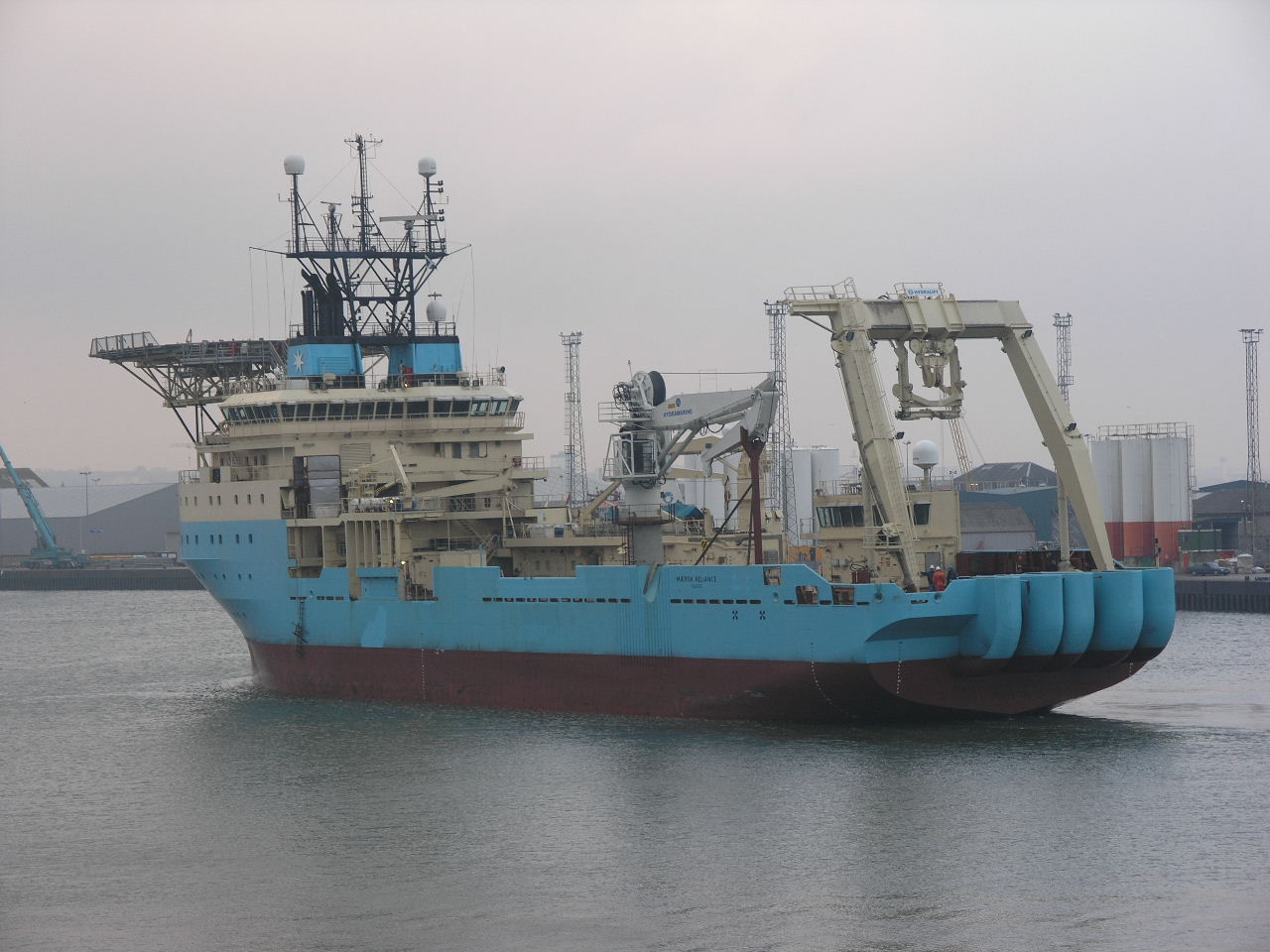

TYPE: MAERSK R TYPE NAME: Maersk Reliance PHOTO: Vic Gibson, Scott Vardy

GENERAL

PROPULSION

EQUIPMENT

Length OA 105.8 m Engines - Workdrum pull -

Breadth 20.0 m BHP 10400 bhp Capacity 1 -

DWT 7970 t kW 7650 Capacity 2 -

Deck area - For'd Thruster 1 x 1360 bhp Accomm berths -

Fuel - Az Thruster 1 x 1500 bhp Storage capacity
-

Pot water - Aft Thusters 2 x 1200 bhp ROV -

Mud - Bollard pull - Diving Capability -

Brine - DP II - Cranes -

Dry bulk - Joystick - Tank cleaning -

Year built 2001 Shipyard -

Previous names -

Comments Sold to a cable company in the Far East

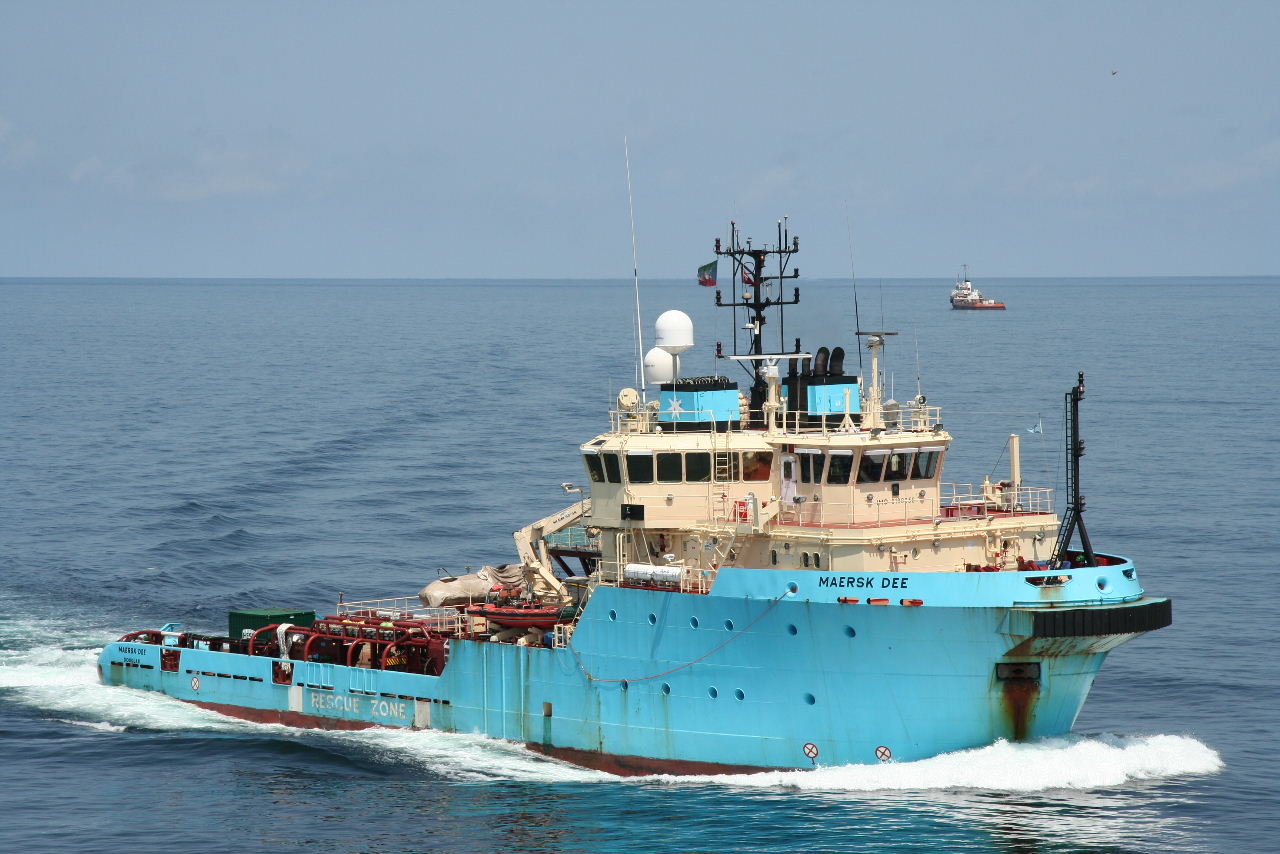

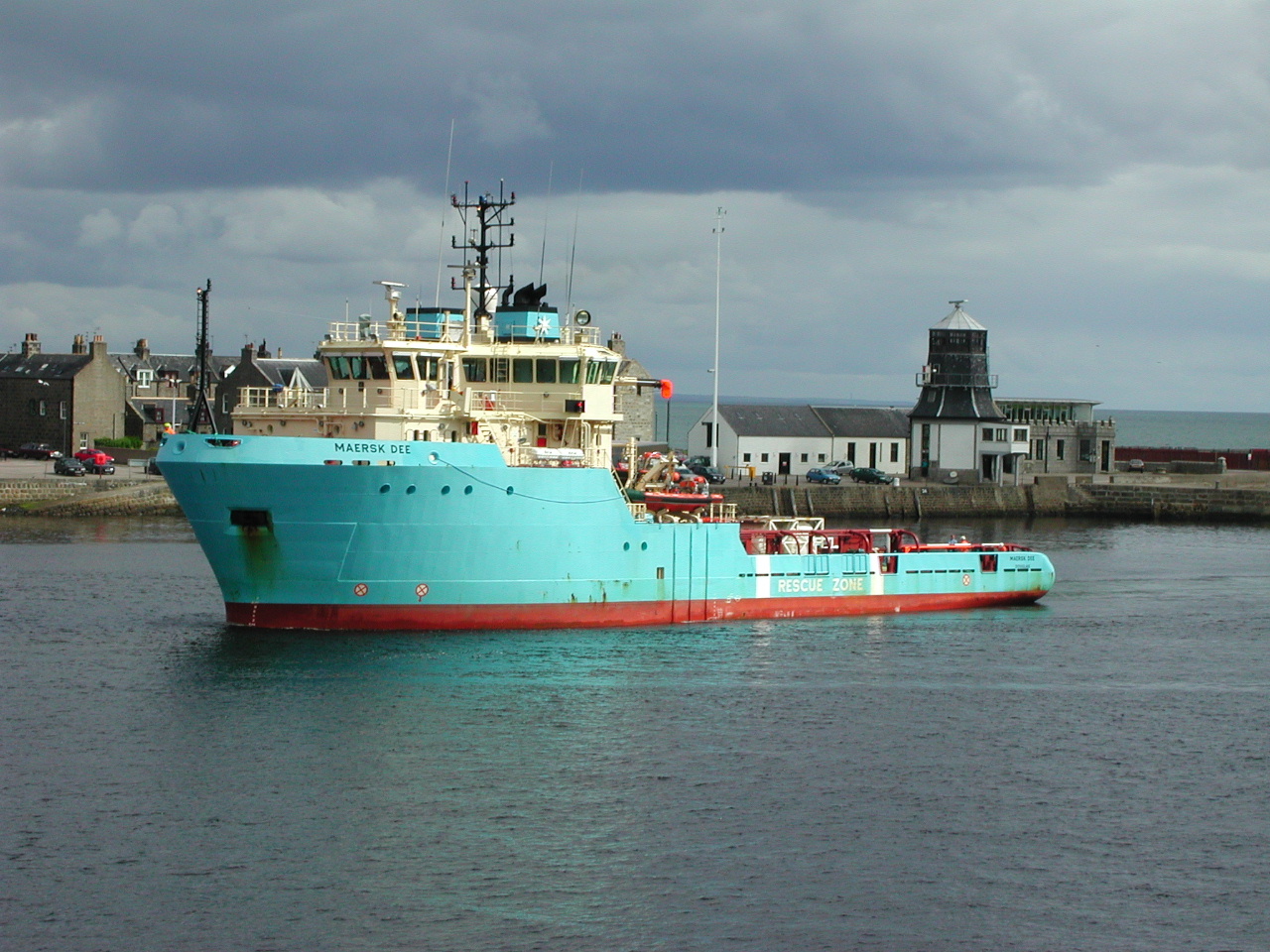

type: MAERSK D name: Maersk Dee PHOTO: Bob Smith, Vic Gibson, Jan Plug

General Propulsion Cargo Capacity

Length OA 56.64m Engines MAK Fuel

Breadth 14.6m BHP Pot water

DWT 1637t For'd Thrusters 2 Mud

Deck area Aft Thrusters 1 Base oil

Joystick Brine

Year built 2000 DP Dry bulk

Shipyard Odense Tank Cleaning

Previous Names

Comments

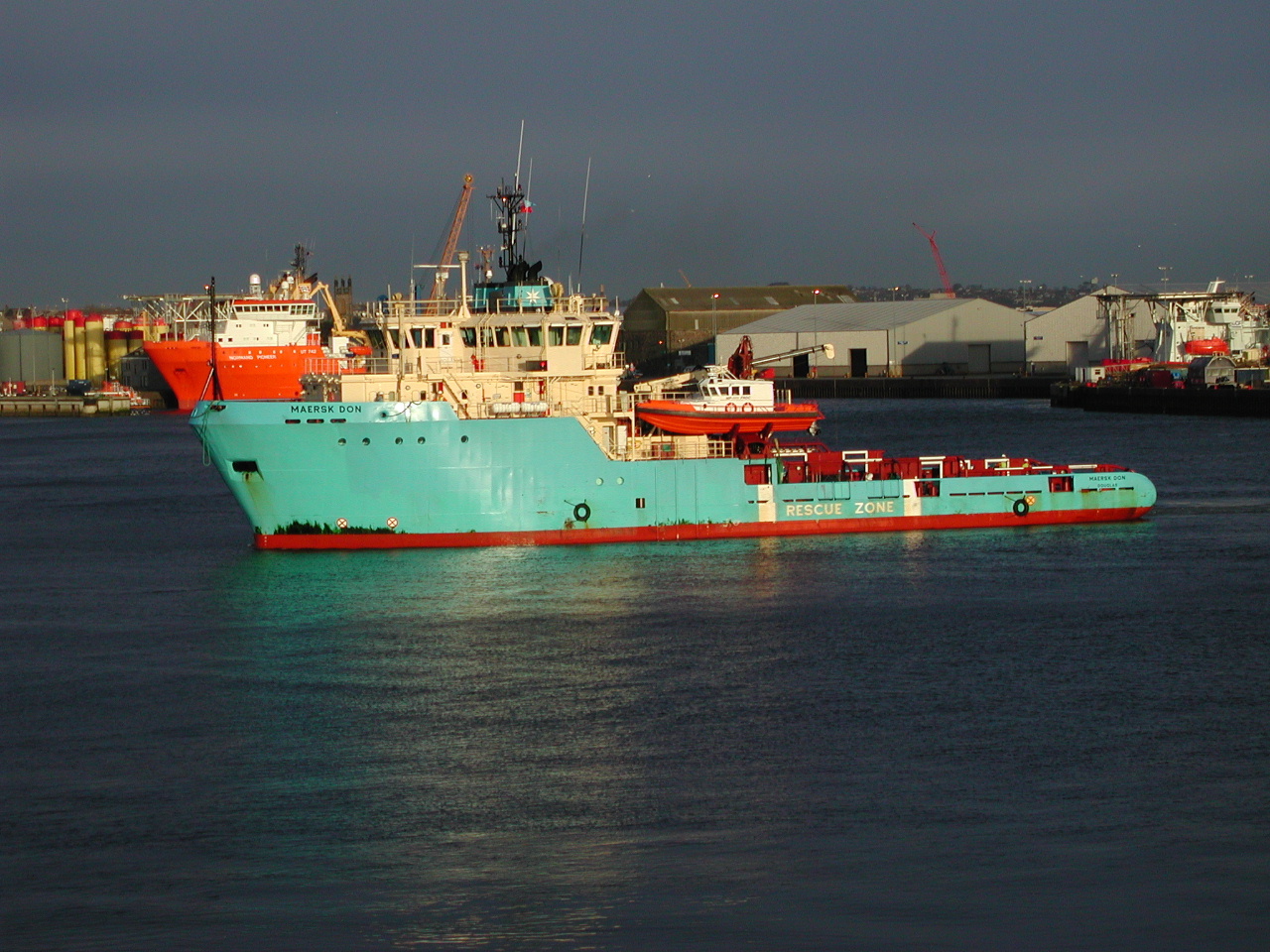

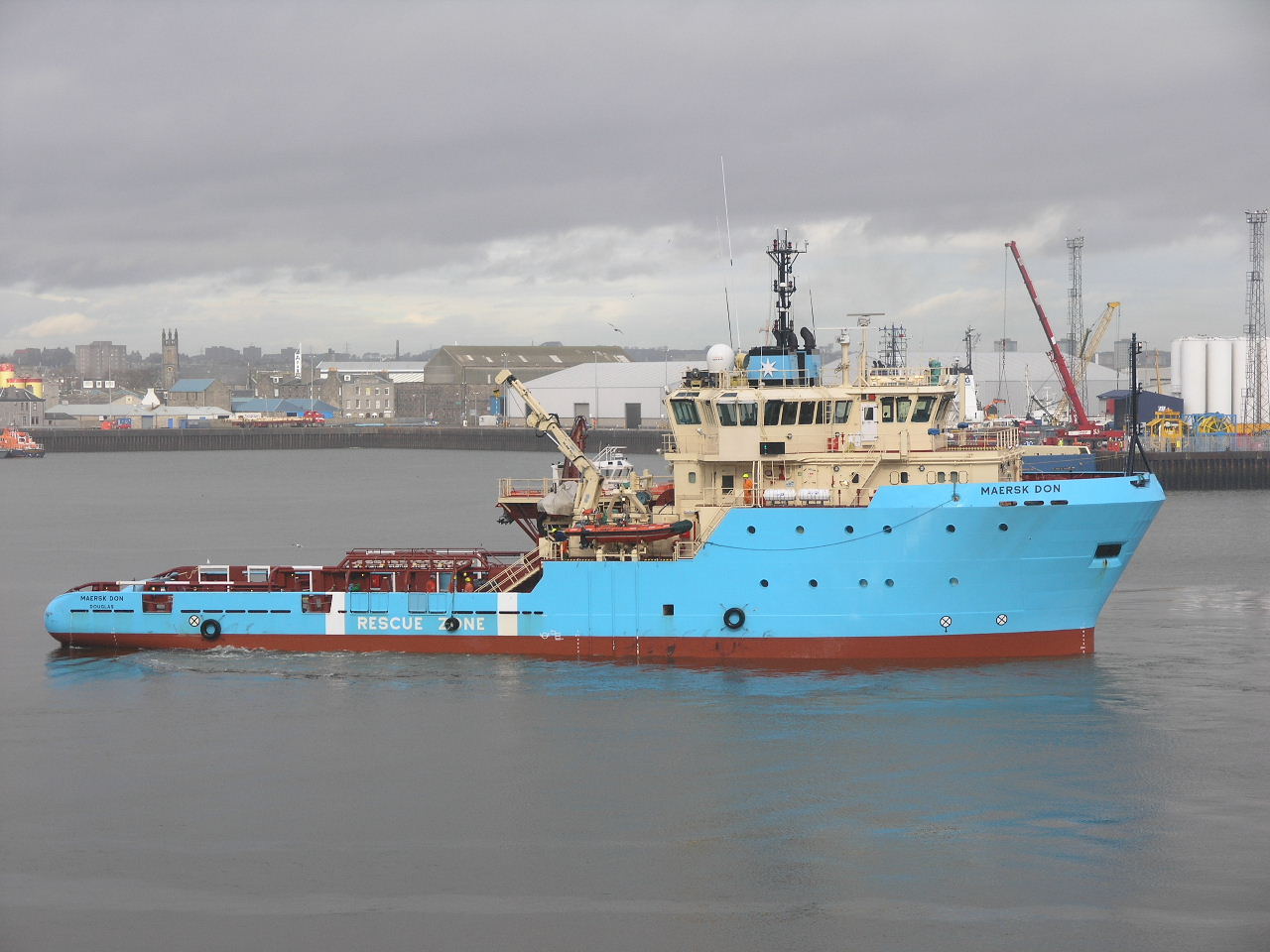

type: MAERSK D name: Maersk Don PHOTO: Vic Gibson

General Propulsion Cargo Capacity

Length OA 56.64m Engines MAK Fuel

Breadth 14.6m BHP Pot water

DWT 1637t For'd Thrusters 2 Mud

Deck area Aft Thrusters 1 Base oil

Joystick Brine

Year built 2000 DP Dry bulk

Shipyard Odense Tank Cleaning

Previous Names

Comments

TYPE: Maersk L Type NAME: Maersk Leader PHOTO: Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 69.7 m Engines 2 x MAK 8M35 Workdrum pull 250 t

Breadth 15.9 m BHP 12000 Capacity 1 1000m x 72mm

DWT 2499 t kW 8820 Capacity 2 -

Deck area 390 m2 For'd Thruster 2 x 600 bhp Towdrum pull 250 t

Fuel 670 m3 Az Thruster - Capacity 1 1000m x 72mm

Pot water 325 m3 Aft Thrusters 1 x 600 bhp Capacity 2 -

Mud 577 m3 Bollard pull 140 t Sharks Jaw Triplex

Brine 247 m3 DP - Cranes -

Dry bulk 360 m3 Joystick - Tank cleaning -

Year built 1987 Shipyard Patje

Previous names -

Comments Sold to ITC

TYPE: Maersk L Type NAME: Maersk Lifter PHOTO: Vic Gibson

GENERAL

PROPULSION

EQUIPMENT

Length OA 69.7 m Engines 2 x MAK 8M35 Workdrum pull 250 t

Breadth 15.9 m BHP 12000 Capacity 1 1000m x 72mm

DWT 2499 t kW 8820 Capacity 2 -

Deck area 390 m2 For'd Thruster 2 x 600 bhp Towdrum pull 250 t

Fuel 670 m3 Az Thruster - Capacity 1 1000m x 72mm

Pot water 325 m3 Aft Thrusters 1 x 600 bhp Capacity 2 -

Mud 577 m3 Bollard pull 140 t Sharks Jaw Triplex

Brine 247 m3 DP - Cranes -

Dry bulk 360 m3 Joystick - Tank cleaning -

Year built 1987 Shipyard Patje

Previous names -

Comments Sold to ITC

TYPE: Maersk L Type NAME: Maersk Launcher PHOTO: Wim Kosten

GENERAL

PROPULSION

EQUIPMENT

Length OA 69.7 m Engines 2 x MAK 8M35 Workdrum pull 250 t

Breadth 15.9 m BHP 12000 Capacity 1 1000m x 72mm

DWT 2499 t kW 8820 Capacity 2 -

Deck area 390 m2 For'd Thruster 2 x 600 bhp Towdrum pull 250 t

Fuel 670 m3 Az Thruster - Capacity 1 1000m x 72mm

Pot water 325 m3 Aft Thrusters 1 x 600 bhp Capacity 2 -

Mud 577 m3 Bollard pull 140 t Sharks Jaw Triplex

Brine 247 m3 DP - Cranes -

Dry bulk 360 m3 Joystick - Tank cleaning -

Year built 1988 Shipyard Patje

Previous names -

Comments Sold to ITC

TYPE: Maersk L Type NAME: Maersk Logger PHOTO: Tony Poll

GENERAL

PROPULSION

EQUIPMENT

Length OA 69.7 m Engines 2 x MAK 8M35 Workdrum pull 250 t

Breadth 15.9 m BHP 12000 Capacity 1 1000m x 72mm

DWT 2499 t kW 8820 Capacity 2 -

Deck area 390 m2 For'd Thruster 2 x 600 bhp Towdrum pull 250 t

Fuel 670 m3 Az Thruster - Capacity 1 1000m x 72mm

Pot water 325 m3 Aft Thrusters 1 x 600 bhp Capacity 2 -

Mud 577 m3 Bollard pull 140 t Sharks Jaw Triplex

Brine 247 m3 DP - Cranes -

Dry bulk 360 m3 Joystick - Tank cleaning -

Year built 1987 Shipyard Patje

Previous names -

Comments Sold to Klyne Tugs

TYPE: MAERSK R (L)

NAME: MAERSK RIDER

PHOTO:

General Propulsion Deck EquipMENT

Length OA 67.11 m Engines 4 x MAK 8M453AK Workdrum pull 260 t

Breadth 15.51 m BHP 14400 Capacity 1 1300m x 76mm

DWT 1930 t kW 10588 Capacity 2 1300m x 76mm

Deck area 462.5 m2 For'd Thruster 2 x 600 bhp Towdrum pull 260 t

Fuel 798 m3 Az Thruster 1 x 1080 bhp Capacity 1 1300m x 76mm

Pot water 419 m3 Aft Thrusters 1 x 800 bhp Capacity 2

Mud 290 m3 Bollard pull 151 t Sharks Jaw 2 x Triplex

Base oil 223 m3 DP Cranes

Brine Joystick Nautronix Tank Cleaning

Dry bulk 208m3 Year built 1982 Shipyard Odense Denmark

Former Names -

Comments -

TYPE: MAERSK C Type		NAME: Maersk Clipper		PHOTO:

General		Propulsion		Deck Equip
Length OA	69.2 m	Engines	MAK4 8M 453 AK	Workdrum pull	250 t
Breadth	15.51 m	BHP	14400	Capacity 1	1200m x 77mm
DWT	2085 t	kW	10600	Capacity 2	1200m x 77mm
Deck area	434 m2	For'd Thruster	2 x 800 bhp	Towdrum pull	250 t
Fuel	953 m3	Az Thruster		Capacity 1	1200m x 77mm
Pot water	350 m3	Aft Thrusters	2 x 800 bhp	Capacity 2
Mud	269 m3	Bollard pull	161t	Sharks Jaw
Base oil		DP		Cranes
Brine		Joystick	KaMeWa	Tank Cleaning	None
Dry bulk	174 m3	Year built	1983	Shipyard	Dannebrog
Former Names
Comments	Gone to the breakers in 2013

TYPE: MAERSK C Type		NAME: Maersk Cutter		PHOTO: Tony Poll

General		Propulsion		Deck Equip
Length OA	69.2 m	Engines	MAK4 8M 453 AK	Workdrum pull	250 t
Breadth	15.51 m	BHP	14400	Capacity 1	1200m x 77mm
DWT	2085 t	kW	10600	Capacity 2	1200m x 77mm
Deck area	434 m2	For'd Thruster	2 x 800 bhp	Towdrum pull	250 t
Fuel	953 m3	Az Thruster		Capacity 1	1200m x 77mm
Pot water	350 m3	Aft Thrusters	2 x 800 bhp	Capacity 2
Mud	269 m3	Bollard pull	161t	Sharks Jaw
Base oil		DP		Cranes
Brine		Joystick	KaMeWa	Tank Cleaning	None
Dry bulk	174 m3	Year built	1983	Shipyard	Dannebrog
Former Names
Comments	Gone to the breakers in 2013.

TYPE: VS 476		NAME: Maersk Chieftain		PHOTO: Torleif Klokset, Tony Poll

General		Propulsion		Deck Equip
Length OA	76.4 m	Engines	4 x B&W Alpha	Workdrum pull	300t
Breadth	17.61 m	BHP	14400	Capacity 1	1200m x 74mm
DWT	2440 t	kW	10600	Capacity 2
Deck area	633 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	350t
Fuel	1398 m3	Az Thruster		Capacity 1	1400m x 64mm
Pot water	508 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	1400m x 64mm
Mud	618 m3	Bollard pull	160 tonnes	Sharks Jaw
Base oil	213 m3	DP		Cranes
Brine	619 m3	Joystick	Robertson	Tank Cleaning	None
Dry bulk	284m3	Year built	1985	Shipyard	Orskov
Former Names	Storfonn, Oil Chieftain
Comments	These vessels were all built at Orskov and spent some time bareboated to OIL, but at the end of the contract period they were purchased by Maersk. Sold to Blue Star Line in 2013, renamed Blue Antares.

TYPE: MAERSK M		NAME: Maersk Master		PHOTO: Vic Gibson, Tony Poll

General		Propulsion		Deck Equipment
Length OA	82 m	Engines	3 x MAK 8M35AK	Workdrum pull	300 t
Breadth	18.4 m	BHP	16200	Capacity 1	3300m x 77mm
DWT	2395 m	kW	11912	Capacity 2	3300m x 77mm
Deck area	518 m2	For'd Thruster	2 x 1000 bhp	Towdrum pull	300 t
Fuel	1074 m3	Az Thruster		Capacity 1	1900m x 77mm
Pot water	527 m3	Aft Thrusters	2 x 2720 bhp az	Capacity 2	1900m x 77mm
Mud	440 m3	Bollard pull	161t	Sharks Jaw	Triplex
Base oil	440 m3	DP	Kongsberg DP100	Cranes	1 x 5.3 t
Brine	240 m3	Joystick	KaMeWa	Tank Cleaning
Dry bulk	362 m3	Year built	1986	Shipyard	Odense
Former Names	-
Comments	As can be seen from the photograph they incorporate a number of unusual features the most prominent of which is a hatch forward of the accommodation. It is probable that the hatch was intended to take deck load from semi-submersibles prior to rig moves, the ships would then carry out the move, and then give the cargo back. However time passes and during the gestation period for the design most semi-submersibles in the North Sea had been modified to be able to keep nearly all their cargo on board during rig moves, and so apparently the hatches are not used much. These ships have a single large screw and two smaller azimuthing thrusters aft, which is the best theoretical configuration for achieving manoeuvrability and bollard pull. This ship apparently sold to a Nigerian Company Butler - renamed Butler Favour.

TYPE: MAERSK R (S)		NAME: Maersk Retriever		PHOTO: Torleif Klokset

General		Propulsion		Deck EquipMENT
Length OA	67.11 m	Engines	4 x MAK	Workdrum pull	260 t
Breadth	15.51 m	BHP	13000	Capacity 1	1300m x 76mm
DWT	1930 t	kW	9560	Capacity 2	1300m x 76mm
Deck area	462.5 m2	For'd Thruster	2 x 600 bhp	Towdrum pull	260 t
Fuel	850 m3	Az Thruster	1 x 1080 bhp	Capacity 1	1200m x 76mm
Pot water	396 m3	Aft Thrusters	1 x 800 bhp	Capacity 2
Mud	202 m3	Bollard pull	140 t	Sharks Jaw	2 x Triplex
Base oil	113 m3	DP		Cranes
Brine	135 m3	Joystick	Nautronix	Tank Cleaning
Dry bulk	282 m3	Year built	1979	Shipyard	Odense Denmark
Former Names	-
Comments	Sold to JD Crafts in December 2012. Renamed Retriever.

TYPE: HUSKY 83		NAME: Maersk Gabarus		PHOTO: Hugh Dunlop

General		Propulsion		Deck Equip
Length OA	71.50 m	Engines	4 x MAK 6M453	Workdrum pull	275 tonnes pull
Breadth	16.00 m	BHP	10880	Capacity 1	800m x 77mm
DWT	2500 tonnes	Kw	8000	Capacity 2	800m x 77mm
Deck area	475 m2	For'd Thrusters	2 x 800 bhp	Towdrum pull	275 t
Fuel	1008 m3	Az Thruster	-	Capacity 1	1300m x 77mm
Pot water	640 m3	Aft Thrusters	1 x 800 bhp	Capacity 2
Mud	320 m3	Bollard pull	125 tonnes	Sharks Jaw	Triplex/Karmfork
Base oil	165 m3	DP		Cranes
Brine	204 m3	Joystick	Kamewa	Tank Cleaning	-
Dry bulk	276 m3	Year built	1983	Shipyard	Hyundai
Former Names	Gabarus Bay
Comments	In October 2014 this ship which may be the subject of one of the most iconic photos ever of a supply ship, went to the breakers.

TYPE: UT 745		NAME: Maersk Fetcher		PHOTO: George Craigen, Udo Herkenrath

General		Propulsion		Cargo Capacity
Length OA	82.5m	Engines	2 x Bergen KVMB12	Fuel	1030m3
Breadth	18.85m	BHP/Kw	7200/5300	Pot water	792m3
DWT	4650t	For'd Thrusters	2 x 1200 bhp	Mud	657m3
Deck area	964.96m2	Az Thrusters	-	Base oil
		Aft Thusters	2 x 800 bhp	Brine
Year built	1995	Joystick	Robertson Robstick	Dry bulk	340m3
Shipyard	Ulstein Hatlo	DP		Tank Cleaning
Former Names
Comments	This ship sold in October 2014 to a Chinese company and renamed Han Ji 2.

TYPE: MAERSK M		NAME: Maersk Mariner		PHOTO: Jan Plug, Cesar Neves

General		Propulsion		Deck Equipment
Length OA	82 m	Engines	3 x MAK 8M35AK	Workdrum pull	300 t
Breadth	18.4 m	BHP	16200	Capacity 1	3300m x 77mm
DWT	2395 m	kW	11912	Capacity 2	3300m x 77mm
Deck area	518 m2	For'd Thruster	2 x 1000 bhp	Towdrum pull	300 t
Fuel	1074 m3	Az Thruster		Capacity 1	1900m x 77mm
Pot water	527 m3	Aft Thrusters	2 x 2720 bhp az	Capacity 2	1900m x 77mm
Mud	440 m3	Bollard pull	161t	Sharks Jaw	Triplex
Base oil	440 m3	DP	Kongsberg DP100	Cranes	1 x 5.3 t
Brine	240 m3	Joystick	KaMeWa	Tank Cleaning
Dry bulk	362 m3	Year built	1986	Shipyard	Odense
Former Names	-
Comments	As can be seen from the photograph they incorporate a number of unusual features the most prominent of which is a hatch forward of the accommodation. It is probable that the hatch was intended to take deck load from semi-submersibles prior to rig moves, the ships would then carry out the move, and then give the cargo back. However time passes and during the gestation period for the design most semi-submersibles in the North Sea had been modified to be able to keep nearly all their cargo on board during rig moves, and so apparently the hatches are not used much. These ships have a single large screw and two smaller azimuthing thrusters aft, which is the best theoretical configuration for achieving manoeuvrability and bollard pull. In January 2015 this ship went to the breakers.

TYPE: VS 476		NAME: Maersk Challenger		PHOTO: Vic Gibson, George Craigen, Holger Ketschau

General		Propulsion		Deck Equip
Length OA	76.4 m	Engines	4 x B&W Alpha	Workdrum pull	300t
Breadth	17.61 m	BHP	14400	Capacity 1	1200m x 74mm
DWT	2440 t	kW	10600	Capacity 2
Deck area	633 m2	For'd Thruster	2 x 1200 bhp	Towdrum pull	350t
Fuel	1398 m3	Az Thruster		Capacity 1	1400m x 64mm
Pot water	508 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	1400m x 64mm
Mud	618 m3	Bollard pull	160 tonnes	Sharks Jaw
Base oil	213 m3	DP	Kongsberg Simrad	Cranes
Brine	619 m3	Joystick	Robertson	Tank Cleaning	None
Dry bulk	284m3	Year built	1986	Shipyard	Orskov
Former Names	Oil Challenger, Challenger III
Comments	These vessels were all built at Orskov and spent some time bareboated to OIL, but at the end of the contract period they were purchased by Maersk.

SHIPPING COMPANY INFORMATION UPDATED IN 2014

Abeille Bourbon
Acergy
Acomarit
Active Offshore
Aker Solutions
Allseas
ALP Maritime
Arctia Shipping
Arendal Offshore
Aries Offshore
Arktikmor
Atlantic Offshore
Axis Offshore
Bergen Offshore
Bibby Offshore
Blue Star Line
Boa Offshore
Boston Putford
Bourbon Norway
Bourbon Offshore
BP
Branding Offshore
British Antarctic Survey (New)
Brovig Offshore
BUE Marine
BUE Viking
Bukser og Bergung
Deep Sea Supply
Deepocean
DOF
DOF Subsea
Eide Offshore
Eidesvik
ER Schiffahrt
Esvagt
Fairmount
Fairplay Towage
Farstad
Femco Management
FS Shipping
Fugro
Gardline
Geoships
Golden Energy
GulfOffshore Norg
Gulf Offshore UK
Hanzevast Capital
Harms Bergung
Harrisons
Hartmann Offshore
Havila Shipping
Heerema
Irish Mainport
Island Offshore
JPKnight
K Line Offshore
Maersk Supply
Marine Carrier AB
Marine Subsea
Myklebusthaug
Chornomornaftogaz
NAO
N-Sea
Nomis
Nordic American
Nordane Shipping
North Sea Shipping
North Star
O.H.Meling
OIL
Olympic Shipping
OOC
OSA
Ostenjo Rederi
PetroBaltic
Portosalvo
Rem Offshore
Remoy Managment
Rovde Shipping
SBS
SeaMar Shipping
Sealion
Seaworx
Siem Offshore
Simon Mokster
Smit Lloyd
Smitwijs
SMS
Solstad
Subsea7
Stirling
Surf
Technip
Trico Offshore
Tschudi Offshore
Troms Offshore
URAG
URS
Varada Marine
Vestland Marine
Viking Supply
Volstad Shipping
Vroon
Vroon Standby
World Wide Supply
Zafiro Marine

ALL CONTENT OF THIS SITE REMAINS THE PROPERTY OF THE WRITERS AND THE PHOTOGRAPHERS AND MUST NOT BE REPRODUCED WITHOUT PERMISSION
